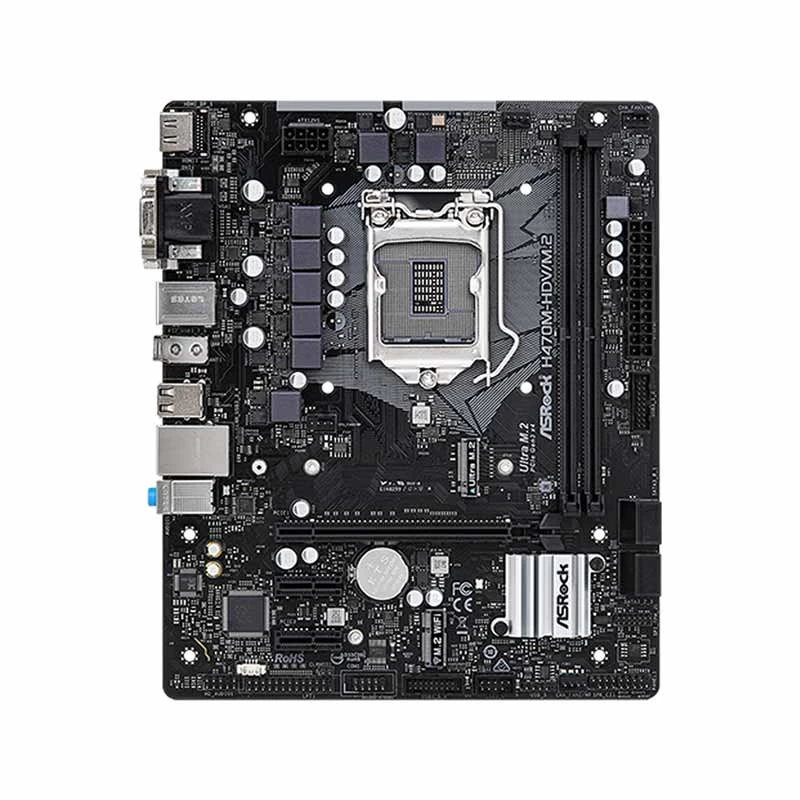

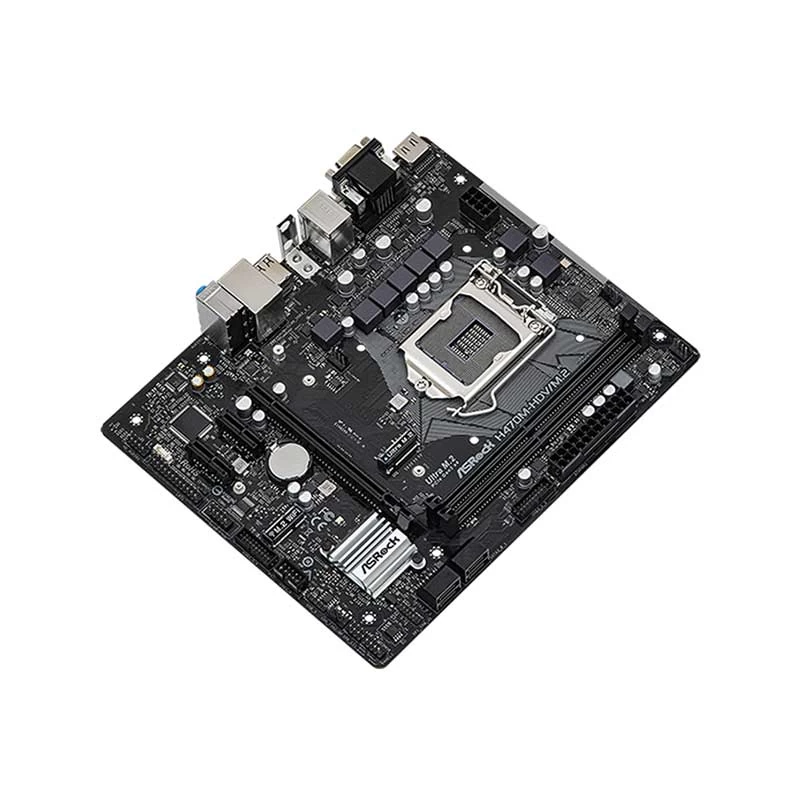

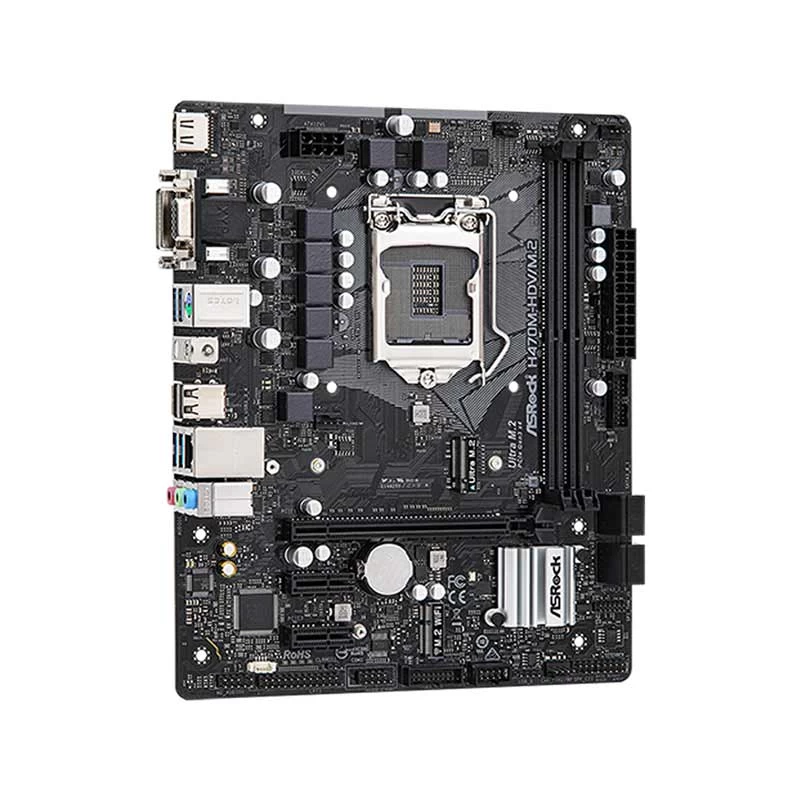

ASRock H470M-HDV/M.2 DDR4 Intel Motherboard

Product Id: 02.01.504.121

Brand Asrock

Regular Price Tk 9,330 Monthly EMI Tk 778
Special Price Tk 8,600

Quick Overview

  • Chipset - Intel H470
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1200
  • Supported CPU - Supports 10th Gen Intel Core Processors (Socket 1200)
  • Generation - 10th
General
Brand
ASRock

Model
ASRock H470M-HDV/M.2

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H470

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
Supports 10th Gen Intel Core Processors (Socket 1200)

Generation
10th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 2933/ 2800/ 2666/ 2400/ 2133MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
2

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express 3.0 x 16, 2 x PCI Express 3.0 x 1


Audio & Video
Audio Chipset
Realtek ALC897

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel I219V

LAN Speed (Mbps)
10/ 100/ 1000Mbps

WiFi
No

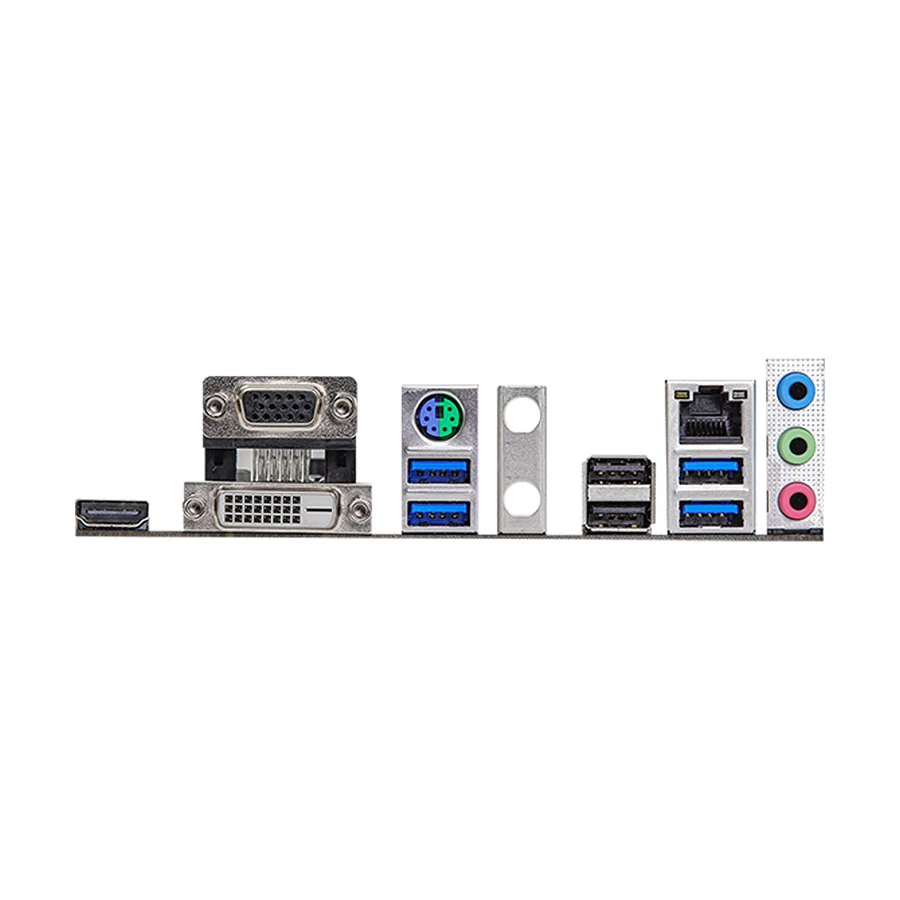

Ports
USB Port
2 x USB 2.0, 4 x USB 3.2 Gen 1

VGA Port
1

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb

BIOS Model
AMI UEFI BIOS

BIOS Version
ACPI 6.0, SMBIOS 2.7


Compatibility
Supported Operating System
Windows 10, 11

Compatible Products
Core i3, Core i5, Core i7, Core i9 (10th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
ASRock Super Alloy: Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, Supports PXE, Software and UEFI: Software: ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN, UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer.

Others
Digi Power design, 7 Power Phase design, Supports Intel Turbo Boost Max 3.0 Technology, Supports ECC UDIMM memory modules (operate in non-ECC mode), Supports Intel Extreme Memory Profile (XMP) 2.0, CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment, Graphics: Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1, Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid/ Switchable Graphics, OpenCL 2.1, Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc, Supports Triple Monitor, HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 1920x1200 @ 60Hz, Connector: 1 x Print Port Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, Rear Panel I/O: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone.

Country Of Origin
Taiwan

Made in/ Assemble
China
