3 x M.2 ((1 x M2, type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x M.2, type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x M.2 type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
Multi-GPU Support
AMD CrossFire
PCI Express Slot
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode
Audio & Video
Audio Chipset
Realtek ALC4082
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Dragon RTL8125BG
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
Yes
WiFi Technology
2x2 Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port

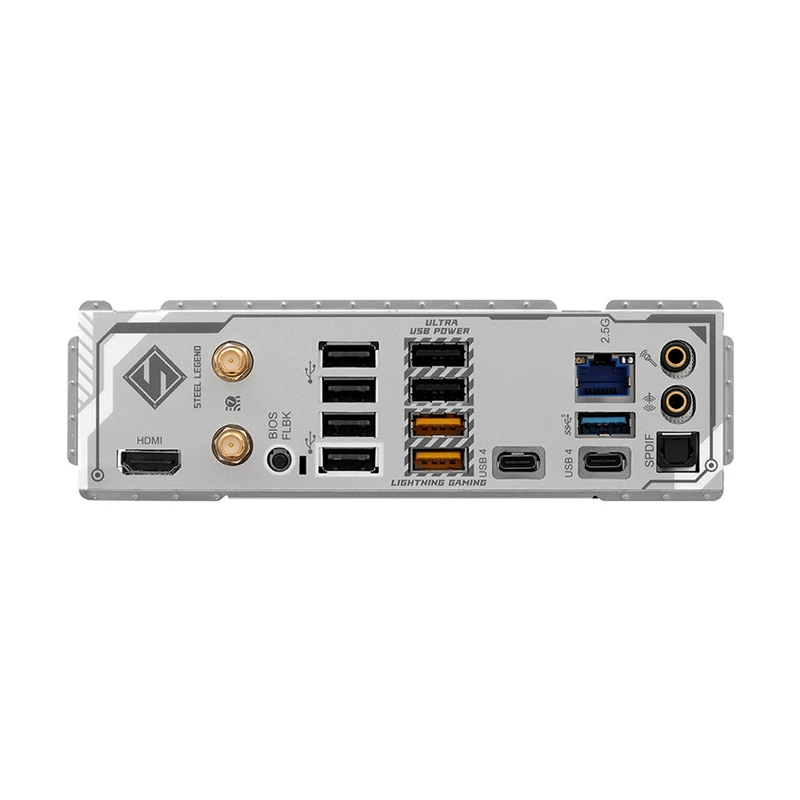

2 x USB4 Type-C Ports (40 Gb/s), 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.), 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.), 4 x USB 2.0 Ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 10
RGB Support
RGB
RGB Sync
Polychrome SYNC
RGB Connector
1 x RGB LED Header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256Mb
BIOS Model
AMI UEFI BIOS
Compatibility
Supported Operating System
Windows 10, Windows 11
Compatible Products

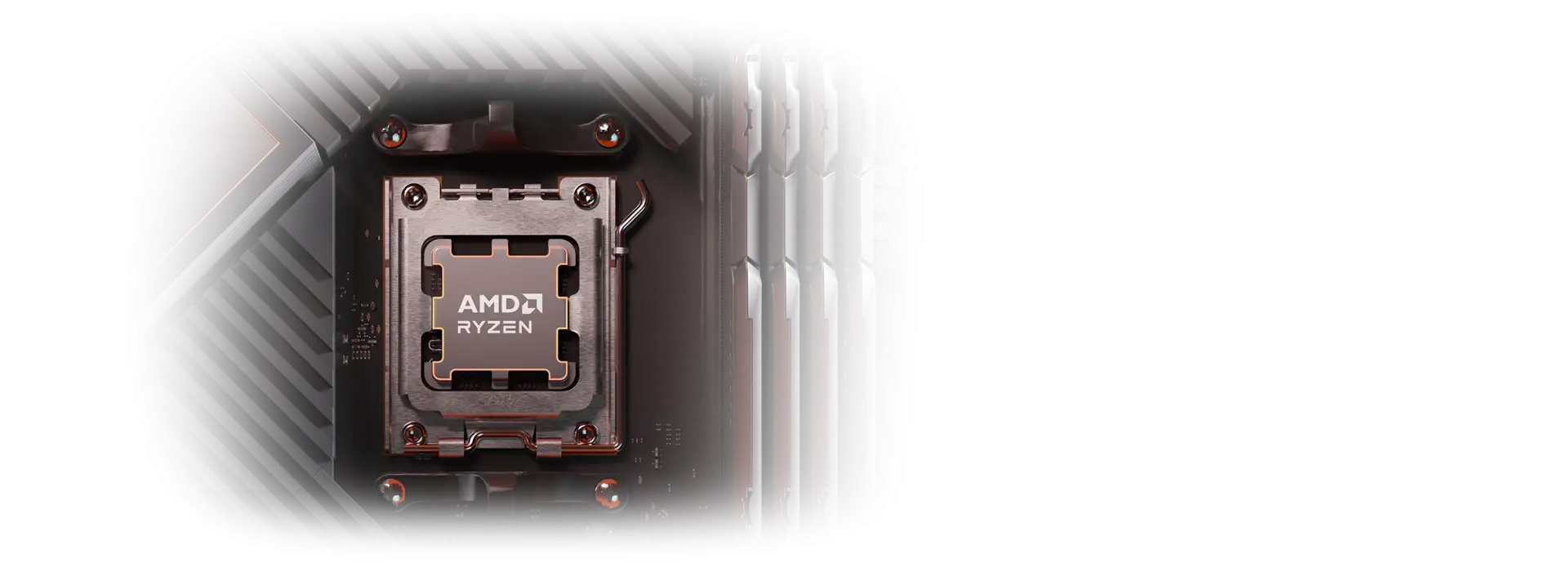

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Warranty
Warranty Details
3 year
Additional Info
Feature

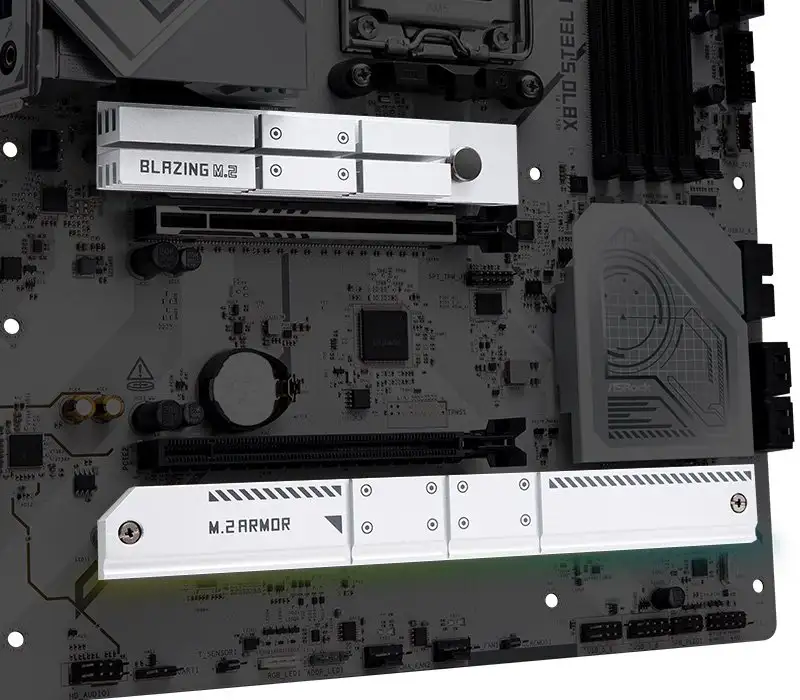

14+2+1 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. 8 Layer PCB design: The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. PCIe Gen5 Blazing M.2: The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Others
Rock-Solid Durability: 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor, Flexible Integrated I/O Shield, upports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band, 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO, Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Country Of Origin
Taiwan
Made in/ Assemble
China
