4 x M.2 (1 x M.2 22110 (PCIe 5.0 x4), 1 x M.2 2280 (PCIe 5.0 x4), 2 x M.2 2280 (PCIe 4.0 x4))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 SafeSlot, 1 x PCIe 4.0 x16 Slots (x4)
Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4

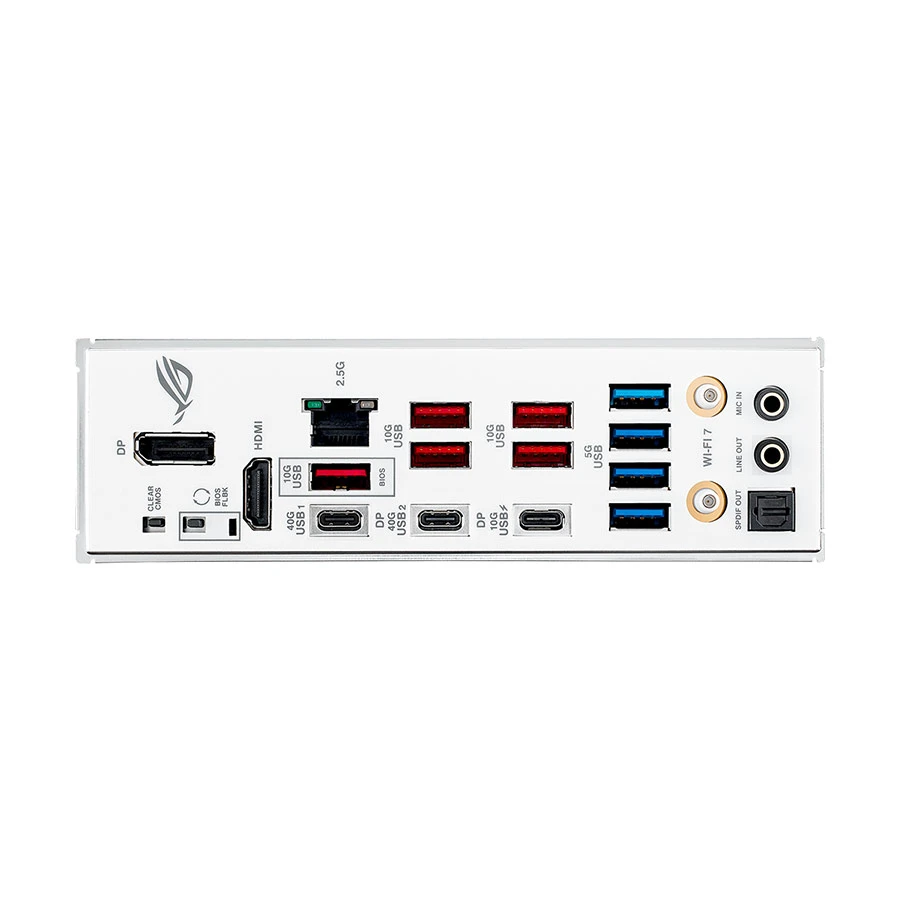

Ports
USB Port
2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge), 4 x USB 5Gbps ports (4 x Type-A)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
2
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/ 1/ 5/ 10
RGB Support
RGB
RGB Sync
Aura Sync
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature

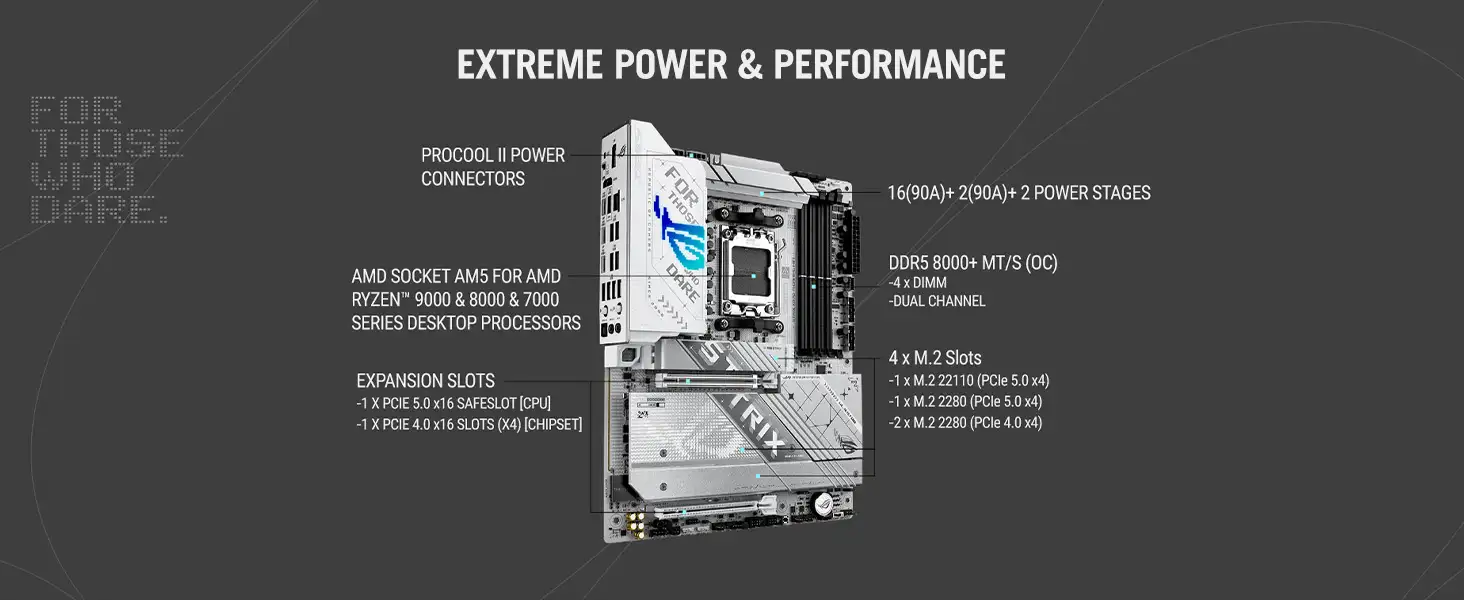

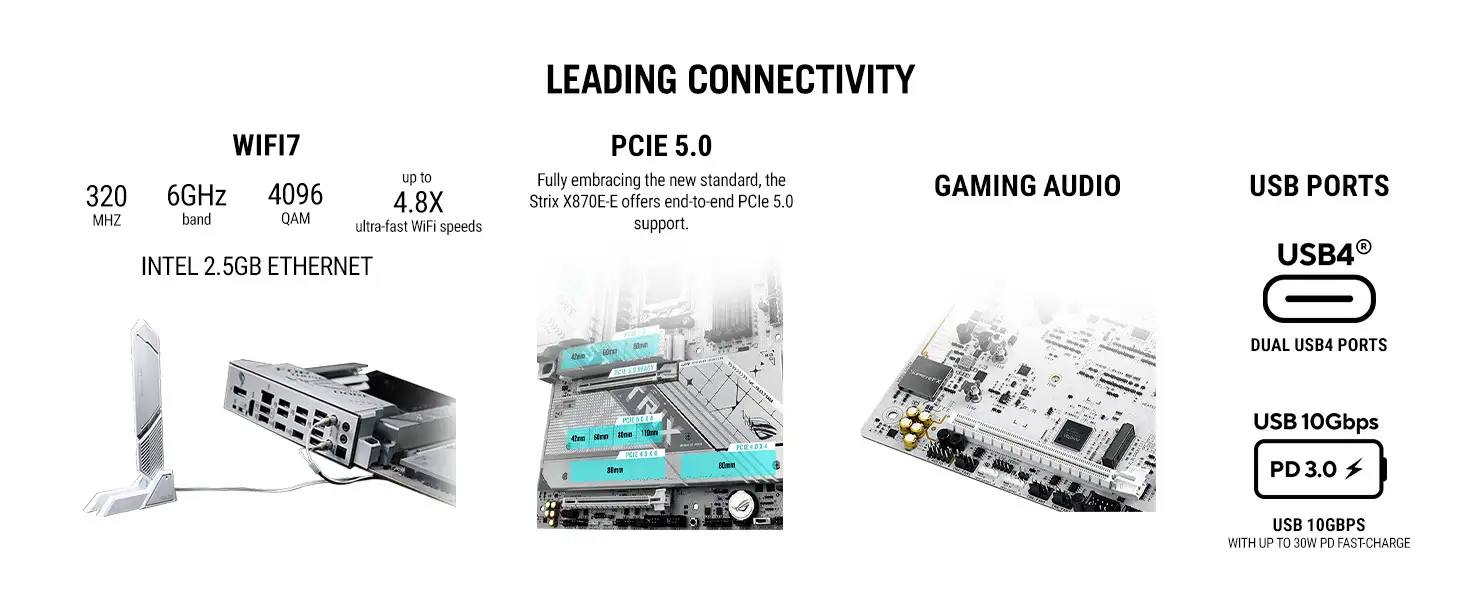

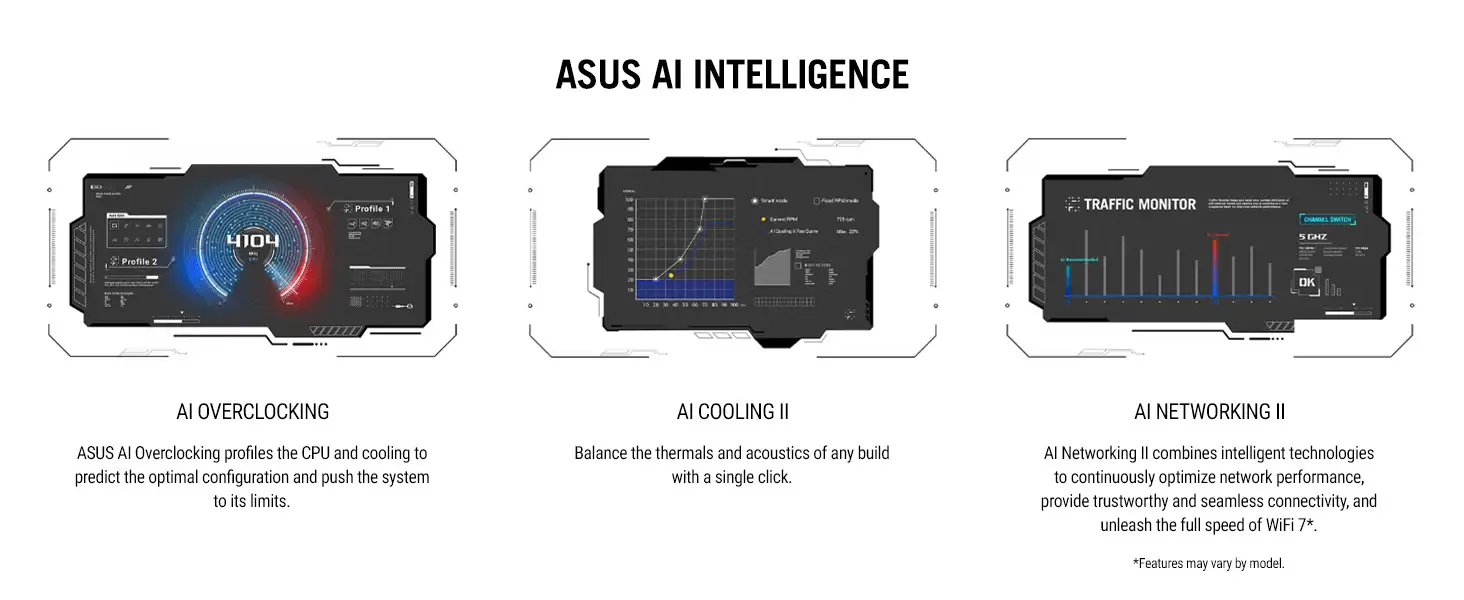

Extreme Power & Performance, ASUS AI INTELLIGENCE, leading Connectivity, SOFTWARE UTILITIES, OUTSHINE THE COMPETITION
Others
Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage Related: 4 x M.2 slots (Key M) , 2 x SATA 6Gb/s ports, USB: 1 x USB 20Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 1 x Chassis Intrusion header, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, Features: Extreme Engine Digi+, ASUS Q-Design , ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, ROG Exclusive Software, ASUS Exclusive Software, UEFI BIOS, ASUS EZ DIY, Manageability WOL by PME, PXE Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubber packages, Documentation: 1 x Quick start guide.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
