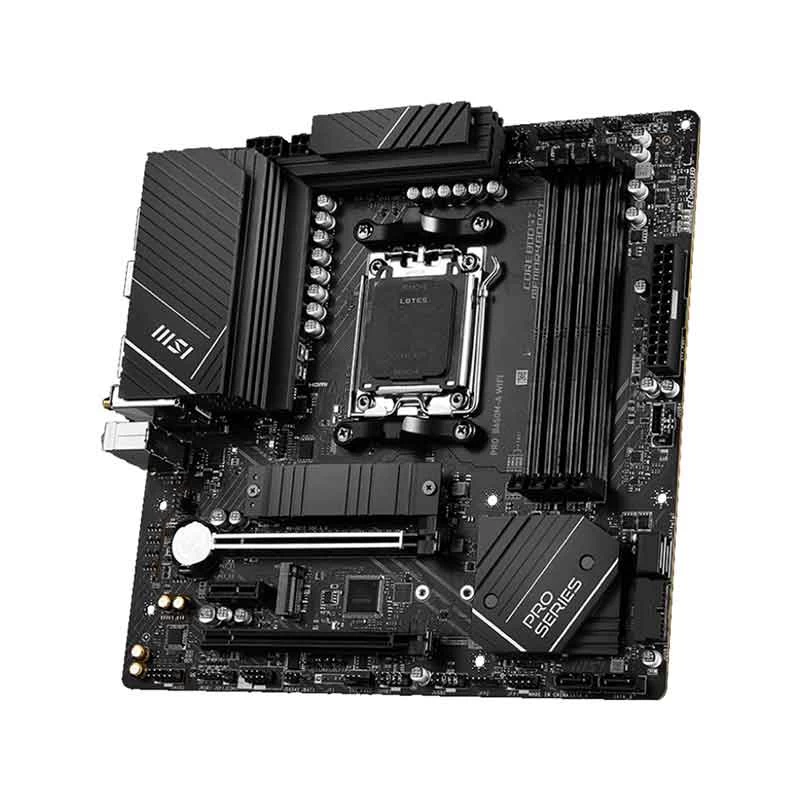

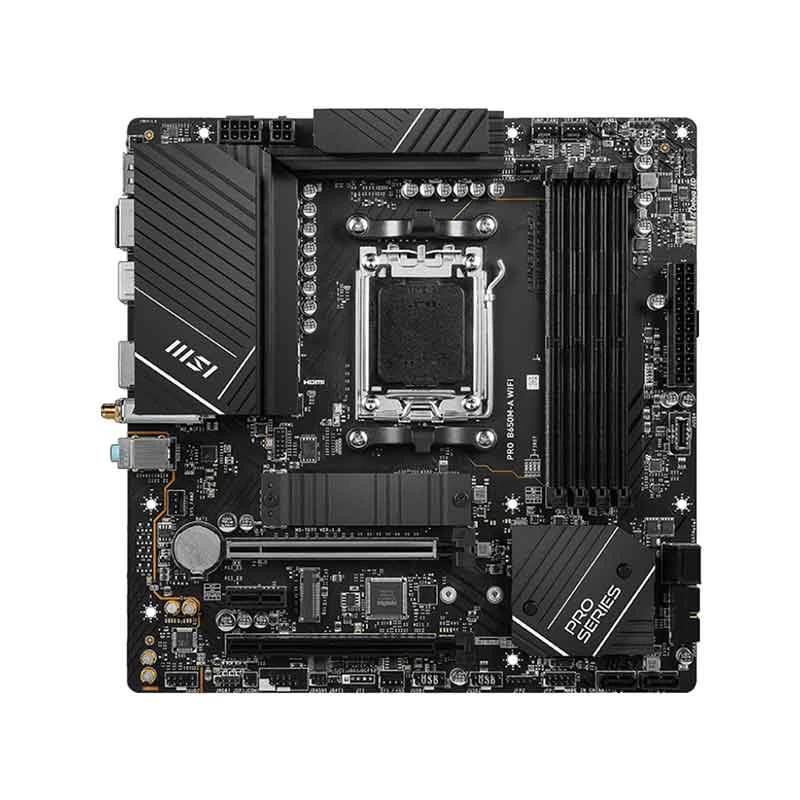

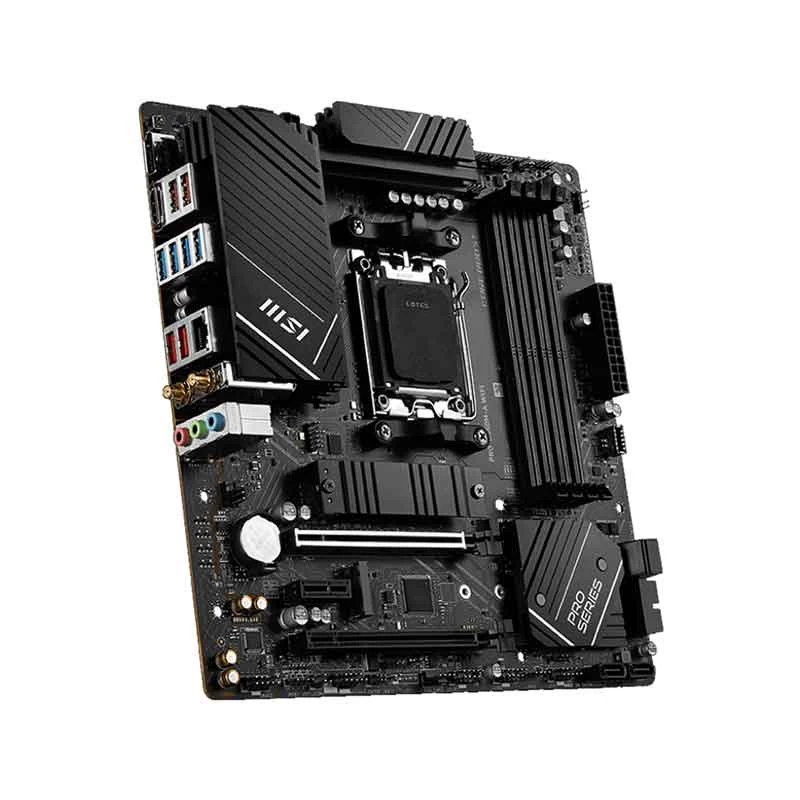

MSI PRO B650M-A (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard

Product Id: 02.02.033.361

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B650
  • Sockets Supported - AM5
  • Supported CPU - AMD Ryzen 7000 Series
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
MSI

Model
MSI PRO B650M-A (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B650

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
AMD Ryzen 7000 Series

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 slot (2 x M.2 PCIe 4.0 x4 , supports 2280/2260 )


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
2 x PCI-E x 16, 1 x PCI-E x 1 (PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset))


Audio & Video
Audio Chipset
Realtek ALC897

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 8125BG

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
Yes

WiFi Technology
AMD Wi-Fi 6E

Bluetooth
Bluetooth 5.2


Ports
USB Port
4 x USB 3.2 Gen 1 Type A , 4 x USB 3.2 Gen 2 Type A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Connector
2 x RGB LED connector

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11, Windows 10

Compatible Products
Sockets Supported AM5: AMD Ryze 7000 Series Desktop Processors


Warranty
Warranty Details
3 year


Additional Info
Feature
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. EZ Debug LED: Easiest way to troubleshoot. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Others
INTERNAL I/O: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0. Back Panel Ports: Audio connectors Flash BIOS Button.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
