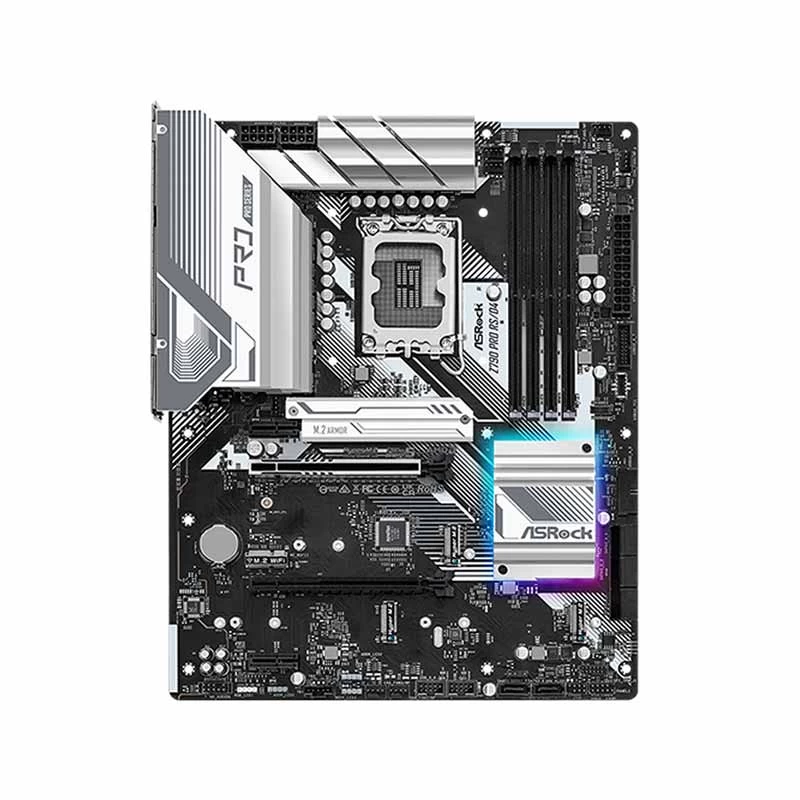

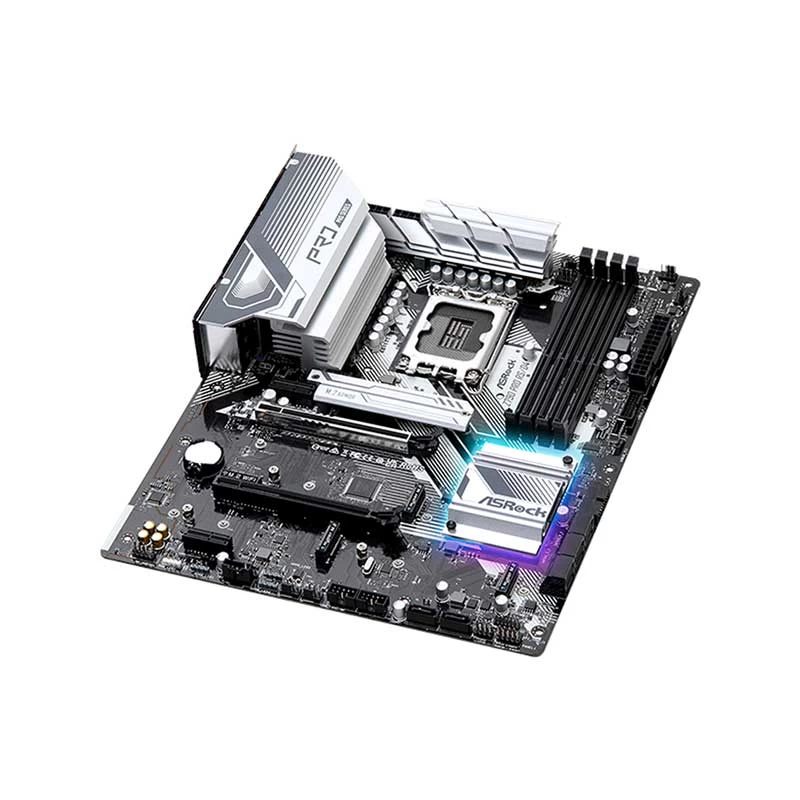

ASRock Z790 Pro RS/D4 DDR4 Intel Motherboard

Product Id: 02.01.504.120

Brand Asrock

Regular Price Tk 31,250 Monthly EMI Tk 2,604
Special Price Tk 28,800

Quick Overview

  • Chipset - Intel Z790
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - Supports 13th/14th Gen & 12th Gen and next gen Intel Core Processors
  • Generation - 12th/13th/14th
General
Brand
Asrock

Model
ASRock Z790 Pro RS/D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Supports 13th/14th Gen & 12th Gen and next gen Intel Core Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
5333+(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
5

M.2/SSD Expansion Slot Details
5 x M.2 Slots (1 x Hyper M.2 Socket Key M type 2260/2280 supports PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Key M type 2260/2280 supports PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket Key M type 2260/2280 supports PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket Key M type 2260/2280 supports PCIe Gen4x4 (64 Gb/s) mode, 1 x M.2 Socket Key E type 2230 supports WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
Supports AMD CrossFire

PCI Express Slot
1 x PCIe 5.0 x16 Slot (PCIE2) supports x16 mode, 1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode, 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)


Audio & Video
Audio Chipset
Realtek ALC897 Audio Codec, Nahimic Audio

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Dragon RTL8125BG

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A.

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
8 x SATA

Thunderbolt
1

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED Header, 3 x Addressable LED Headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
128 Mb

BIOS Model
AMI UEFI Legal BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) Certifications, Intel Extreme Memory Profile (XMP) 3.0.

Others
Connector: (1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
