2 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth
Bluetooth 5.2
Ports
USB Port
2 x USB 2.0 Type-A, 4 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
2 x Addressable Gen 2 headers, 1 x Aura RGB header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
12th/ 13th/ 14th Gen Intel Core i9/ i7/ i5/ i3 and Pentium/ Celeron processors in the LGA1700
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications, Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS EZ DIY, ASUS Thermal Solution, Aura Sync, ASUS Exclusive Software, Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet , WiFi 6 and front USB 3.2 Gen 1 support, Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert, Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardwares.
Others

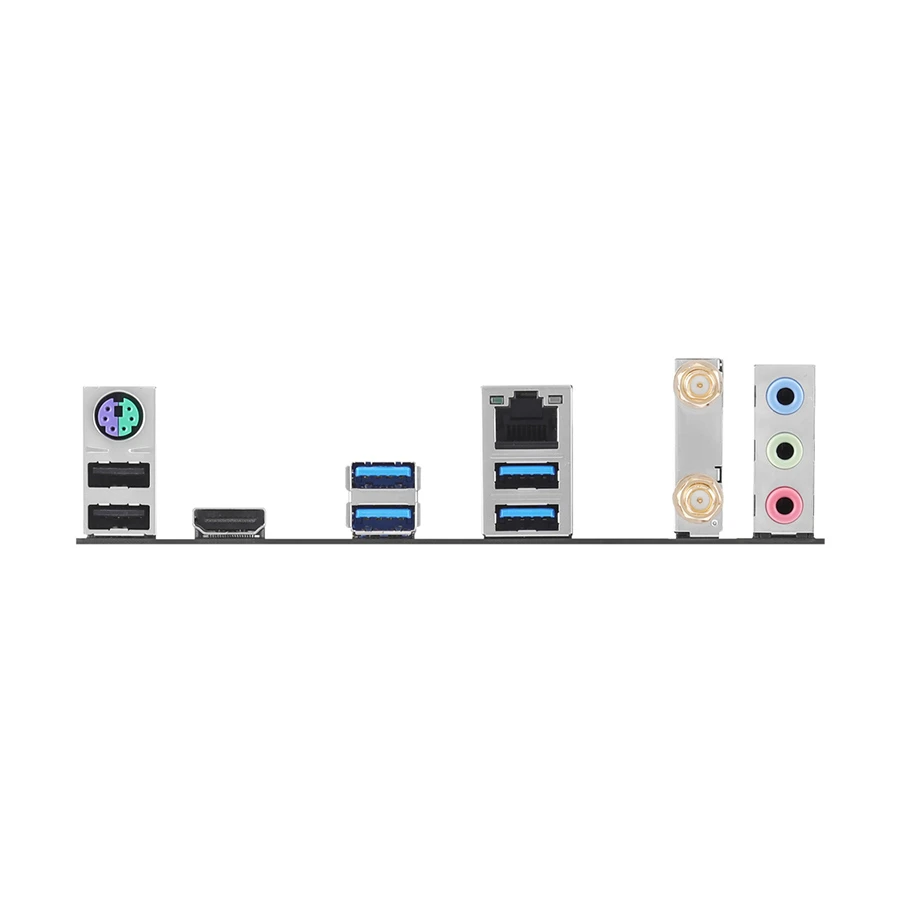

Supports 2.4/5GHz frequency band, Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port, Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Miscellaneous: 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header, Manageability: WOL by PME, PXE.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
