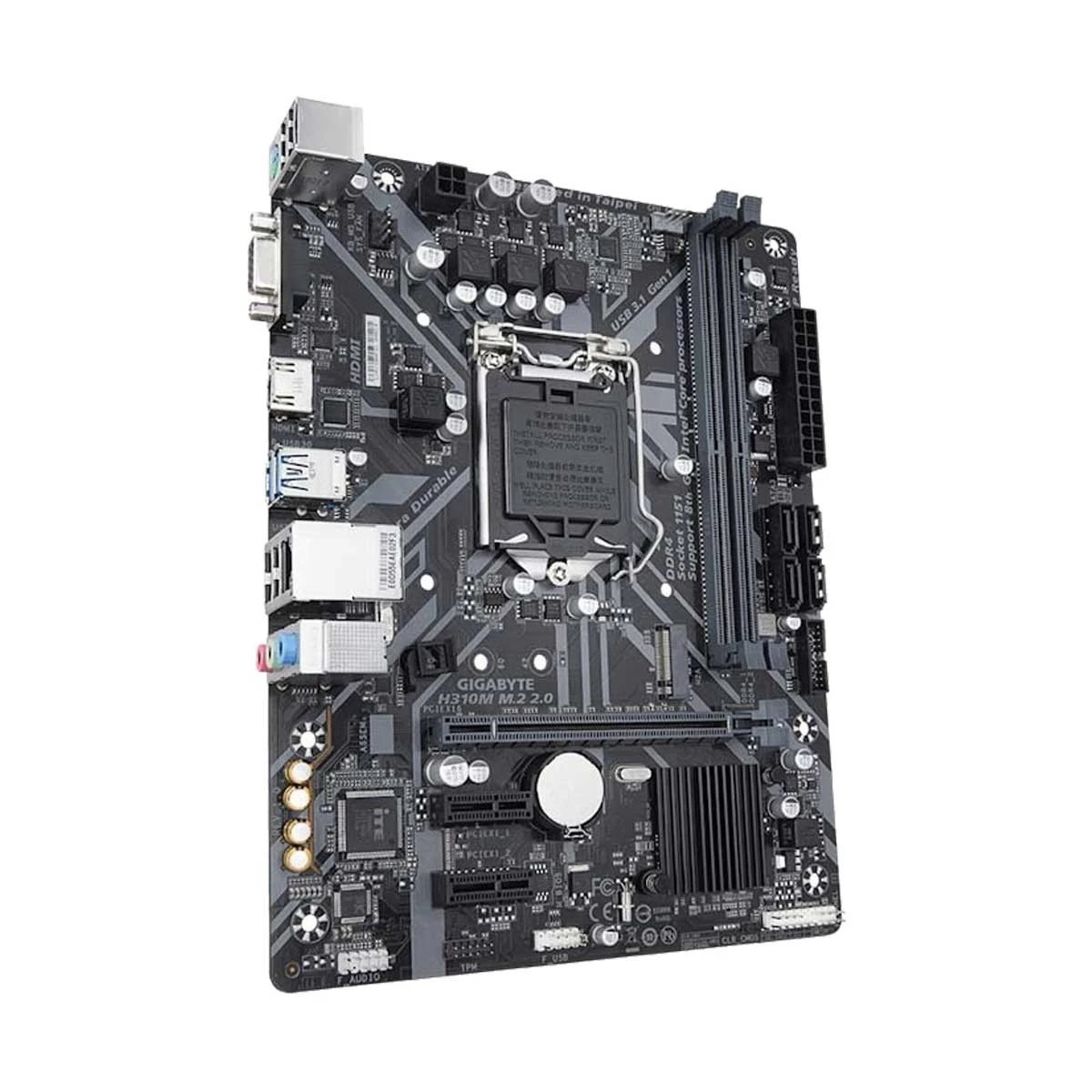

Gigabyte H310M M.2 2.0 8th/9th Gen Intel Motherboard

Product Id: 02.01.018.330

Brand Gigabyte

Regular Price Tk 10,740 Monthly EMI Tk 895
Special Price Tk 10,000

Quick Overview

  • Chipset - Intel H310
  • Sockets Supported - LGA1151
  • Supported CPU - Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron processors
  • Generation - 8th/9th
  • Memory Slot - 2
  • Memory Max. - 32GB
General
Brand
Gigabyte

Model
Gigabyte H310M

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H310

Sockets Supported
LGA1151

Built-in Processor
No

Supported CPU
Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron processors

Generation
8th/9th


Memory Support
Memory Type
DDR4

Memory MHz
2666/ 2400/ 2133 MHz

Memory Channel
Dual

Memory Slot
2

Memory Max.
32GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

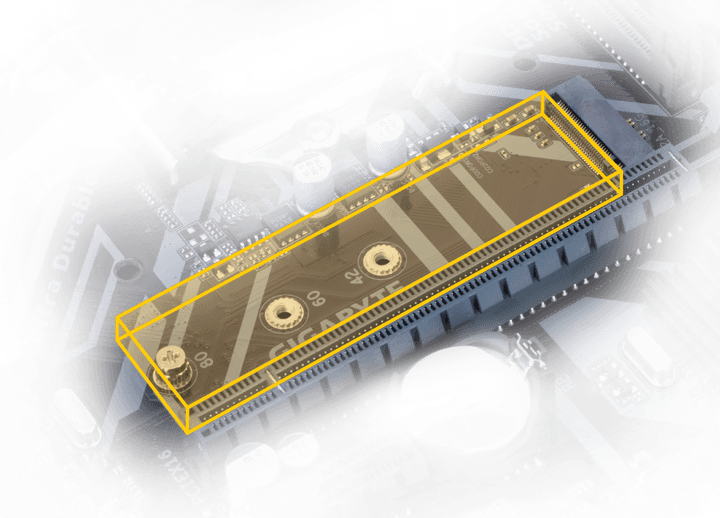

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 Socket 3 (M key, type 2260/2280 SATA and PCIe x2 SSD support)


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

PCI Express Slot
1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots


Audio & Video
Audio Chipset
Realtek ALC887

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN

LAN Speed (Mbps)
10/100/1000

WiFi
No


Ports
USB Port
4 x USB 3.1 Gen 1, 6 x USB 2.0

VGA Port
1

DVI Port
No

HDMI Port
1

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty Details
3 year


Additional Info
Feature

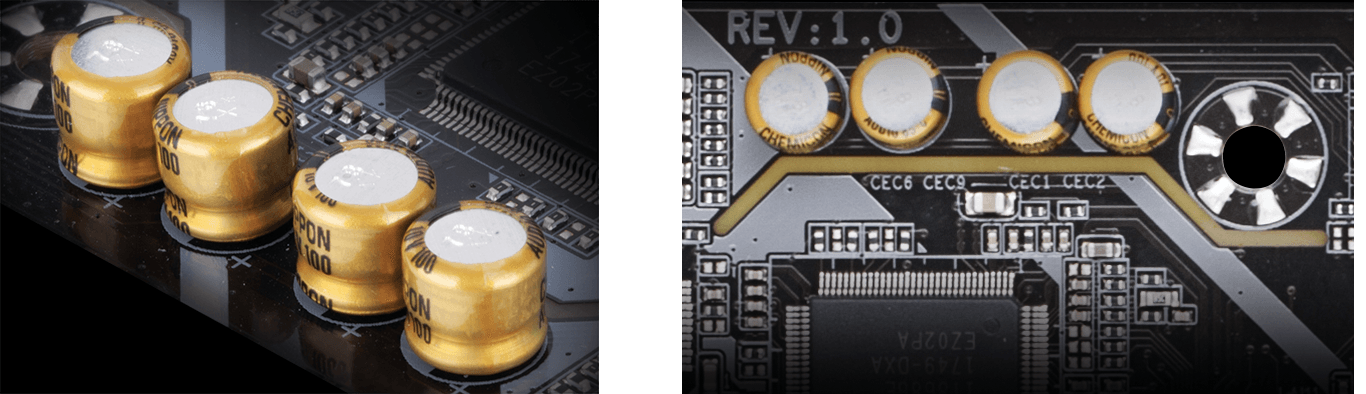

Supports 9th and 8th Gen Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, 8-Channel HD Audio with High Quality Audio Capacitors, Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface, HDMI 1.4, D-Sub Ports for Multiple Display, CEC 2019 Ready, Save Power With a Simple Click, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Anti-Sulfur Resistors Design

Others
1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper, 3 x audio jacks

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Will this support Intel 9th Gen Coffee Lake Core i5 9400F Processor - (Without GPU)?
By Farhan Ahmed
A:
Dear Sir, Yes! It will support Intel 9th Gen Coffee Lake Core i5 9400F Processor, Thanks for your query!
By Ryans Computers Ltd. , 16 Mar 2024
Q:
su800 satab/s m.2 2280ssd suppord korbe . ata dui matha kata
By Bisu
A:
প্রিয় গ্রাহক, M.2/SSD Expansion Slot Details - 1 x M.2 Socket 3 (M key, type 2260/2280 SATA and PCIe x2 SSD support), আপনি যেই মডেল শেয়ার করেছেন এরকম কোনো মডেল নেই, আপনার এই মাদারবোর্ড টি তে M.2 2280 SATA SSD সাপোর্ট করবে, ধন্যবাদ!
By Ryans Computers Ltd. , 28 Feb 2024
Q:
vaiya amar kase akta m.2 ase.512 gb. aita dui matha kata .ata ki support korbe amake janaben please
By Bisu
A:
প্রিয় গ্রাহক, আপনার M.2 মডেল টির ডিটেলস মডেল শেয়ার করুন, ধন্যবাদ!
By Ryans Computers Ltd. , 28 Feb 2024
Q:
Msi h310 নেই?
By Tanvir
A:
প্রিয় গ্রাহক, MSIH310 মডেল টি বর্তমানে এভেইল্যাবল নেই, ধন্যবাদ!
By Ryans Computers Ltd. , 28 Feb 2024
Q:
আচ্ছা ৮ম ও ৯ম জেনারেশন সমর্থন করে এরকম মাদারবোর্ড কবে নাগাদদ আসবে?
By Md. Mozammel Haque
A:
প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের  অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ !
By Ryans Computers Ltd. , 14 Oct 2023
Q:
Does it support Intel 6th generation processor?
By Sakib
A:
Dear Sir, Gigabyte H310M M.2 2.0 8th/9th Gen Intel Motherboard won't support the 6th generation processor. Thanks!
By Ryans Computers Ltd. , 30 Aug 2022
