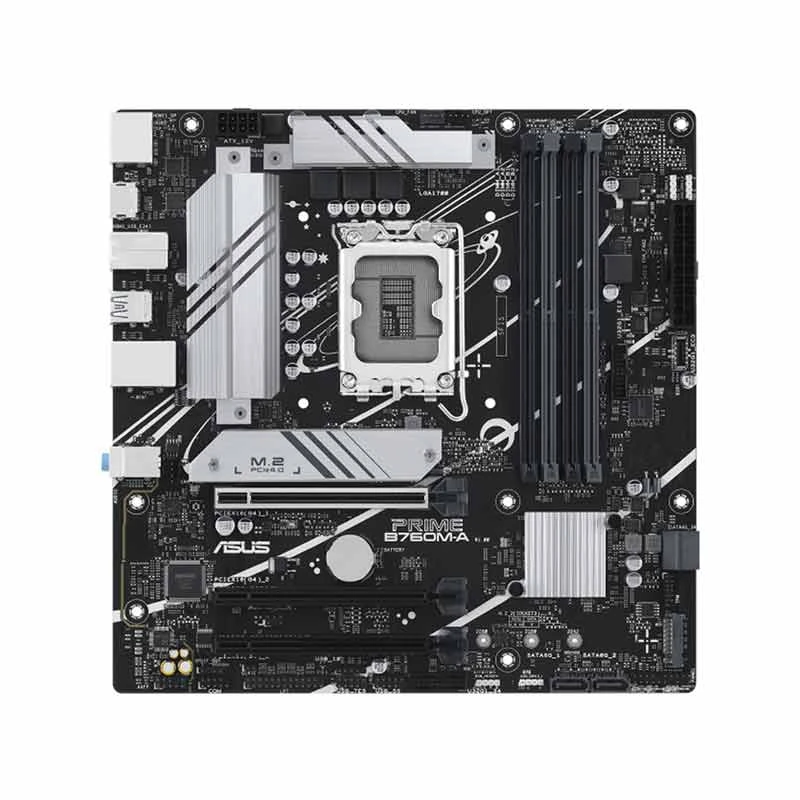

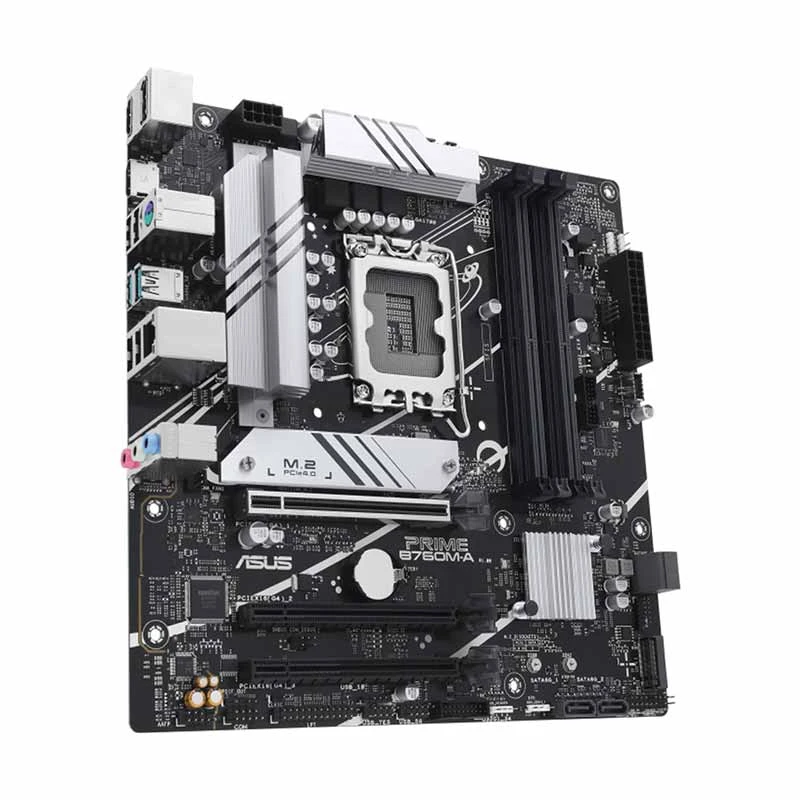

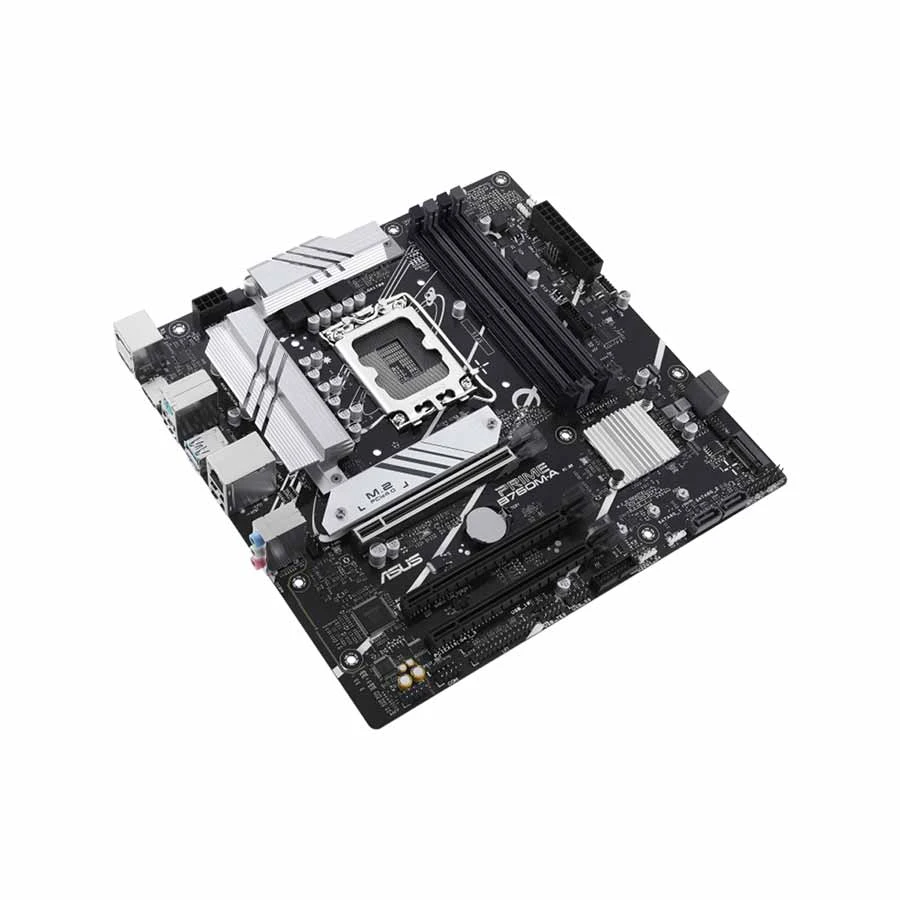

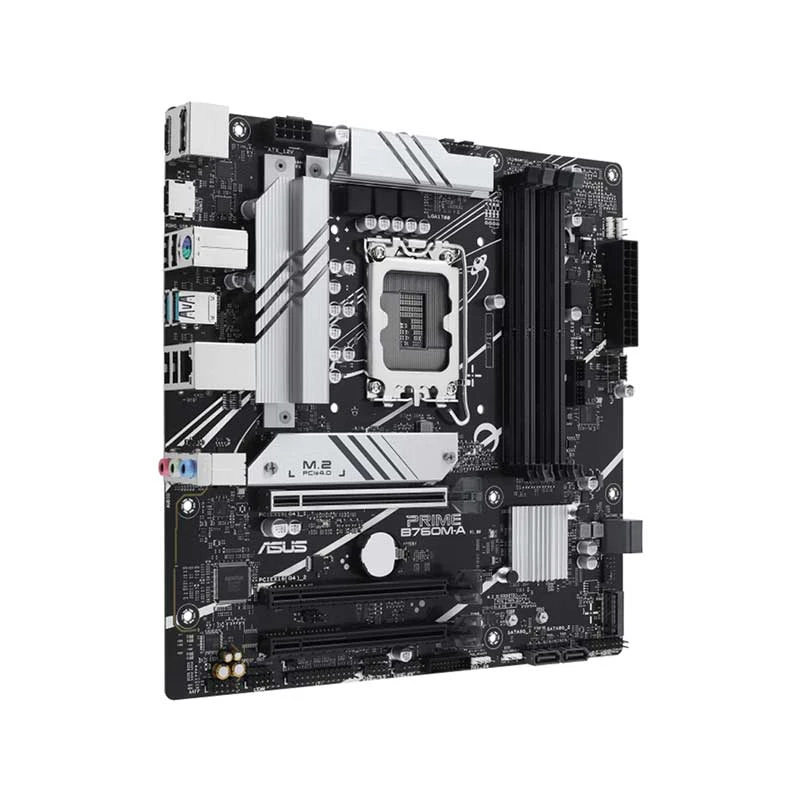

Asus PRIME B760M-A DDR5 Intel Motherboard
Product Id: 02.01.006.480
Brand
Asus
Regular Price Tk 26,910
Monthly EMI Tk 2,243
Special Price Tk 24,900
Quick Overview
- Chipset - Intel B760
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - 14th Gen, 13th Gen & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
General
Brand
Asus
Model
Asus PRIME B760M-A
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
14th Gen, 13th Gen & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) (Processors), 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) (Chipset))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
PCI Express Slot
1 x PCIe 4.0 x 16 (Processors), 1 x PCIe 4.0 x 16 (supports x4 mode), 1 x PCIe 4.0 x 16 (supports x1 mode) (Chipset)
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
No
Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 2 Type-A
VGA Port
No
DVI Port
No
HDMI Port
2
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
Yes
COM Port
Yes
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
Aura sync
RGB Connector
1 x Aura RGB header
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th/14th Gen)
Warranty
Warranty
3 Year
Warranty Details
3 Year Replacement
Additional Info
Feature
Asus 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O, Asus Q-Design: Q-DIMM, Q-LED Core, Q-Slot, Asus Thermal Solution: M.2 heatsink, VRM heatsink design, Asus EZ DIY: ProCool.
Others

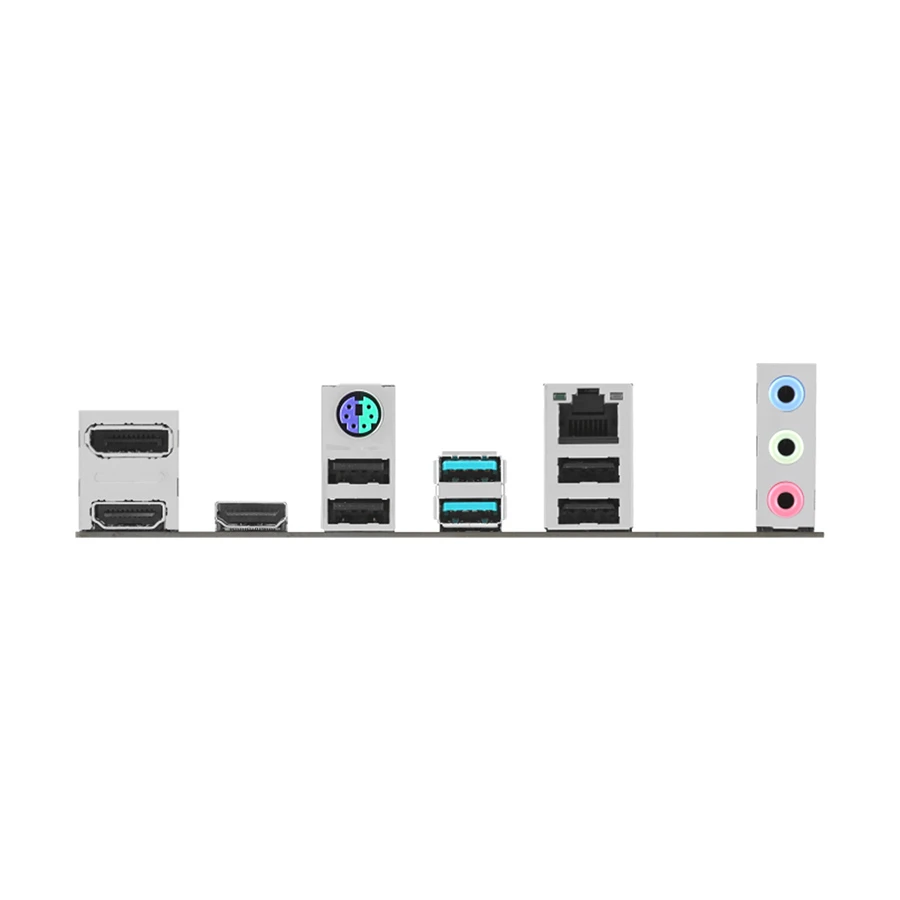

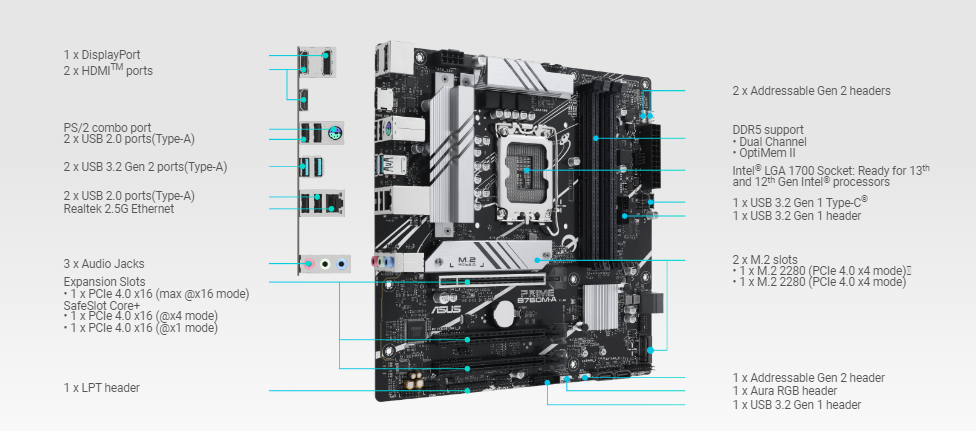

Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus PRIME B760M-A Motherboard In Bangladesh

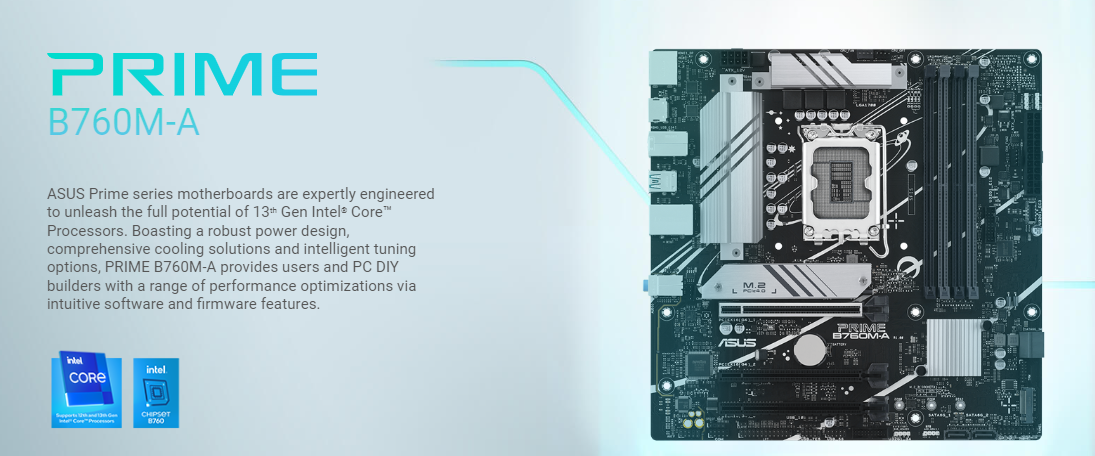

Asus PRIME B760M-A DDR5
Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

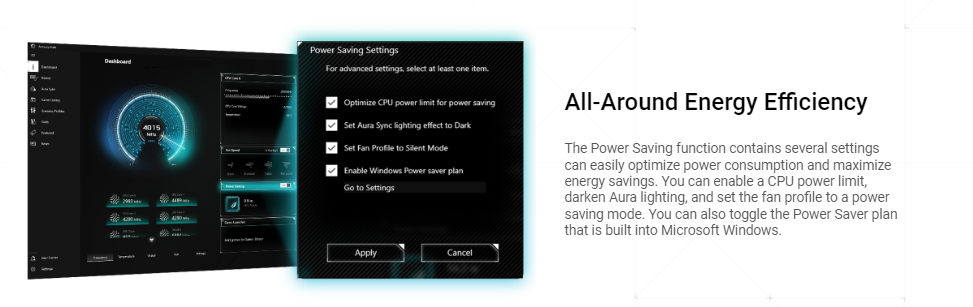

Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

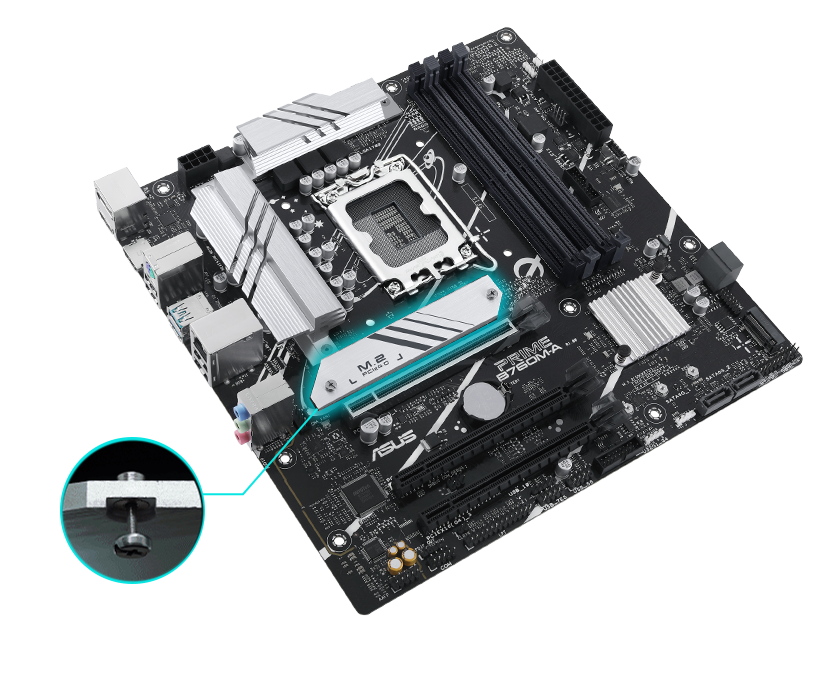

M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

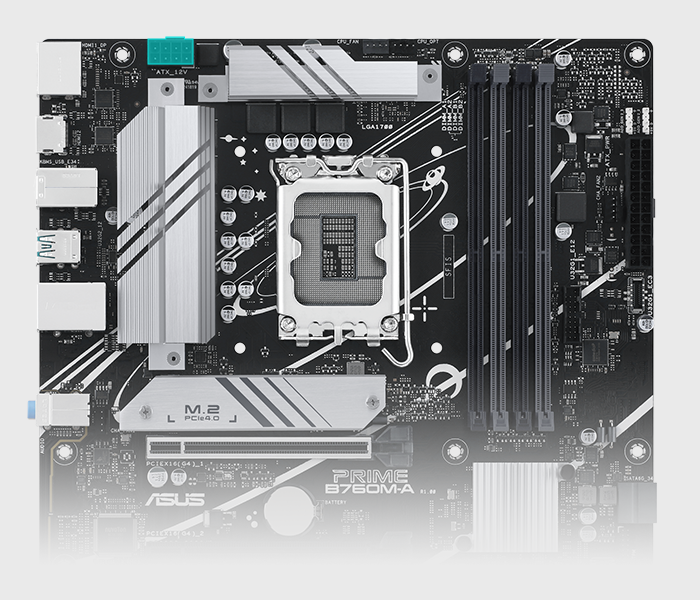

Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A is geared to cater to the demands of these high-core-count CPUs.
ProCool Connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
What is the price of Asus PRIME B760M-A Motherboard In Bangladesh?
The price of Asus PRIME B760M-A Motherboard starts from 24,900 . The price may vary due to your customization and product availability. You can buy Asus PRIME B760M-A Motherboard from our website or visit our showrooms nearby.
