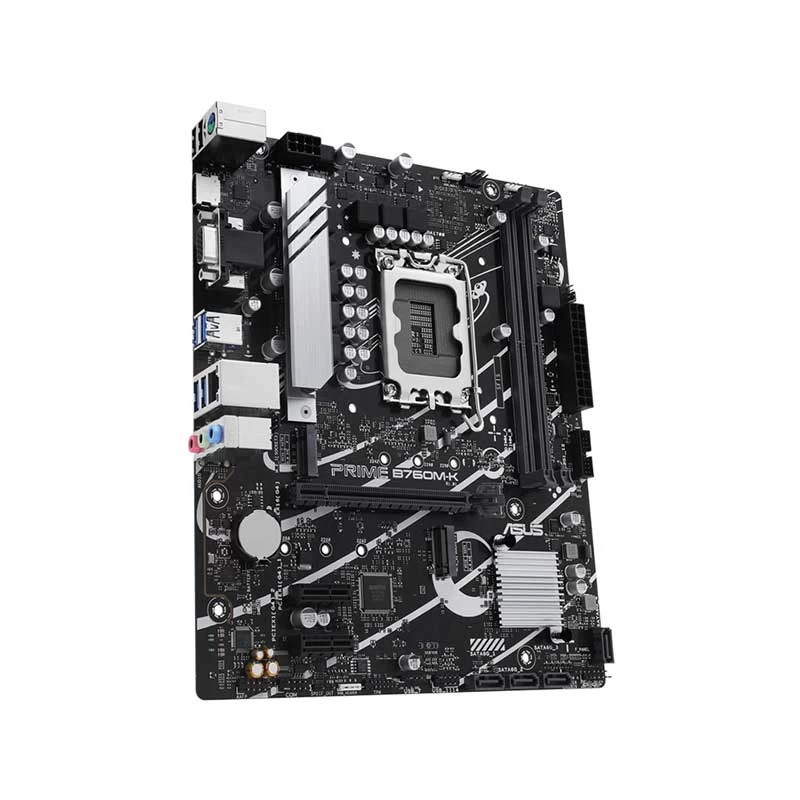

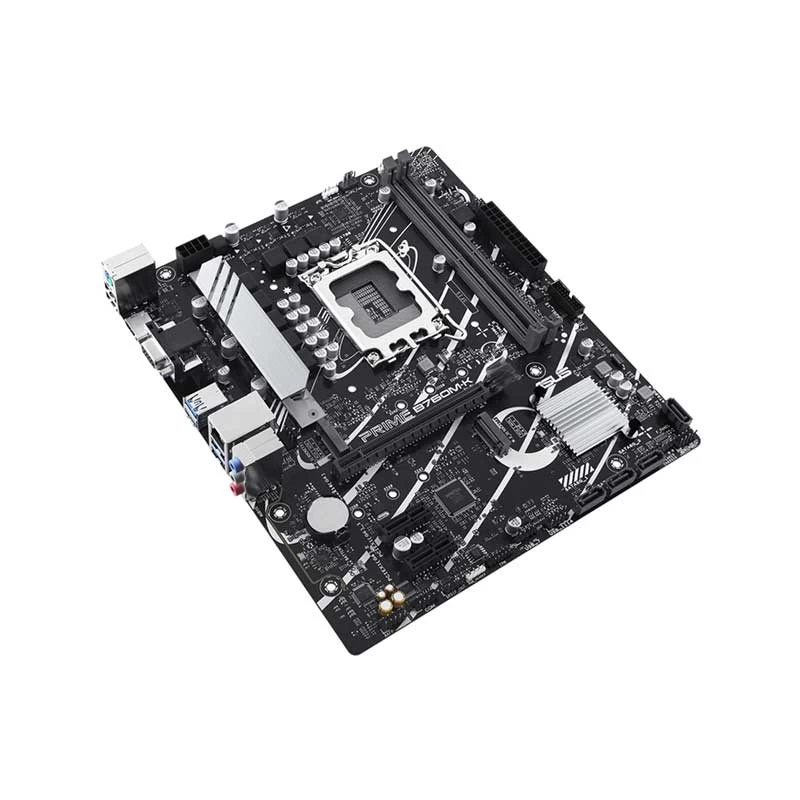

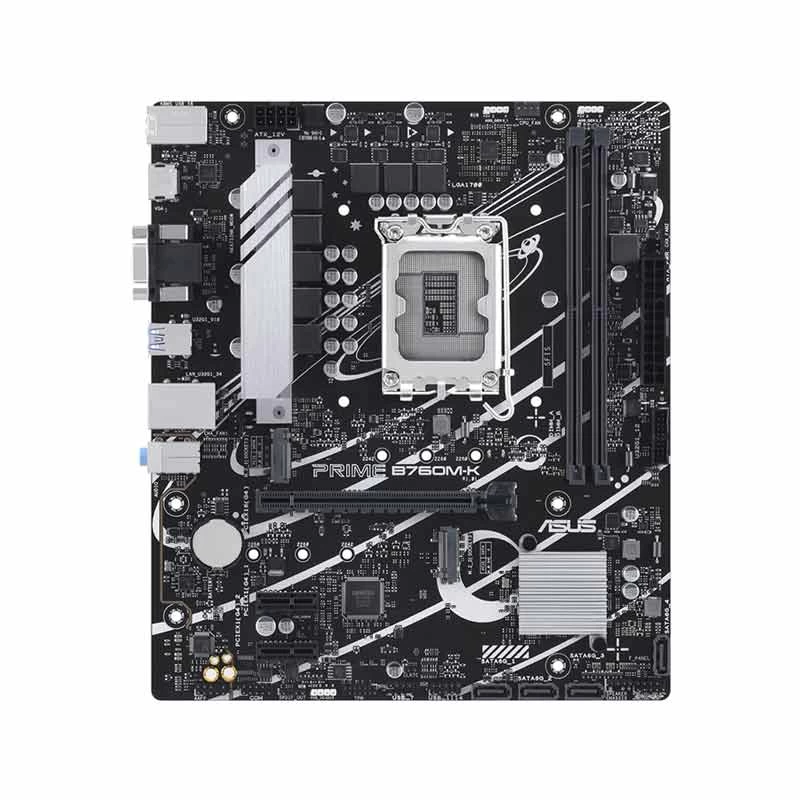

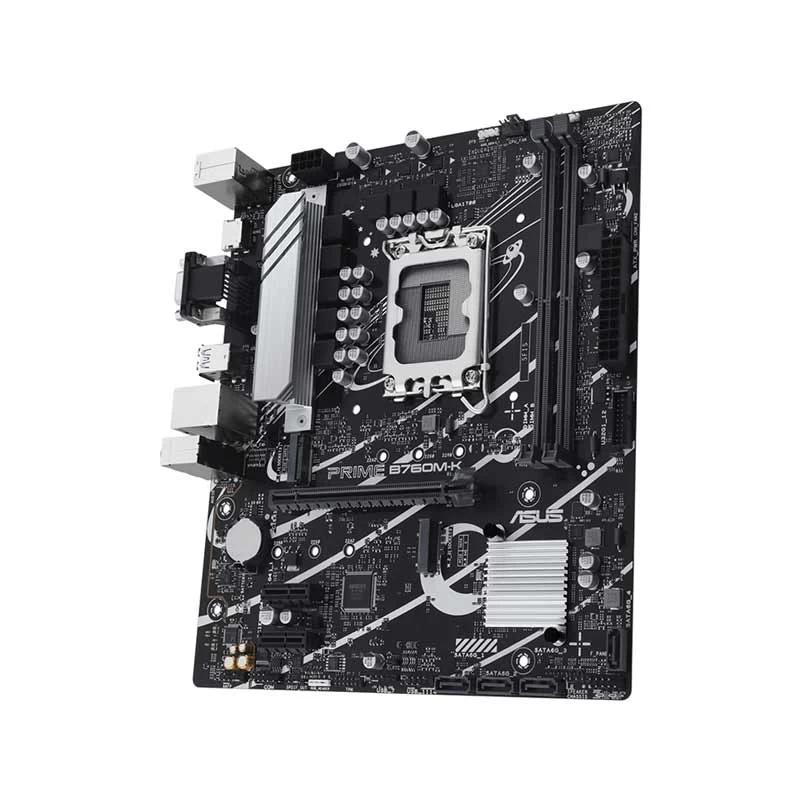

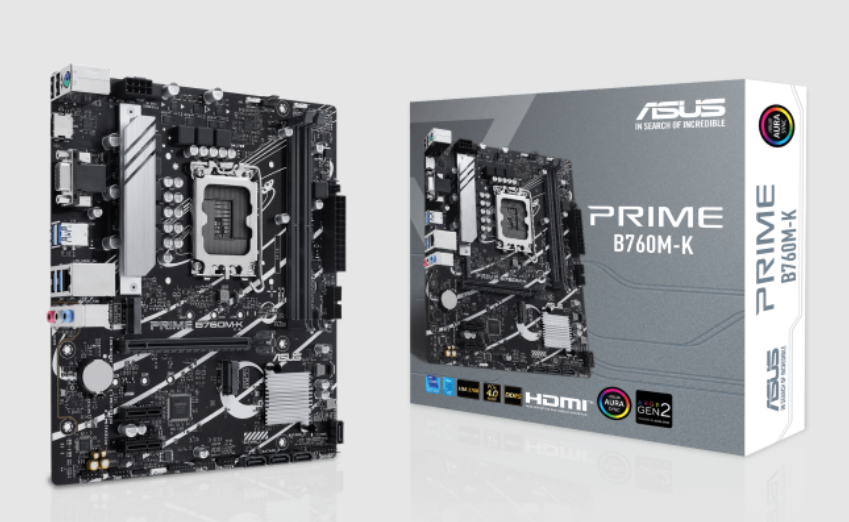

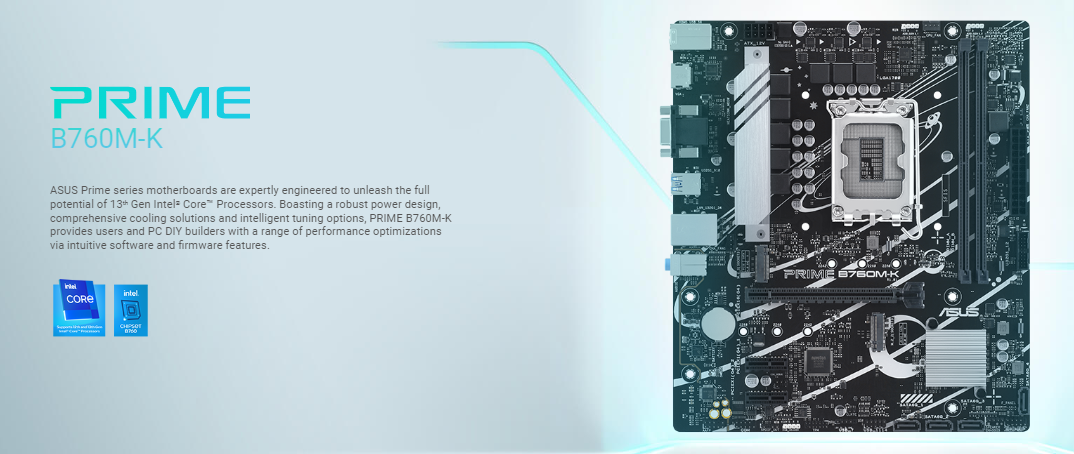

Asus PRIME B760M-K DDR5 Motherboard

Product Id: 02.01.006.475

Brand Asus

Regular Price Tk 18,450 Monthly EMI Tk 1,538
Special Price Tk 17,000

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 96GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - 13th/14th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Asus

Model
Asus PRIME B760M-K

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th/14th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th

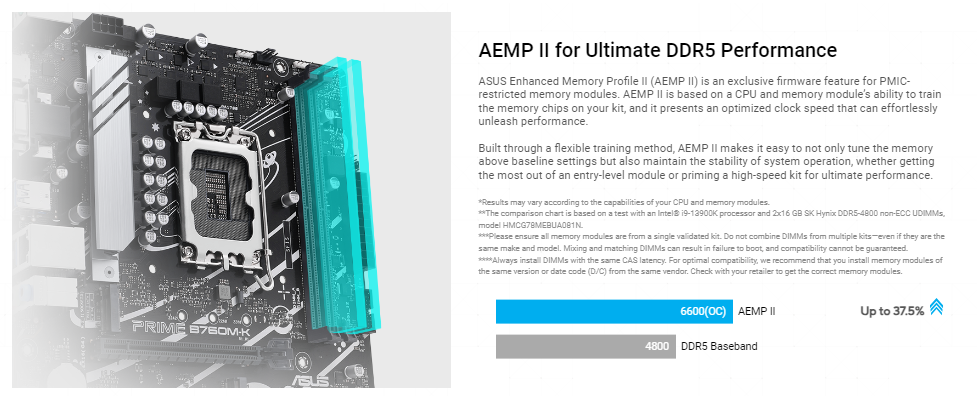

Memory Support
Memory Type
DDR5

Memory MHz
8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
2

Memory Max.
96GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

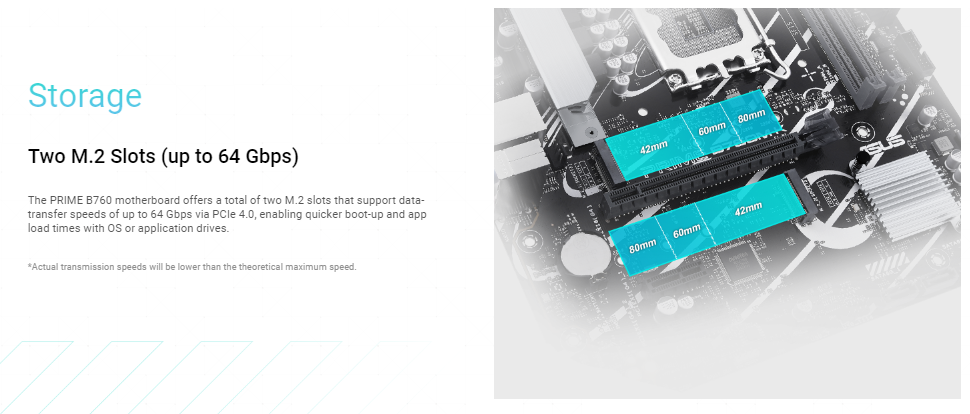

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

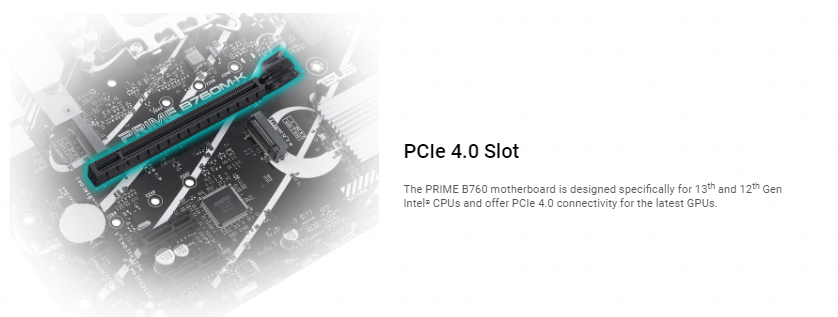

PCI Express Slot
1 x PCIe 4.0 x 16 (Intel 13th & 12th Gen Processors), 2 x PCIe 4.0 x 1 (Intel B760 Chipset)


Audio & Video
Audio Chipset
Realtek High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
No

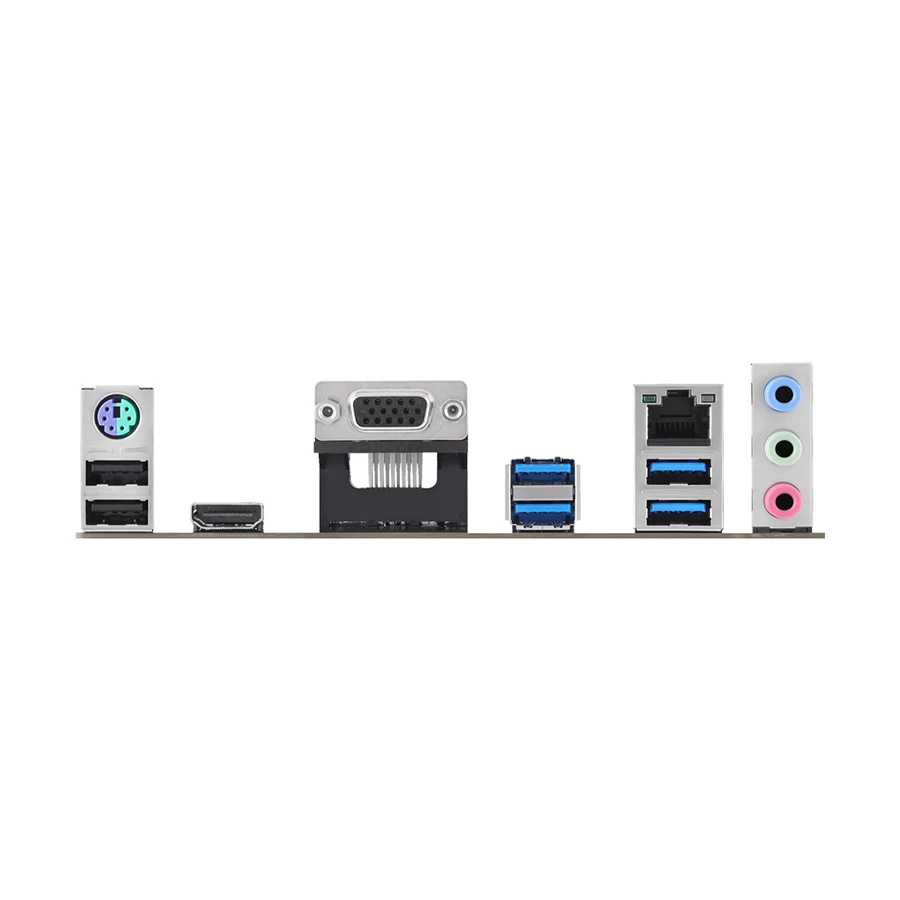

Ports
USB Port
2 x USB 2.0 Type-A, 4 x USB 3.2 Gen 1 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync

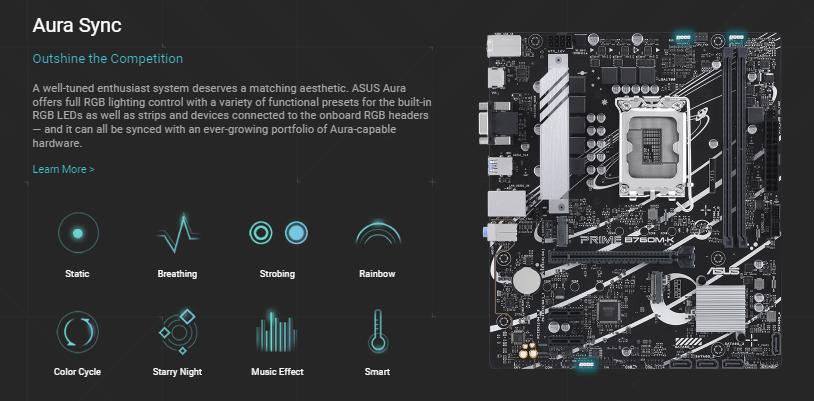

Aura Sync

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, Windows 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS EZ DIY, ASUS Thermal Solution, ASUS Exclusive Software.

Others

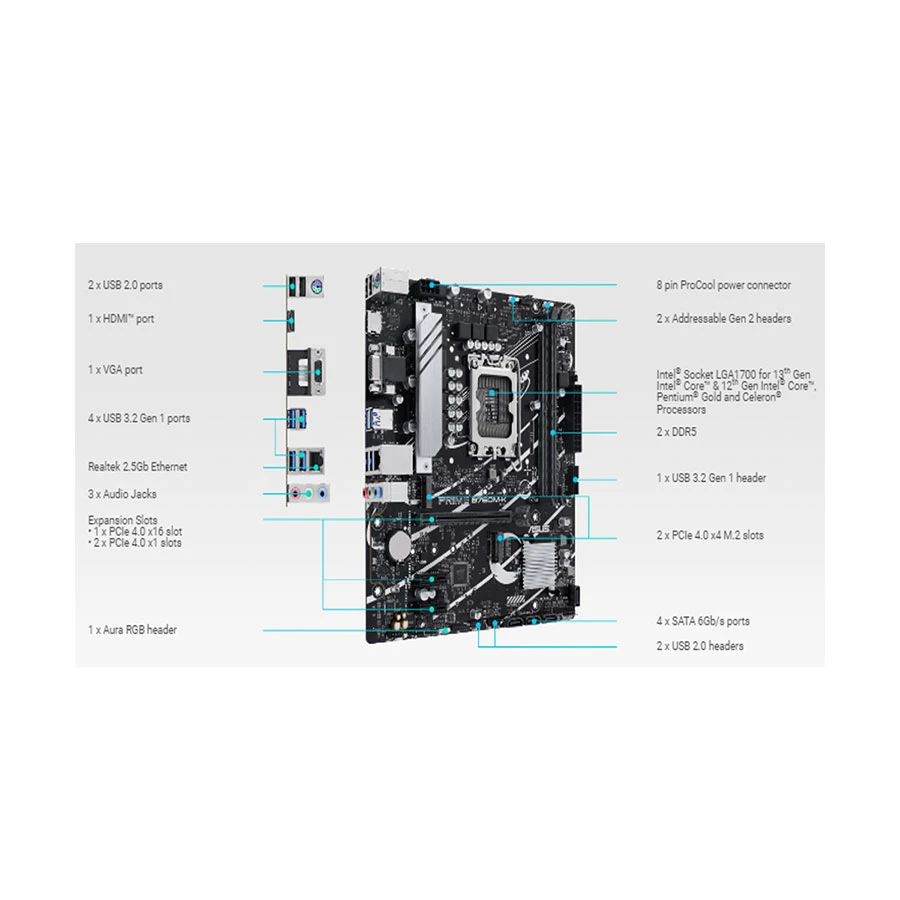

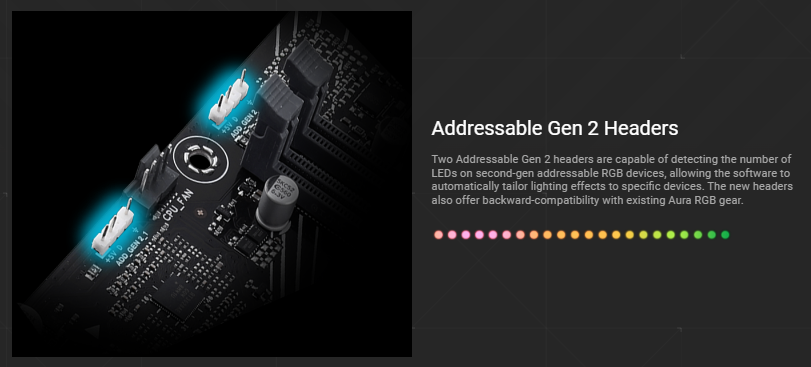

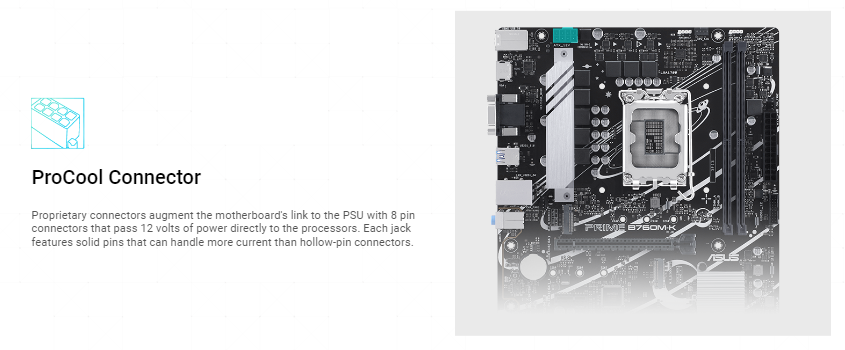

Internal I/O Connectors: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header, Back Panel I/O Ports: 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
