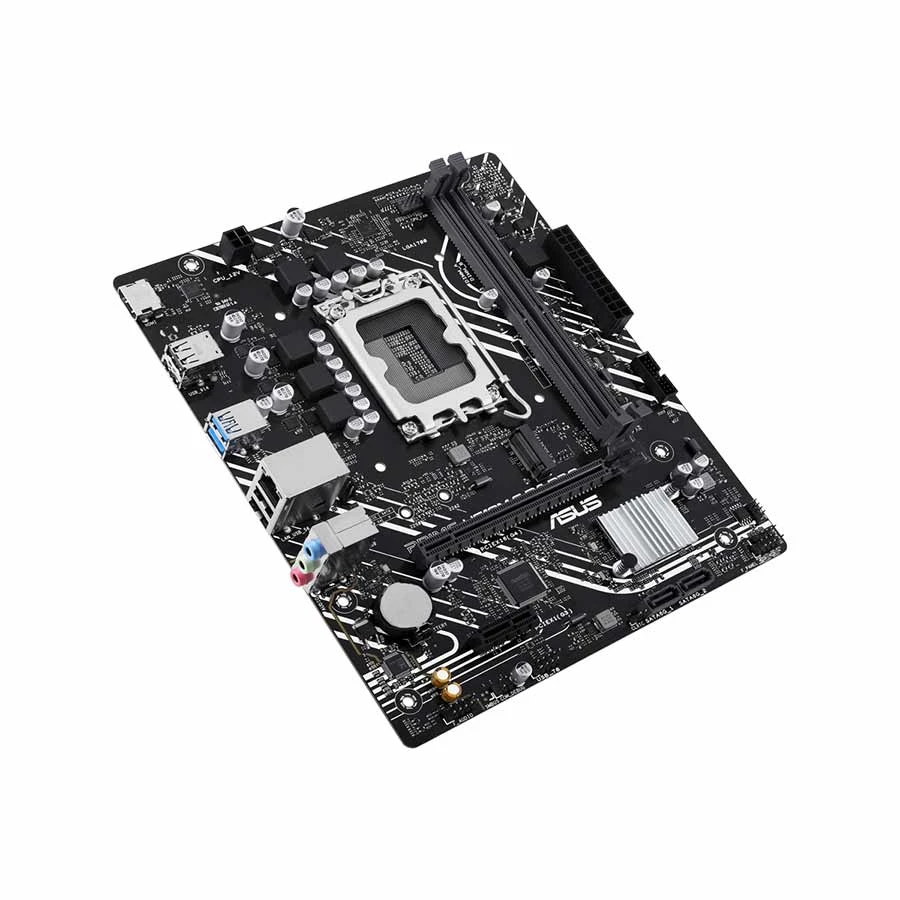

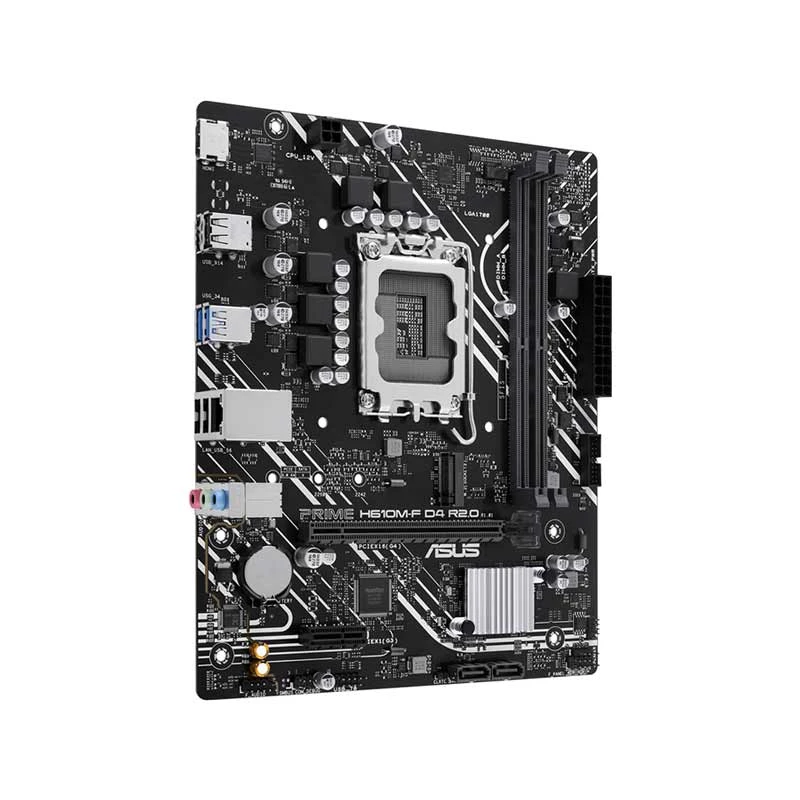

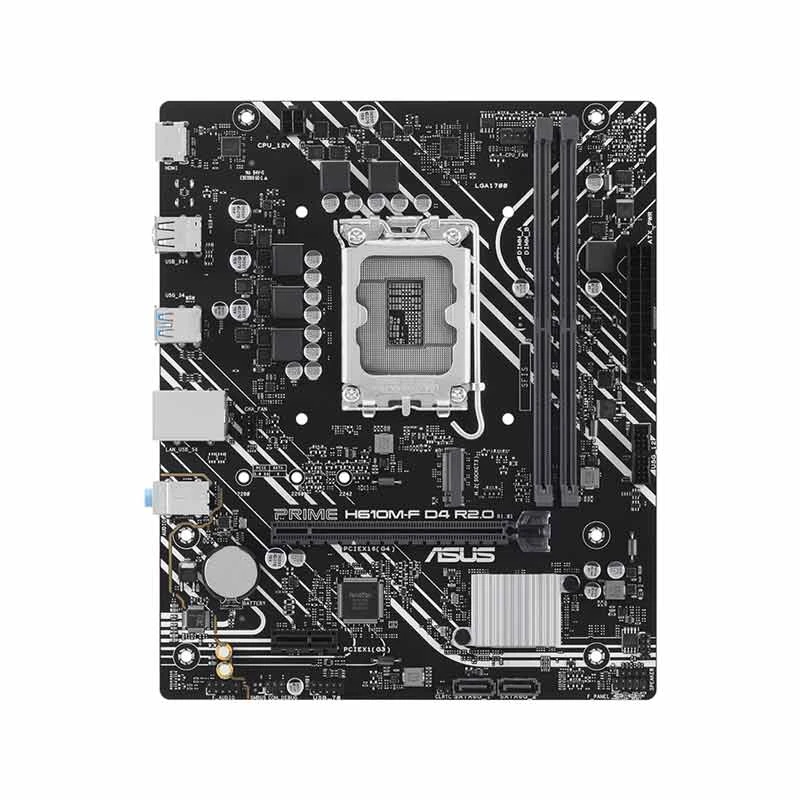

ASUS PRIME H610M-F D4 R2.0-SI DDR4 12th/13th/14th Gen Intel LGA1700 Socket Motherboard (Bulk)
Product Id: 02.01.006.565
BrandASUS
Coming Soon
Quick Overview
Form Factor - Micro-ATX
Chipset - Intel H610
Sockets Supported - LGA1700
Supported CPU - Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
1 x M.2 (M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode))
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot

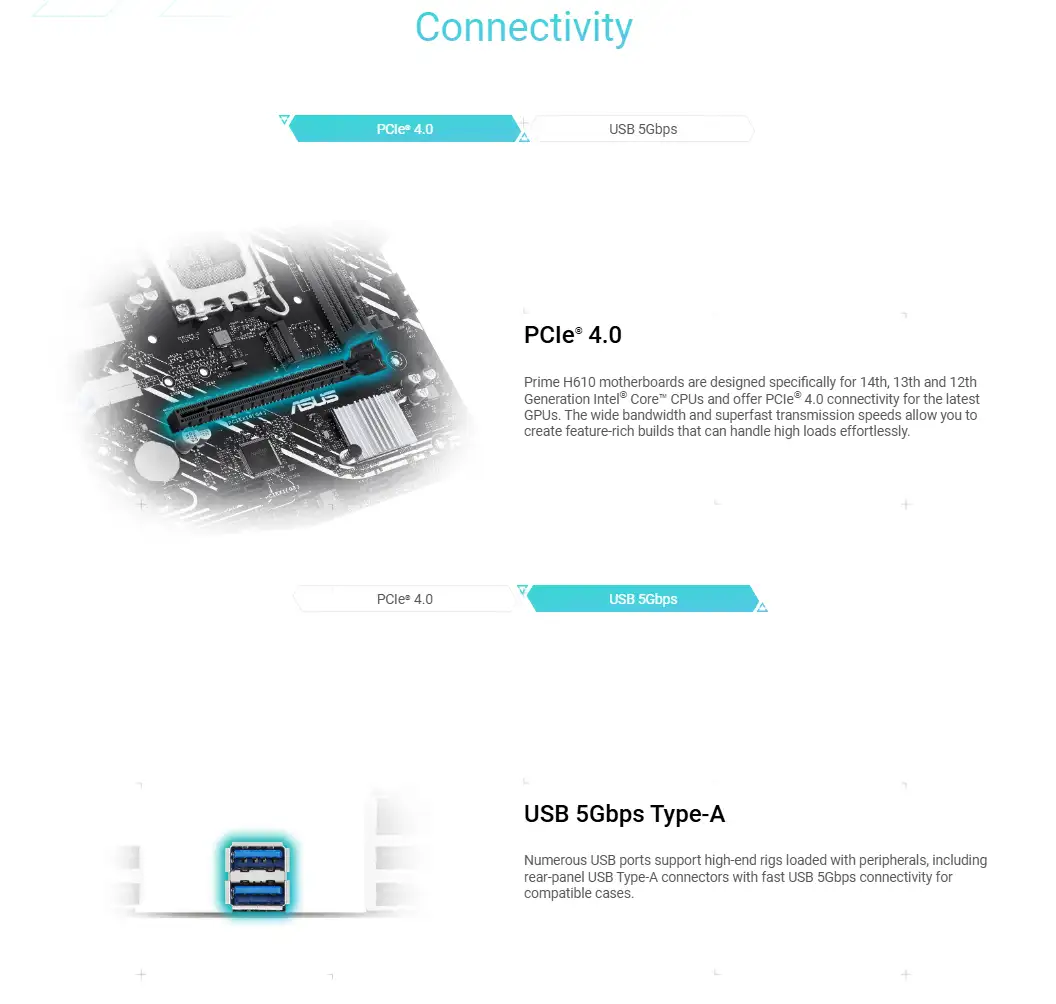

1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 1Gb
LAN Speed (Mbps)
10/ 100/ 1000Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
2 x SATA
Thunderbolt
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
RGB Support
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
12th/ 13th/ 14th Gen Intel Core i9/ i7/ i5/ i3 and Pentium/ Celeron processors in the LGA1700
Warranty
Warranty
3 Year Replacement
Additional Info
Feature
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, Stainless-steel back I/O, ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core, Aluminum heatsink design. ASUS Exclusive Software: Armoury Crate, AI Suite 3, EPU, DIGI+ VRM, PC Cleaner, ASUS CPU-Z, Norton 360 for Deluxe (60 Days Free Trial), UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode.
Others

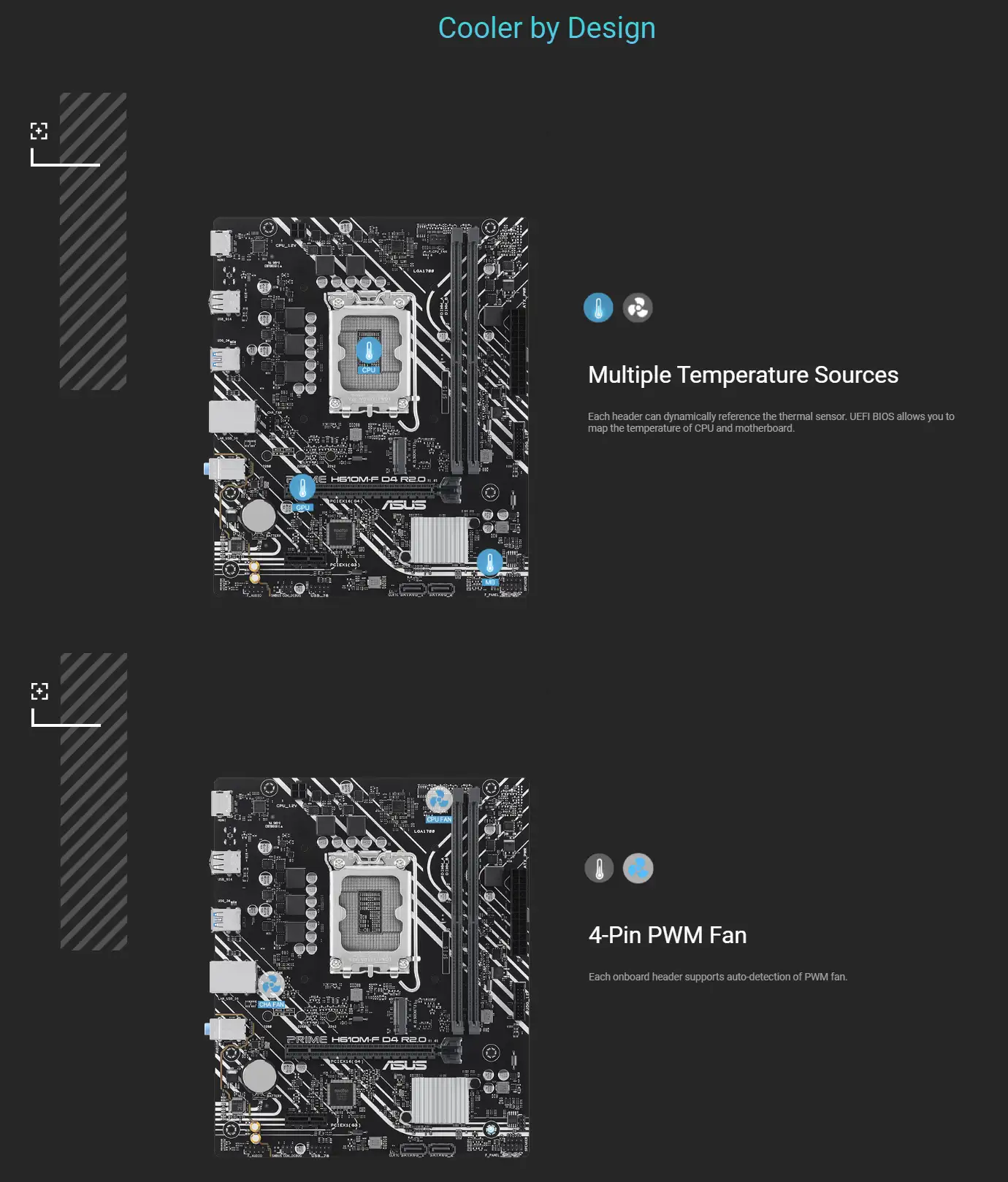

Back Panel I/O Ports: 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, Power Related: 1 x 24-pin Main Power connector, 1 x 4-pin +12V Power connector, Miscellaneous: 1 x Clear CMOS header, 1 x Front Panel Audio header (F_AUDIO), 1 x Speaker header, 1 x 10-1 pin System Panel header, Manageability: WOL by PME, PXE.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
