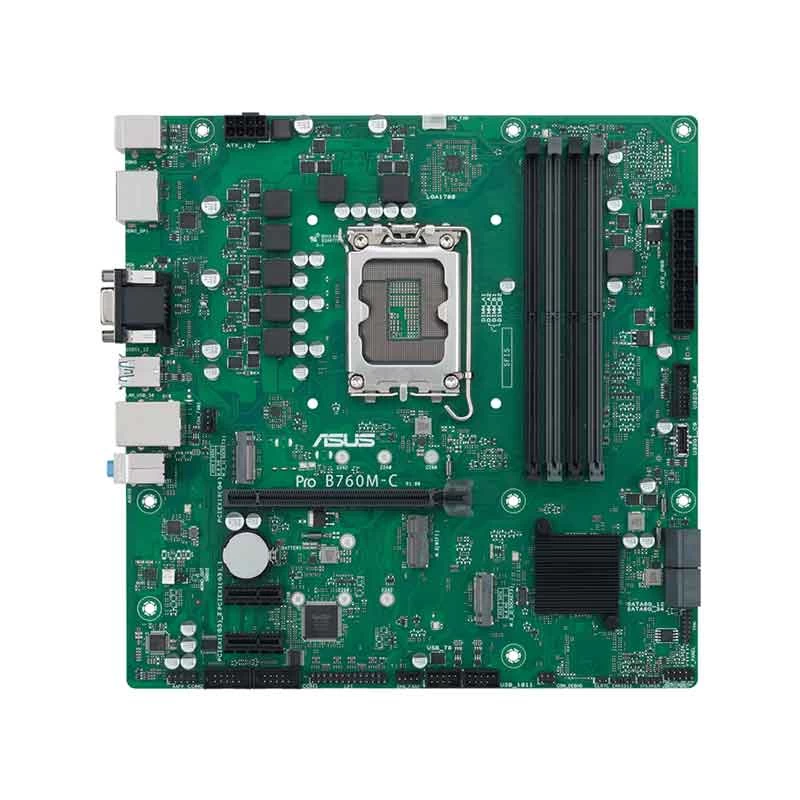

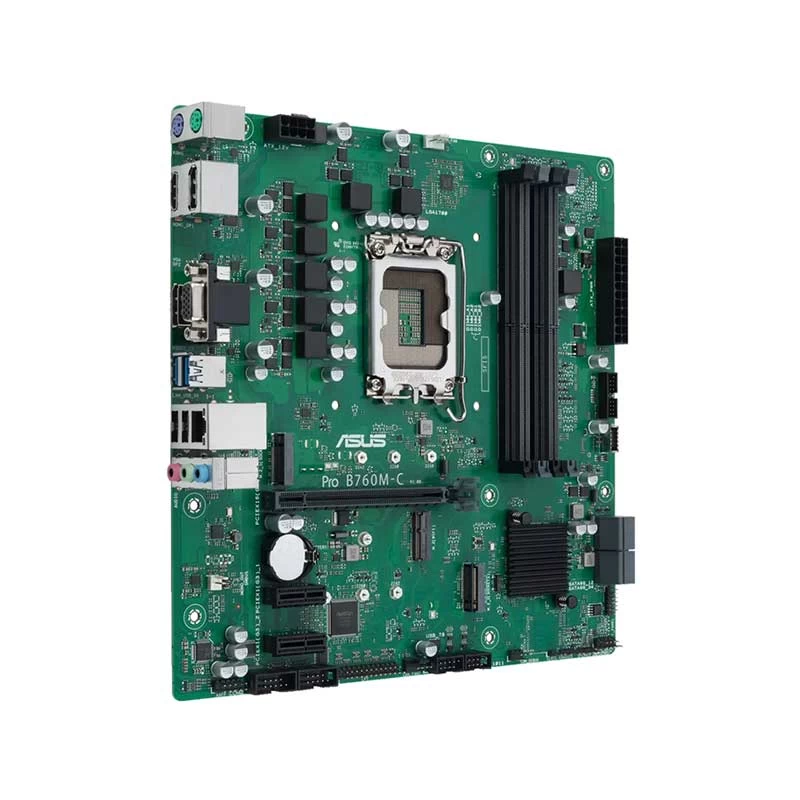

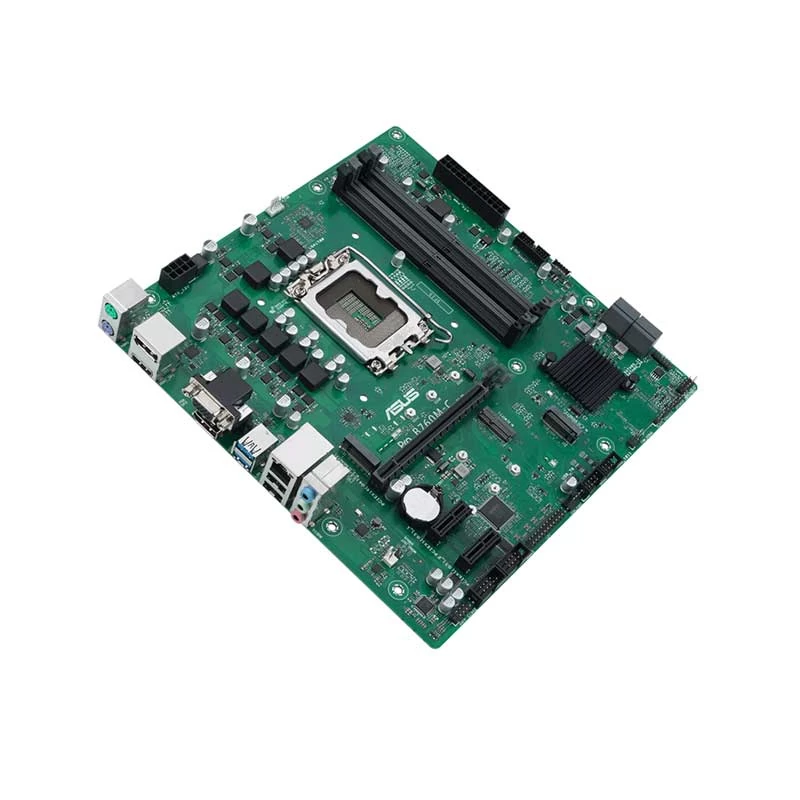

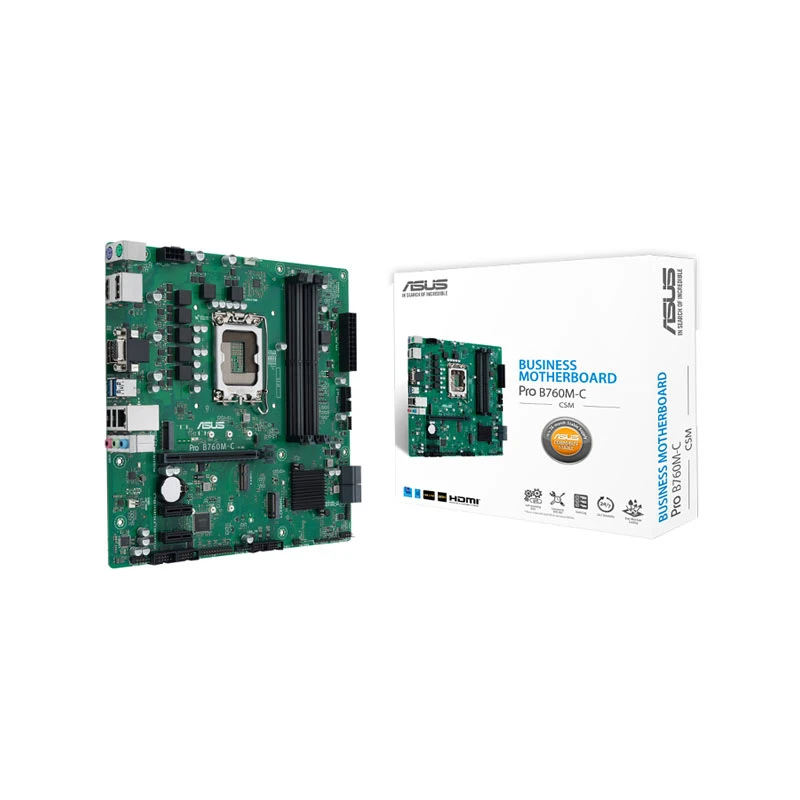

Asus Pro B760M-C-CSM DDR5 Motherboard
Product Id: 02.01.006.458
Brand
Asus
Regular Price Tk 20,940
Monthly EMI Tk 1,745
Special Price Tk 19,500
Quick Overview
- Chipset - Intel B760
- Memory Max. - 192GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - Supports 12th/13th/14th Gen Intel Core Processors
- Generation - 12th/13th/14th
General
Brand
Asus
Model
Asus Pro B760M-C-CSM
Body Color
Green
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
Supports 12th/13th/14th Gen Intel Core Processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DIMM
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode, M.2_2 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel 1Gb Ethernet
LAN Speed (Mbps)
10/100/1000 Mbps
WiFi
No
WiFi Technology
No
Bluetooth
No
Ports

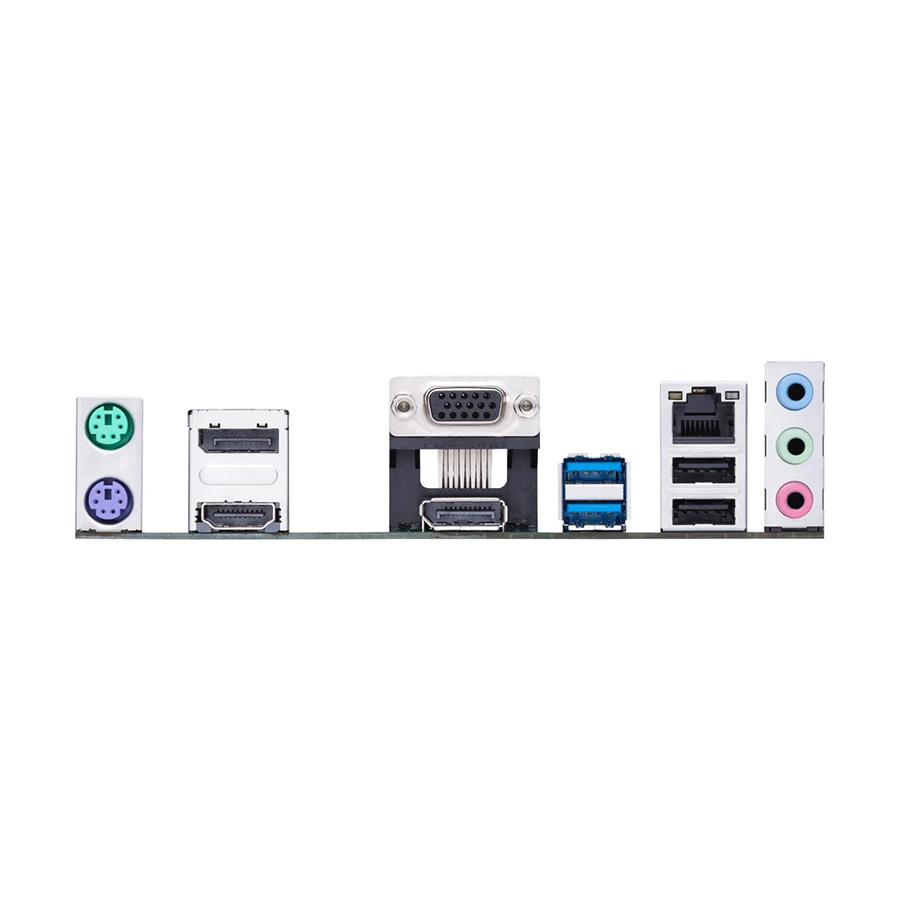

USB Port
2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
DirectX Support
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/1/5/10
RGB Support
No
RGB Sync
No
RGB Connector
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128Mb Flash ROM
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature

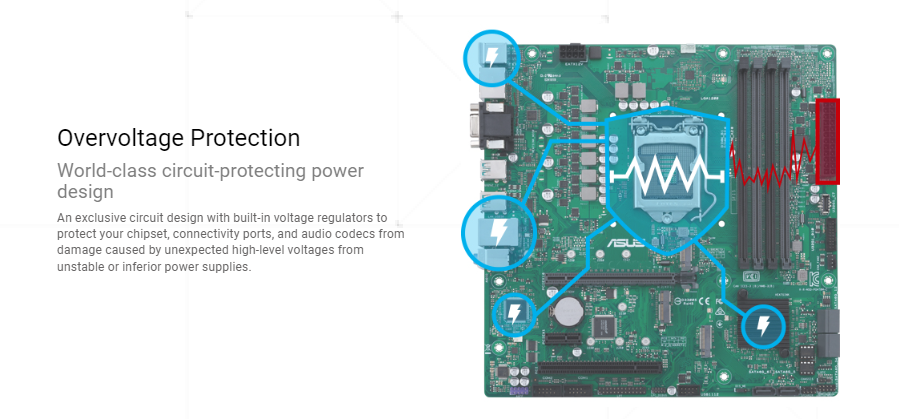

ASUS Q-Design, ASUS EZ DIY, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, Anti-Moisture Coating, 24/7 Reliability, Overcurrent Protection)
Others

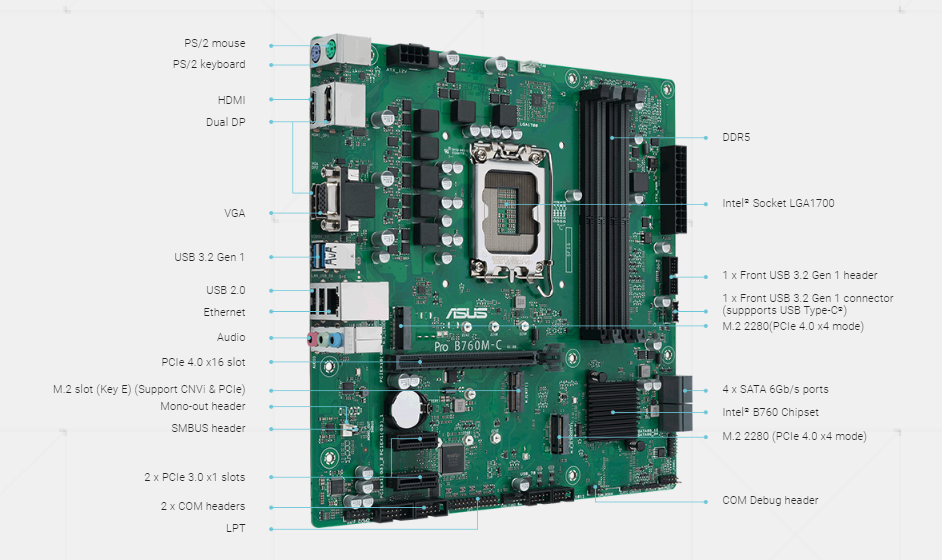

Internal I/O Connectors: (1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header)
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus Pro B760M-C-CSM Motherboard In Bangladesh
Micro-ATX B760 business motherboard with enhanced security, reliability and manageability and serviceability
- Intel® LGA 1700 socket: Ready for 14th Gen, 13th Gen & 12th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards

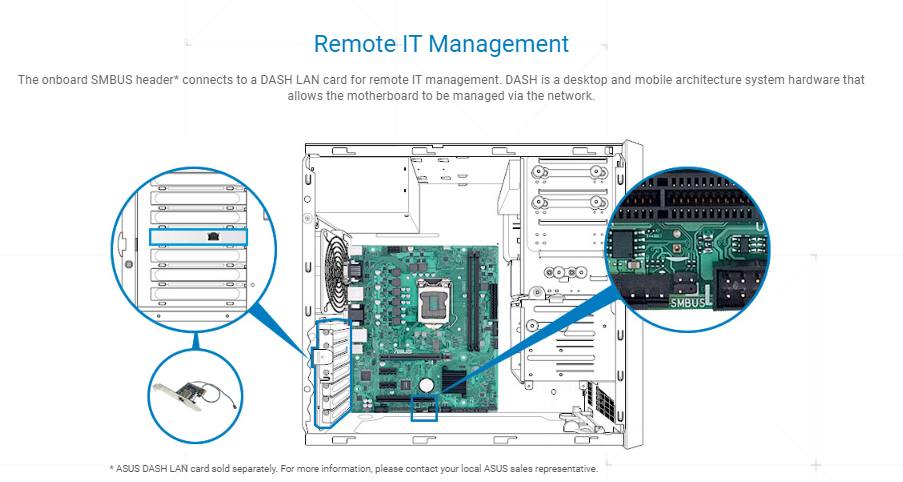

- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes

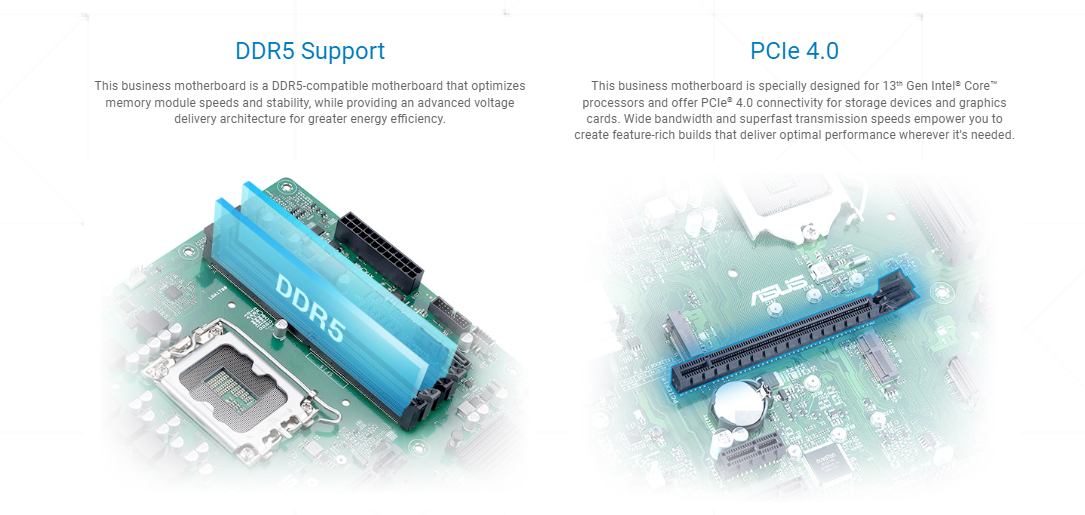

- Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
- Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
- Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
- Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
ASUS SHIELD
Enhances system security from bottom to top
-
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
-
Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
-
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
