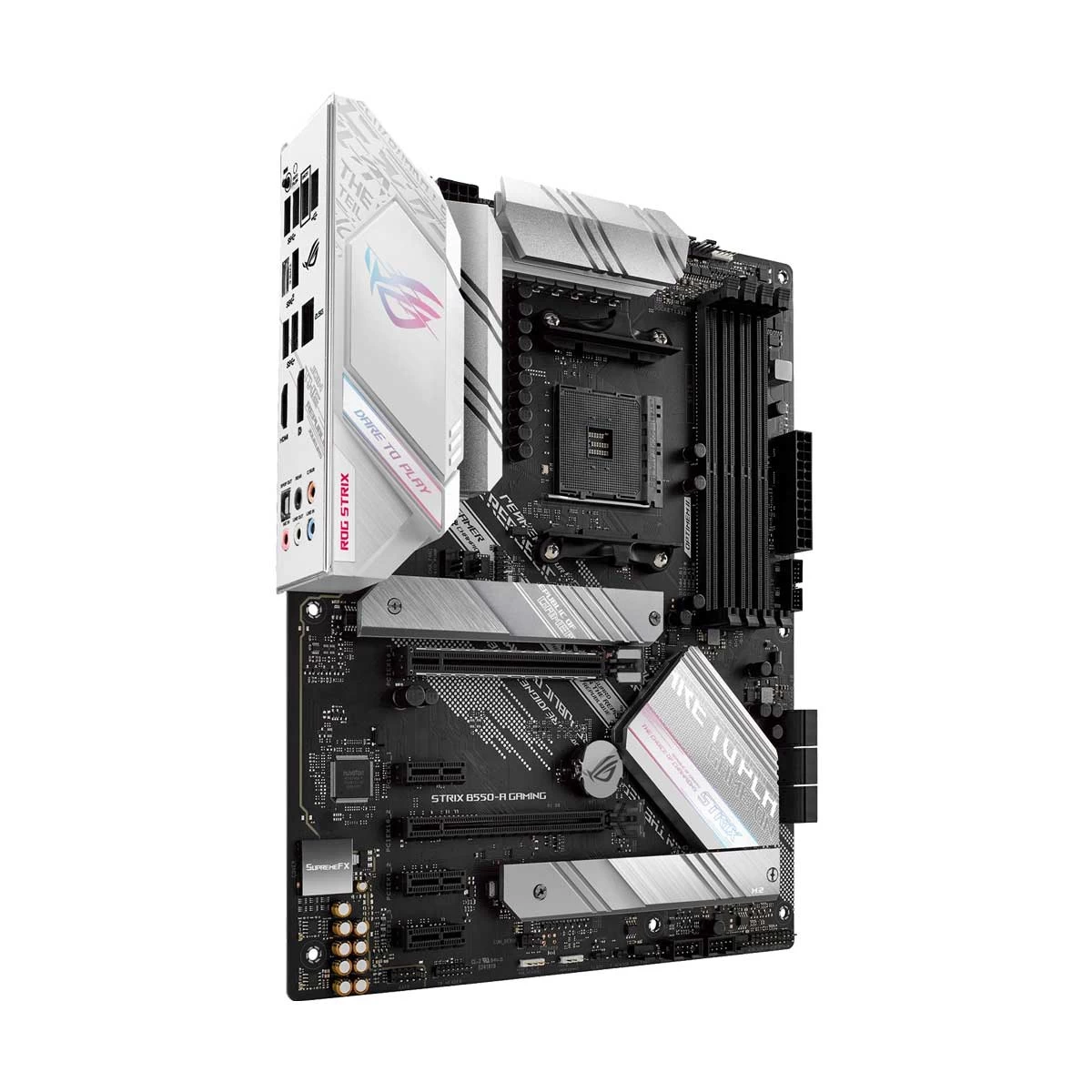

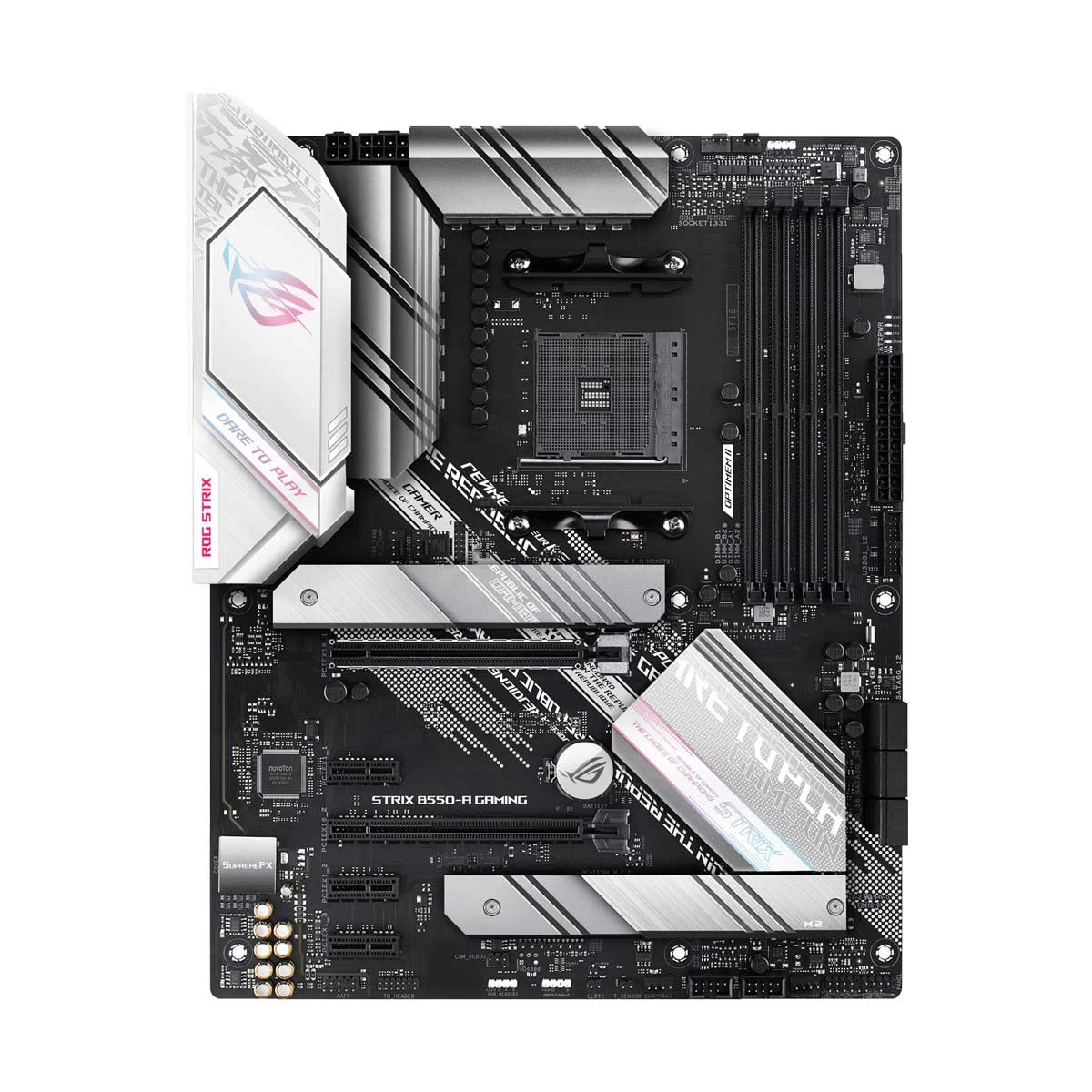

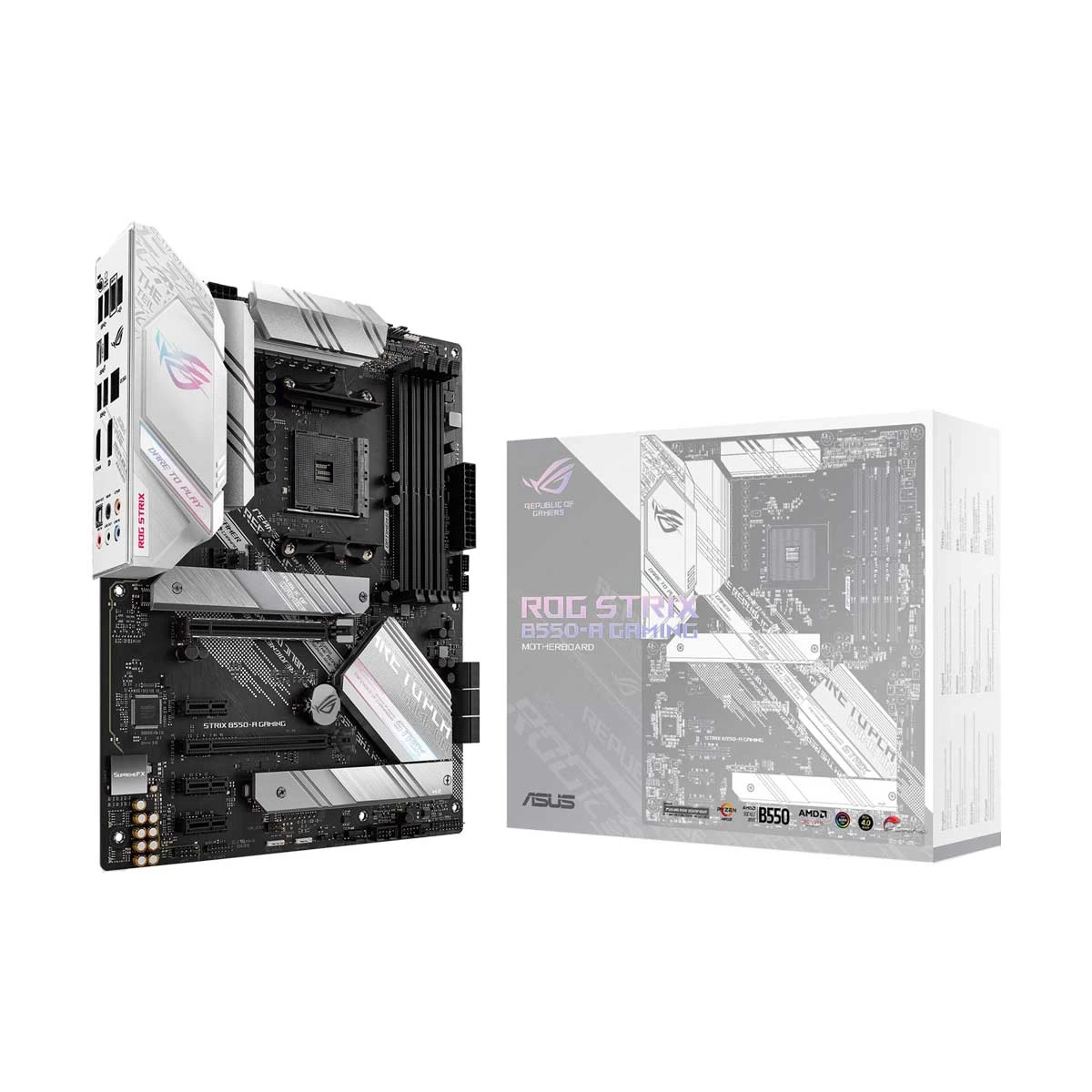

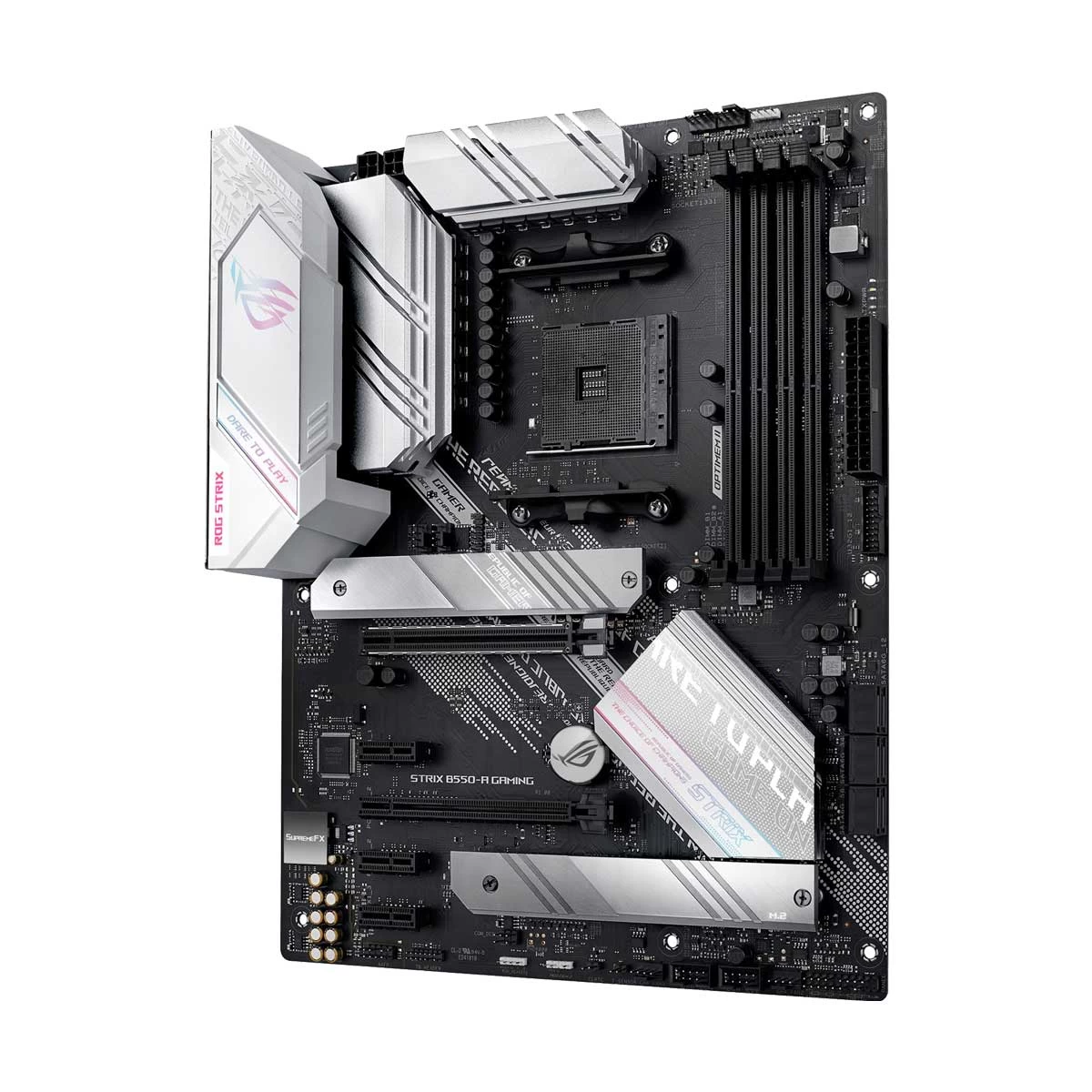

Asus ROG STRIX B550-A GAMING AMD AM4 Motherboard (Bundle with PC)

Product Id: 02.02.006.312

Brand Asus

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - AMD B550
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus ROG STRIX B550-A GAMING

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 Socket 3 (1 x M.2 (M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)), 1 x M.2 (M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) / 1 x M.2 (M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
AMD 2-Way CrossFireX

PCI Express Slot
1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x16 mode)


Audio & Video
Audio Chipset
ROG SupremeFX

Audio Channel
8


Network & Connectivity
LAN Chipset
Intel I225-V

LAN Speed (Mbps)
2.5Gbps

WiFi
No

Bluetooth
No

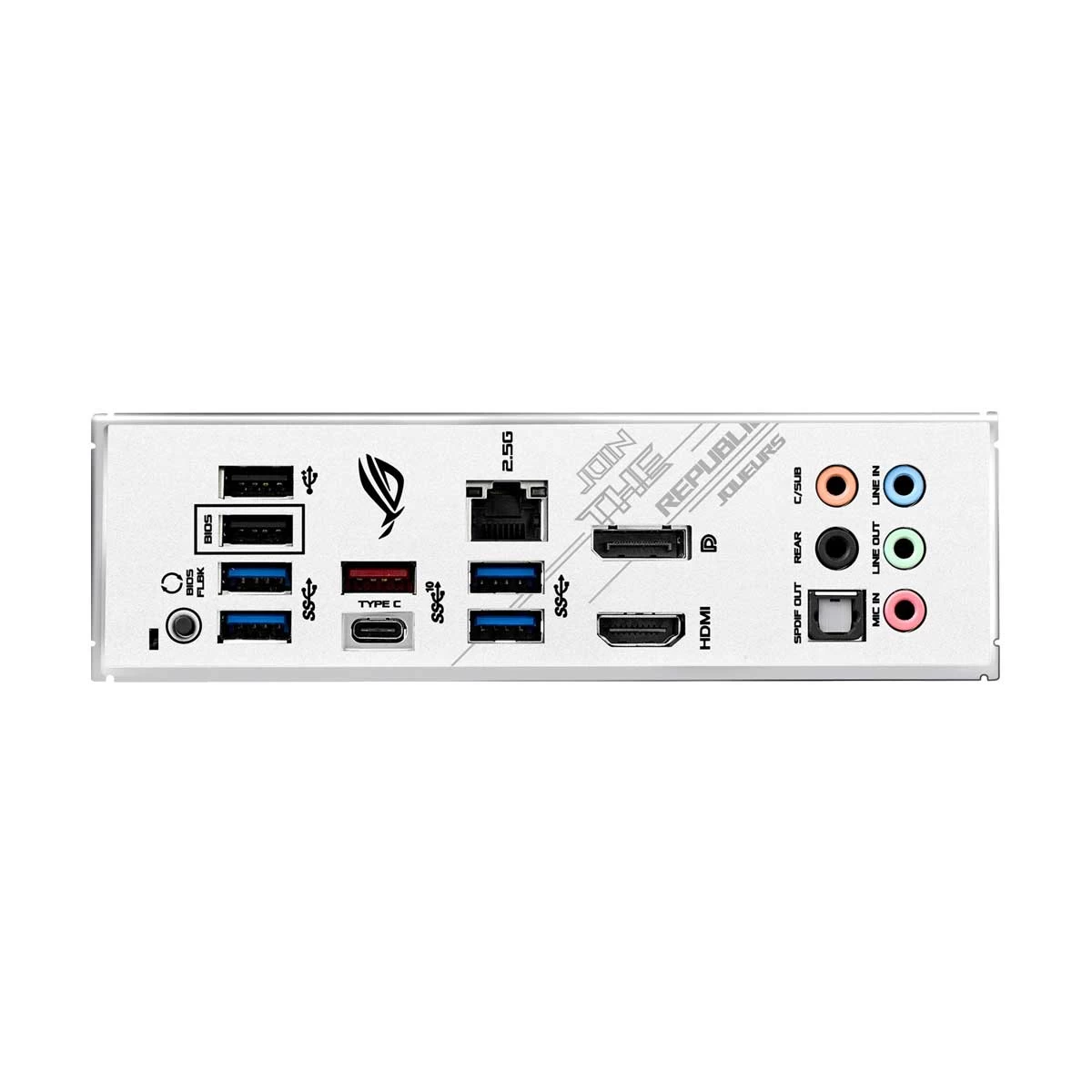

Ports
USB Port
1 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2 Type-A, 6 x USB3.2 Gen 1 Type-A, 6 x USB2.0

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
1


Technical Info
CrossFire Support
Yes

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
2 x Aura RGB Strip Header

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
Best gaming connectivity, PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support, Smooth networking, Intel 2.5Gb Ethernet with ASUS LANGuard, Robust power solution, Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors, Renowned software, Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds, DIY-friendly design, Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot, Unmatched personalization, ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header, Industry-leading gaming audio, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive audio, AM4 Gaming ATX motherboard with PCIe 4.0, teamed power stages, Intel 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB

Others
1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x AAFP connector, 2 x Aura RGB Strip Header(s), 1 x Addressable Gen 2 header(s), 1 x Thunderbolt header(s), 1 x System panel(s), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x BIOS FlashBack Button(s), 5 x Gold-plated audio jacks

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
