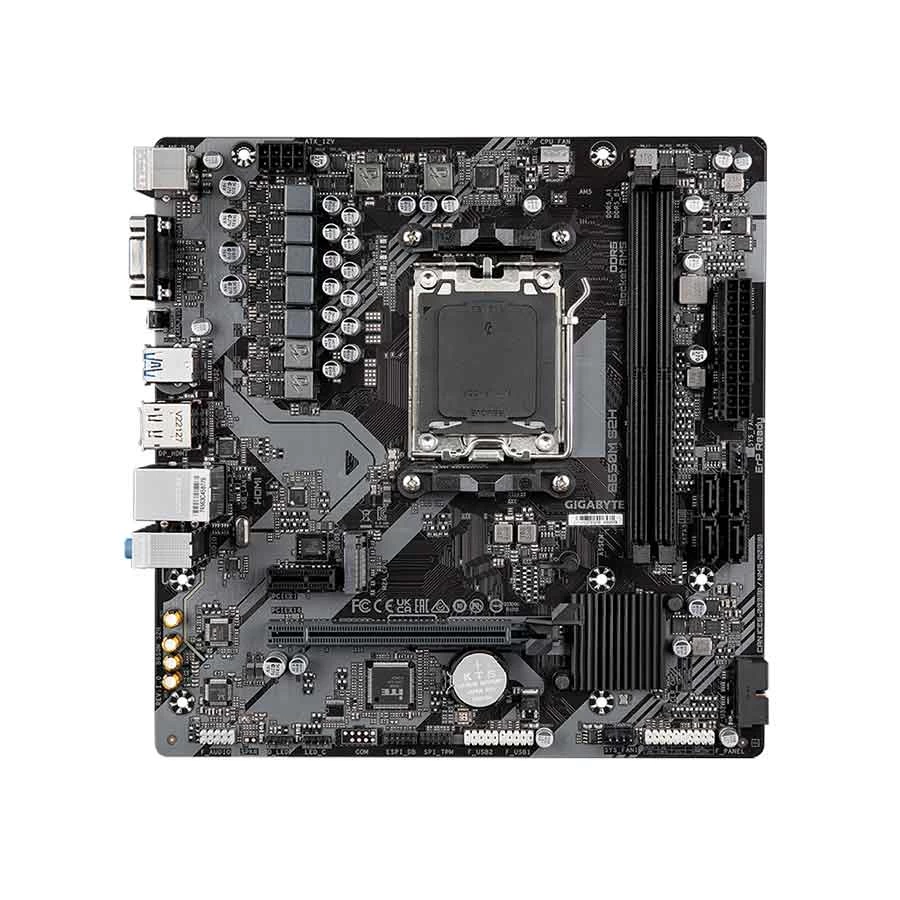

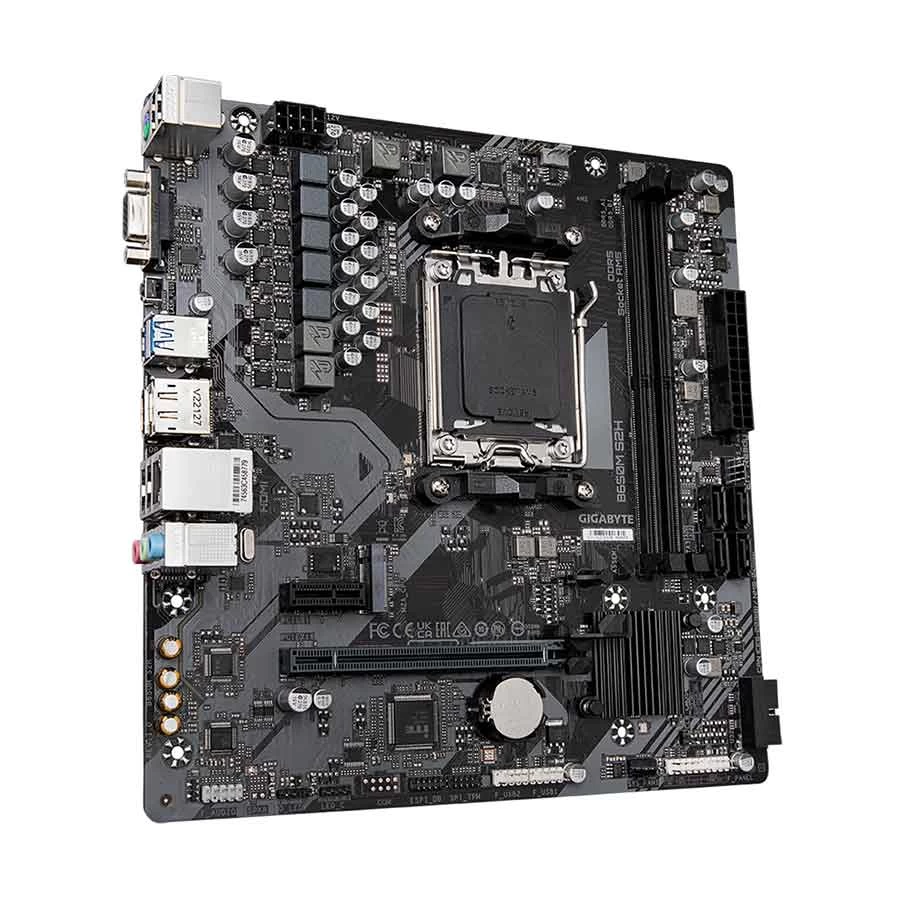

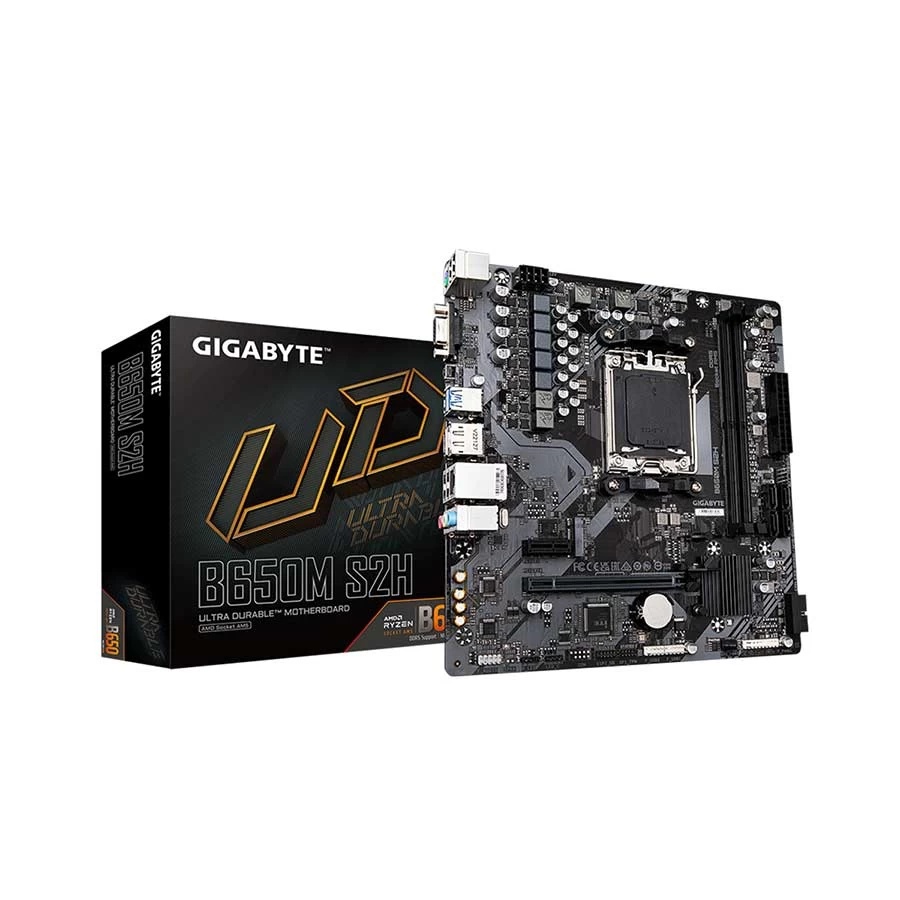

Gigabyte B650M S2H DDR5 AMD Motherboard
Product Id: 02.02.018.497
Brand
Gigabyte
Regular Price Tk 17,250
Monthly EMI Tk 1,438
Special Price Tk 16,000
Quick Overview
- Chipset - AMD B650
- Sockets Supported - AM5
- Supported CPU - AMD Ryzen 7000 Series Processors
- Generation - Not Applicable
- Memory Slot - 2
General
Brand
Gigabyte
Model
Gigabyte B650M S2H
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD B650
Sockets Supported
AM5
Built-in Processor
No
Supported CPU
AMD Ryzen 7000 Series Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR5
Memory MHz
6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz non-ECC Un-buffered
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
2 x DDR5
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN chip
LAN Speed (Mbps)
0/100/1000 Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 2.0/1.1 ports, 2 x USB 3.2 Gen 1 ports
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 10
RGB Support
RGB
RGB Sync
RGB FUSION
RGB Connector
1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10 / 11 64-bit
Compatible Products
AMD Ryzen 7000 Series Processors
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Others

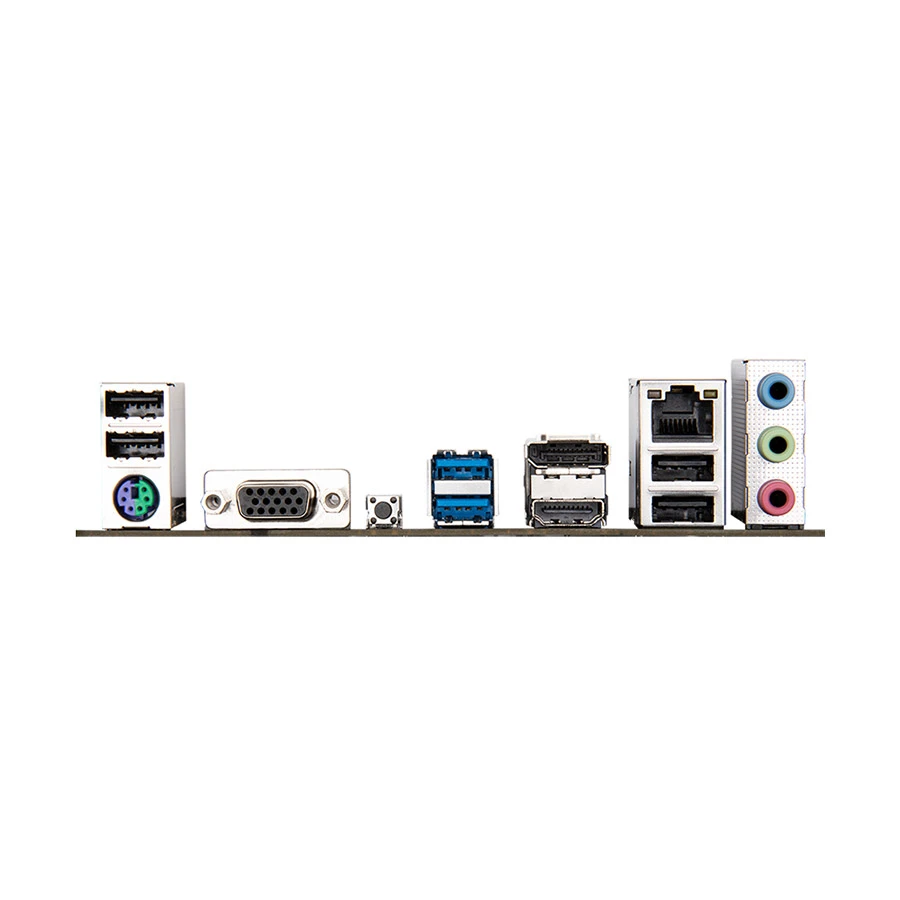

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Internal I/O Connectors : 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only), 1 x Clear CMOS jumper, Back Panel Connectors - 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1 ports, 1 x DisplayPort, 1 x HDMI port, 1 x RJ-45 port, 3 x audio jacks.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte B650M S2H Motherboard In Bangladesh
Gigabyte B650M S2H DDR5 AMD Motherboard
- AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
What is the price of Gigabyte B650M S2H Motherboard In Bangladesh?
The price of Gigabyte B650M S2H Motherboard starts from 16,000 . The price may vary due to your customization and product availability. You can buy Gigabyte B650M S2H Motherboard from our website or visit our showrooms nearby.
