N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.
AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Generation
Not Applicable
Memory Support
Memory Type
DDR5
Memory MHz
8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000 MHz ECC & non-ECC Un-buffered memory with Ryzen 9000 Series Processors/ 8400+MT/s(OC) with Ryzen 8000 Series Processors/ 8000+MT/s(OC) with Ryzen 7000 Series Processors
Memory Channel
Dual
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
5
M.2/SSD Expansion Slot Details

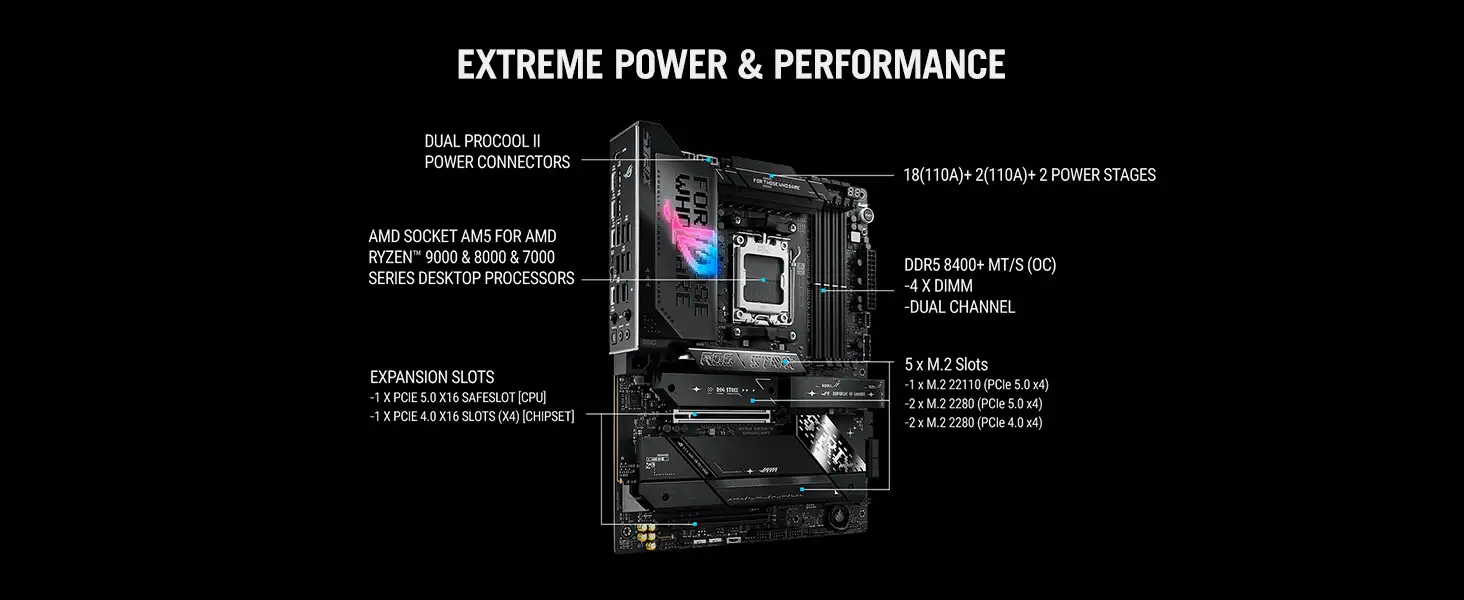

5 x M.2 ((1 x M.2 22110 (PCIe 5.0 x4), 2 x M.2 2280 (PCIe 5.0 x4), 2 x M.2 2280 (PCIe 4.0 x4))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 SafeSlot, 1 x PCIe 4.0 x16 Slots (x4)
Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 5Gb Ethernet
LAN Speed (Mbps)
100/ 1000/ 2500Mbps/ 5Gbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Ports
USB Port

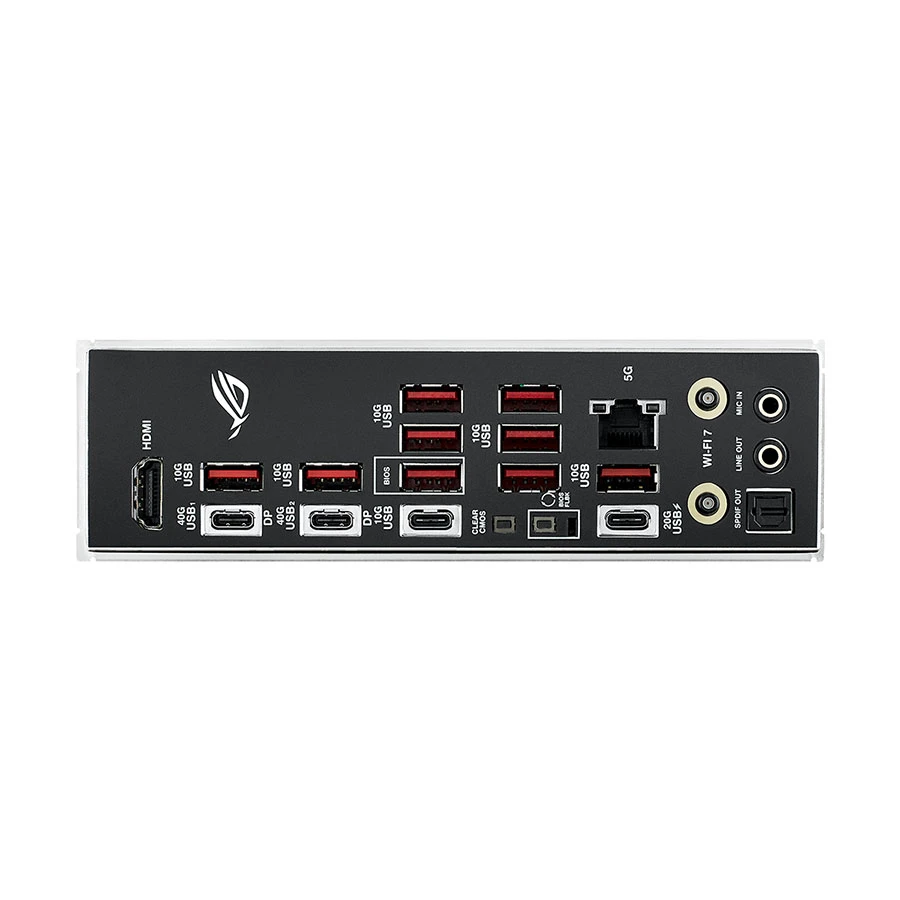

2 x USB4 (40Gbps) ports (2 x USB Type-C), 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge), 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/ 1/ 5/ 10
RGB Support
RGB
RGB Sync
Aura Sync
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature

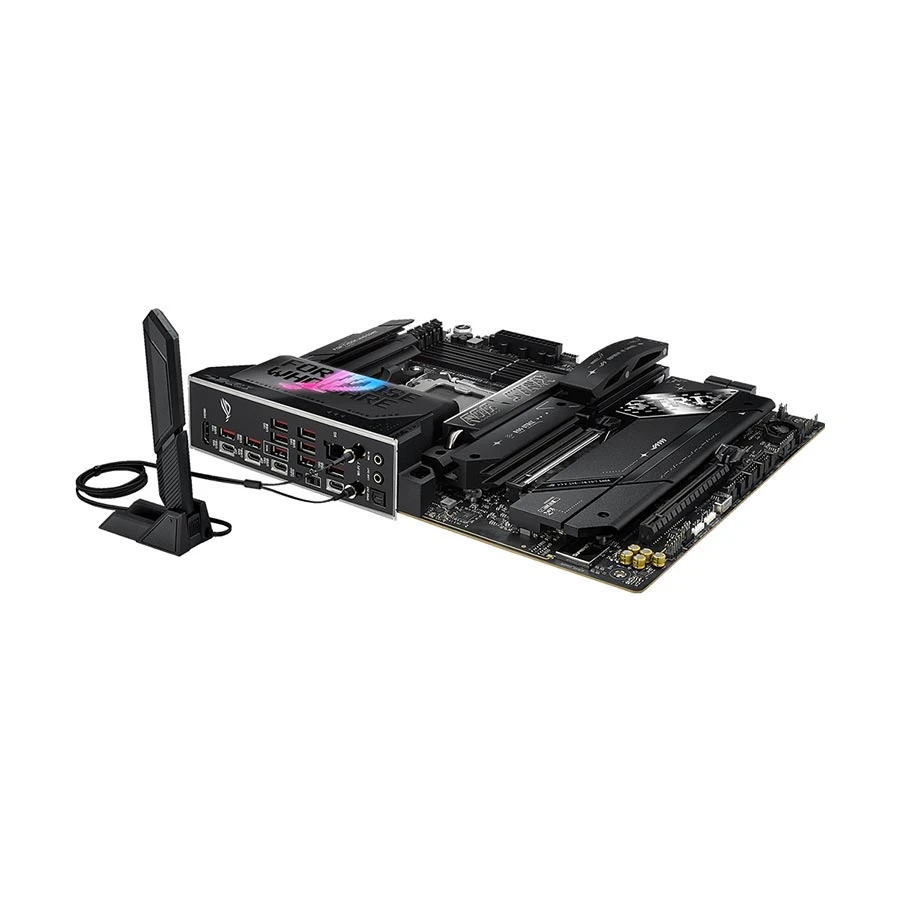

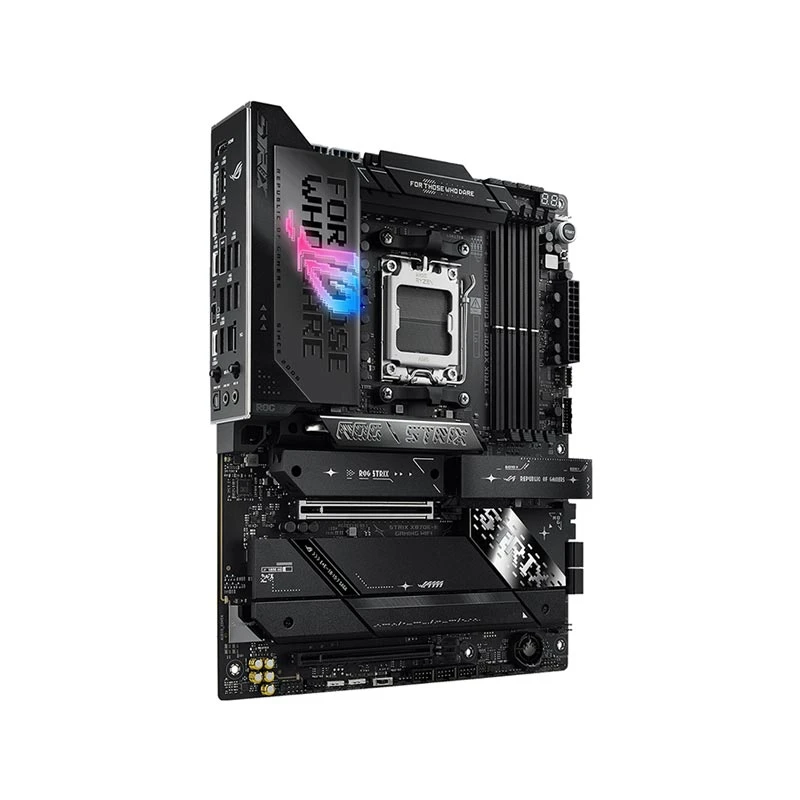

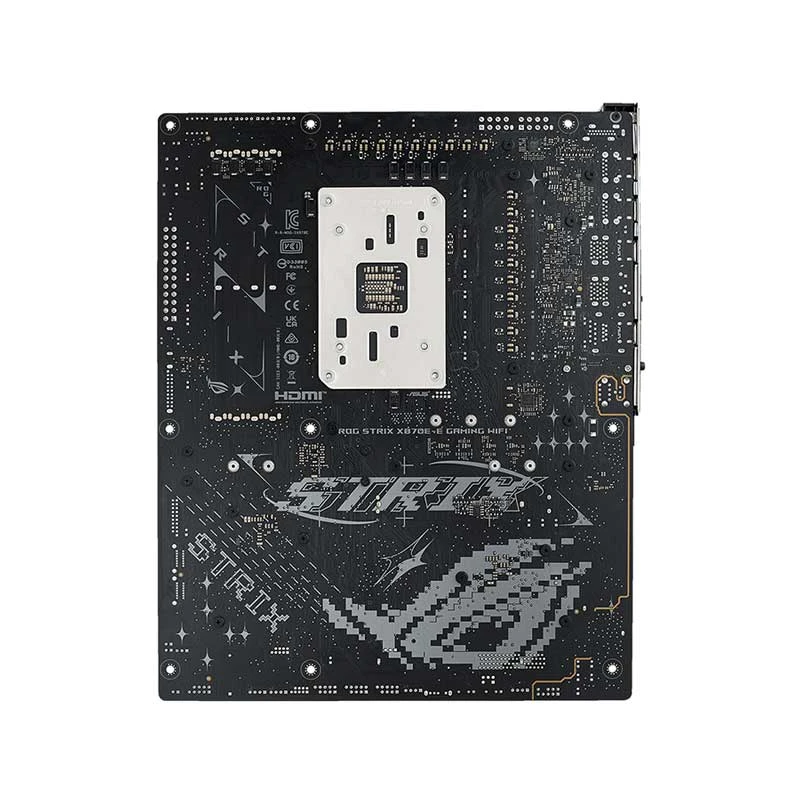

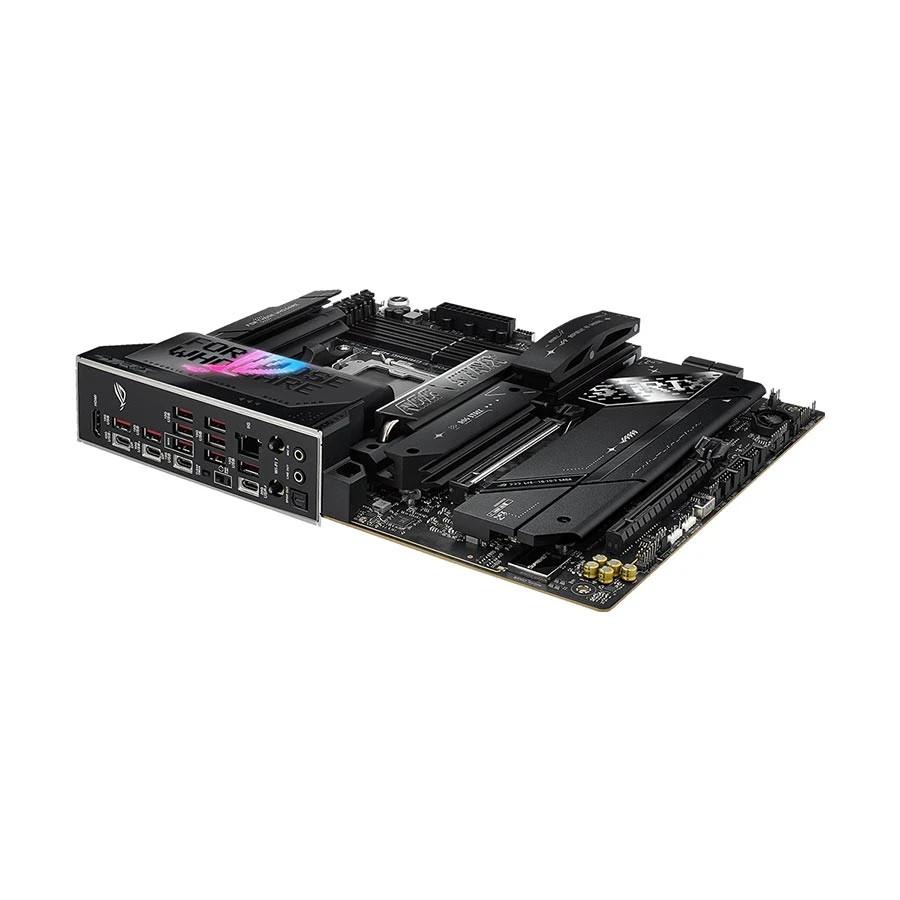

The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Others
Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage related: 5 x M.2 slots (Key M) , 4 x SATA 6Gb/s ports, USB: 1 x USB 20Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports , Miscellaneous: 3 x Addressable Gen 2 headers, 1 x CPU Over Voltage jumper, 1 x FlexKey button , 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, Special Features: Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Manageability: WOL by PME, PXE, Accessories: Cables: 2 x SATA 6Gb/s cables, Additional Cooling Kit: 1 x Thermal pad for M.2 22110, Miscellaneous: 1 x ASUS Wi-Fi moving antennas , 1 x Cable ties pack, 1 x M.2 Q-Latch package, 2 x M.2 Q-Slides, 1 x ROG key chain, 1 x ROG Strix stickers, 5 x M.2 Rubbers, Documentation: 1 x Quick start guide
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
