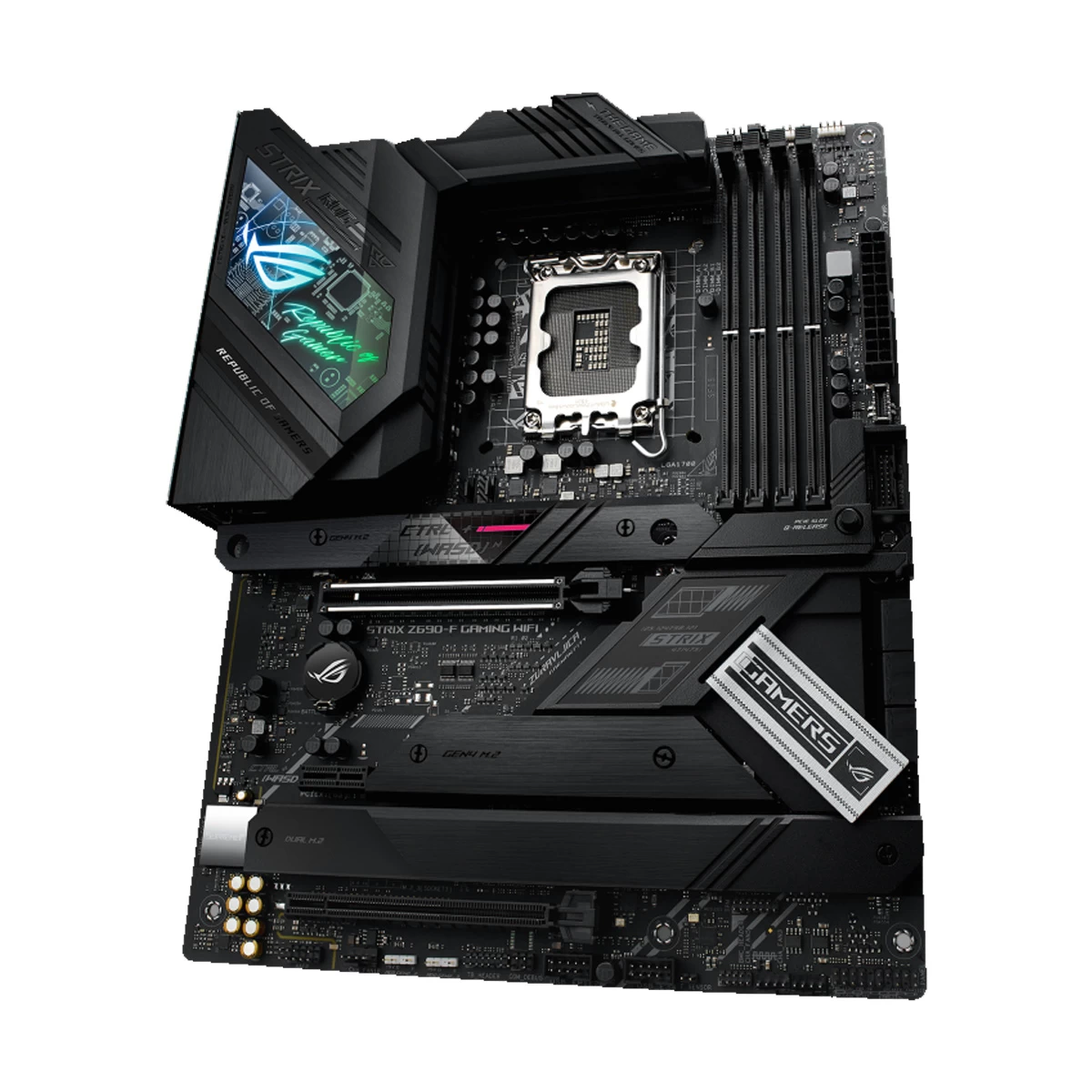

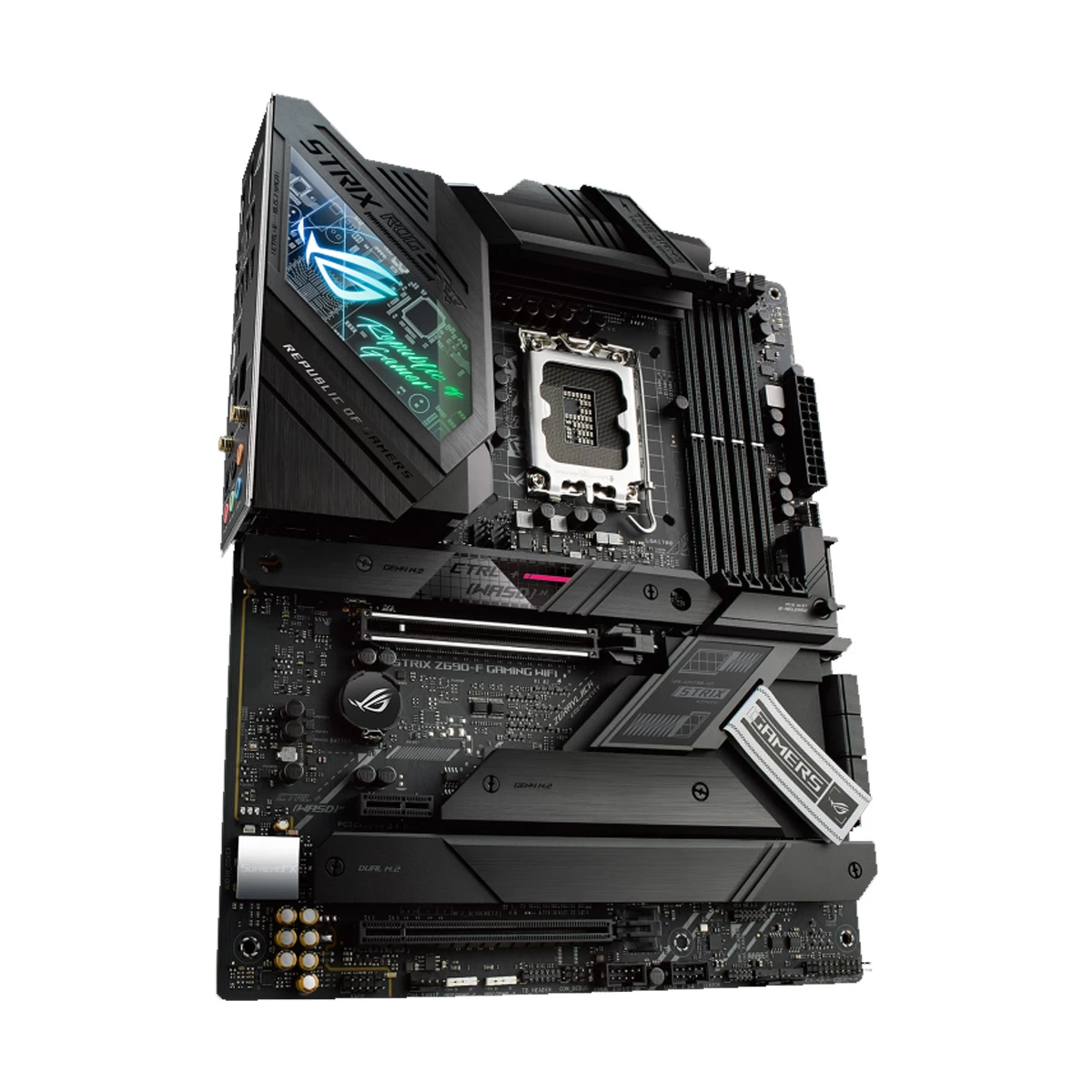

Features of Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) Motherboard In Bangladesh
ROG STRIX Z690-F GAMING WIFI
Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting

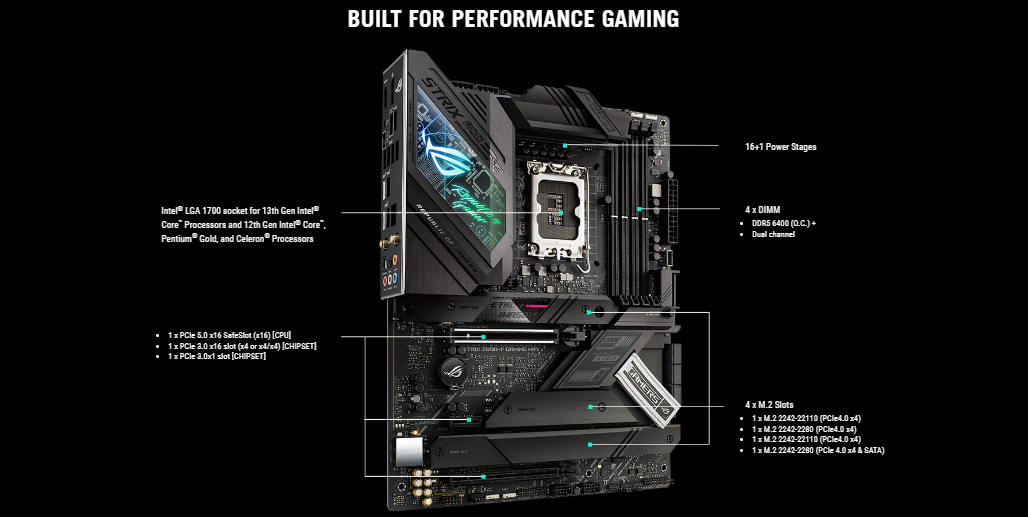

- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ Processors and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
- Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

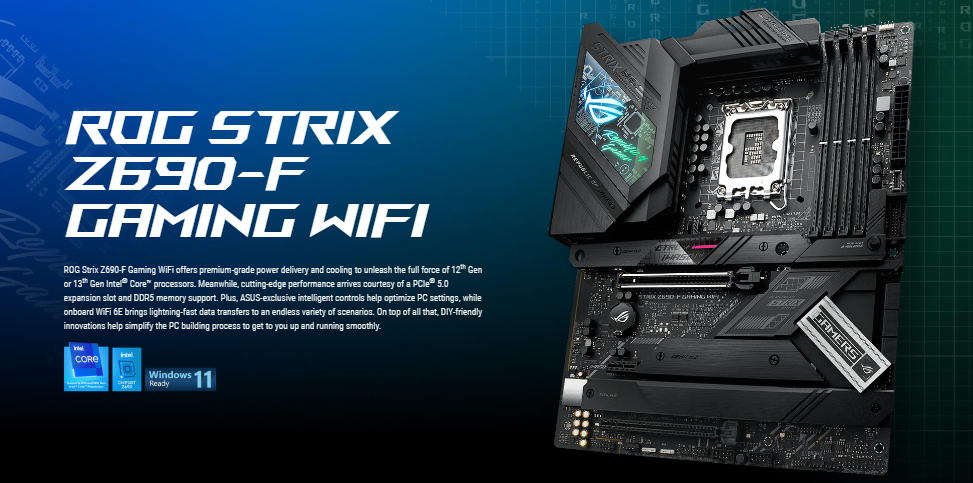

ALL-ROUND PERFORMANCE
ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.
POWER DESIGN
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
POWER STAGES
16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of.
8+8 PIN PROCOOL II POWER CONNECTOR
ASUS ProCool II connectors are built to tight specifications to ensure full contact with power supply cable wiring. A metal sheath improves heat dissipation, and low electrical impedance helps prevent hotspots and bolsters reliability.
SIX-LAYER PCB
Multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
LEADING CONNECTIVITIY
ROG Strix Z690-F Gaming WiFi delivers wickedly fast connectivity for supersmooth online experiences and ultrafast data transfers. Add alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
PCIe Performance
With four strategically placed M.2 slots, ROG Strix Z690-F Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

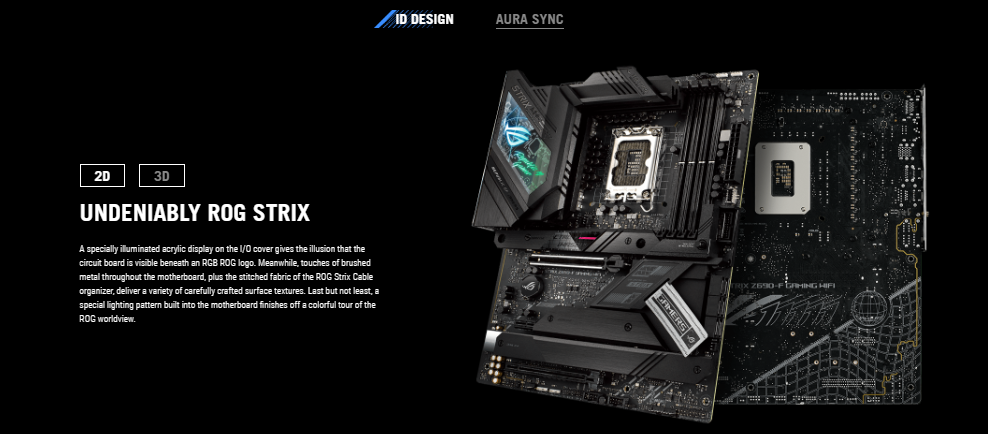

PLAY IN STYLE
Pair ROG Strix Z690-F Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
ROG GIVES YOU MORE

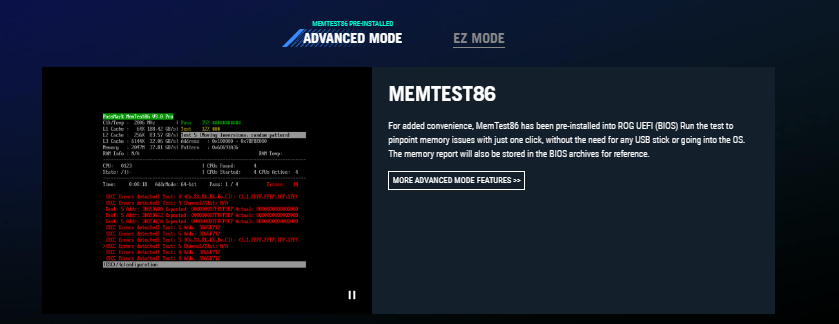

ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
5-WAY OPTIMIZATION
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) DDR5 12th Gen Intel Motherboard in Bangladesh
Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) motherboard is a renowned motherboard in Bangladesh. The Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) DDR5 12th Gen Intel Motherboard is an Intel mainboard. The motherboard used an Intel Z690 chipset. LGA1700 Sockets Supported. In this motherboard, you can use an 12th Gen Intel Core, Pentium Gold and Celeron Processors. The Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) mainboard has a Dual memory channel and 4 memory slot. It supports DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz ram. Maximum ram supports 128GB, Also, you can use 4 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) DDR5 12th Gen Intel Motherboard comes with Graphics. PCI Express Slot are 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1 slots. The here audio chipset used ROG SupremeFX. Audio Channel available are 7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Intel Ethernet lan chipset and it’s speeds 10/100/1000/2500 Mb/s. USB port available One USB 3.2 Gen 2x2 port Type-C, One USB 3.2 Gen 2 ports Type-C, Four USB 3.2 Gen 1 ports Type-A, Two USB 2.0 ports Type-A, Two USB 3.2 Gen 2 ports Type-A. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX motherboard. Yes it’s a RGB support motherboard, also you can 1 x AURA RGB header RGB connector. The Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) DDR5 12th Gen Intel Motherboard supported operating system is Windows 10, Windows 11. You will get a Warranty brand warranty.
What is the Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) motherboard Price in Bangladesh?
The Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) motherboard Price in Bangladesh is given upper. Ryans computers offer Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) DDR5 12th Gen Intel Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.
What is the price of Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.
The price may vary due to your customization and product availability.
You can buy Asus ROG STRIX Z690-F GAMING (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
