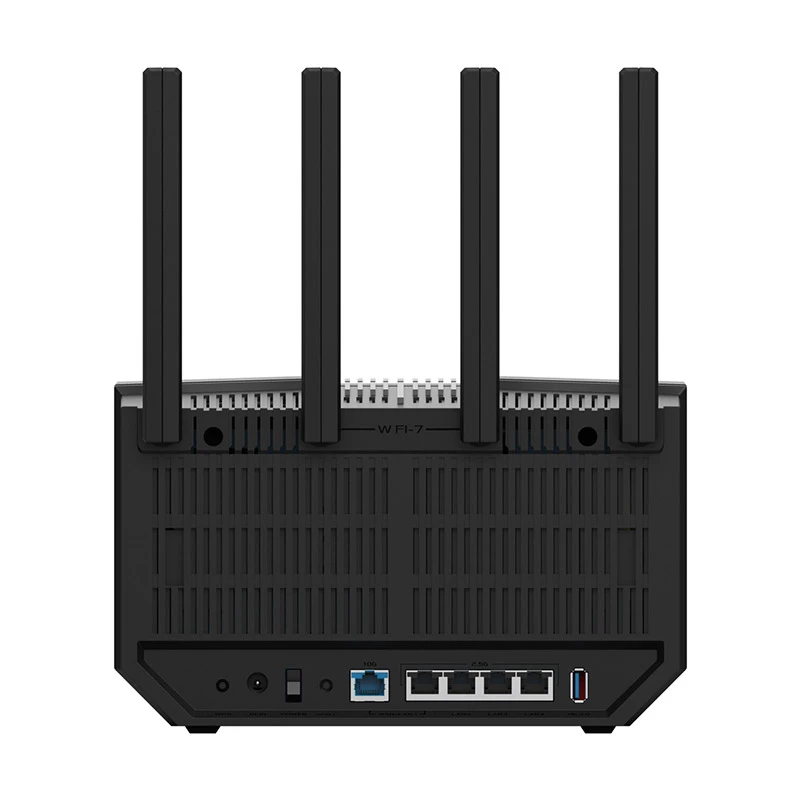

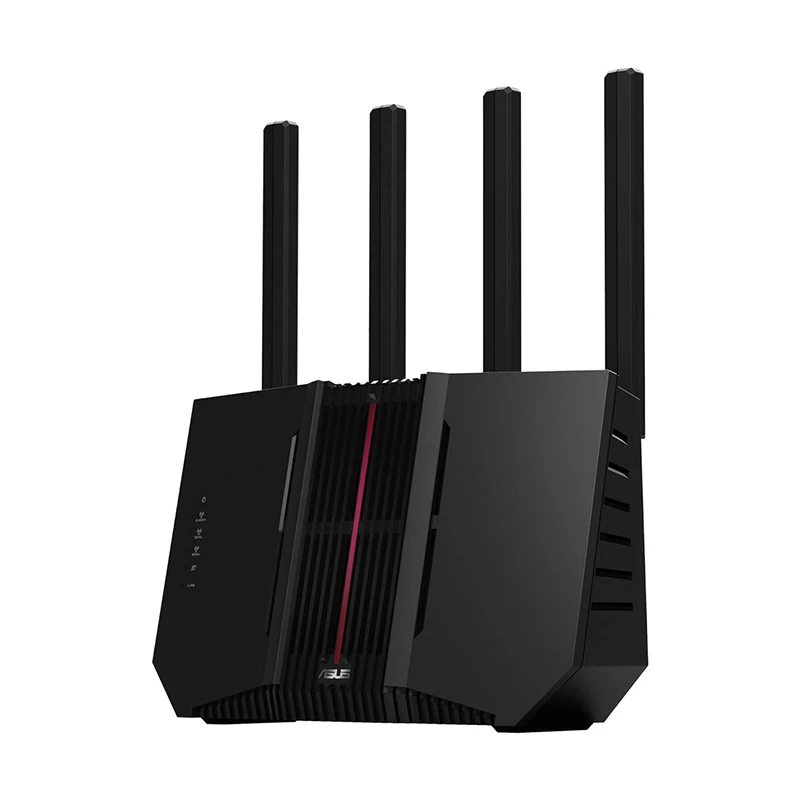

Asus RT-BE92U BE9700 Mbps 10G Tri-Band Wi-Fi 7 Router
1 x 10Gbps for WAN/LAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN
Number of WAN Port
2
Number of LAN Port
3
USB Interface
1 x USB 3.2 Gen 1
Internet Connectivity
WAN Only
Wireless
Antenna (Type & Qty)
4 x External antenna
WAN Type
PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec
Wi-Fi Generation
Wi-Fi 7
Band
Tri
Wi-Fi Coverage (Approximate)
Up to 2750 Sq. ft.
Number of Concurrent User
Unmentioned
Performance
Mesh Technology
Yes
MIMO Technology
Yes
Security
Operating Frequency
2.4 GHz, 5 GHz, 6 GHz
Operation/Working Wireless Modes
Wireless Router Mode, AiMesh Node Mode, Access Point Mode, Media Bridge Mode, Repeater Mode
Security Protocols
AiProtection, VPN, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise, Open System & OWE, WPS, Let`s Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall
VPN Support
Yes
Built in Antivirus
No
Electrical
Power
AC Input: 110V~240V(50~60Hz), DC Output: 12 V with max. 3 A current
Physical Description

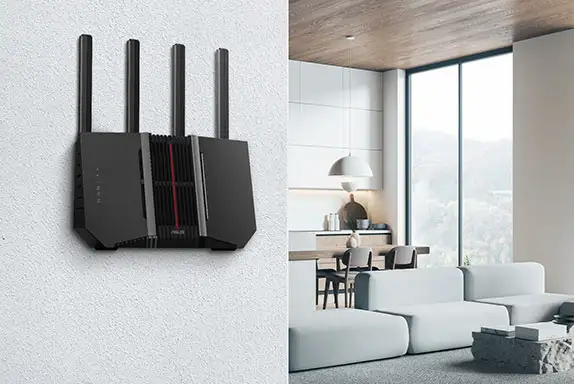

Wall Mountable
Yes
Button
WPS Button, Reset Button, Power Switch
LED Indicators
Power x1, WAN x1, LAN x1, 2.4GHz x1, 5GHz x1, 6GHz x1,
Dimensions
247.18 x 101.59 x 287.47mm
Color
Black
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Feature
LAN: DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL), Wireless: MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming, USB application: 4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges, User Interface: WEB: ASUSWRT, APP: ASUS Router APP, Administration: Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update. 2.4X Faster WiFi Speeds, 20% More Transfers 4K-QAM, Lag-Free Connections.Intelligent Wireless Backhaul, Flexible Backhaul Configurations, Next-gen Network Powerhouse.
Specialty
Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 4096-QAM high data rate, 20/40/80/160/320 MHz bandwidth. Elevate your smart home with blazing-fast tri-band WiFi 7 speeds of up to 9700 Mbps, boosted range with ASUS RF and AI-boosted Smart AiMesh technology and up to 20G of wired capacity. The ASUS RT-BE92U unleashes superior 6 GHz WiFi and future-proof 10G networking. With the new ASUS Network Security suite and advanced features such as the IoT Network, the RT-BE92U safeguards your network end-to-end, 24/7.
Others
Product Segment: BE9700 ultimate BE performance : 1032+2882+5764 Mbps, WiFi Data Rate: WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps, WiFi 7 (802.11be) (5GHz): up to 2882 Mbps, WiFi 7 (802.11be) (6GHz): up to 5764 Mbps, Transmit / Receive: 2.4GHz 3x3, 5GHz 2x2, 6GHz 2x2, 256 MB Flash, DDR4 RAM, Package Content: RT-BE92U WiFi 7 Tri-band Router, wall mount kit, RJ-45 cable, Power Adapter, Quick Start Guide, Warranty Card. AiMesh: Primary AiMesh Router, AiMesh Node, Parental Control: Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, Maximum Parental Control Profile : 64, Guest Network: The Guest Network provides Internet connection for guests but restricts access to your local network. Support Guest Network Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3, Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal. Firewall: Maximum Firewall Keyword Filter : 64, Maximum Firewall Network Service Filter : 32, Maximum Firewall URL Filter : 64. VPN: Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark. Traffic Control: Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter, Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, Traffic Analysis Period : Daily, Weekly, Monthly, Website History. Dual WAN 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, Maximum Port Forwarding Rule : 64, Port triggering, Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE Relay.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video
Next-Level Smart Home WiFi 7 | RT-BE92U
