4 (3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors)
Memory Max.
128GB
Memory Max. (Additional Info)
128GB (3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors)
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 Socket 3 (type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode))
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
AMD Vega Graphics support
Multi-GPU Support
AMD CrossFireX
PCI Express Slot
1 x PCIe 3.0/2.0 x16 (x16 mode, x8 mode, max at x4 mode), 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
Audio & Video
Audio Chipset
Realtek ALC887-VD2
Audio Channel
8
Network & Connectivity
LAN Chipset
Realtek RTL8111H
LAN Speed (Mbps)
10/100/1000Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
1 x USB 3.1 Gen 1 Type-C, 1 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1
VGA Port
No
DVI Port
1
HDMI Port
1
SATA Port
6 x SATA
Thunderbolt
No
COM Port
Yes
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
Yes
Sli Support
No
Raid Support
0,1,10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
1 x Aura RGB Strip Header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
BIOS Version
PnP, SM BIOS 3.1, ACPI 6.1
Compatibility
Supported Operating System
Windows 7, 10
Warranty
Warranty
3 Years Replacement Warranty
Additional Info
Feature

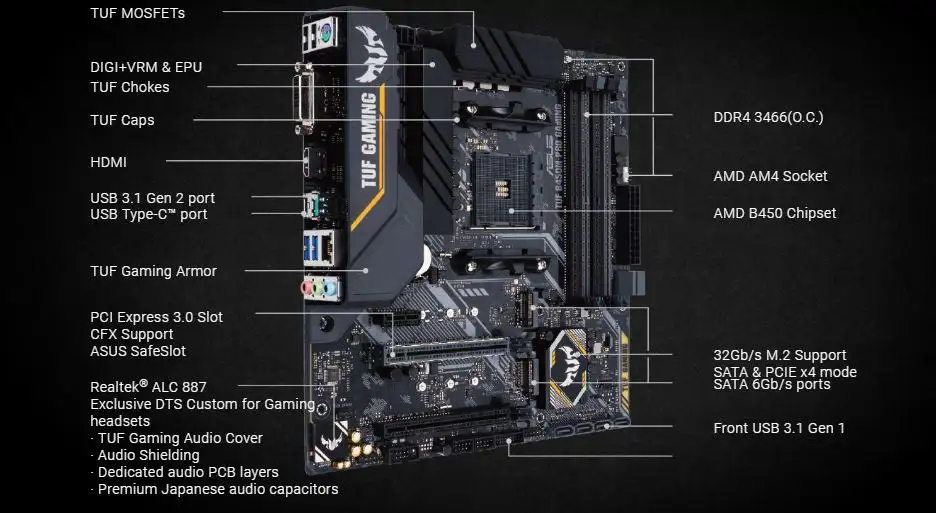

ASUS TUF PROTECTION, AURA, AI Suite 3, Ai Charger, PC Cleaner, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, AMD B450 mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 3466MHz support, 32Gbps M.2, HDMI 2.0b, GPU Temperature Sensing & Fan Xpert 2+, TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability, Military-grade TUF Components, TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability, Synchronize LED lighting with a vast portfolio of compatible PC gear
Others
1 x M.2 Socket 3, 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x COM port header, 3 x Audio jack(s)
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
