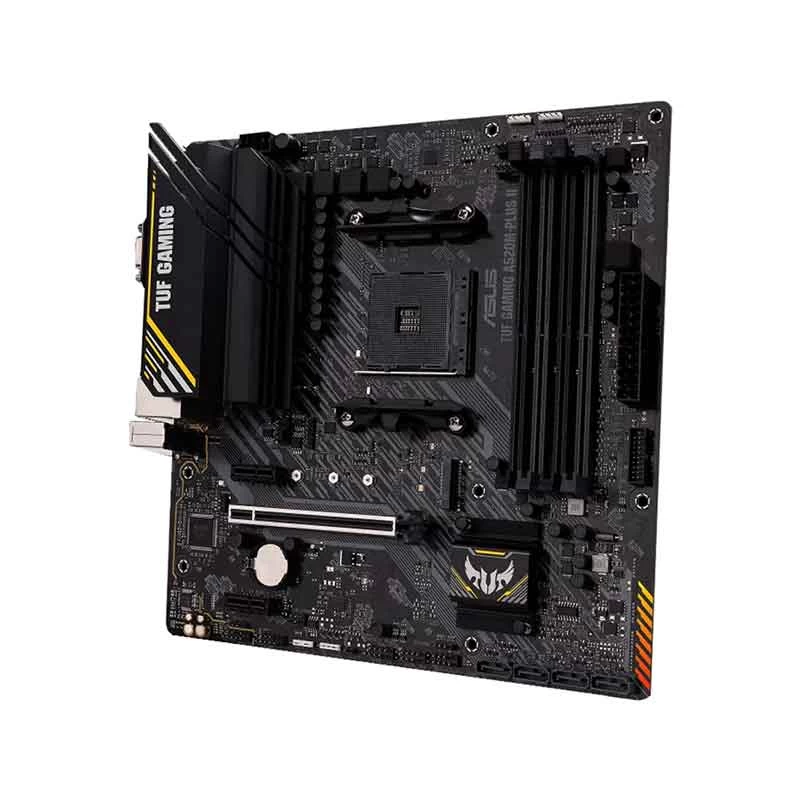

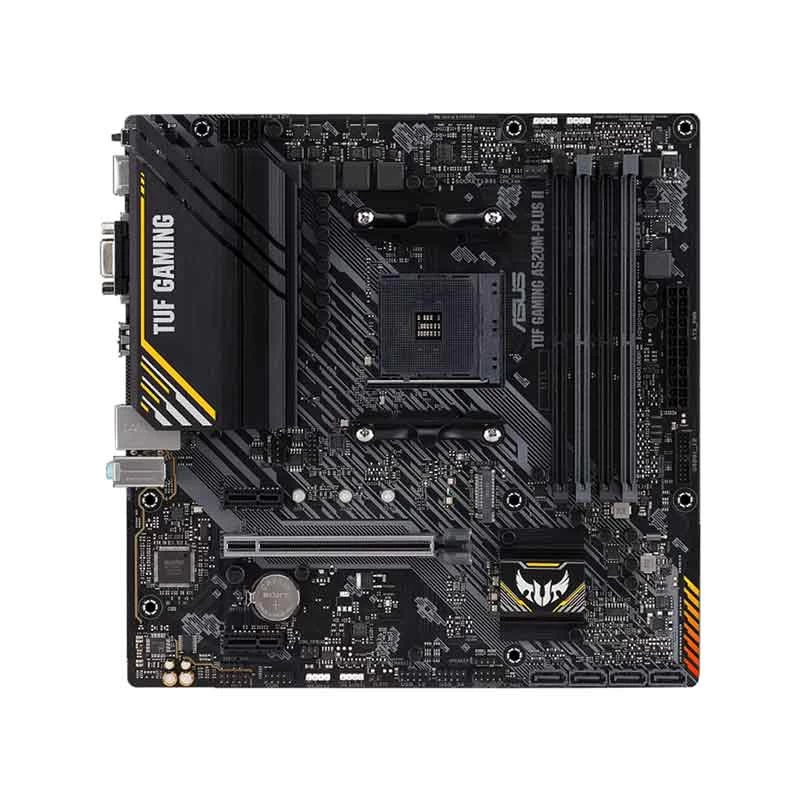

Asus TUF GAMING A520M-PLUS II DDR4 AMD AM4 Socket Motherboard

Product Id: 02.02.006.414

Brand Asus

Regular Price Tk 13,020 Monthly EMI Tk 1,085
Special Price Tk 12,200

Quick Overview

  • Chipset - AMD A520
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Generation - Not Applicable
General
Brand
Asus

Model
Asus TUF GAMING A520M-PLUS II

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD A520

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/2666/2 400/ 2133 MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (type 2242/ 2260/ 2280, supports PCIe 3.0 x4 & SATA modes)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1 x PCIe 3.0 x16 slot (supports x16 mode), 2 x PCIe 3.0 x1 slots


Audio & Video
Audio Chipset
Realtek ALC887/897

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 1Gb Ethernet

LAN Speed (Mbps)
10 / 100 / 1000Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Connector
2 x AURA RGB headers

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Others

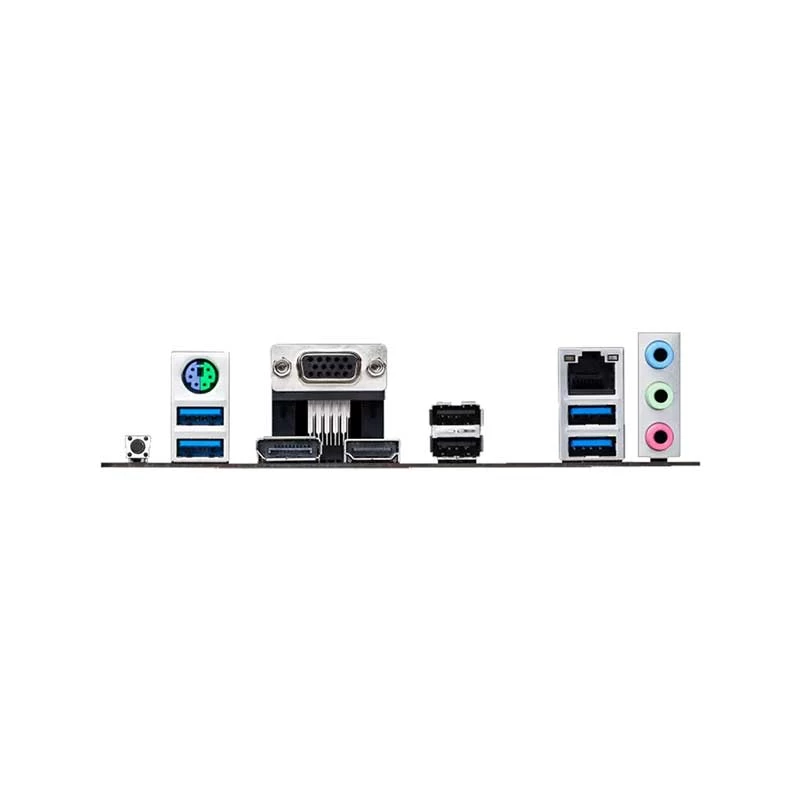

Back Panel I/O Ports: 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x AURA Addressable Gen 2 header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
