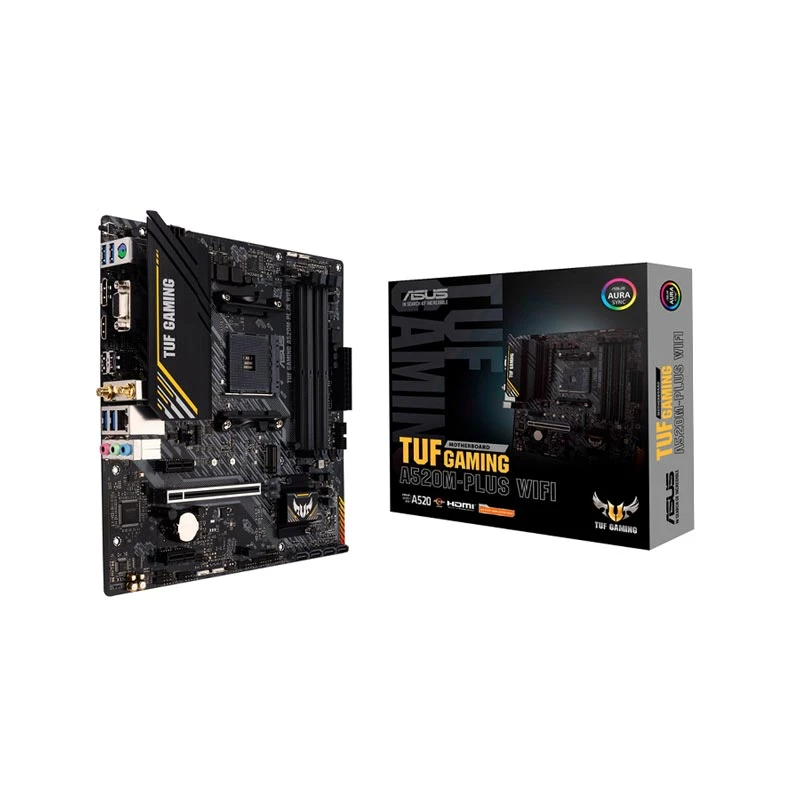

Item: ASUS TUF GAMING A520M-PLUS II DDR4 AMD AM4 Socket Motherboard
Rating: 5
Author: Verified Buyer

Brand

Asus

Model

Asus TUF GAMING A520M-PLUS II

Chipset

AMD A520

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10

Body Color

Black

Warranty Details

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus TUF GAMING A520M-PLUS II

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD A520

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/2666/2 400/ 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (type 2242/ 2260/ 2280, supports PCIe 3.0 x4 & SATA modes)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCIe 3.0 x16 slot (supports x16 mode), 2 x PCIe 3.0 x1 slots

Audio & Video

Audio Chipset

Realtek ALC887/897

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 1Gb Ethernet

LAN Speed (Mbps)

10 / 100 / 1000Mbps

WiFi

Bluetooth

Ports

USB Port

4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0,1,10

RGB Support

ARGB

RGB Sync

AURA Sync

RGB Connector

2 x AURA RGB headers, 2 x AURA Addressable Gen 2 header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

128 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10

Warranty

Warranty Details

3 Years Replacement Warranty

Additional Info

Feature

4+2 VRM Phase.

Others

Back Panel I/O Ports: 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x AURA Addressable Gen 2 header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus TUF GAMING A520M-PLUS II Motherboard In Bangladesh

The ASUS TUF GAMING A520M-PLUS II DDR4 AMD AM4 Socket Motherboard offers robust performance and durability. Built with gamers and enthusiasts in mind, it supports a wide range of AMD processors. This motherboard is designed to meet the demands of high-performance gaming and multitasking. Whether you're upgrading or building a new PC, this motherboard is a great choice for reliable and efficient performance. It’s perfect for gamers, content creators, and DIY PC builders.

What Are the Features & Benefits of the ASUS TUF GAMING A520M-PLUS II

The ASUS TUF GAMING A520M-PLUS II is packed with features that enhance both performance and durability. It supports AMD Ryzen 3000, 4000, and 5000 series processors, offering flexibility for various builds. The motherboard includes four memory slots with support for up to 128GB of DDR4 RAM, making it ideal for heavy multitasking and gaming. The A520 chipset ensures solid performance for everyday tasks and gaming sessions. Additionally, it is built with military-grade components, offering long-lasting reliability. The sleek black design adds a professional touch to any PC setup, fitting seamlessly into any case. If you're looking for a stable, high-performance motherboard, this model is a great choice.

What Should You Consider Before Buying the ASUS TUF GAMING A520M-PLUS II

Before purchasing the ASUS TUF GAMING A520M-PLUS II, consider your system's needs. This motherboard is perfect for gaming and content creation, but it lacks PCIe 4.0 support, which may limit performance in the future. Ensure your CPU is compatible with the AM4 socket and that the motherboard fits in your case. The board also does not feature a "Back-Connect" design, so be mindful of that if you need more rear I/O options. Overall, it’s an excellent choice for users who want a reliable, affordable motherboard with solid features for gaming and productivity.

Buy Your ASUS TUF GAMING A520M-PLUS II from Ryans Computers Ltd

To get the best deal on the ASUS TUF GAMING A520M-PLUS II DDR4 AMD AM4 Socket Motherboard, visit Ryans Computers. They offer competitive prices and reliable customer service. If you’re in Bangladesh, Ryans Computers is the place for your tech needs. Purchase with confidence and enjoy fast, secure delivery. Click here to buy today at Ryans Computers!

What is the price of Asus TUF GAMING A520M-PLUS II Motherboard In Bangladesh?

The price of Asus TUF GAMING A520M-PLUS II Motherboard starts from 12,500 . The price may vary due to your customization and product availability. You can buy Asus TUF GAMING A520M-PLUS II Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

Ata ki wifi motherboard?

Asked By

প্রিয় গ্রাহক ,
WiFi - No
ধন্যবাদ ।

Answered By Ryans Computers Ltd. , 18 Apr 2026

Resizable BAR on kora jai aye mobo te ami arc a 580 lagai te chaitisi

Asked By khalid

PELADN AMD Radeon KaiTian RX 580 8GD5 Gaming 8GB GDDR5 lagate parbo???

Asked By

প্রিয় গ্রাহক
জি মডেলটি ব্যবহার করতে পারবেন
ধন্যবাদ

Answered By Ryans Computers Ltd. , 07 Apr 2026

Ata ki ryzen 7 5700x support korbe?

Asked By Jahid

প্রিয় গ্রাহক
সাপোর্ট করবে
ধন্যবাদ

Answered By Ryans Computers Ltd. , 07 Apr 2026

Aye mobo te arc 770 16 gb gpu cholbe ?

Asked By Basit ali

প্রিয় গ্রাহক,
মাদারবোর্ডটিতে আপনার দেওয়া উল্লেখিত মডেলের গ্রাফিক্স কার্ডটি ব্যবহার করতে পারবেন।
ধন্যবাদ।

Answered By Ryans Computers Ltd. , 02 Apr 2026

এই মাদারবোর্ডে SSD slot. কয়টা??

Asked By Kazi Monirul Islam

প্রিয় গ্রাহক ,
M.2/SSD Expansion Slot - 1
ধন্যবাদ ।

Answered By Ryans Computers Ltd. , 09 Feb 2026

Aita ki bogurai ase

Asked By

প্রিয় গ্রাহক,
বগুড়া শাখার বর্তমান স্টকে আছে ।
ধন্যবাদ।
আপনি যদি পারচেজ করতে চান তাহলে অনুগ্রহ করে আমাদের হটলাইন নাম্বারে যোগাযোগ করতে পারেন-১৬৮১০

Answered By Ryans Computers Ltd. , 21 Jan 2026

Pc shutdown দেয়ার পরেও কি এই মাদারবোর্ডের পিছনের কিছু অংশে বাতি জ্বলে থাকে?

Asked By Saif Hasan

প্রিয় গ্রাহক,
হ্যাঁ Asus TUF GAMING A520M-PLUS II (এবং অনেক Asus মাদারবোর্ডের মতো)–এর চিপসেট ও ব্যাক I/O প্যানেলের আশেপাশে কিছু লাইট (LED) পিসি বন্ধ করার পরও জ্বলে থাকতে পারে।
ধন্যবাদ

Answered By Ryans Computers Ltd. , 26 Oct 2025

এই মাদারবোর্ড সর্বোচ্চ কত gen ssd support korbe

Asked By Md Ripon Mia

প্রিয় গ্রাহক ,
সর্বোচ্চ জ্যান থ্রি পর্যন্ত সাপোর্ট করবে
ধন্যবাদ
M.2/SSD Slot Gen : Up to Gen 3

Answered By Ryans Computers Ltd. , 19 Sep 2025

এটা কি overclooking support kore and etar vrm Phase?

Asked By Kowshik

প্রিয় গ্রাহক,
এই মডেলটিতে ওভার ক্লক সাপোর্ট করবে না এবং 4+2 vrm Phase.
ধন্যবাদ

Answered By Ryans Computers Ltd. , 25 Aug 2025
