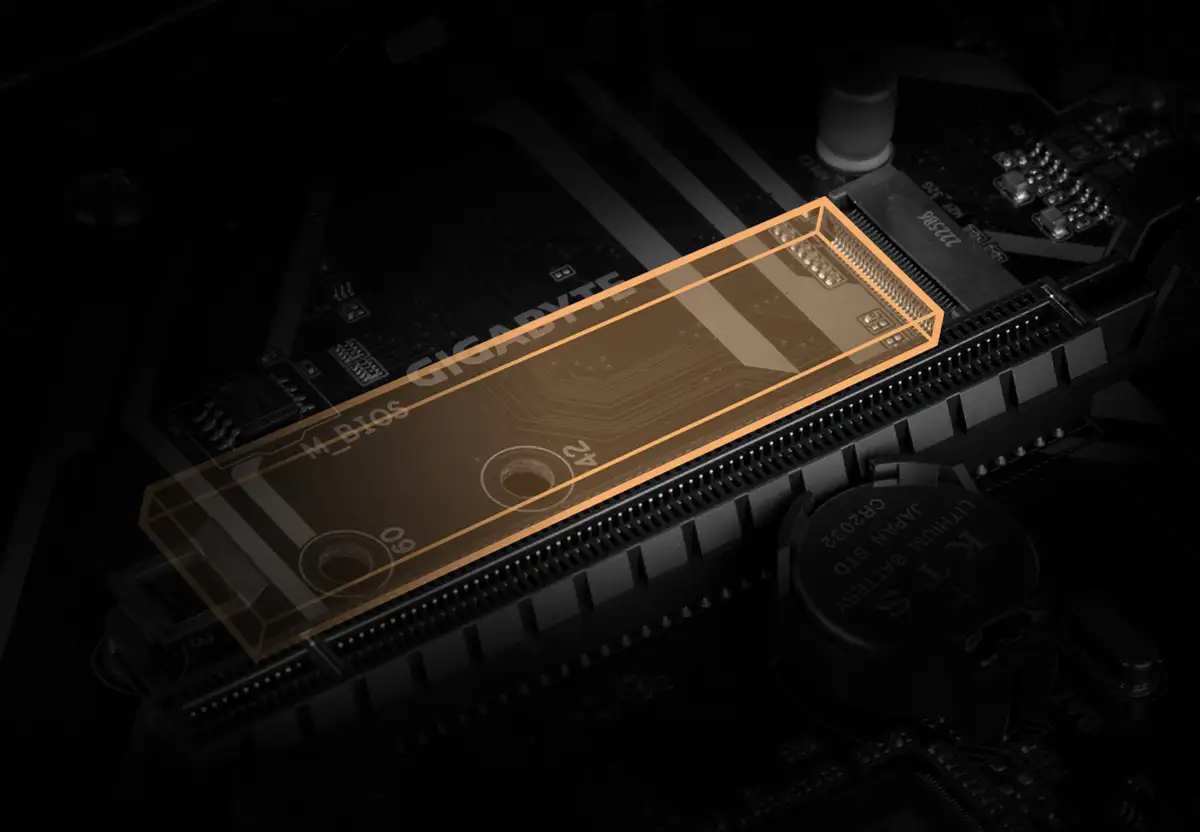

1 x M.2 (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16, 1 x PCI Express x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN chip
LAN Speed (Mbps)
10/ 100/ 1000Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit flash
BIOS Model

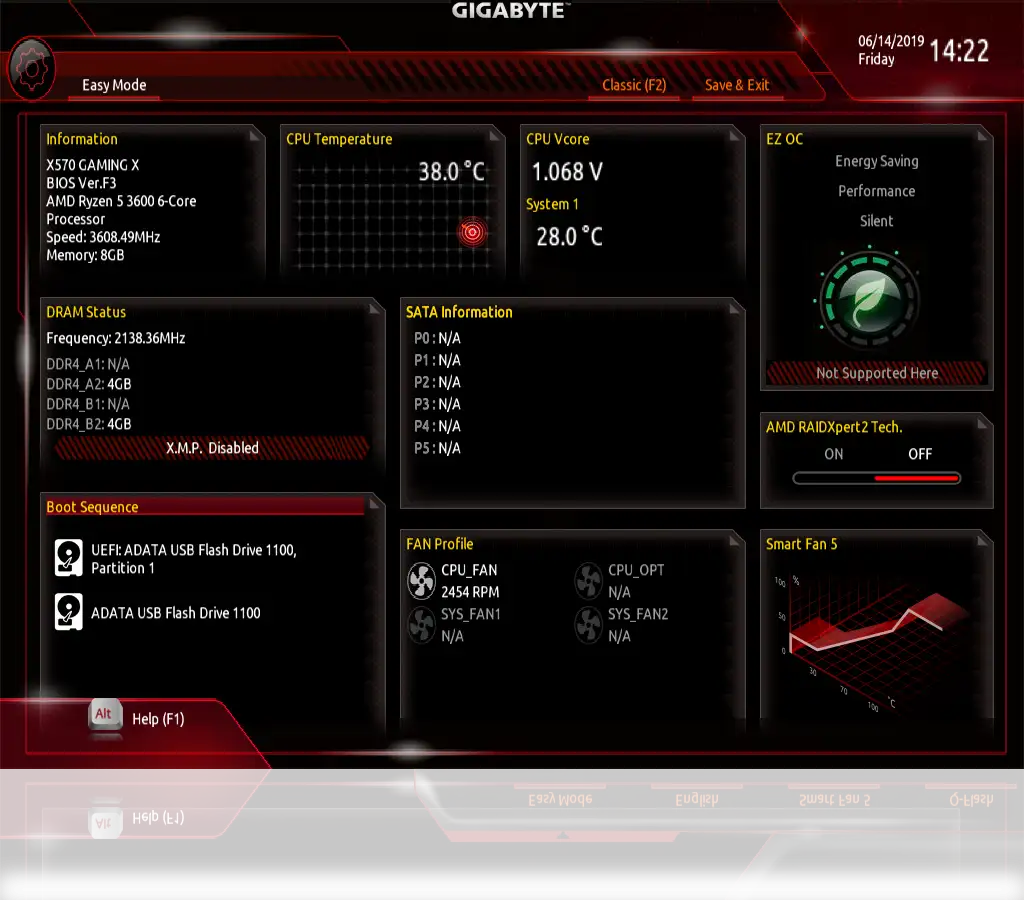

AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11, 10, 7
Warranty
Warranty
3 year
Additional Info
Feature

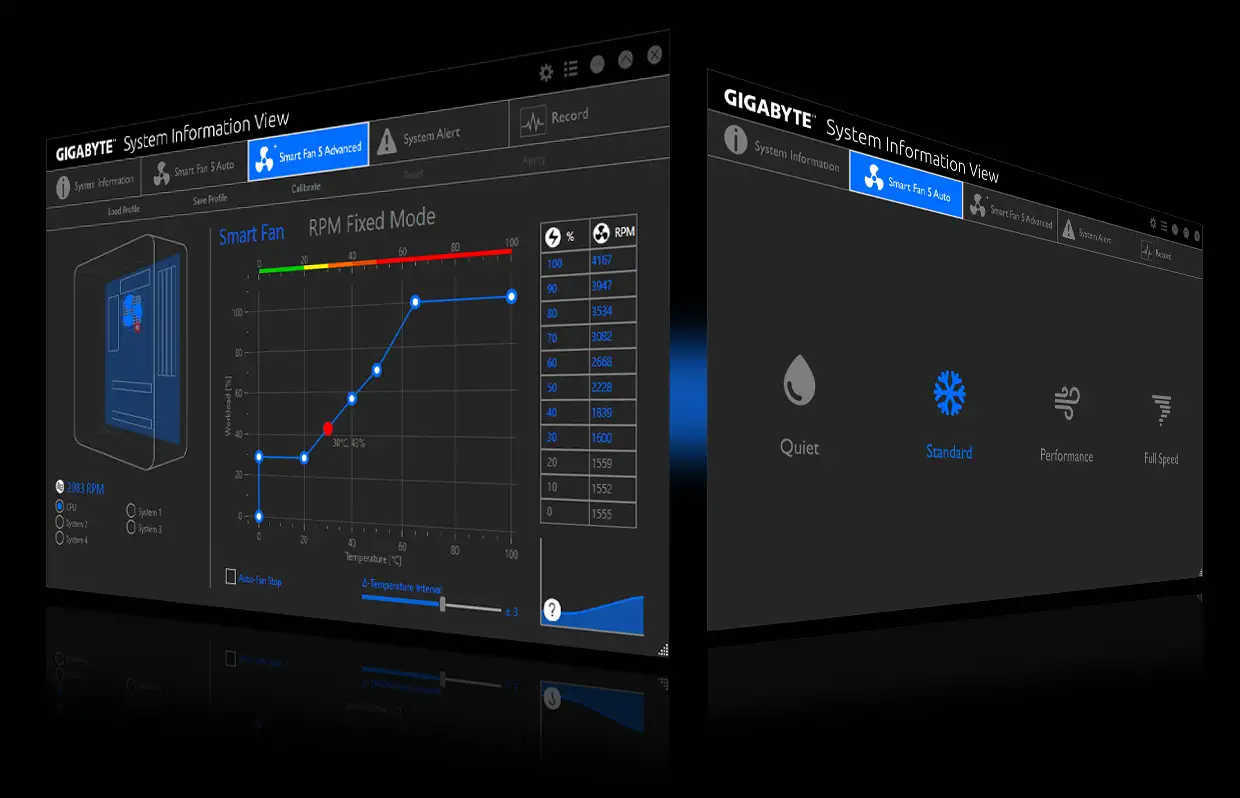

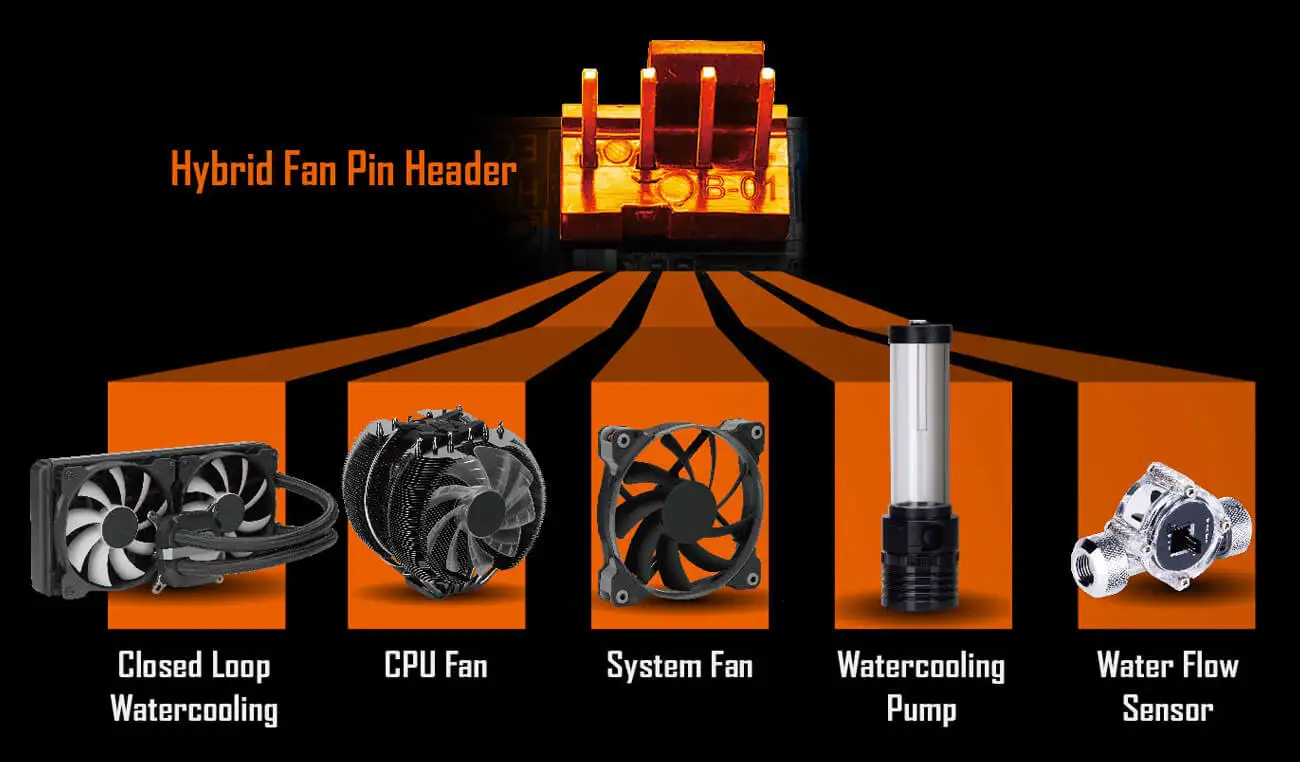

H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Support for APP Center, Support for Q-Flash, Support for Xpress Install. GbE LAN with Bandwidth Management, 8-Channel HD Audio with High Quality Audio Capacitors, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers.
Others

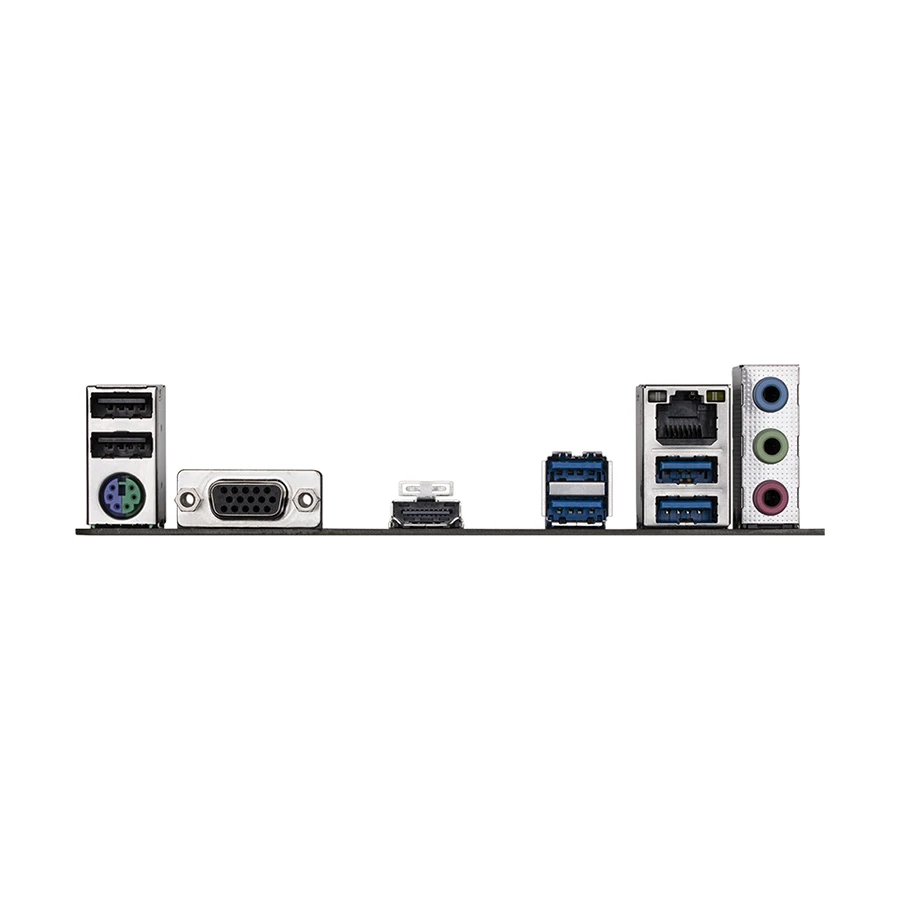

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, High Definition Audio, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x speaker header, 1 x Clear CMOS jumper, 1 x chassis intrusion header, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x RJ-45 port, 3 x audio jacks.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
এর সাথে কেসিংয়ের সামনে নেট জালির মত ডিজাইন এবং সামনে ২টা ও পেছনে ১টা লাইটিং ছাড়া ফ্যান সিস্টেমের কোন কোন কেসিং সাপোর্ট করবে একটু মডেলগুলা জানাবেন। আর সেখানে টপ সাইডে দুই পোর্টের অন্তত ১টা ৩.০ USB পোর্ট থাকবে। কেসিংয়ের দাম ৩০০০ এর নিচে হলে ভালো হয়।
Asked By
A:
প্রিয় গ্রাহক, জি, আপনার বাজেট ও চাহিদা অনুযায়ী একাধিক উপযুক্ত কেসিং রয়েছে। বিস্তারিত জানতে বা যেকোনো প্রয়োজনে আমাদের হটলাইন নাম্বারে যোগাযোগ করতে পারেন- 16810, 09609016810, অথবা আমাদেরকে হোয়াটসঅ্যাপে মেসেজ করতে পারবেন -01755513900 (শুধুমাত্র মেসেজ) ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 29 Jul 2026
Q:
Does this support Ryzen 5 2400g
Asked By Xeno
A:
Dear customer, The model will be supported, Thank you.
Answered By Ryans Computers Ltd.
, 18 Jul 2026
Q:
Kivaby bios setup korbo
Asked By Siyam
A:
প্রিয় গ্রাহক, আমাদের শাখায় নিয়ে এসে আপডেট করাতে হবে। ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 16 May 2026
Q:
Ai mother board kivaby bios setup korbo
Asked By
A:
প্রিয় গ্রাহক, আমাদের শাখায় নিয়ে এসে আপডেট করাতে হবে। ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 16 May 2026
Q:
Is this motherboard compatible with HP VGA monitor?
Asked By
A:

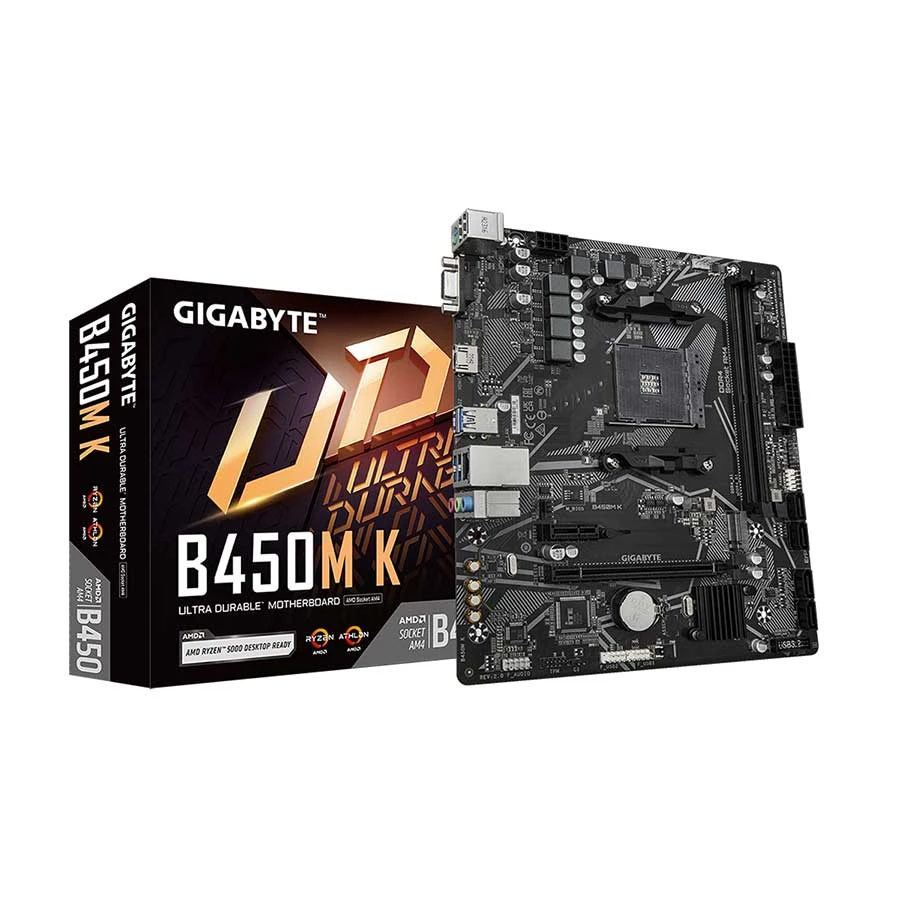

Dear Customer, Yes, you can use an HP VGA monitor with the Gigabyte B450M K (2.0) DDR4 AMD Motherboard. Thank you.
Answered By Ryans Computers Ltd.
, 13 Feb 2026
Q:
is it available in bogura branch?
Asked By joy
A:
প্রিয় গ্রাহক , আন্তরিকভাবে দুঃখিত ,প্রোডাক্টটি এই মুহূর্তে আমাদের বগুড়া শাখায় অ্যাভেলেবেল নেই কিন্তু দুই থেকে তিন দিনের মধ্যে এরেঞ্জ করে দেওয়া সম্ভব। এ বিষয়ে বিস্তারিত জানতে আপনি আমাদের হট লাইন নাম্বারে যোগাযোগ করুন ।16 810, 09609016810 ধন্যবাদ ।
Answered By Ryans Computers Ltd.
, 15 Sep 2025
Q:
argb port available on this motherboard?
Asked By dksk
A:
Dear Customer , This motherboard does not have an argb port. Thank You.
Answered By Ryans Computers Ltd.
, 17 Aug 2025
Q:
Ryzen 5 3400 G support korbe?
Asked By Raihan
A:
প্রিয় গ্রাহক, আপনার দেওয়া উল্লেখিত প্রসেসরটি এই মাদারবোর্ডটিতে ব্যবহার করতে পারবেন। ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 09 Aug 2025
Q:
Peladn AMD Radeon RX580 8G Gaming 8GB GDDR5 এই জিপিইউ কি এটাতে সাপোর্ট করবে।
Asked By NIYAMUL
A:
প্রিয় গ্রাহক, আপনার দেওয়া মডেলের গ্রাফিক্স কার্ডটি এই মাদারবোর্ডটিতে ব্যবহার করতে পারবেন। ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 17 Jul 2025
Q:
XfX HD card 5440 support
Asked By Boss
A:
প্রিয় গ্রাহক, জি , সাপোর্ট করবে। ধন্যবাদ ।
Answered By Ryans Computers Ltd.
, 16 Jul 2025
