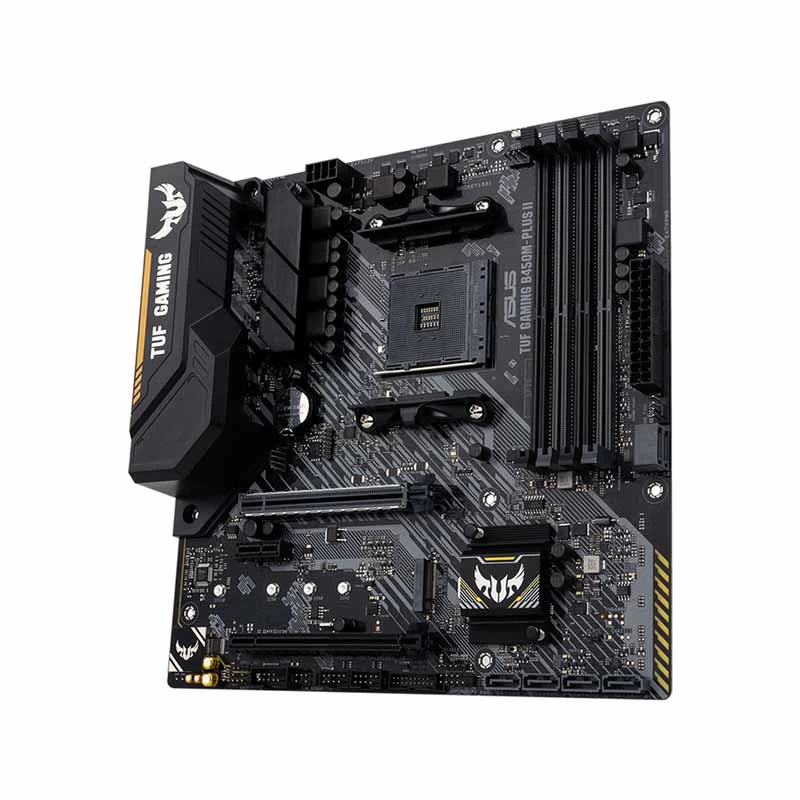

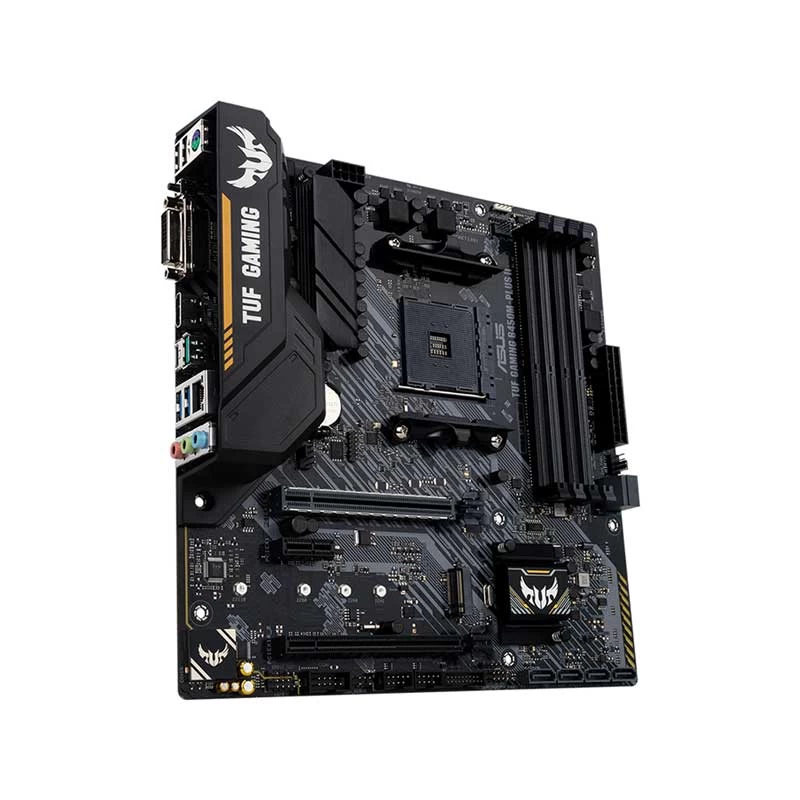

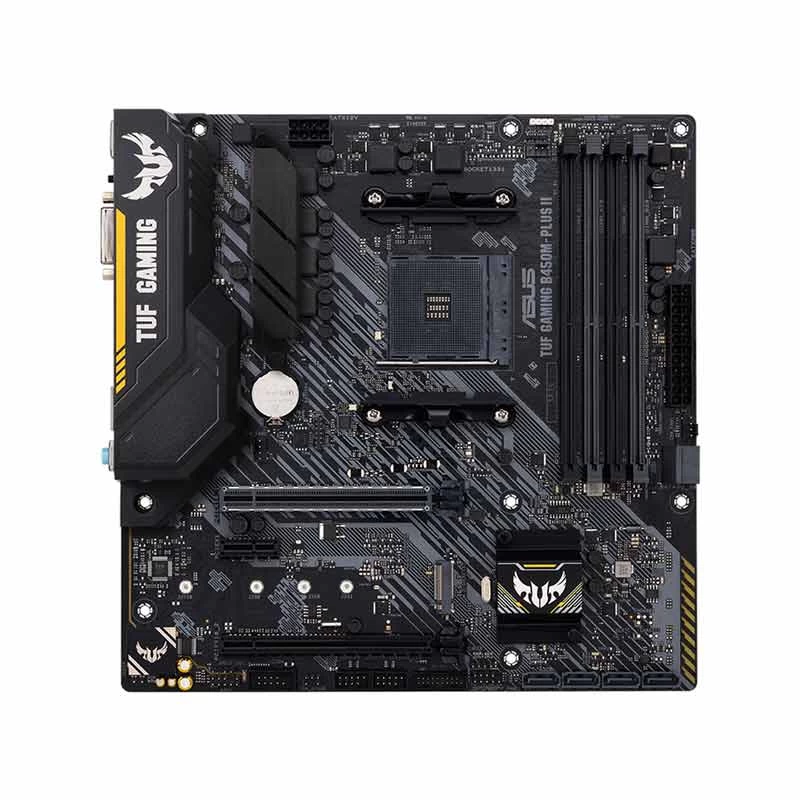

ASUS TUF GAMING B450M-PLUS II DDR4 AMD Motherboard

Item: ASUS TUF GAMING B450M-PLUS II DDR4 AMD Motherboard
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 02.02.006.472

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B450
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Generation - 2nd/3rd
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus TUF GAMING B450M-PLUS II

Chipset

AMD B450

Sockets Supported

AM4

Built-in Processor

Generation

2nd/3rd

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

AMD Vega Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10, 7

Body Color

Black

Warranty

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus TUF GAMING B450M-PLUS II

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B450

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Generation

2nd/3rd

Memory Support

Memory Type

DDR4

Memory MHz

4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

AMD Vega Graphics support

Multi-GPU Support

AMD 2-Way CrossFireX Technology

PCI Express Slot

1 x PCIe 3.0/ 2.0 x 16 (x16 mode) (3rd/2nd/1st Gen AMD Ryzen Processors), 1 x PCIe 3.0/2.0 x16 (x8 mode) (2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors), 1 x PCIe 3.0/2.0 x16 (max at x4 mode) (Athlon with Radeon Vega Graphics Processors)

Audio & Video

Audio Chipset

Realtek ALC887/897

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H 1Gb Ethernet

LAN Speed (Mbps)

10/ 100/ 1000Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB 2.0, 2 x USB 3.2 Gen 1 (blue) Type-A, 1 x USB 3.2 Gen 2 (teal blue)Type-A, 1 x USB 3.2 Gen 1 (black) Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

6 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Yes

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Sync

AURA Sync

RGB Connector

1 x Aura RGB Strip Header

Approx. Power Consumption

65W

Form Factor

Micro-ATX

Bios Information

BIOS Type

256 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10, 7

Warranty

3 Years Replacement Warranty

Additional Info

Others

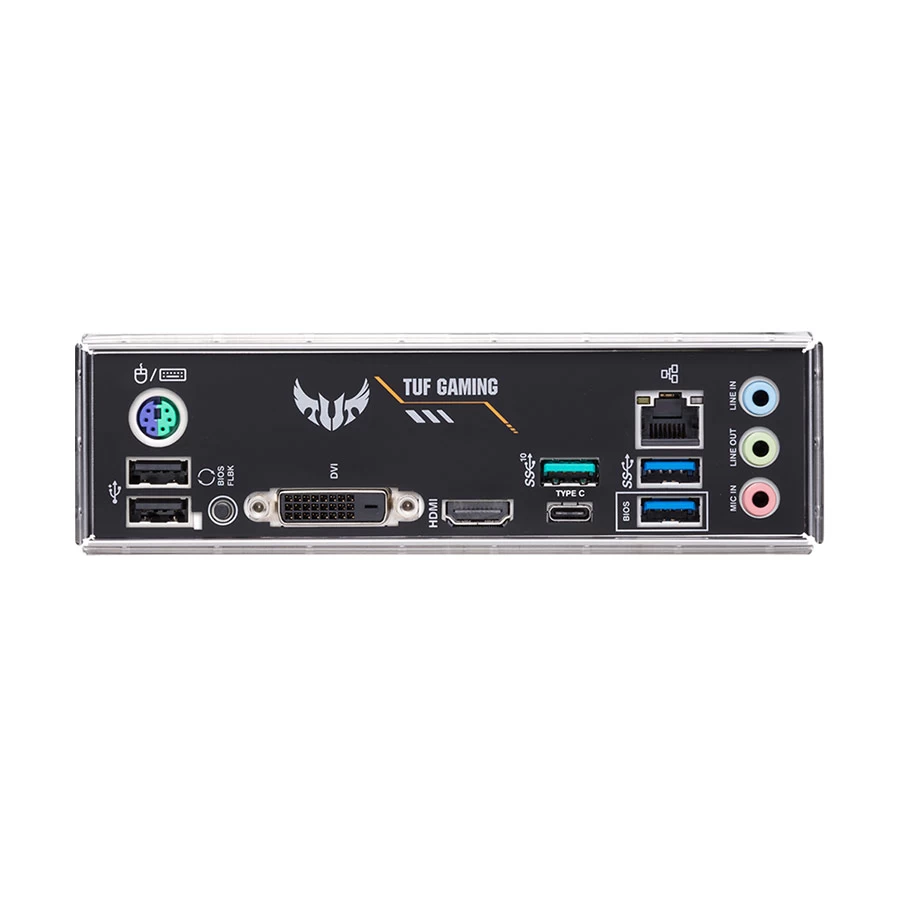

Internal I/O Ports: 1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x Speaker connector, Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s), 1 x LAN (RJ45) port(s), 3 x Audio jack(s), 1 x BIOS FlashBack Button(s)

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus TUF GAMING B450M-PLUS II Motherboard In Bangladesh

DURABLE. STABLE. RELIABLE.
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

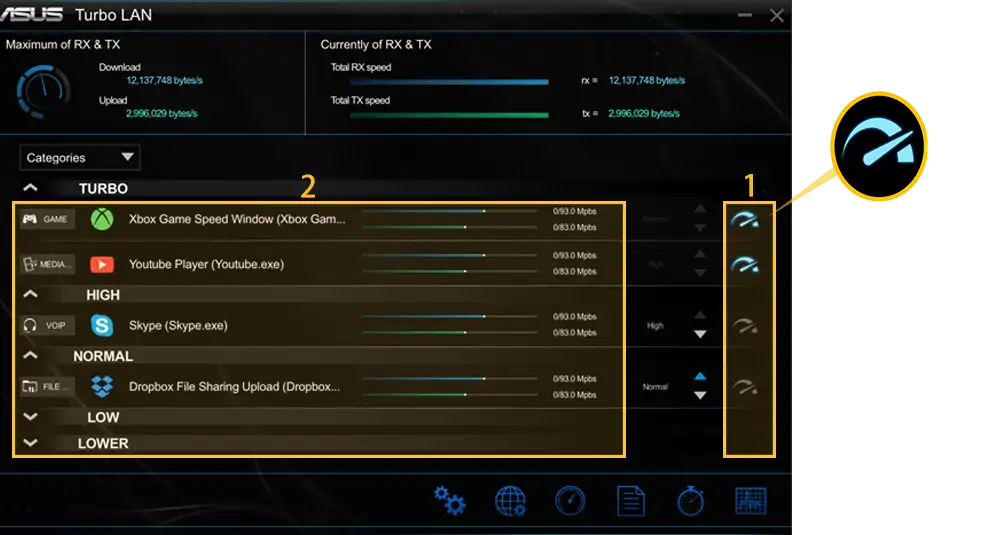

Turbo LAN -NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.

What is the price of Asus TUF GAMING B450M-PLUS II Motherboard In Bangladesh?

The price of Asus TUF GAMING B450M-PLUS II Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus TUF GAMING B450M-PLUS II Motherboard from our website or visit our showrooms nearby.
