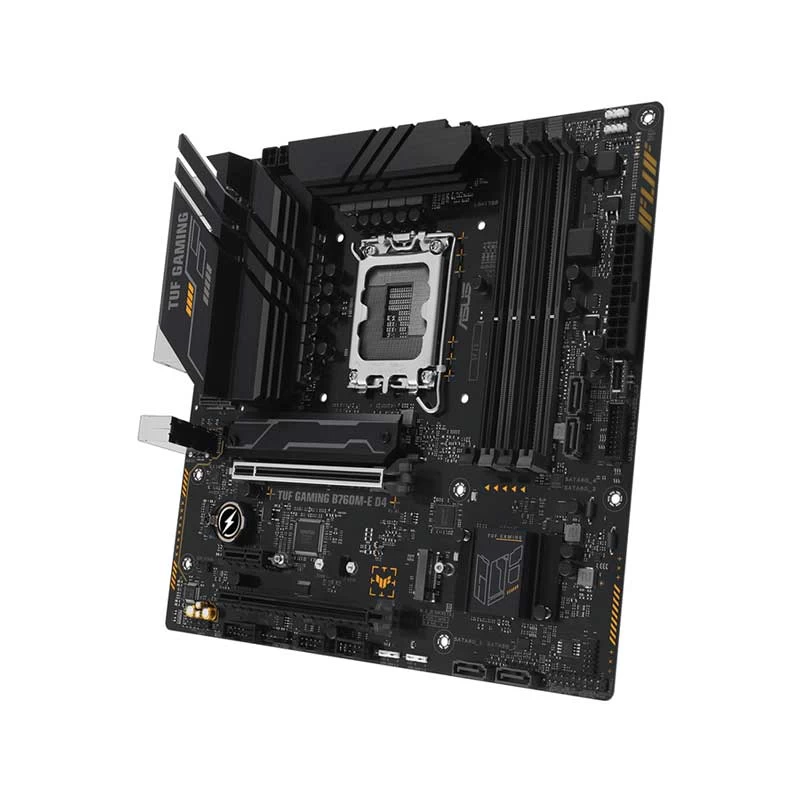

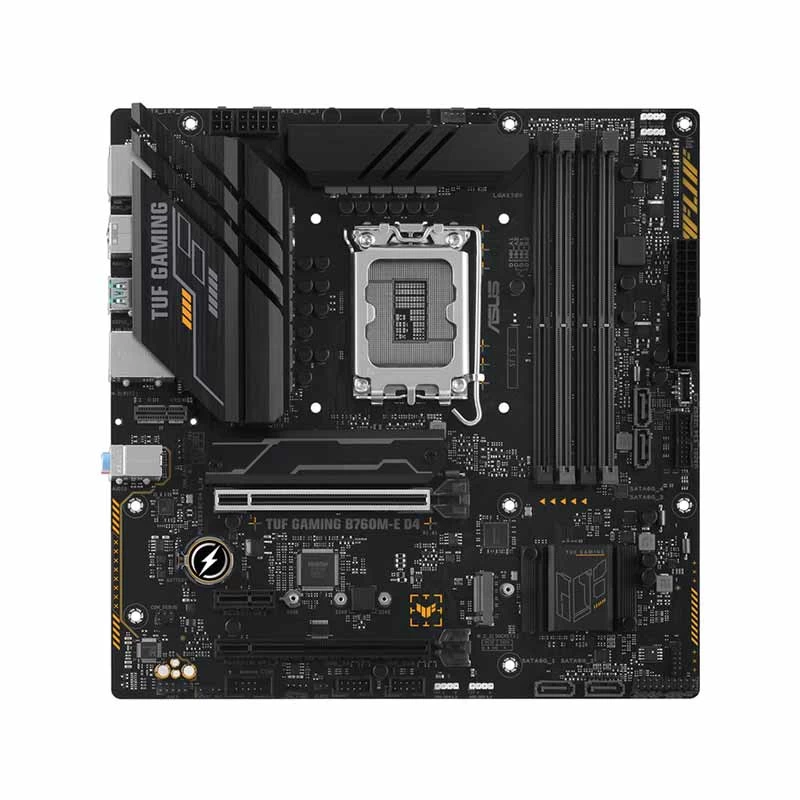

Asus TUF GAMING B760M-E D4 DDR4 Motherboard

Product Id: 02.01.006.460

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th / 13th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors
  • Generation - 12th/13th
General
Brand
Asus

Model
Asus TUF GAMING B760M-E D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th / 13th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode, 1 x M.2 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
1 x Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No

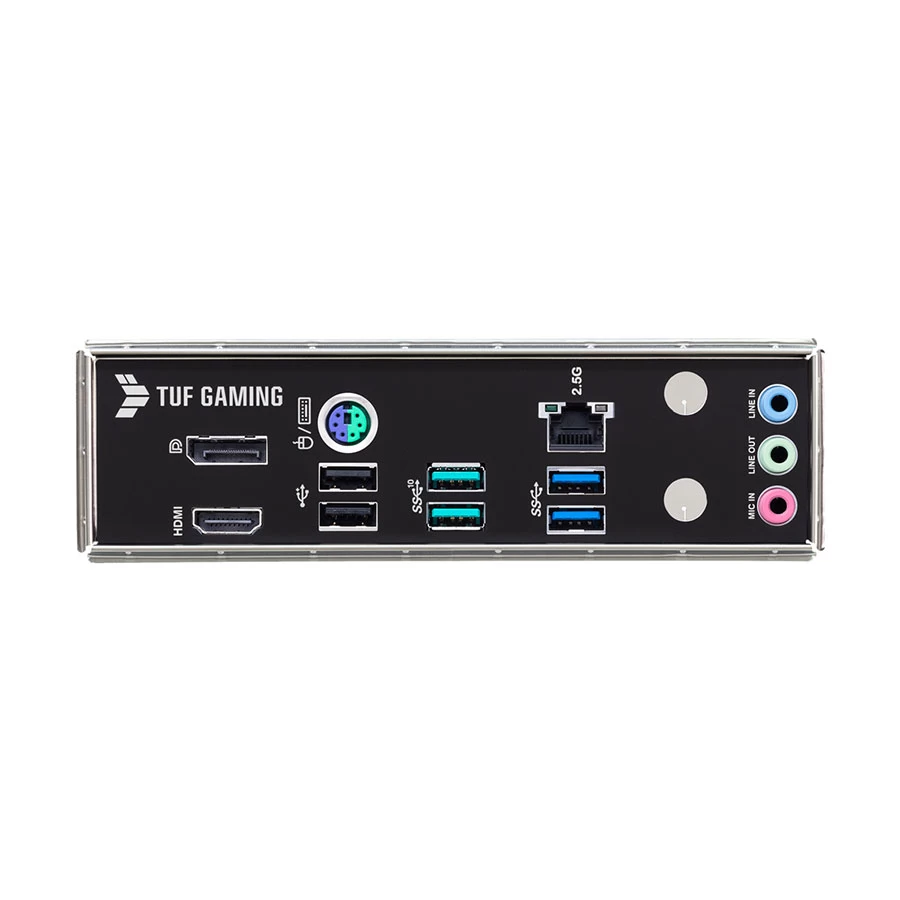

Ports
USB Port
2 x USB 3.2 Gen 2 (10G) Type-A, 2 x USB 3.2 Gen 1 (5G) Type-A, 2 x USB 2.0 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
No

COM Port
1


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0/1/5/10

RGB Support
RGB

RGB Sync
AURA Sync

RGB Connector
1 x AURA RGB header

Approx. Power Consumption
65W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
LGA1700 Socket 12th & 13th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
ASUS TUF PROTECTION, DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O, Flexible M.2 heatsink, VRM heatsink design, ProCool, SafeDIMM, AURA RGB header, Addressable Gen 2 headers

Others
Manageability: WOL by PME, PXE, Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector, 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out header)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
