3 x M.2 (M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot
Audio & Video
Audio Chipset

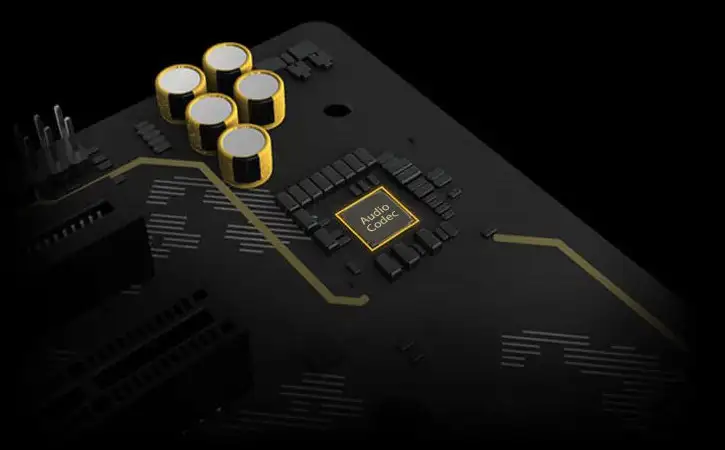

Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
1 x USB Type-C 20Gbps, 2 x USB Type-A 10Gbps, 4 x USB Type-A 5Gbps, 1 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
RGB Support
ARGB
RGB Sync
AURA Sync
RGB Connector
3 x Addressable Gen 2 headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
2 x 128 Mb Flash ROM
BIOS Model

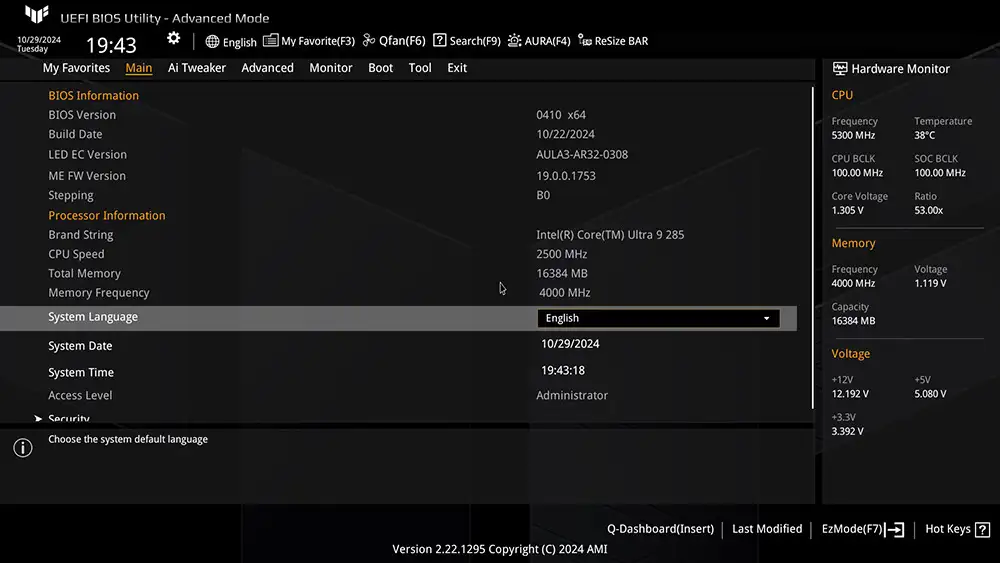

UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
Compatible with LGA1851 Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature
Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, ASUS Exclusive Software, NPU Boost.
Others

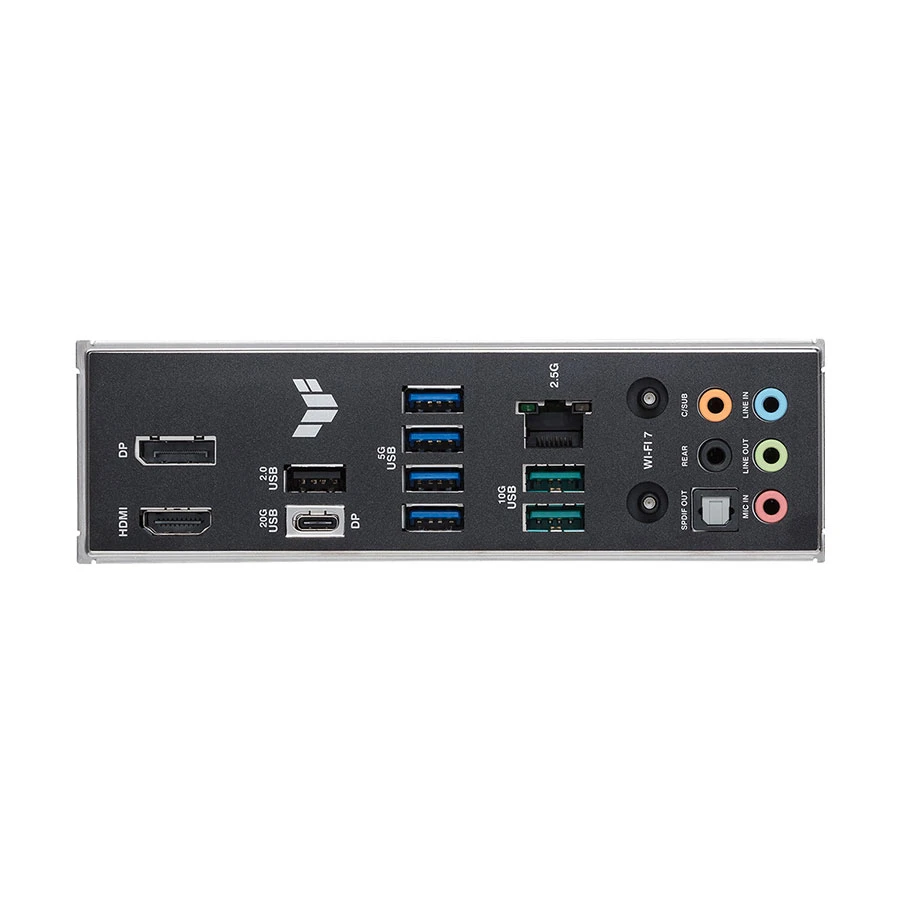

Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, Internal I/O Connectors: I/O Connectors Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors, Miscellaneous: 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x Front panel audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thunderbolt (USB4) header, Manageability: WOL by PME, PXE.
Country Of Origin
Taiwan
Made in/ Assemble
China
