Brand

Asus

Model

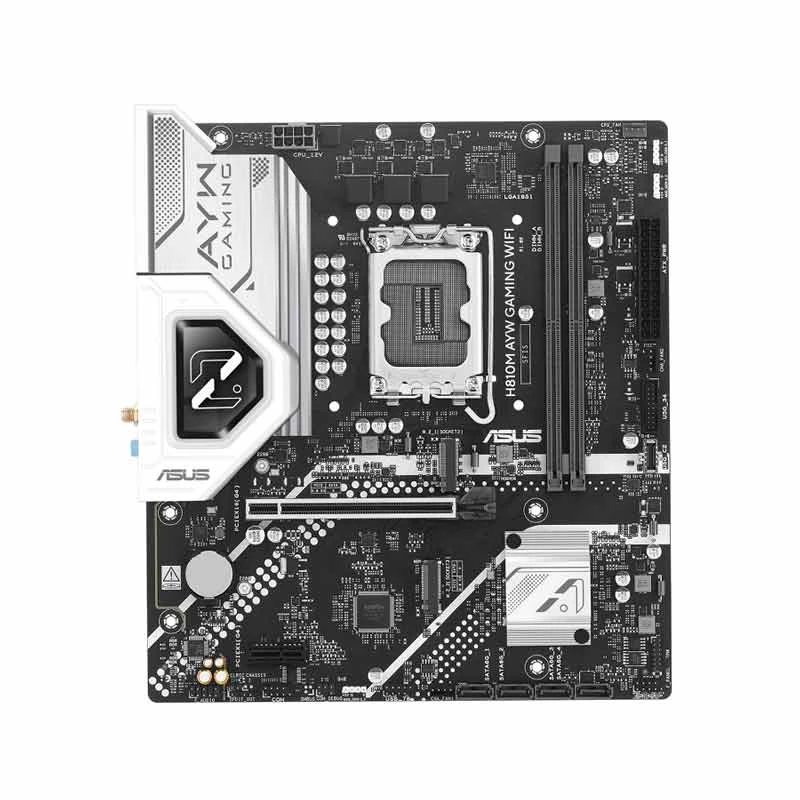

Asus H810M AYW GAMING (Wi-Fi 6)

Chipset

Intel H810

Sockets Supported

LGA1851

Built-in Processor

Generation

Ultra

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

Micro-ATX

Supported Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Body Color

Black & Silver

Warranty Details

3 Year Replacement

General

Brand

Asus

Model

Asus H810M AYW GAMING (Wi-Fi 6)

Body Color

Black & Silver

Part No

H810M AYW GAMING WIFI

CPU

Chipset Brand

Intel

Chipset

Intel H810

Sockets Supported

LGA1851

Built-in Processor

Supported CPU

Intel Core Ultra Processors (Series 2)

Generation

Ultra

Memory Support

Memory Type

DDR5

Memory MHz

7200 / 6400MHz Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

2 x DIMM Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

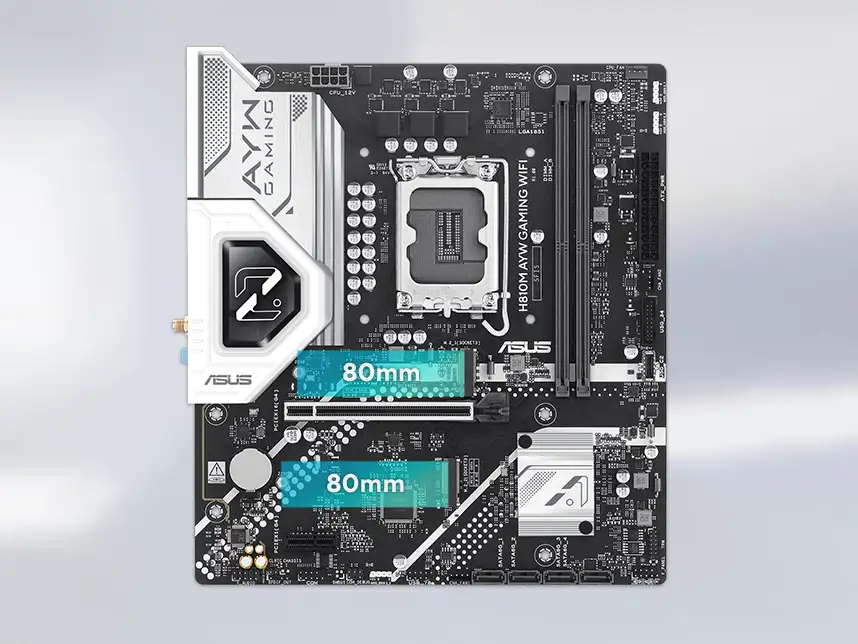

2 x M.2 slots (M.2 1 slot (Key M), type 2280,supports PCIe 4.0 x4 mode, M.2 2 slot (Key M), type 2280 supports PCIe 4.0 x2 mode)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot

Network & Connectivity

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

Yes

WiFi Technology

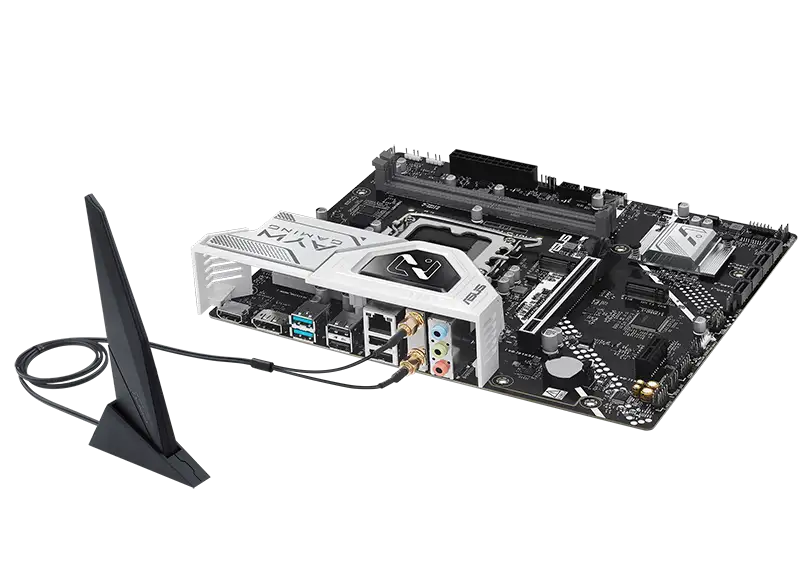

Wi-Fi 6: 1x1 802.11ax, 2.4GHz/5GHz

Bluetooth

Bluetooth 5.3

Ports

USB Port

2 x USB 10Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A).

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

RGB Support

ARGB

RGB Sync

Aura Sync

RGB Connector

3 x Addressable Gen 2 headers

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

256 (128+128) Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Compatible Products

Intel Core Ultra Processors (Series 2)

Warranty

Warranty Details

3 Year Replacement

Additional Info

Feature

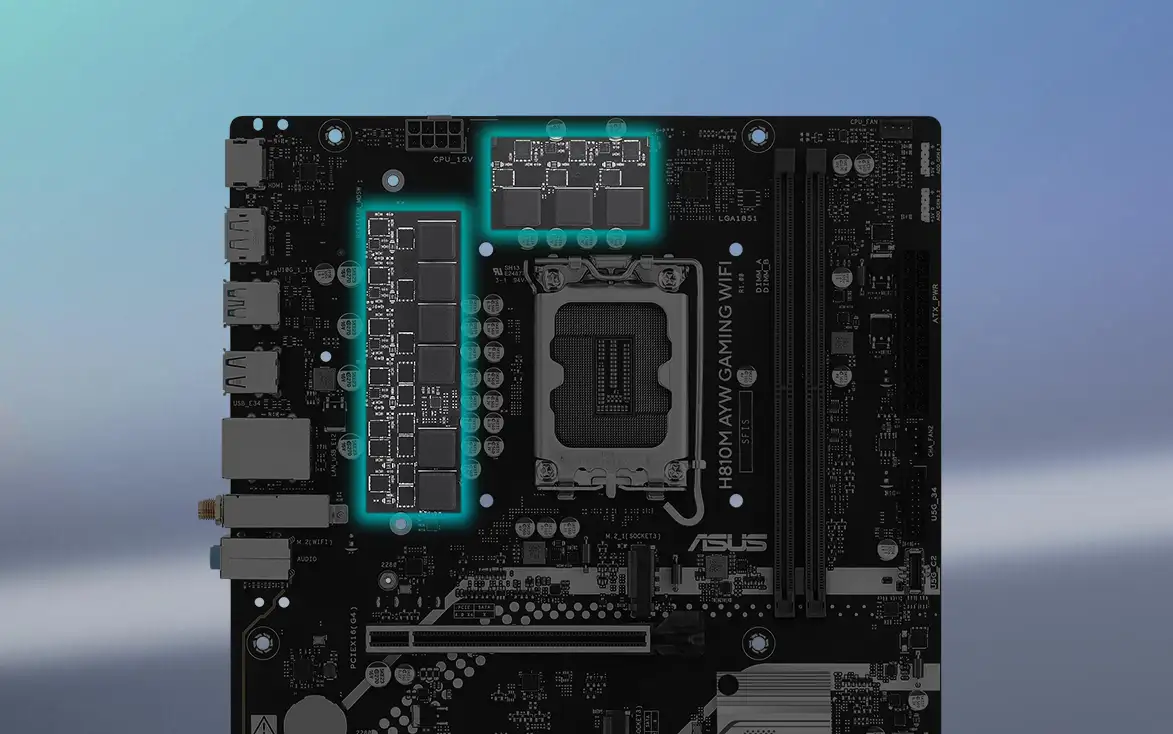

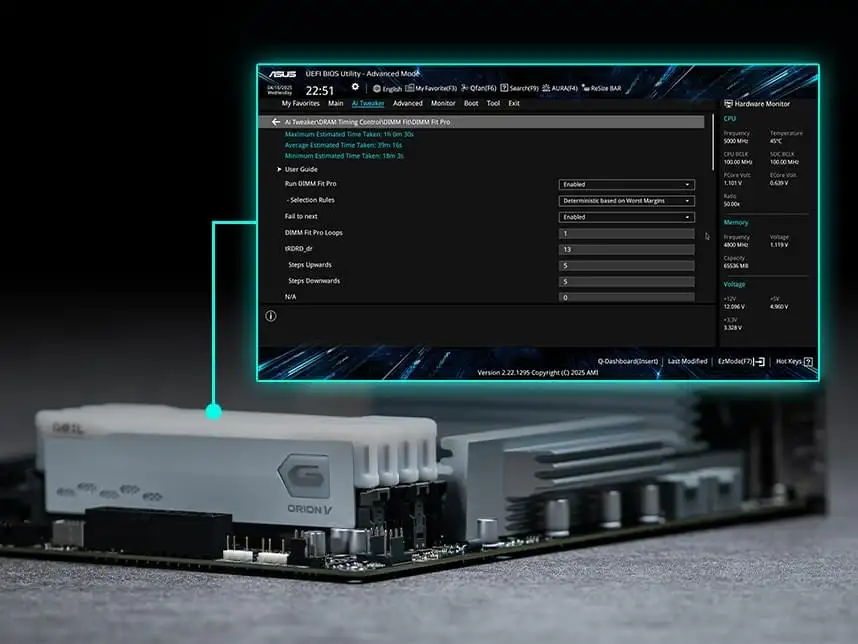

ASUS H810 series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). The H810M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. Supports Intel Extreme Memory Profile (XMP) memory module. ASUS Enhanced Memory Profile II (AEMP II). Audio Shielding. Premium audio capacitors. Dedicated audio PCB layers. ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O ASUS Q-Design: Q-DIMM, Q-Dashboard, Q-LED Core, Q-Slot. ASUS Thermal Solution: VRM heatsink design. Aura Sync: Addressable Gen 2 headers. 6+1+1+1: phase digital power design. DIMM Fit / DIMM Fit Pro: for enhanced DDR5 performance. PCIe 4.0 slots : for graphics card and storage. WiFi 6 for stable WiFi connection and lower latency.

Others

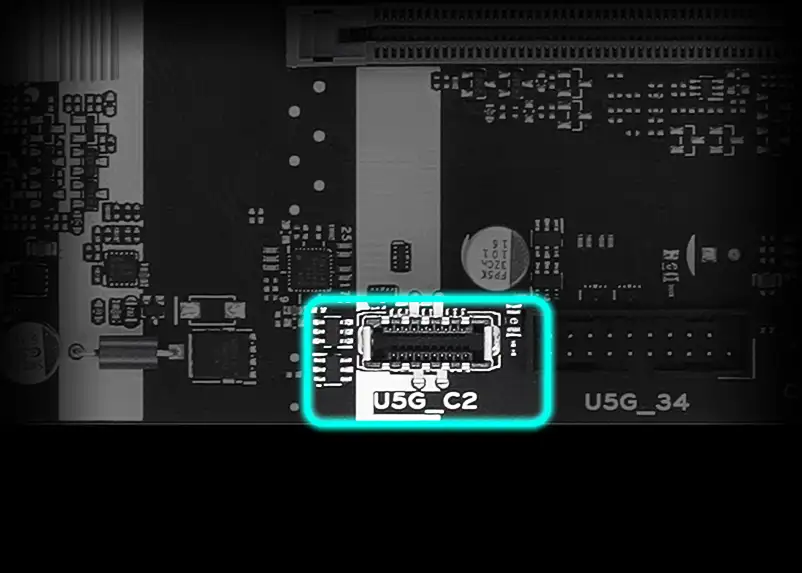

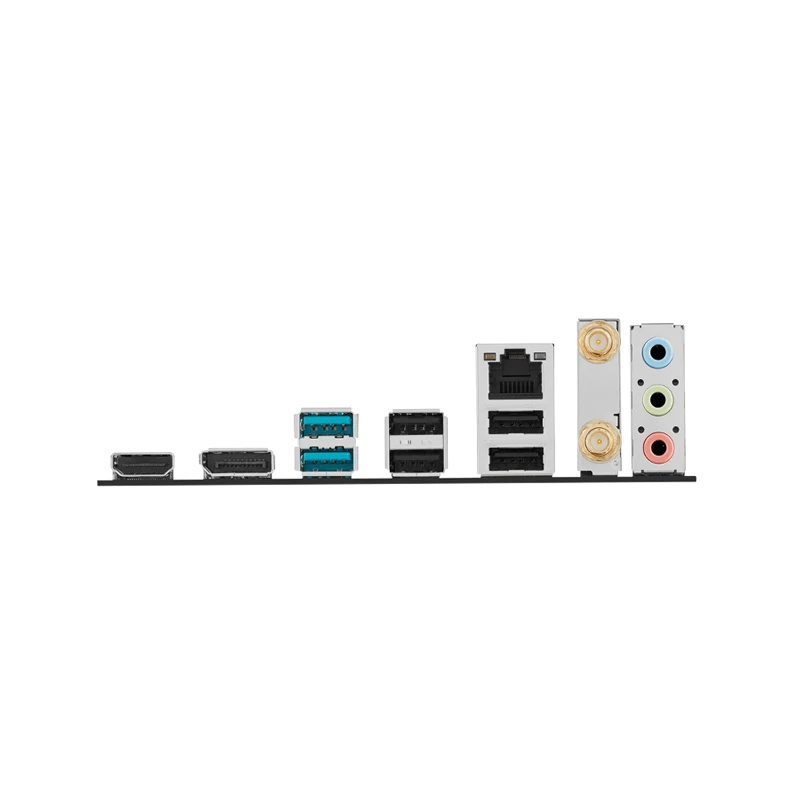

Ethernet: 1 x Intel 1Gb Ethernet port. ASUS LANGuard. Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. Supports up to 24-Bit/192 kHz playback. Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Intel 1Gb Ethernet port, 3 x Audio jacks. Internal I/O Connectors: Fan and Cooling Related, 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector, Storage Related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 5Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin Front Panel System header. Manageability: WOL by PME, PXE. Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 1 x I/O shield, 1 x Screw package for M.2 SSD. Documentation: 1 x Quick start guide. Form Factor: 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm).

Details

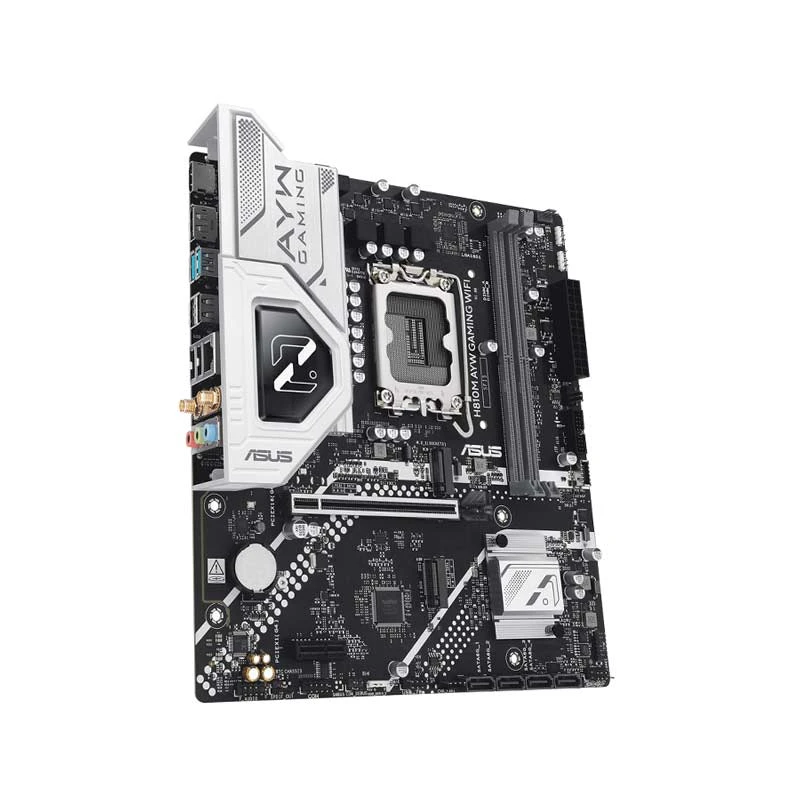

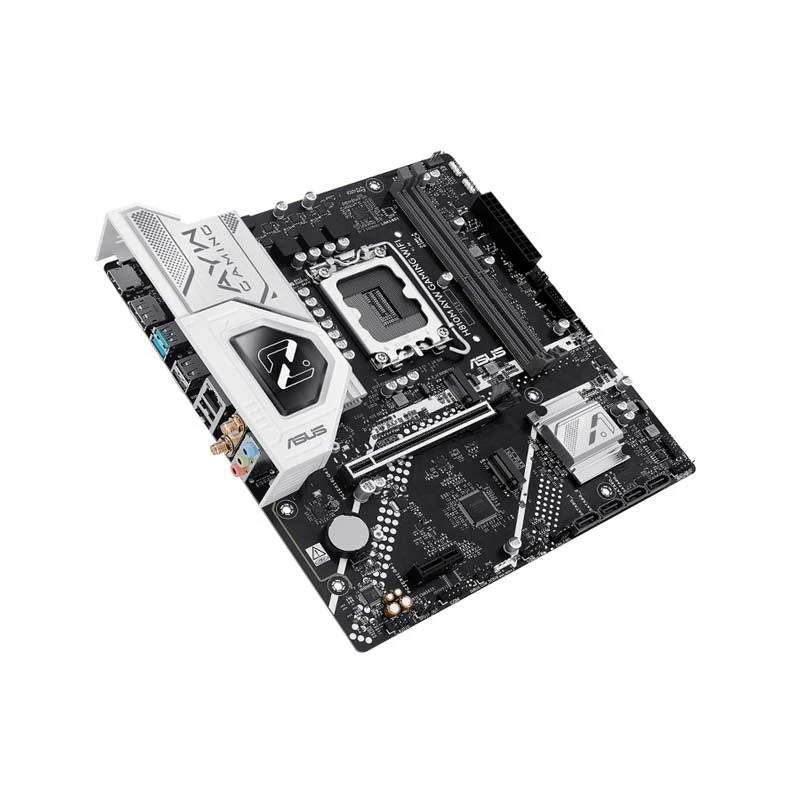

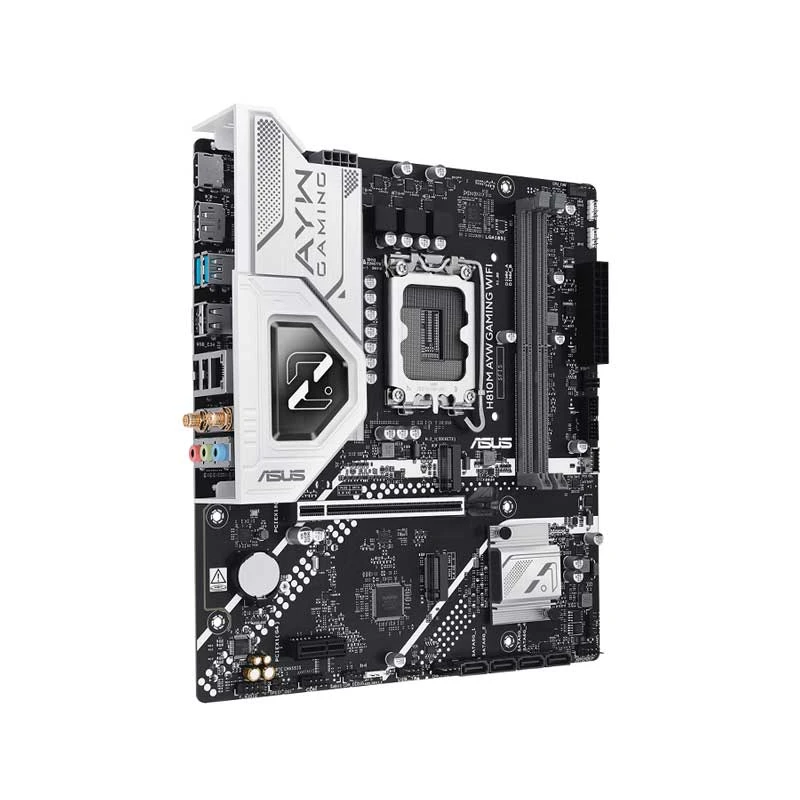

Features of Asus H810M AYW GAMING (Wi-Fi 6) Motherboard In Bangladesh

Asus H810M AYW GAMING DDR5 Motherboard is made for users who want stable performance and modern features in a compact size. It comes with the Intel H810 chipset and supports the latest LGA1851 socket processors. The motherboard uses DDR5 memory and has 2 RAM slots with support for up to 128GB memory. This helps users enjoy faster speed and smooth multitasking.The Micro-ATX form factor makes it a good choice for smaller gaming or work setups. It also includes built-in Wi-Fi 6 and Bluetooth 5.3 for easy wireless connection. The motherboard supports integrated graphics through the processor, so users can build a system without a separate graphics card if needed.

What Makes The Asus H810M AYW GAMING DDR5 Motherboard Special?

The Asus H810M AYW GAMING DDR5 Motherboard stands out because it combines modern technology with a simple and compact design. It supports DDR5 memory, which helps improve system speed and overall performance. With support for up to 128GB RAM, users can run games, work software, and daily tasks smoothly. The motherboard includes built-in Wi-Fi 6, which gives faster and more stable wireless internet connection. Bluetooth 5.3 also helps connect wireless devices easily. The 2 M.2 SSD slots allow users to install high-speed storage for faster loading and better system response.

Who Should Buy The Asus H810M AYW GAMING DDR5 Motherboard

This Asus H810M AYW GAMING DDR5 Motherboard is a good choice for gamers, students, office users, and home PC builders. It is suitable for people who want a modern motherboard with DDR5 memory support and wireless features. Users who prefer compact PC setups can also benefit from its Micro-ATX design. People who need fast storage and stable internet connection will find this motherboard useful. It is also a good option for users planning to build a new Intel-based PC with support for the latest operating systems like Windows 11 and Windows 10 64-bit.

Is The Asus H810M AYW GAMING DDR5 Motherboard Worth Buying?

Yes,this Motherboard is worth buying for users who want modern features in a compact motherboard. It supports DDR5 memory, which helps deliver faster performance for gaming, multitasking, and daily work. The motherboard also includes 2 M.2 SSD slots, allowing users to use fast storage drives for better speed and system response. Its support for Intel LGA1851 processors makes it suitable for newer PC builds. If you're looking to buy the Asus H810M AYW GAMING DDR5 Motherboard in Bangladesh, Ryans Computers offers the best price in the market.

What is the price of Asus H810M AYW GAMING (Wi-Fi 6) Motherboard In Bangladesh?

The price of Asus H810M AYW GAMING (Wi-Fi 6) Motherboard starts from 16,900 . The price may vary due to your customization and product availability. You can buy Asus H810M AYW GAMING (Wi-Fi 6) Motherboard from our website or visit our showrooms nearby.
