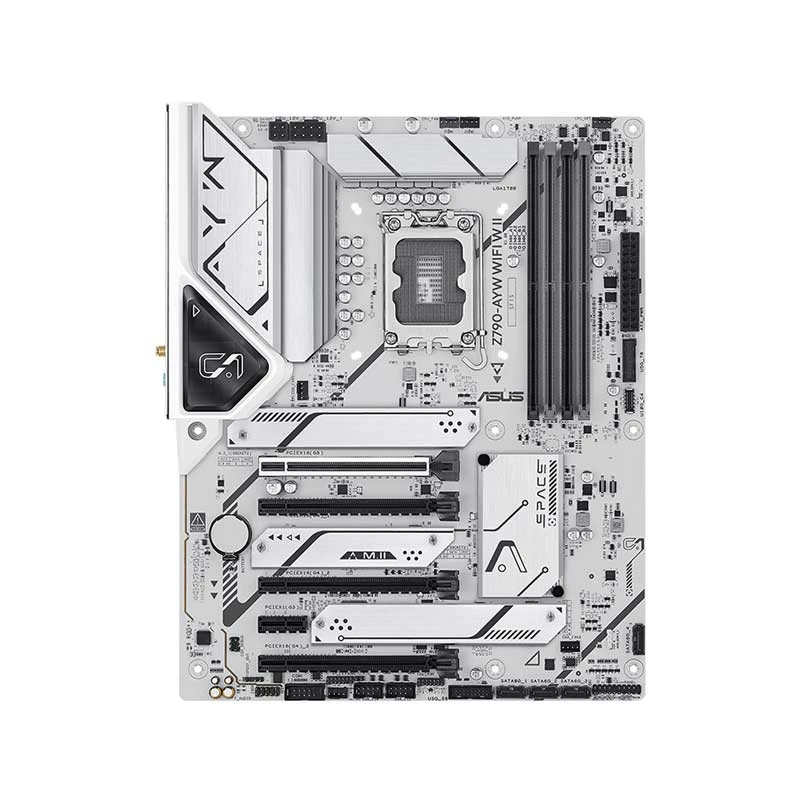

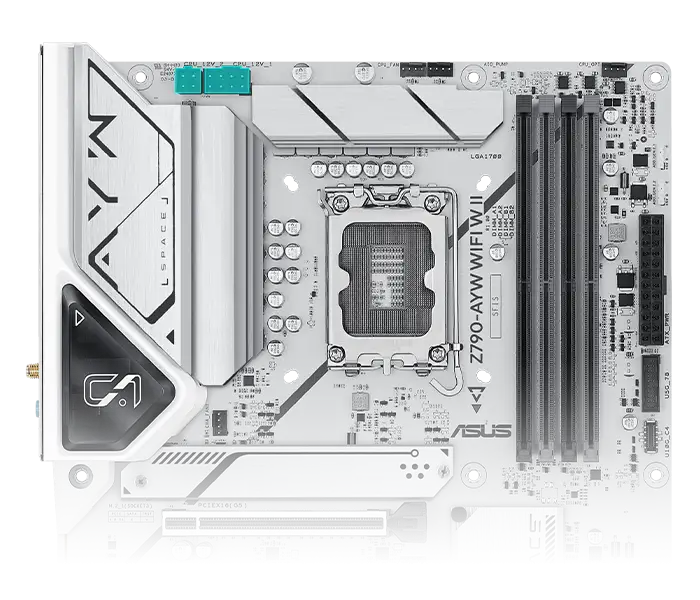

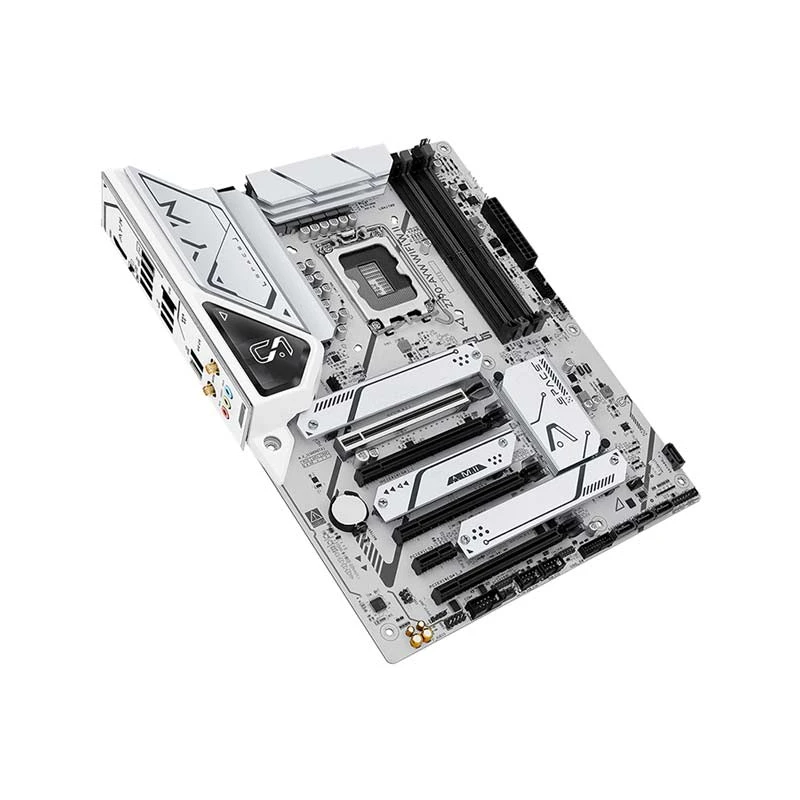

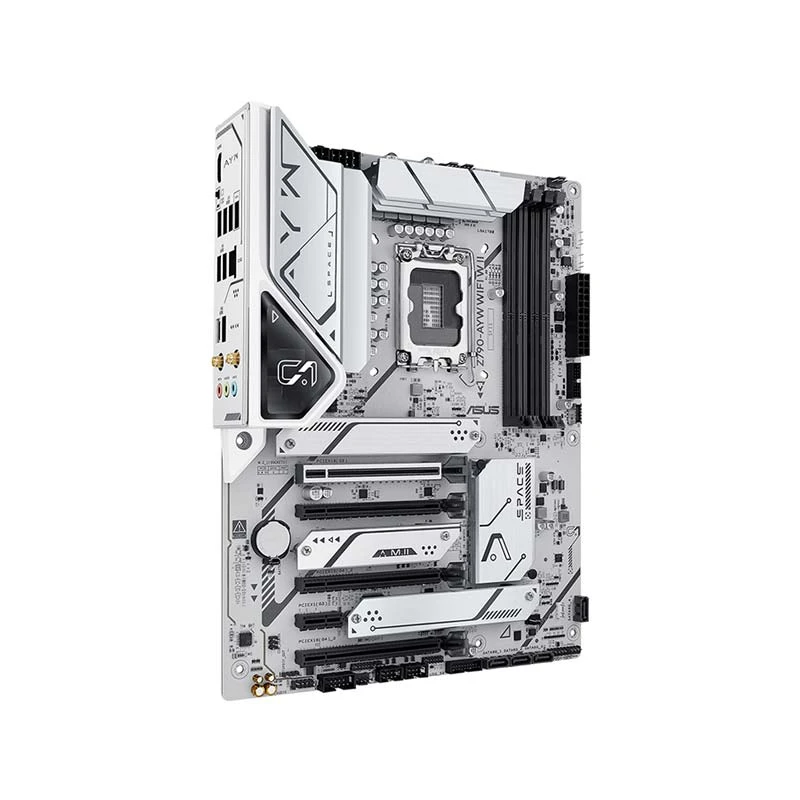

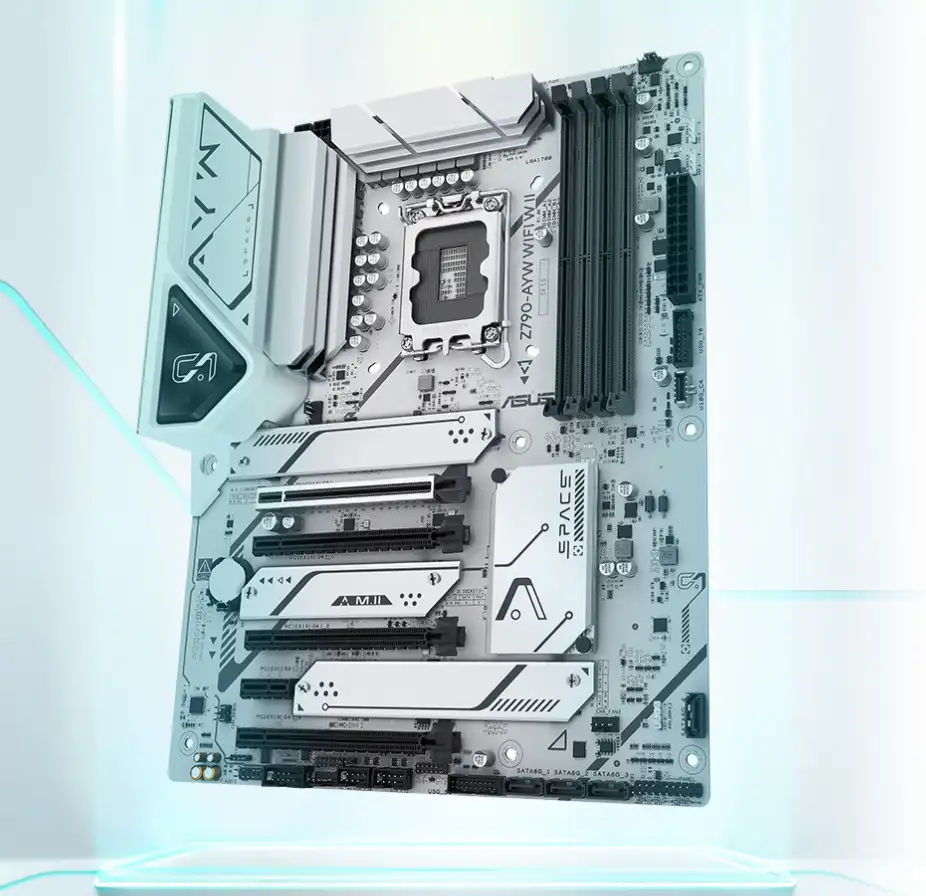

ASUS Z790-AYW WIFI W II (Wi-Fi 6) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
3 x M.2 slots (1 x M.2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), 1 x M.2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 1 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes))
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
2.5Gb
WiFi
Yes
WiFi Technology
Wi-Fi 6 (802.11 ax)
Bluetooth
Bluetooth 5.3
Ports
USB Port

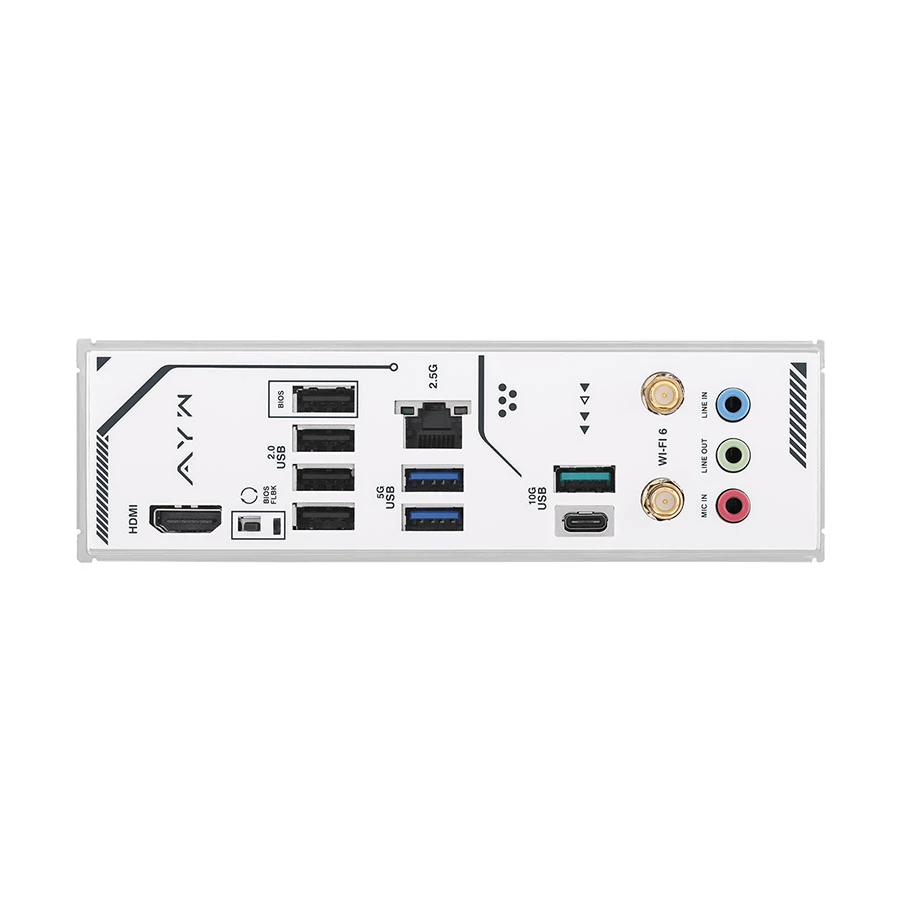

2 x USB 10Gbps ports (1 x Type-A+1 x Type-C), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1 x SPI TPM header (14-1pin)
COM Port
1 x COM Port header
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0/1/5/10 (PCIe & SATA)
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable RGB Gen 2 headers
Approx. Power Consumption
90W
Form Factor
ATX
Bios Information
BIOS Type
192 (128+64) Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10, 11 64-bit
Compatible Products
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Warranty
Warranty
3 Year Replacement
Additional Info
Feature

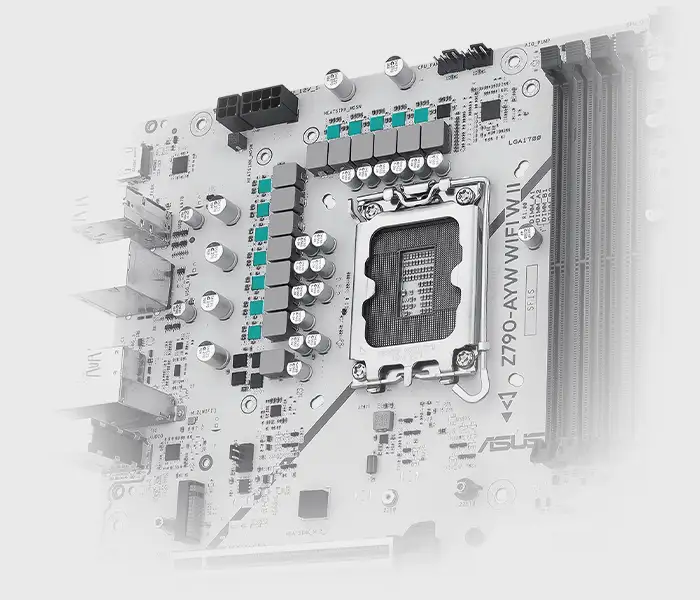

Z790-AYW WIFI W II motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Three M.2 heatsinks cover three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Others

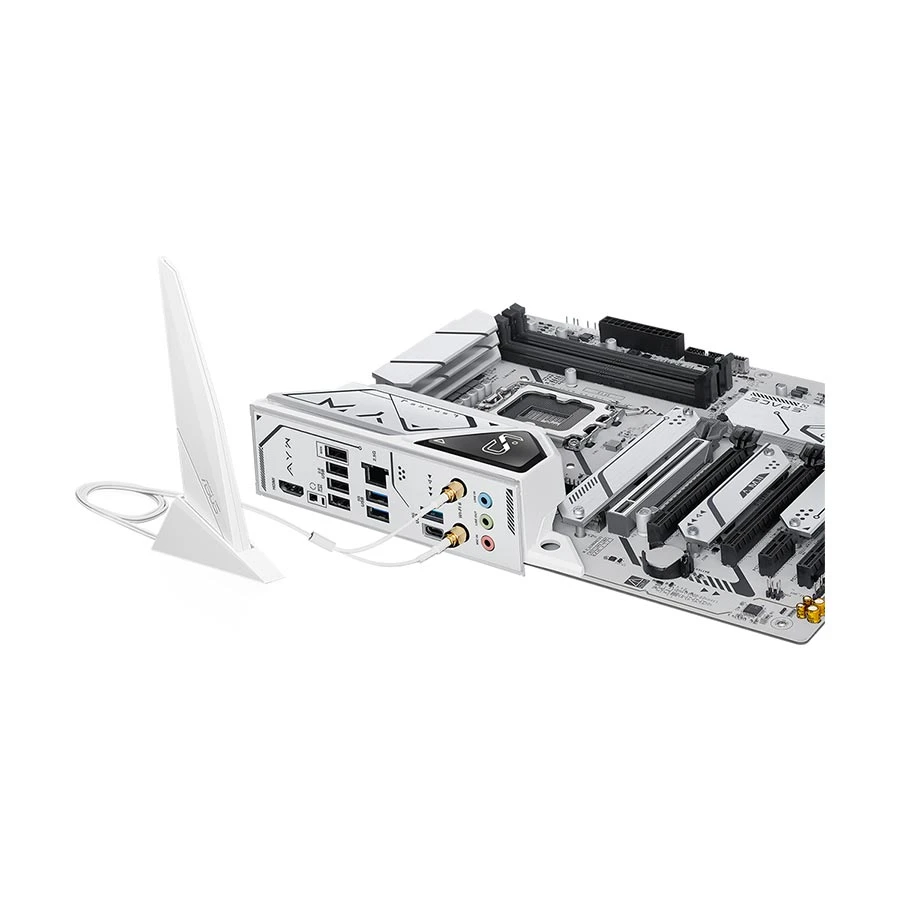

Manageability: WOL by PME, PXE. Accessories: 2 x SATA 6Gb/s cables , Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, Documentation: 1 x Quick start guide
Country Of Origin
Taiwan
Made in/ Assemble
China
