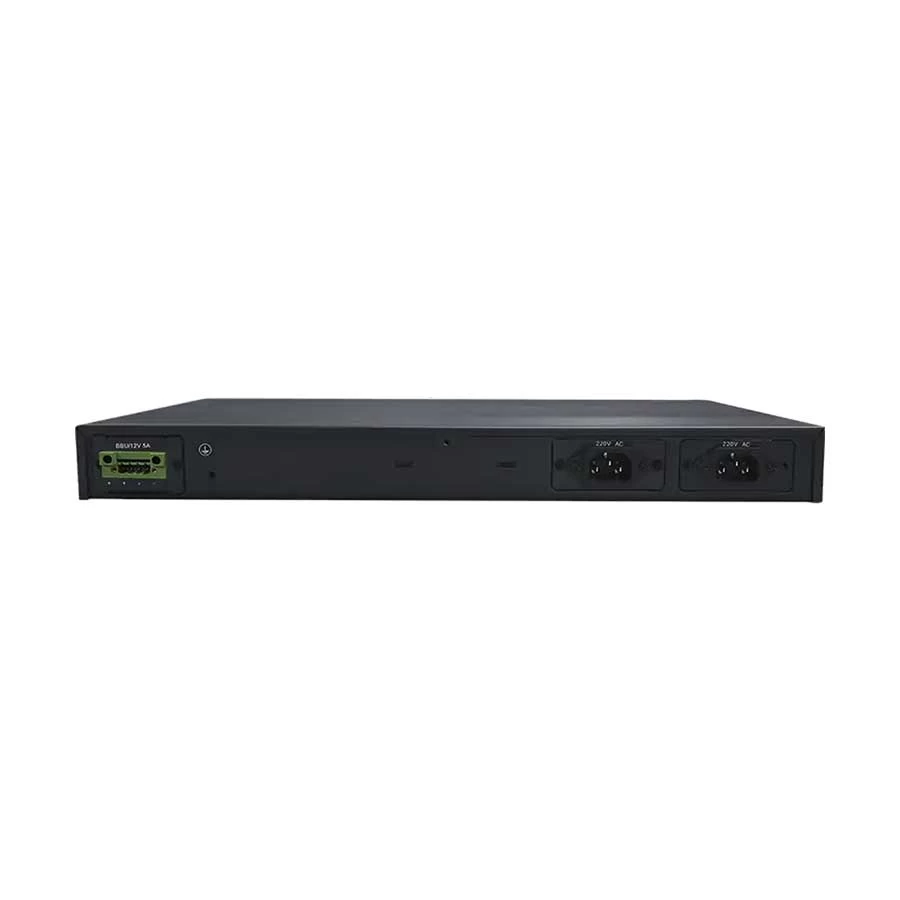

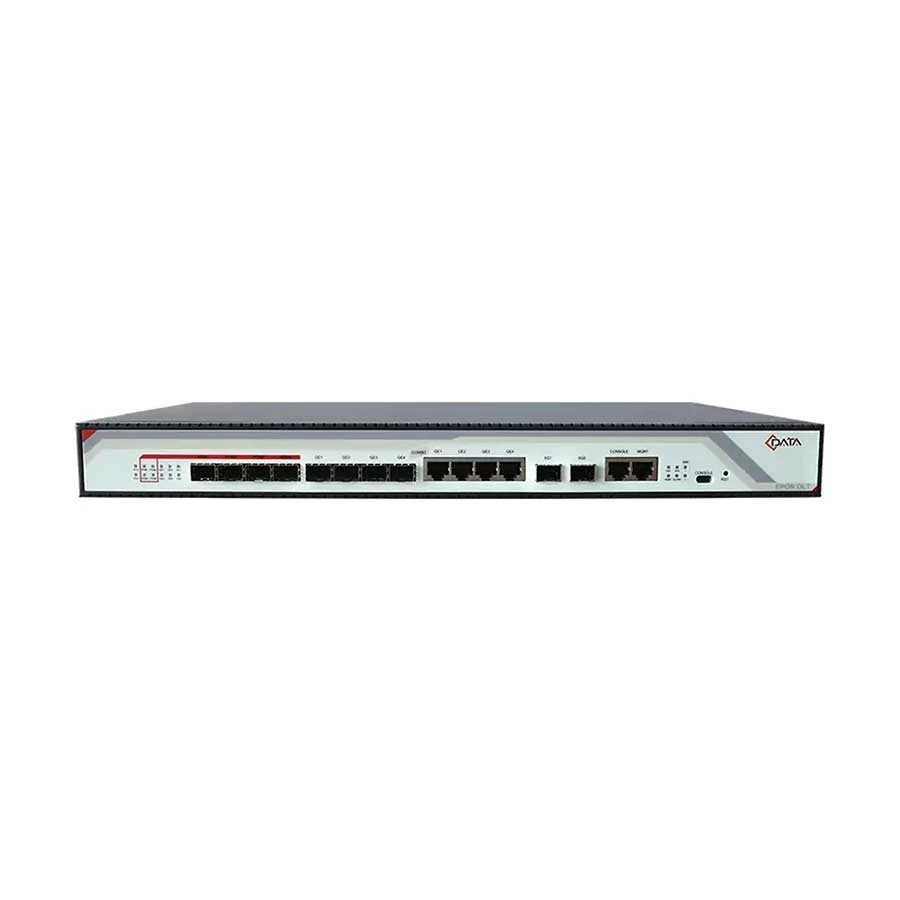

Features of C-Data FD1204S-B0 Optical Line Termination (OLT) In Bangladesh
Brand - C-Data, Model - C-Data FD1204S-B0, Management Rack Type - 1U 19-inch standard box, Uplink Port Quantity - 10, Uplink Port Copper - 10/100/1000M auto-negotiable,RJ45:4pcs, Uplink Port Optical Interface - 4 GE, 10Gb Uplink Interface - 2 x 10Gb, PON Port Quantity - 4, PON Port Physical Interface - SFP Slots, PON Port Interface Type - 1000BASE-PX20+, PON Port Max Splitting Ratio - 1:64, PON Port Transmission Distance - 20KM, PON Port Wavelength - 1490nm TX,1310nm RX, PON Port Interface Type/Connector - SC/PC, PON Port Fiber Type - 9/125m SMF, PON Port Light Transmission Power - +2.5- +7dBm, PON Port Speed - Symmetrical 1.25 Gbps, PON Port Rx Sensitivity - 27dBm, PON Port Saturation Optical Power - -6dBm, 10Gb SFP+ Port Transmission Distance - 10KM, 10Gb SFP+ PON Port Speed - 8.5 - 10.51875Gbps, 10Gb SFP+ Port Wavelength - 1310nmTX, 1310nmRX, 10Gb SFP+ Port Connector - LC, 10Gb SFP+ Port Fiber Type - Single mode with dual fiber, 10Gb SFP+ Port TX Power - -8.2- +0.5 dBm, 10Gb SFP+ Port Rx Sensitivity - -12.6dBm, Management Port - 1 x 100/1000BASE-Tx out-band Ethernet port, 1 x CONSOLE local management port, USB Port - 1, USB Type - Type-C, Network Management Method - SNMP, Telnet, CLI management mode, Backplane Bandwidth - 58G, Management Function - Fan Group Detecting, Port Status monitoring and configuration management, Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc, EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc, Online ONU configuration and management, User management, Alarm management, Layer-Two Switch - Support port VLan and protocol Vlan, Support Vlan tag/Untag ,vlan transparent transmission, Support 4096 VLAN, Support 802.3dd trunk, RSTP, QOS based on port ,VID,TOS and MAC address, IGMP Snooping, 802.x flow control, Port stability statistic and monitoring, EPON Function - Support port-based rate limitation and bandwidth control, In compliant with IEEE802.3ah Standard, Up to 20KM transmission Distance, Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA), Support ONU auto-discovery/Link detection/remote upgrade of software, Support VLAN division and user separation to avoid broadcast storm, Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels, Support power-off alarm function ,easy for link problem detection, Support broadcasting storm resistance function, Support port isolation between different ports, Support ACL and SNMP to configure data packet filter flexibly, Specialized design for system breakdown prevention to maintain stable system, Support dynamic distance calculation on EMS online, Support RSTP,IGMP Proxy, Layer-Three Route - Support static routing protocol, Support dynamic RIP protocol, Support dhcp-relay function, Support vlanif interface configuration, Power Supply - 220VAC - AC: 100V - 240V, 50/60Hz, -48DC - DC -40V- -72V, Power Consumption - 60W, Working Temperature - -15 - 50 Degree C, Storage Temperature - -40 - 85 Degree C, Relative Humidity - 5 - 90% (Non-Condensing), Dimension - 440 x 230 x 44mm (L x W x H), Weight (Kg) - 4kg, Warranty - 2 Year
What is the price of C-Data FD1204S-B0 Optical Line Termination (OLT) In Bangladesh?
The price of C-Data FD1204S-B0 Optical Line Termination (OLT) not mentioned for stock unavailability.
The price may vary due to your customization and product availability.
You can buy C-Data FD1204S-B0 Optical Line Termination (OLT) from our website or visit our showrooms nearby.
