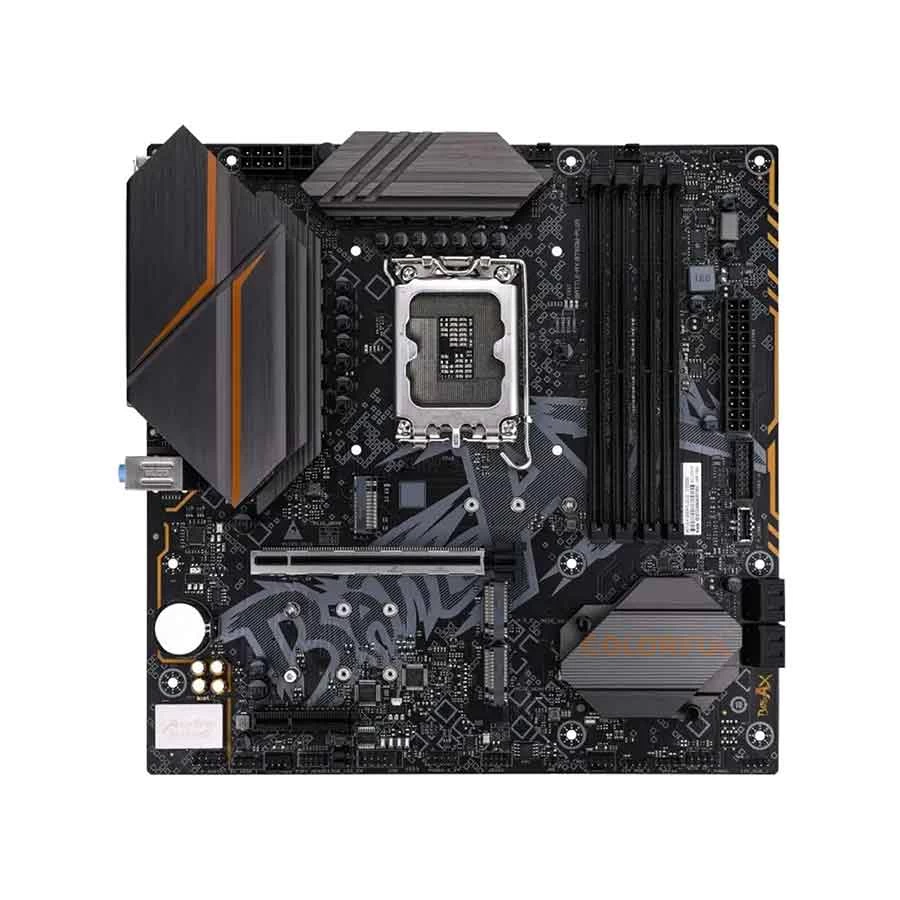

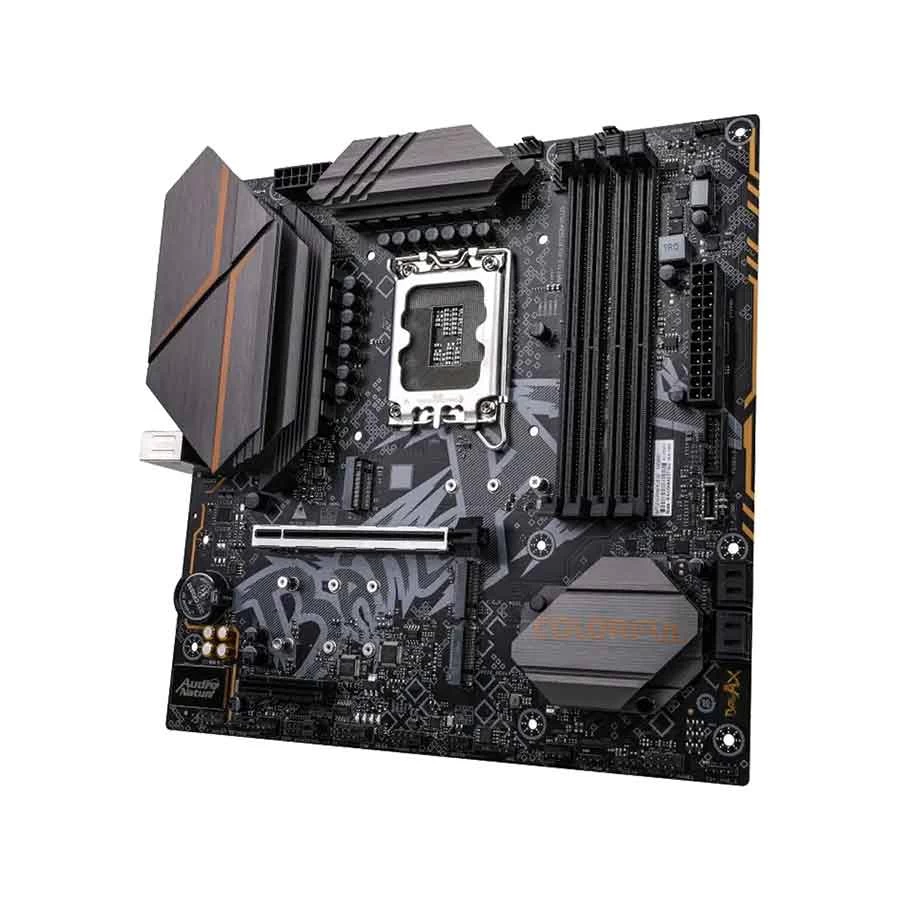

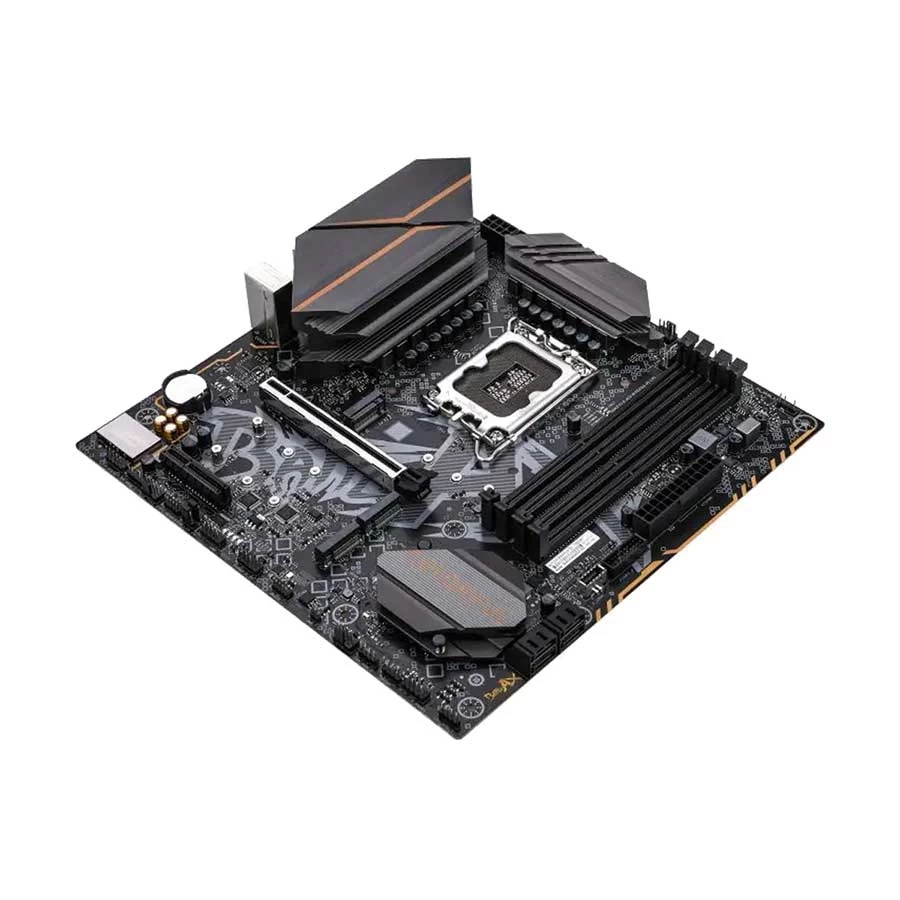

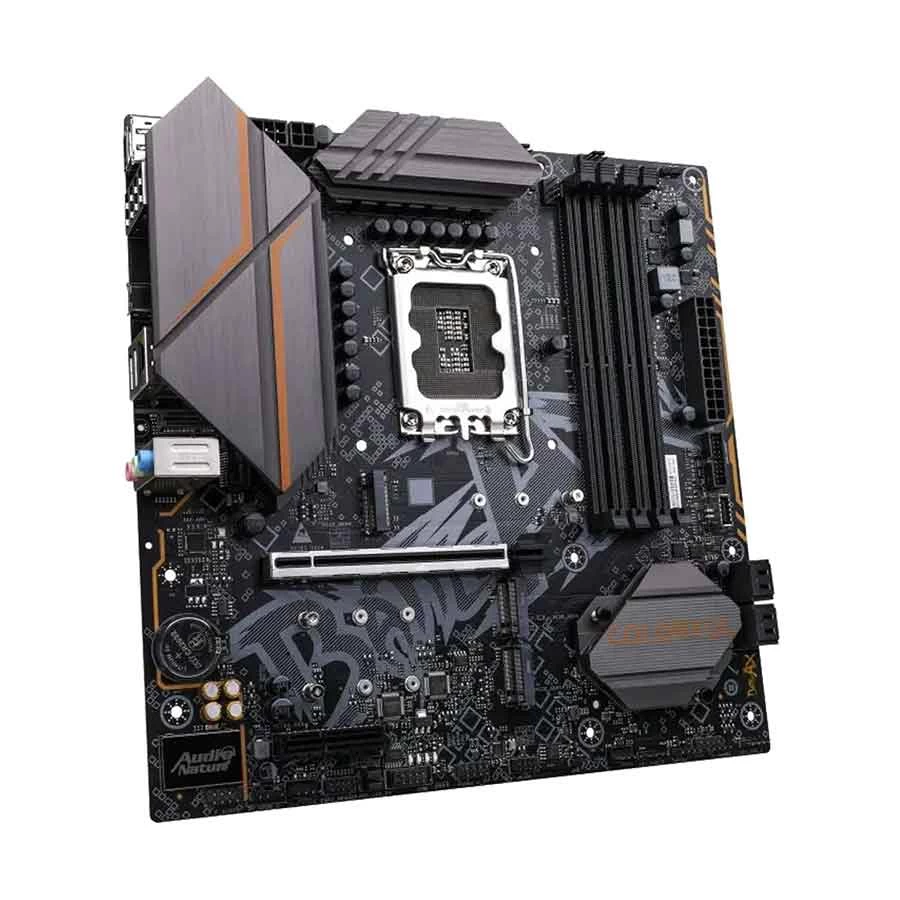

Colorful Battle-AX B760M-PLUS V20 DDR4 12th/13th/14th Gen LGA1700 Socket Motherboard

Item: Colorful Battle-AX B760M-PLUS V20 DDR4 12th/13th/14th Gen LGA1700 Socket Motherboard
Rating: 5
Author: Verified Buyer

11 reviews

Product Id: 02.01.100.07

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - Support the 14th/13th and 12th Gen Intel Core Processors, Pentium And Cylon Processor
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Colorful

Model

Colorful Battle-AX B760M-PLUS V20

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated with Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10

Body Color

Black

Warranty Details

3 year

General

Brand

Colorful

Model

Colorful Battle-AX B760M-PLUS V20

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Support the 14th/13th and 12th Gen Intel Core Processors, Pentium And Cylon Processor

Generation

12th/13th/14th

Memory Support

Memory Type

DDR4

Memory MHz

4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR4

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 (1 x M.2,support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel), (2 x M.2, support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated with Processor

PCI Express Slot

1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x4 slot

Audio & Video

Audio Chipset

5.1 Channel

Network & Connectivity

LAN Chipset

RTL8125 2.5Gbit network card

LAN Speed (Mbps)

10/ 10/ 1000/ 2500Mbps

WiFi

Bluetooth

Ports

USB Port

4 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5 10

RGB Support

ARGB

RGB Connector

2 x 5V 3-pin ARGB pins, 2 x 12V 4-pin RGB pin, 1 x RGB lamp effect control jumper

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mb

BIOS Model

UEFI BIOS

Compatibility

Supported Operating System

Windows 10

Compatible Products

Support the 14th/13th and 12th Gen Intel Core Processors, Pentium And Cylon Processor

Warranty

Warranty Details

3 year

Additional Info

Feature

Intel is supported Extreme Memory Profile (XMP) memory technology, Supports dual channel memory technology, 12+1 phase reinforced power supply, Provide 3 PCIe 4.0 x4 M.2 SSD slots, Equipped with Realtek 2.5G high-speed wired network card , Equipped with CNVI WiFi/BT slot, supporting extended WiFi module.

Others

Rear I/O : 4xUSB 2.0, 2xUSB 3.2 Gen 1 Type-A, 1xUSB 3.2 Gen 2 Type-C, 1xDP 1.2 , supporting up to 4K 60Hz. 1xHDMI 2.0 , Up to 4K 60Hz. 3xaudio (audio input/audio output/microphone), On board: 1xCPU fan pin, 3 system fan pins, 1xUSB 2.0 pin can expand 2 USB 2.0 Type-A, 1xUSB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A, 1xUSB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C, 2x5V 3-pin ARGB pins, 2x12V 4-pin RGB pin, 1xFront audio pin, 1xfront panel pin, 1xspeaker pin, 1xclear CMOS jumper, 1xCOM port pin, 1xBIOS burner pin, 1xPOST card pin, 1xME write protection jumper, 1xRGB lamp effect control jumper. Hardware Monitor - CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Colorful Battle-AX B760M-PLUS V20 Motherboard In Bangladesh

Colorful Battle-AX B760M-PLUS V20

Feature Highlights:

12+1 phase reinforced power supply
Provide 3 PCIe 4.0 x4 M.2 SSD slots
Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G high-speed wired network card
Equipped with CNVI WiFi/BT slot, supporting extended WiFi module
Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
Six protection technologies, more stable product operation
200 processes are strictly tested with guaranteed quality
PCB atomization process comprehensively upgraded
