Colorful Battle-AX B760M-T PRO V20 DDR4 12th/13th/14th Gen LGA1700 Socket Motherboard
Product Id: 02.01.100.12
Brand
Colorful
Regular Price Tk 13,020
Monthly EMI Tk 1,085
Special Price Tk 12,200
Quick Overview
- Chipset - Intel B760
- Sockets Supported - LGA1700
- Supported CPU - 14th/13th and 12th generation Intel adapting to the LGA1700 slot of the motherboard Core, Pentium processor
- Generation - 12th/13th/14th
- Memory Slot - 2
- Memory Max. - 64GB
General
Brand
Colorful
Model
Colorful Battle-AX B760M-T PRO V20
Body Color
White
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
14th/13th and 12th generation Intel adapting to the LGA1700 slot of the motherboard Core, Pentium processor
Generation
12th/13th/14th
Memory Support
Memory Type
DDR4
Memory MHz
4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz of memory
Memory Channel
Dual
Memory Slot
2
Memory Max.
64GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (1 x M2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel), 1 x M2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x 16, 1 x PCIe 3.0 x 1
Audio & Video
Audio Channel
5.1
Network & Connectivity
LAN Chipset
RTL8125 2.5G
LAN Speed (Mbps)
10/100/1000/2500 Mbps
WiFi
No
Ports
USB Port
2 x USB 2.0, 4 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x 5V 3-pin ARGB pins
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mb
BIOS Model
UEFI BIOS
Compatibility
Supported Operating System
Windows 10/ 11
Compatible Products
Core i3, Core i5, Core i7, Core i9 (12th Gen, 13th Gen & 14th Gen)
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory, Six protection technologies, more stable product operation, 200 processes are strictly tested with guaranteed quality, PCB atomization process comprehensively upgraded.
Others

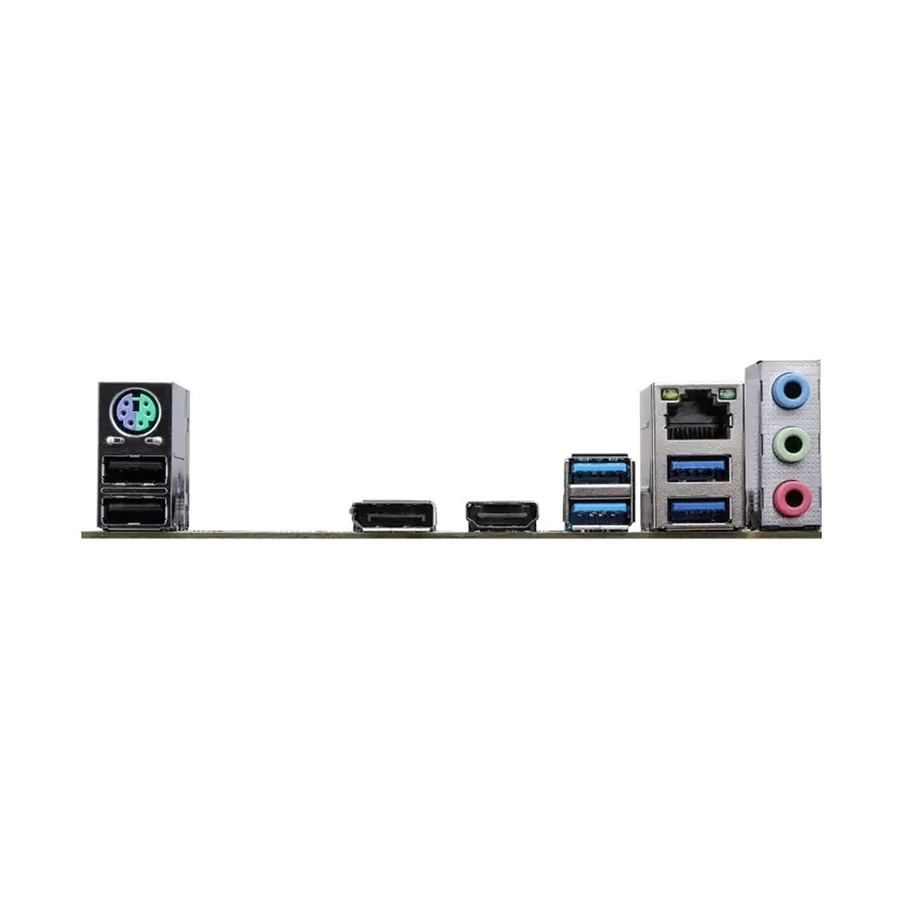

Onboard device interface: 1 x CPU fan pin, 2 x system fan pins, 1 x water cooling pump pin, 1 x front audio pin, 1 x front panel pin, 1 x speaker pin, 1 x ME write protection jumper, 1 x clear CMOS jumper, 1 x BIOS burner pin, 1 x POST card pin,1 x POST card pin, 1 x PS/2 call Wake up control jumper, Rear I/O interface: 1 x PS/2 interface, 1 x 2.5G network interface, 3 x audio interfaces (audio input/audio output/microphone)
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Colorful Battle-AX B760M-T PRO V20 Motherboard In Bangladesh
BATTLE-AX B760M-T PRO V20
Feature Highlights:
- Equipped with a 2.5G fast network card
- Provide 4 USB 3.2 Gen 1 Type-A high-speed interfaces
- Provide 2 USB 2.0 interfaces
- Provide 2 PCIe 4.0 x4 M.2 SSD slots
- Provide 2 5V 3-pin ARGB pins, supporting iGame Center light effect control software
- Provide HDMI+DP display interface
- Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
- Six protection technologies, more stable product operation
- 200 processes are strictly tested with guaranteed quality
- PCB atomization process comprehensively upgraded
What is the price of Colorful Battle-AX B760M-T PRO V20 Motherboard In Bangladesh?
The price of Colorful Battle-AX B760M-T PRO V20 Motherboard starts from 12,200 . The price may vary due to your customization and product availability. You can buy Colorful Battle-AX B760M-T PRO V20 Motherboard from our website or visit our showrooms nearby.
