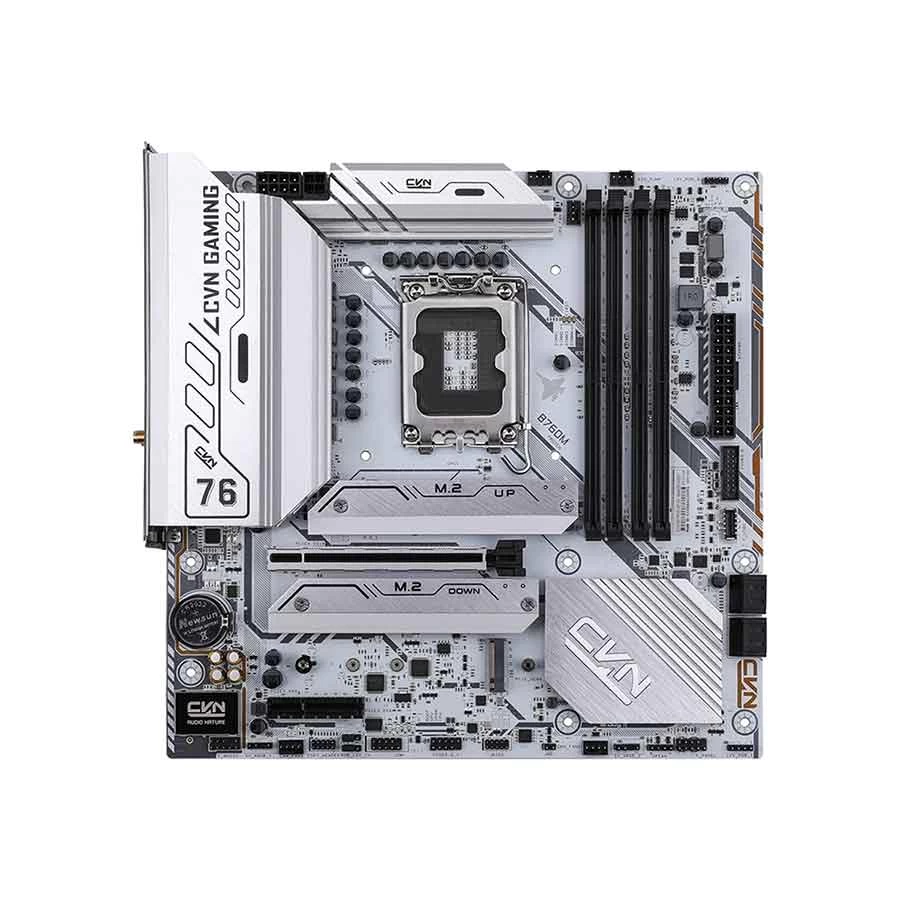

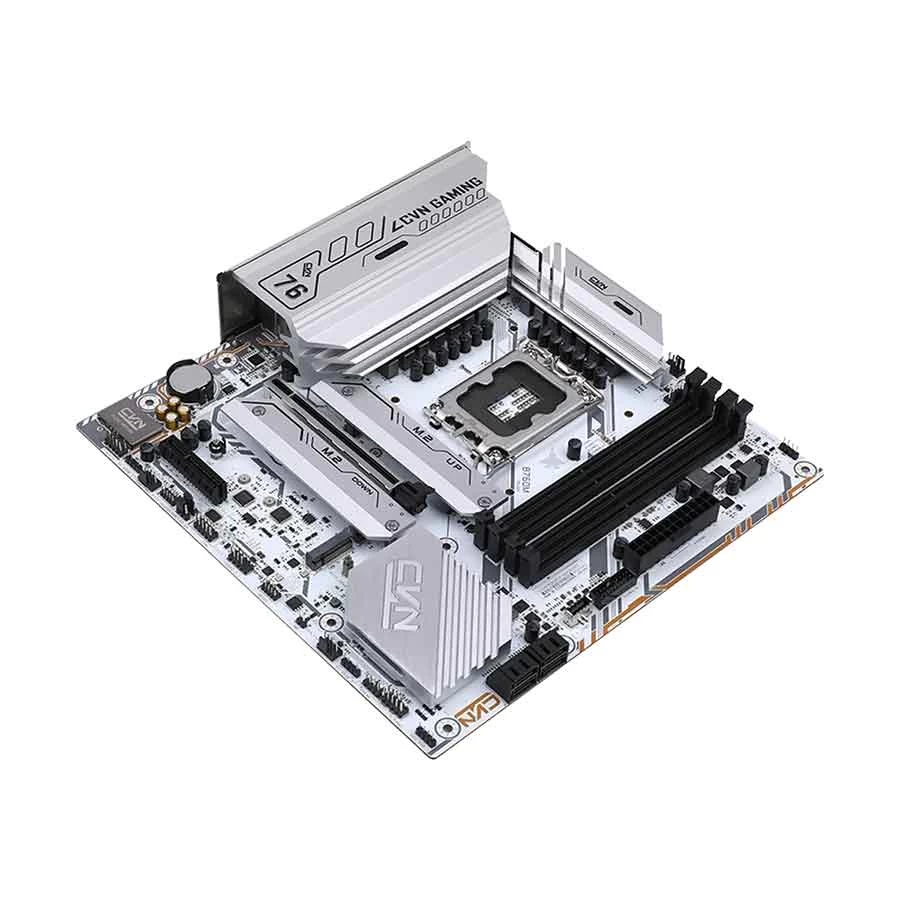

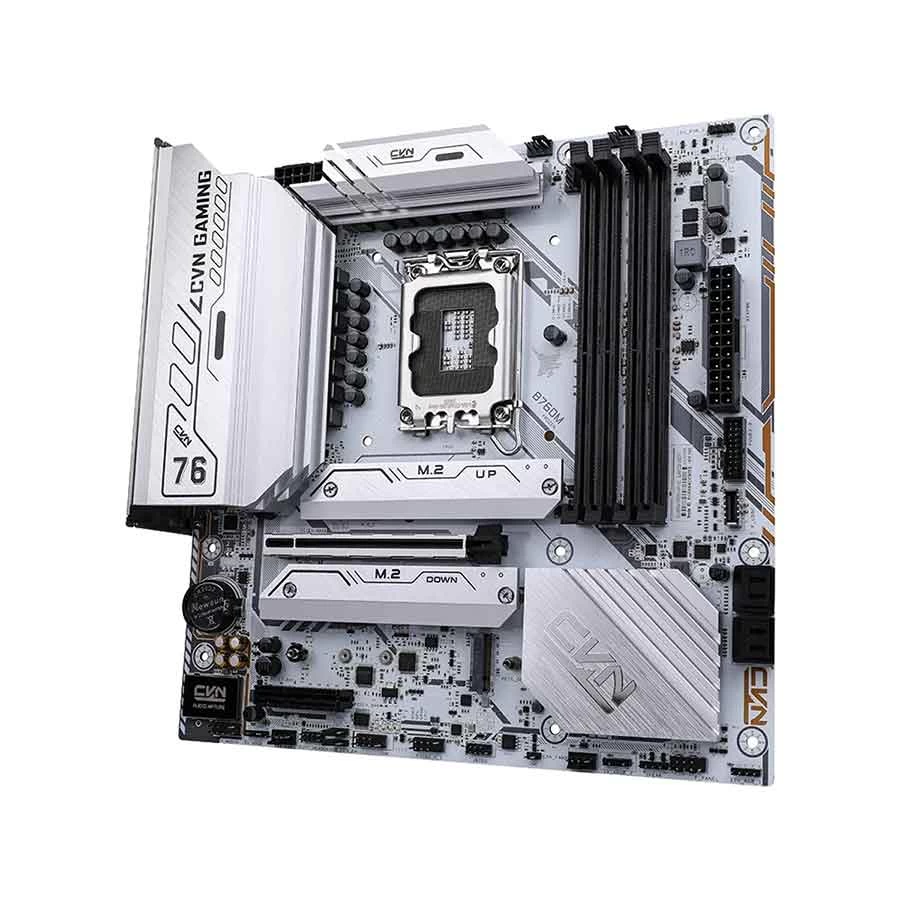

Colorful CVN B760M FROZEN V20 (Wi-Fi 6) DDR4 12th/13th/14th Gen LGA1700 Socket Motherboard
Product Id: 02.01.100.09
Brand
Colorful
Regular Price Tk 24,200
Monthly EMI Tk 2,017
Special Price Tk 22,500
Quick Overview
- Chipset - Intel B760
- Sockets Supported - LGA1700
- Supported CPU - Support the 14th/13th and 12th Gen Intel Core Processor, Pentium Processor.
- Generation - 12th/13th/14th
- Memory Slot - 4
- Memory Max. - 128GB
General
Brand
Colorful
Model
Colorful CVN B760M FROZEN V20 White (Wi-Fi 6)
Body Color
White
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
Support the 14th/13th and 12th Gen Intel Core Processor, Pentium Processor.
Generation
12th/13th/14th
Memory Support
Memory Type
DDR4
Memory MHz
4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DDR4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 slots, support 2242/2260/2280 M.2 SSD
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x4 slot
Audio & Video
Audio Channel
5.1
Network & Connectivity
LAN Chipset
RTL8125 2.5Gbit network card
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6
Bluetooth
Bluetooth 5.2
Ports
USB Port
4 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
Technical Info
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x 5V 3-pin ARGB pins, 2 x 12V 4-pin RGB pins, 1 x RGB light effect control jumper
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mb
BIOS Model
UEFI BIOS
Compatibility
Compatible Products
Support the 14th/13th and 12th Gen Intel Core Processor, Pentium Processor.
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Intel is supported Extreme Memory Profile (XMP) memory technology, supports dual channel memory technology, CVN series exclusive customized white motherboard, CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation, 12+1 phase reinforced power supply, F.C.C ferrite inductor (Dr MOS 55A), Provide 3 PCIe 4.0 x4 M.2 SSD slots, Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces.
Others

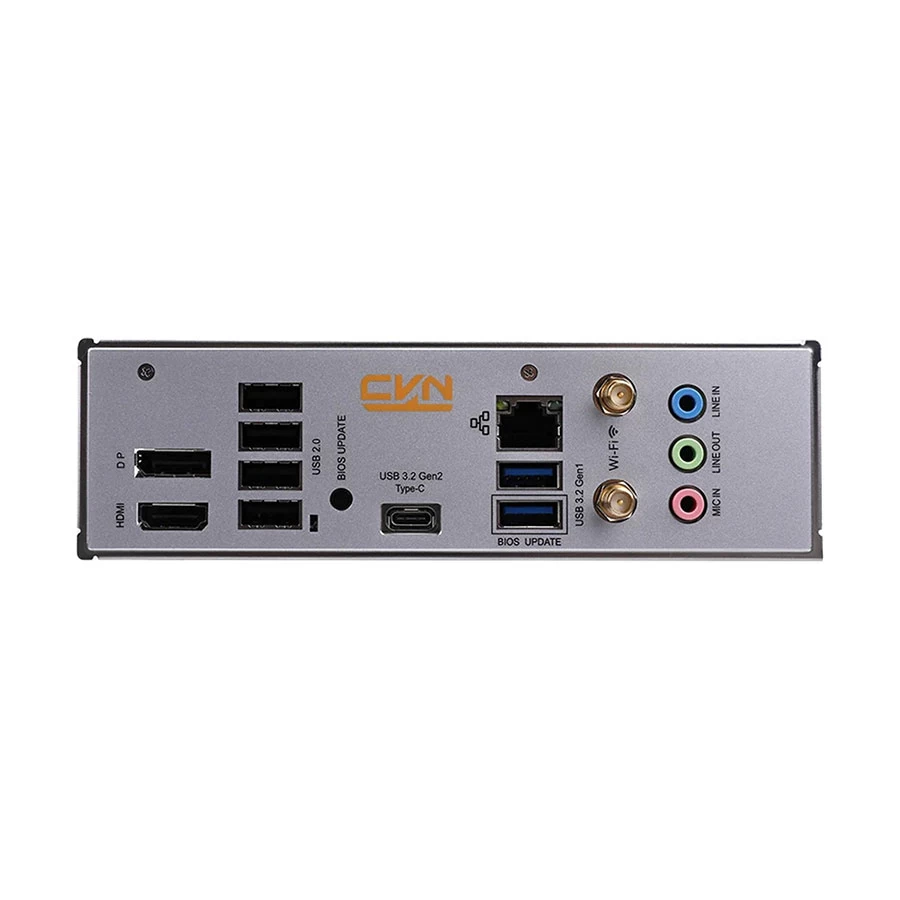

Rear I/O: 4 x USB 2.0 interfaces, 2xUSB 3.2 Gen 1 Type-A interfaces, 1xUSB 3.2 Gen 2 Type-C interface, 1xDP 1.2 interface, supporting up to 4K 60Hz resolution, 1xHDMI 2.0 interface, Up to 4K 60Hz resolution, 1x2.5G network interface, 2xWi-Fi 6 antenna interfaces, 3xaudio interfaces (audio input/audio output/microphone) , 1xBIOS update button. On board device : 1xCPU fan pin, 3xsystem fan pins, 1xwater-cooled pump pin, 1xUSB 2.0 pin can expand 2 USB 2.0 Type-A interfaces, 1xUSB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces, 1xUSB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface, 2x5V 3-pin ARGB pins. 2x12V 4-pin RGB pins, 1xFront audio pin, 1xfront panel pin, 1xspeaker pin, 1xclear CMOS jumper, 1xCOM port pin, 1xBIOS burner pin, 1xPOST card pin, 1xME write protection jumper, 1xRGB light effect control jumper. Power Management - Support S3, S4, network S5 wake-up, regular power on and power on, Hardware Monitor - CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring. LAN - RTL8125 2.5Gbit network card, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Colorful CVN B760M FROZEN V20 White (Wi-Fi 6) Motherboard In Bangladesh
CVN B760M FROZEN WIFI V20
Feature Highlights:
- CVN series exclusive customized white motherboard
- CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation
- 12+1 phase reinforced power supply, F.C.C ferrite inductor (Dr MOS 55A)
- Provide 3 PCIe 4.0 x4 M.2 SSD slots
- Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces
- Equipped with Realtek 2.5G high-speed wired network card and AX201/AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2
- Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
- The I/O backplane supports one click BIOS upgrade
- Six protection technologies, more stable product operation
- 200 processes are strictly tested with guaranteed quality
- PCB atomization process comprehensively upgraded
- "410" high-quality service and guaranteed after-sales service
What is the price of Colorful CVN B760M FROZEN V20 White (Wi-Fi 6) Motherboard In Bangladesh?
The price of Colorful CVN B760M FROZEN V20 White (Wi-Fi 6) Motherboard starts from 22,500 . The price may vary due to your customization and product availability. You can buy Colorful CVN B760M FROZEN V20 White (Wi-Fi 6) Motherboard from our website or visit our showrooms nearby.
Video

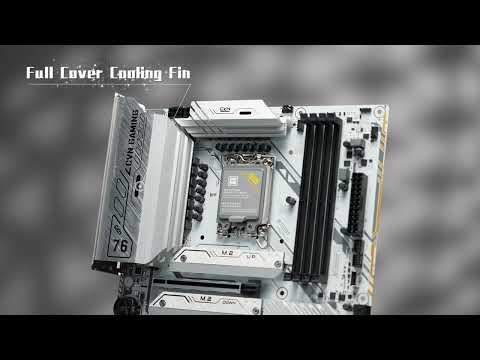

CVN B760M FROZEN WIFI D5 V20
