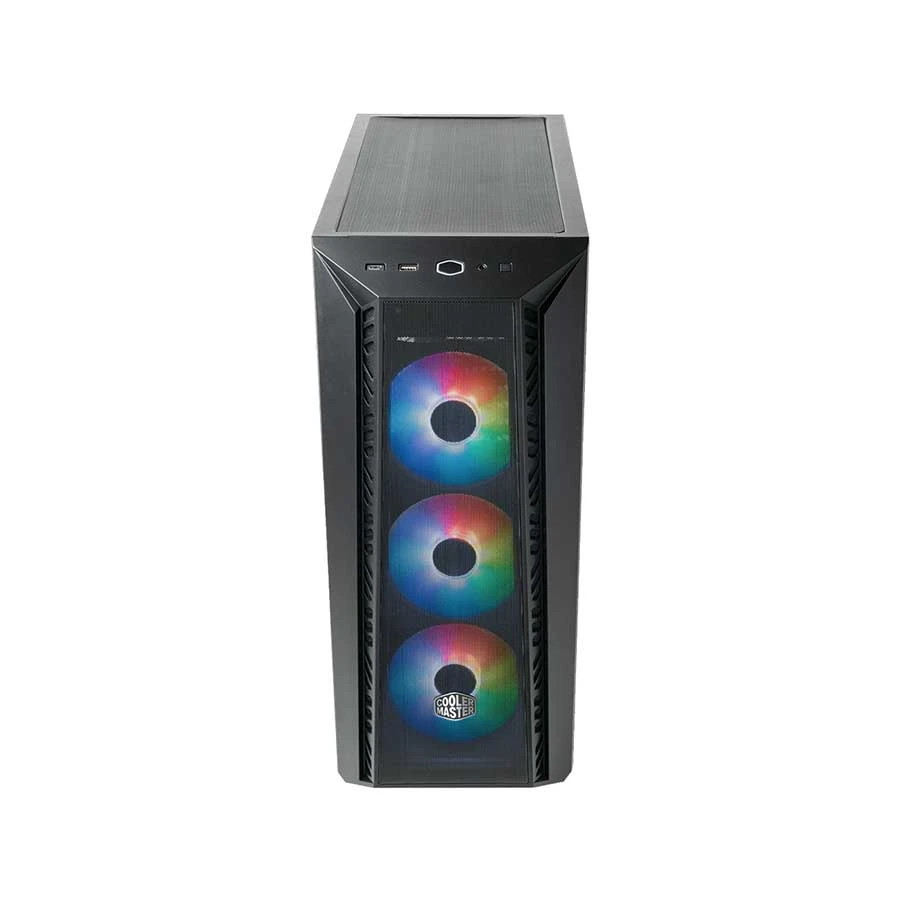

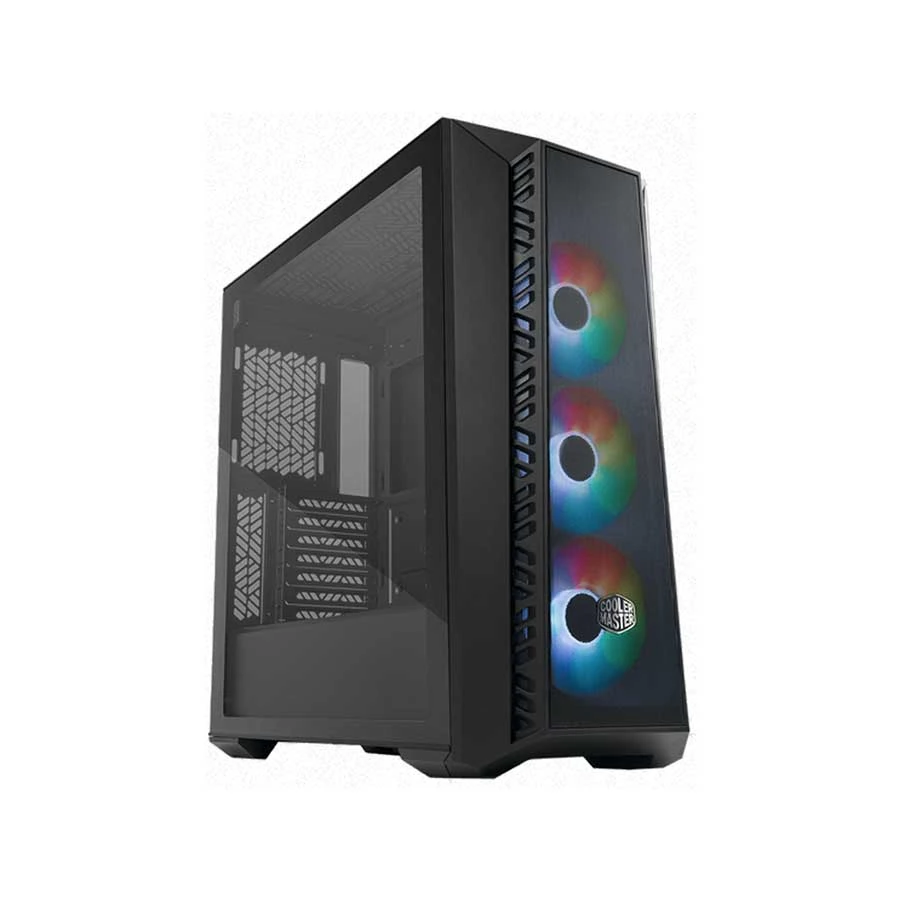

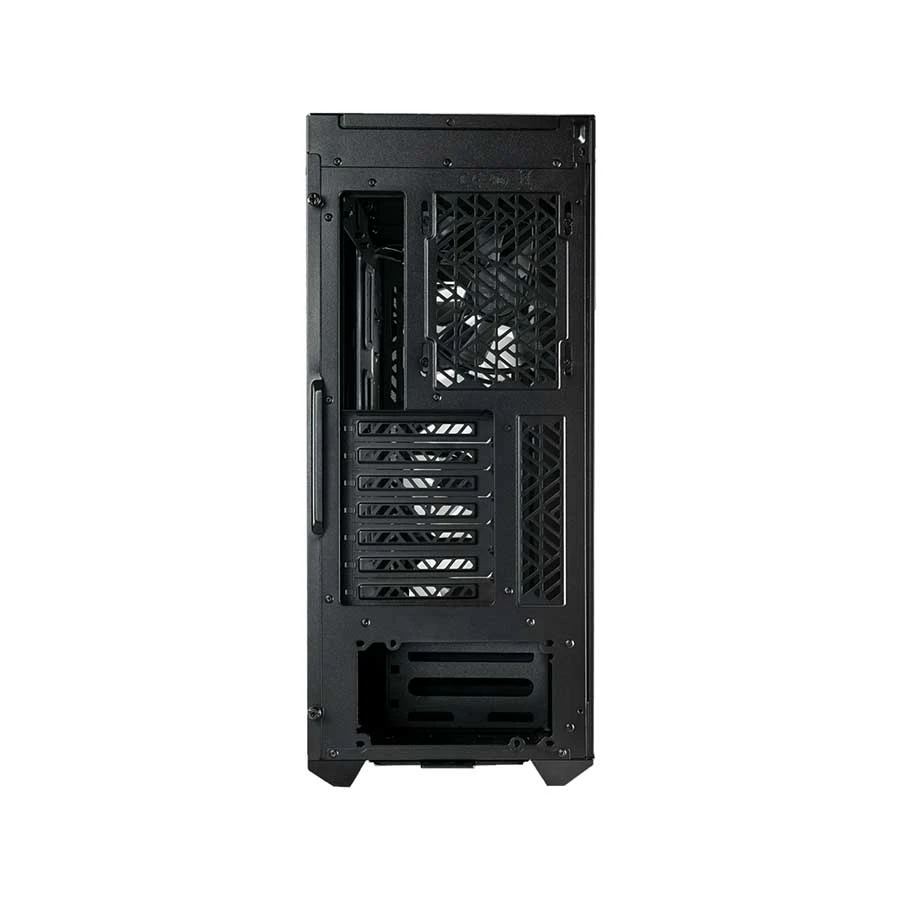

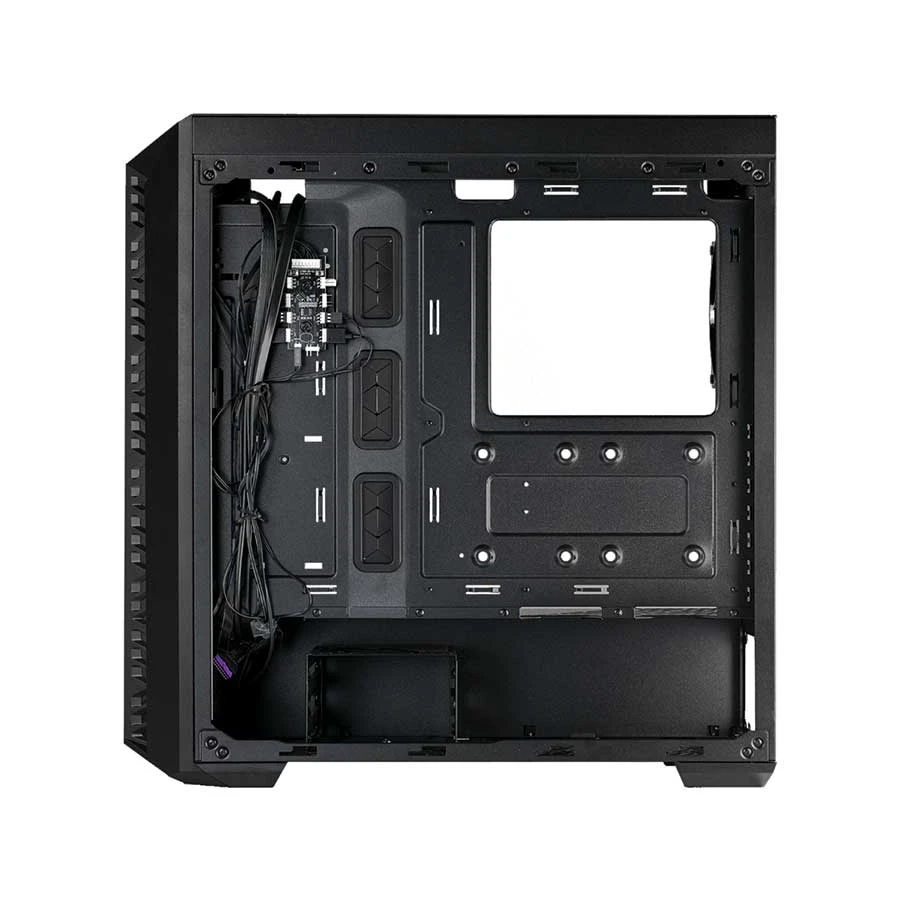

Cooler Master MasterBox 520 Mesh ARGB Mid Tower Black E-ATX Gaming Desktop Case #MB520-KGNN-S00

Item: Cooler Master MasterBox 520 Mesh ARGB Mid Tower Black E-ATX Gaming Desktop Case #MB520-KGNN-S00
Rating: 5
Author: Verified Buyer

8 reviews

Product Id: 07.02.460.146

Out Of Stock

See similar model

Quick Overview

Case Type - Mid Tower
Supported Motherboard Type (Max.) - Up to E-ATX
Optical Drive Bay - No
Cooling Fan (Built-In) - 3
Lighting Fan - ARGB
Power Supply (Built-In) - No
Back-Connect Supported - No
Color - Black

Color variations

Black
Tk 0

Payment Method Shipping & Charge Order Procedure

Brand

Cooler Master

Model

Cooler Master MasterBox 520 Mesh

Series

MasterBox

Case Type

Mid Tower

Supported Motherboard Type (Max.)

Up to E-ATX

Front/Top USB port

1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

Front/Top Audio Port

1 x 3.5mm Headset Jack (Audio+Mic)

Expansion Slots

Optical Drive Bay

Cooling Fan (Built-In)

Additional Fan Slot

Power Supply (Built-In)

Power Supply Type

ATX

Power Supply Mounted

Bottom

Back-Connect Supported

Transparent Side Window

Yes

Number of Buttons

Dust Cover

Bottom, Front, Top

Color

Black

Dimensions

430 x 210 x 479mm

Weight (Kg)

7.13 kg

Warranty

No warranty

General

Brand

Cooler Master

Model

Cooler Master MasterBox 520 Mesh

Series

MasterBox

Case Type

Mid Tower

Part No

MB520-KGNN-S00

Technical Info

Supported Motherboard Type

Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX

Supported LED Strip

Fan / Light Controller

Yes

Back-Connect Supported

Graphics-Card Length

410mm

Supported CPU Cooler

Air Cooler or Liquid Cooler

CPU Cooler Height

165mm

PSU Length

200mm

Ports & Slots

Front/Top USB port

1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

Front/Top Audio Port

1 x 3.5mm Headset Jack (Audio+Mic)

3.5 Inch Drive Bay

2.5 Inch Drive Bay

Expansion Slots

Optical Drive Bay

Memory Card Slot

Fan & Radiator Details

Cooling Fan (Built-In)

Additional Fan Slot

Pre-Installed Fan Size

120mm

Supported Fan Size

3 x 120mm/ 2 x 140mm (Top), 1 x 120mm (Rear)

Lighting Fan

ARGB

Radiator Support Front/Top/Rear

120mm/ 140mm/ 240mm/ 280mm/ 360mm (Front), 120mm/ 140mm/ 240mm/ 280mm/ 360mm (Recommended maximum thickness - 55mm) (Top), 120mm (Rear)

Radiator Support Max.

Up to 360mm

Power

Power Supply (Built-In)

Power Supply Type

ATX

Power Supply Mounted

Bottom

Approx. Power Consumption

30W

Physical Description

Transparent Side Window

Yes

Case Windowed

Tempered Glass Side Window

Buttons

1 x Power button, 1 x Reset/ARGB button

Number of Buttons

Material

Mesh, Steel, ABS Plastic, Tempered Glass

Dust Cover

Bottom, Front, Top

Color

Black

Dimensions

430 x 210 x 479mm

Weight (Kg)

7.13 kg

Handle

Warranty

No warranty

Additional Info

Others

Hardware Compatibility: MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards. E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12 Inch x 10.7 Inch. Removable Top Panel

Specialty

FineMesh Performance Front Panel, Three CF120 ARGB Fans Included, Removable Top Panel, Screwless & Tool-Free TG Side Panel, Versatile Cooling Options, Removable HDD cage, Upgraded Removable Dust Filter Bracket

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Cooler Master MasterBox 520 Mesh Casing In Bangladesh

Masterbox 520 Mesh Reaching New Brights

What is the price of Cooler Master MasterBox 520 Mesh Casing In Bangladesh?

The price of Cooler Master MasterBox 520 Mesh Casing not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Cooler Master MasterBox 520 Mesh Casing from our website or visit our showrooms nearby.
