General

Brand

Cudy

Model

Cudy FS1006P

Type

Network Switch

Ports & Slots

Number of Total Port

6 Port

Gigabit Port

SFP Port

SFP+ Port

PoE Port

PoE+ Port

Technical Info

PoE

Yes

Manageability

Unmanaged

Interface(s)

6 RJ45 port

Network Standards

IEEE802.3af/at

Data Transfer Rate

10/100 Mbps

Memory

Transmission Method

Store-and-forward

Connector Type

6 x 10/100Mbps RJ45 port

Switching Capacity

1.2Gbps

MTBF

>50000 hour

Physical Description

Fan/Fanless

Fanless

Indicators

PWR, LNK/ACT, PoE

Body Color

Black

Form Factor

Desktop/Rackmount/Wall Mounting

Dimension

168 x 93 x 32mm

Weight

1kg

Packet Contents

1 x FS1006P, 1 x Power Cord, 1 x Installation Guide

Power

Power Supply

AC 100-240V 50/60Hz

Approx. Power Consumption

65W

Warranty

2 Year (Without Adapter)

Additional Info

Others

Electrostatic standard : Contact 4KV, air 6KV, Certification: CE, FCC Class A, Operating Humidity : 10% - 90% non-condensing, Storage Humidity : 5% - 90% non-condensing, Operating Temperature : 0 Degree C - 40 Degree C, Storage Temperature : -40 Degree C - 70 Degree C. MAC Address Table :2K, Automatic study, automatic updates.

Specialty

Supports PoE power up to 32W for each PoE port, Auto detect non PoE device and PoE device, Power prioritization guarantee power supply of key nodes, CCTV/VLAN mode switch, remote power and data up to 250m, Supports IEEE802.3 x full duplex / half duplex flow control, Supports storage and forward for Data exchange.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Cudy FS1006P Network Switch In Bangladesh

● Complies with IEEE802.3af/at Standard
● Supports PoE power up to 32W for each PoE port
● Auto detect non PoE device and PoE device
● Power prioritization guarantee power supply of key nodes

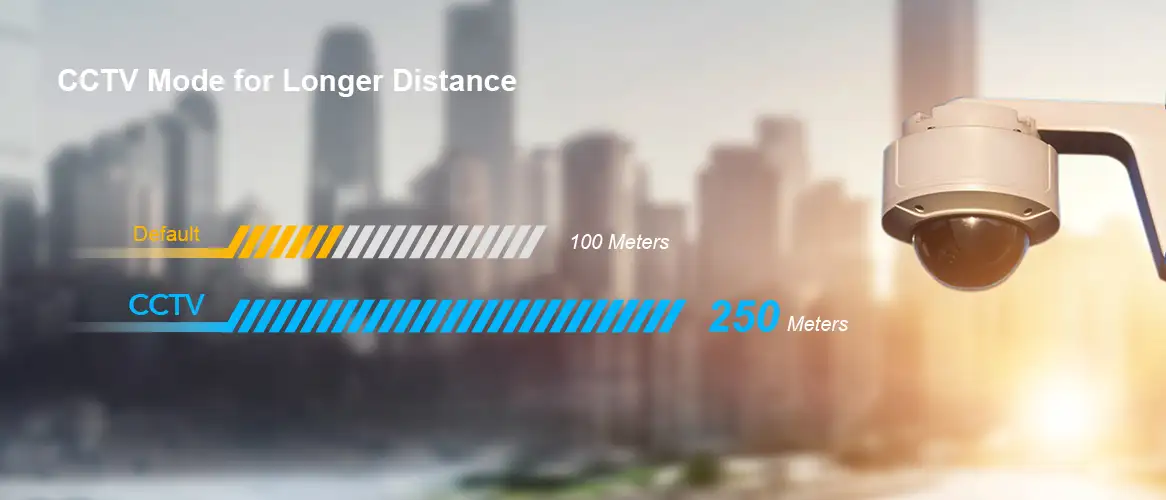

● CCTV/VLAN mode switch, remote power and data up to 250m
● Supports IEEE802.3 x full duplex / half duplex ﬂow control
● Supports storage and forward for Data exchange

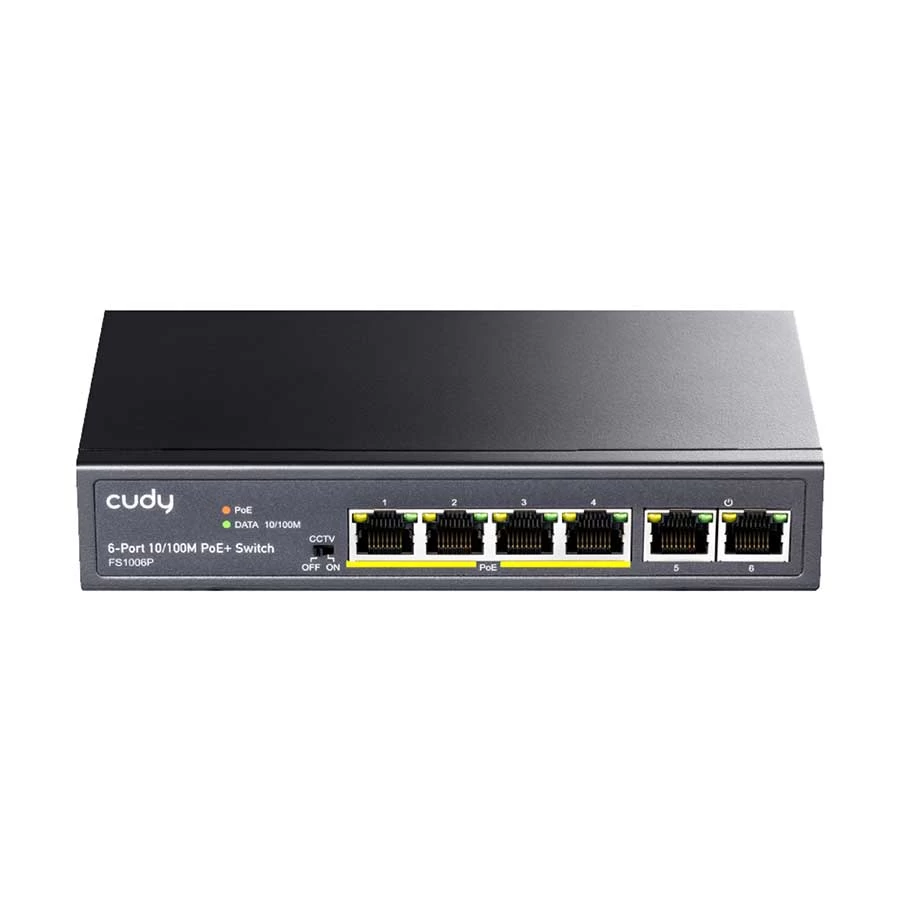

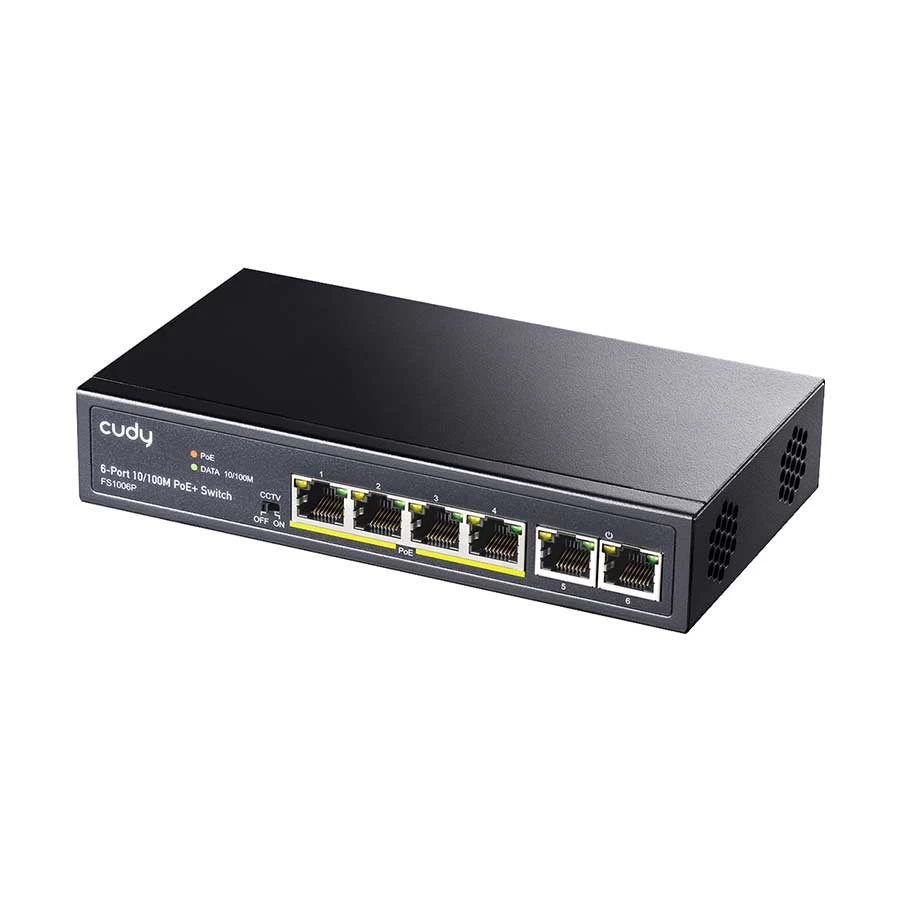

4-Port PoE + 2-Port Uplink

● 10/100 Mbps Ethernet Ports

● IEEE 802.3af/802.3at compliant

● 60W total PoE Power supply.

● Ideal for installations of 4 PoE/PoE+ devices

● Pin assignment: alternative 1/2 (+), 3/6 (-).

Rack Mount & Wall Mount & Desktop

● Provide a variety of installation methods for easy deployment in any environment

● Support Wall mount installation

● Support Desktop installation

Heat Dissipation

● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.

● Venting holes help to dissipate heat quickly and ensure stable product operation

Texas Instruments PoE chipset inside

● Texas Instruments TPS POE chipset and Realtek switch chipset ensure High performance and stable operation of the product.

Auto-sensing

● Port-Power-Prioritization technology ensure continuous power supply of key nodes.

● Auto-sensing technology delivers up to 32W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices

Lightning protection

● Electrostatic standard: contact 6KV, air 8KV

● MTBF > 50000 hour

What is the price of Cudy FS1006P Network Switch In Bangladesh?

The price of Cudy FS1006P Network Switch starts from 2,150 . The price may vary due to your customization and product availability. You can buy Cudy FS1006P Network Switch from our website or visit our showrooms nearby.
