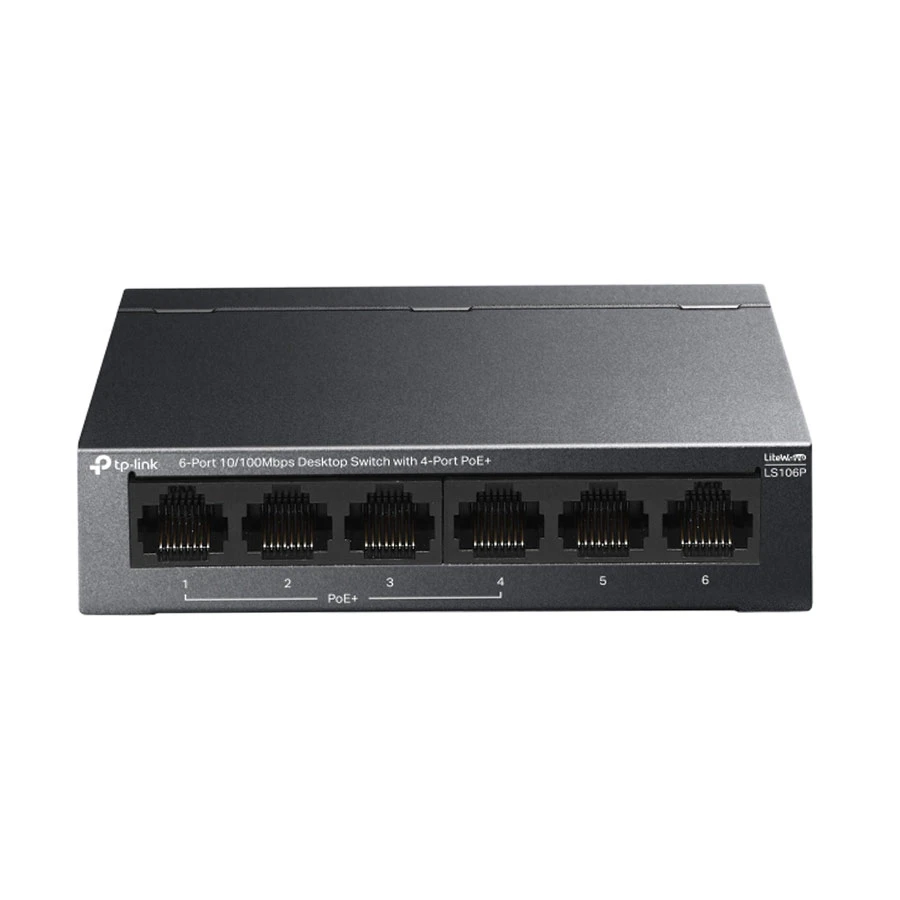

TP-Link LS106P 6 Port (4 Port 10/100Mbps PoE+ & 2 Port 10/100Mbps Non-PoE Ethernet) Unmanaged Desktop Switch

Product Id: 29.05.091.254

Brand TP-Link

Special Price
Tk 2,300
Regular Price
Tk 2,500

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 6 Port
  • PoE - Yes
  • Manageability - Unmanaged
  • Network Standards - IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
  • Data Transfer Rate - 10/100 Mbps
  • Form Factor - Desktop/Wall Mounting
  • Body Color - Black
Avail EMI Offer
EMI starts from Tk 278/months
General
Brand
TP-Link

Model
TP-Link LS106P

Type
Network Switch


Ports & Slots
Number of Total Port
6 Port

Gigabit Port
No

SFP Port
No

PoE+ Port
4


Technical Info
PoE
Yes

Manageability
Unmanaged

Interface(s)
6 x 10/100 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4)

Network Standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Data Transfer Rate
10/100 Mbps

Transmission Method
Store-And-Forward

Switching Capacity
1.2 Gbps


Physical Description
Fan/Fanless
Fanless

Body Color
Black

Form Factor
Desktop/Wall Mounting

Dimension
99.8 x 98 x 25mm

Packet Contents
Switch, Power Adapter, Rubber Feet, Installation Guide.


Power
Power Supply
220~240V, 50/60Hz (NV)

Approx. Power Consumption
66.53W


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
AUTO Negotiation/AUTO MDI/MDIX, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX: UTP category 5 or above cable (maximum 100m), External Power Adapter (Output: 53.5 VDC / 1.31 A), LED: Power, Link/Act, PoE Status, Packet Forwarding Rate: 0.893 Mpps, Standard: 802.3 af/at compliant, PoE Ports: Port 1- Port 4, Power Supply: 65 W, Max. Heat Dissipation: 226.19 BTU/h, Packet Buffer Memory: 2048 Bytes, Advanced Features: Extend Mode (Ports 1-4), Isolation Mode (Ports 1-4), PoE Auto Recovery (Ports 1-4), Jumbo Frame: 2 KB, MAC Address Table: 2K, Operating Temperature: 0 to 40 Degree C, Storage Temperature: -40 to 70 Degree C, Operating Humidity: 10% to 90% non-condensing, Storage Humidity: 5% to 90% non-condensing.

Specialty
Certifications: CE, ROHS, KC, NTRA. Up to 250 m (820ft) data and power transmitting range under Extend Mode. Isolation Mode allows one-click client traffic separation for higher security and performance. PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices. Simply plug and play for instant connectivity with no configuration required. Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
