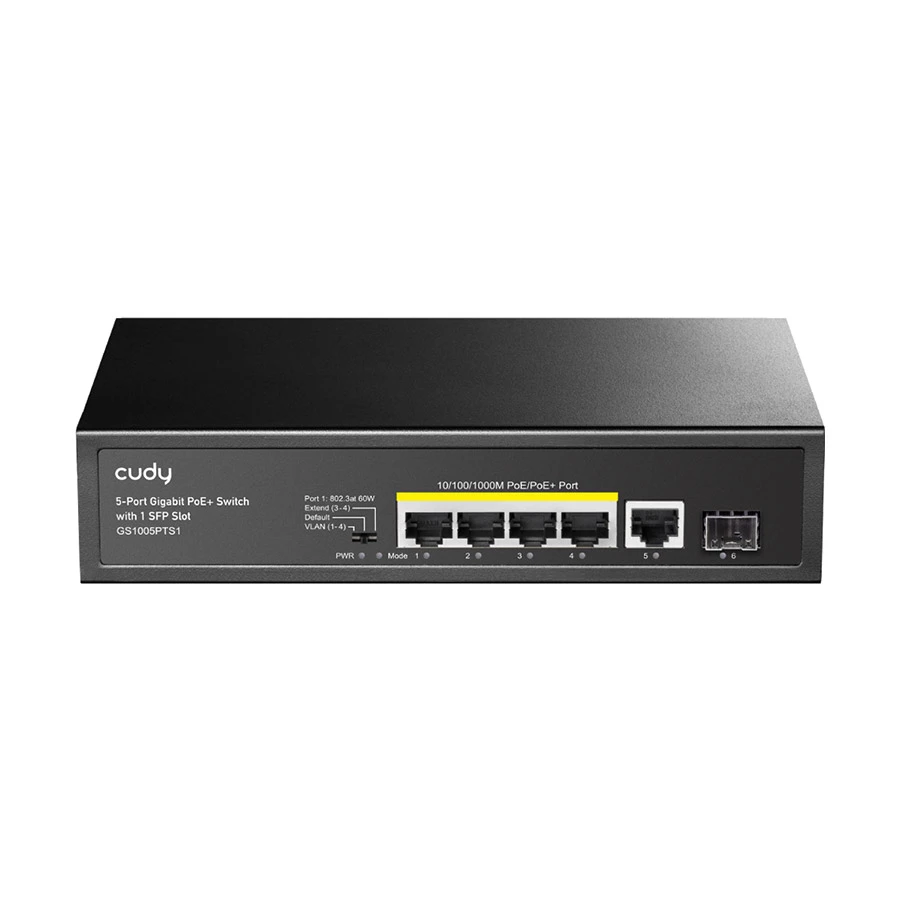

Cudy GS1005PTS1 6 Port Network Switch

Item: Cudy GS1005PTS1 6 Port Network Switch
Rating: 5
Author: Mr. Minhaj

8 reviews

Product Id: 29.05.896.40

Regular Price

Tk 0

Out Of Stock

See similar model

Quick Overview

Type - Network Switch
Number of Total Port - 6 Port
PoE - Yes
Manageability - Unmentioned
Network Standards - IEEE 802.3at / IEEE 802.3af
Data Transfer Rate - 10/100/1000 Mbps
Form Factor - Desktop

Payment Method Shipping & Charge Order Procedure

General

Brand

Cudy

Model

Cudy GS1005PTS1

Type

Network Switch

Ports & Slots

Number of Total Port

6 Port

Gigabit Port

SFP Port

PoE+ Port

Technical Info

PoE

Yes

Manageability

Unmentioned

Interface(s)

4 x 10/100/1000Mbps PoE+, 1 x 10/100/1000Mbps Ethernet & 1 x 10/100/1000Mbps SFP Uplink

Network Standards

IEEE 802.3at / IEEE 802.3af

Data Transfer Rate

10/100/1000 Mbps

Connector Type

RJ-45

Switching Capacity

12Gbps

MTBF

100000 Hour

Physical Description

Fan/Fanless

Fanless

Body Color

Black

Form Factor

Desktop

Dimension

200 x 118 x 44mm (Product)

Weight

0.6 kg (N.W)

Packet Contents

1 x GS1005PTS1, 1 x Power Cord, 1 x Installation Guide

Power

Power Supply

120W

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Others

Throughput: 8.928Mpps. Packet Buffer: 1Mb. MAC Address: 2K. Jumbo Frame: 9216bytes. Transfer Mode: Store and forward. Network protocol: IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab(1000Base-TX), IEEE802.3z(1000Base-FX), IEEE802.3x (Flow control). PoE Protocol: IEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3at(4 Pair 60W). Network Medium: 10Base-T : Cat3,4,5 or above UTP(<=100m), 100Base-TX : Cat5 or above UTP(100m), 1000Base-TX : Cat5 or above UTP(100m). Optical Media: Multimode fiber : 50/125, 62.5/125, 100/140m, Single mode fiber: 8/125, 8.7/125, 9/125, 10/125m. Working Temperature: -20 - 50 Degree C, Storage Temperature: -40 - 85 Degree C, Working Humidity: 10%-90%, non-condensing, Storage Temperature: 5%-90%, non-condensing, Working Height: Maximum 10,000 feet, Storage heigh: Maximum 10,000 feet. Input Voltage AC 100-240 V. Package: 1 x Switch, 1 x Power cord, User manual, Certification.

Specialty

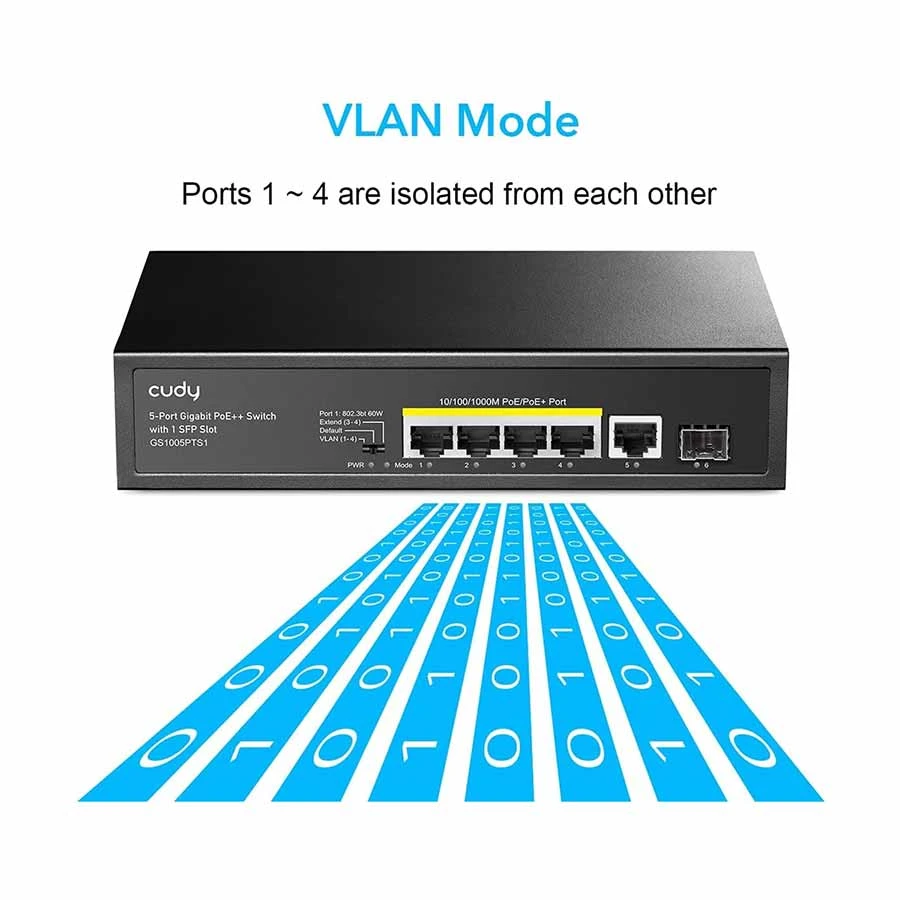

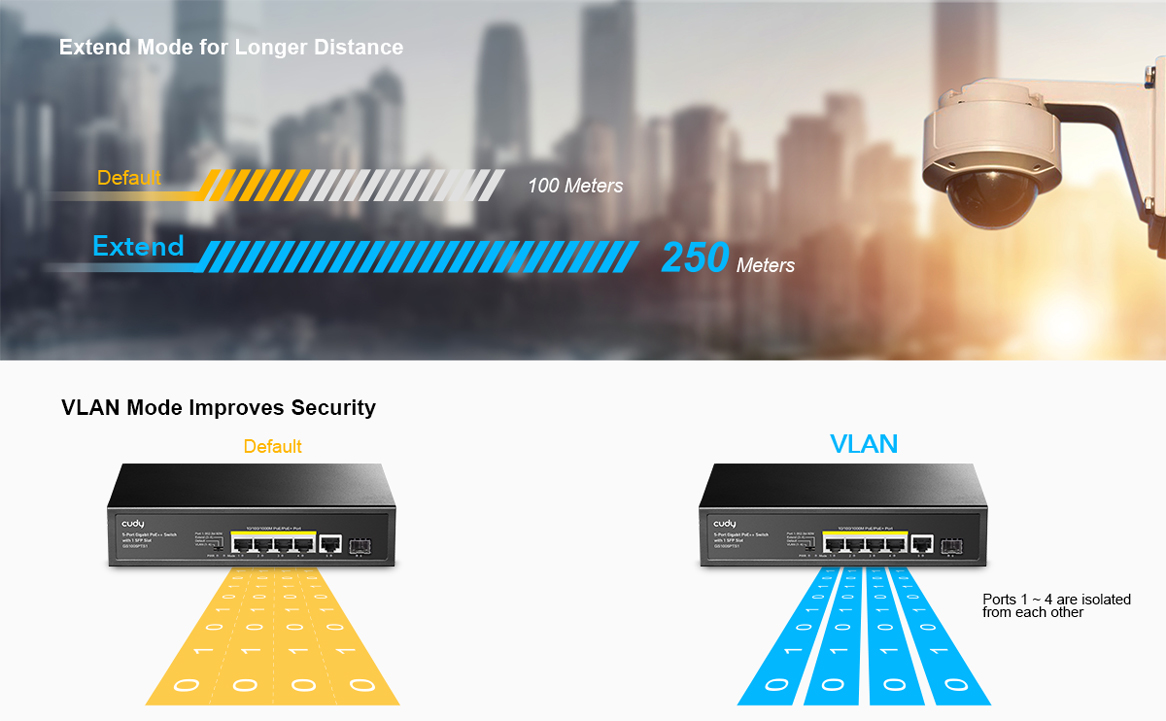

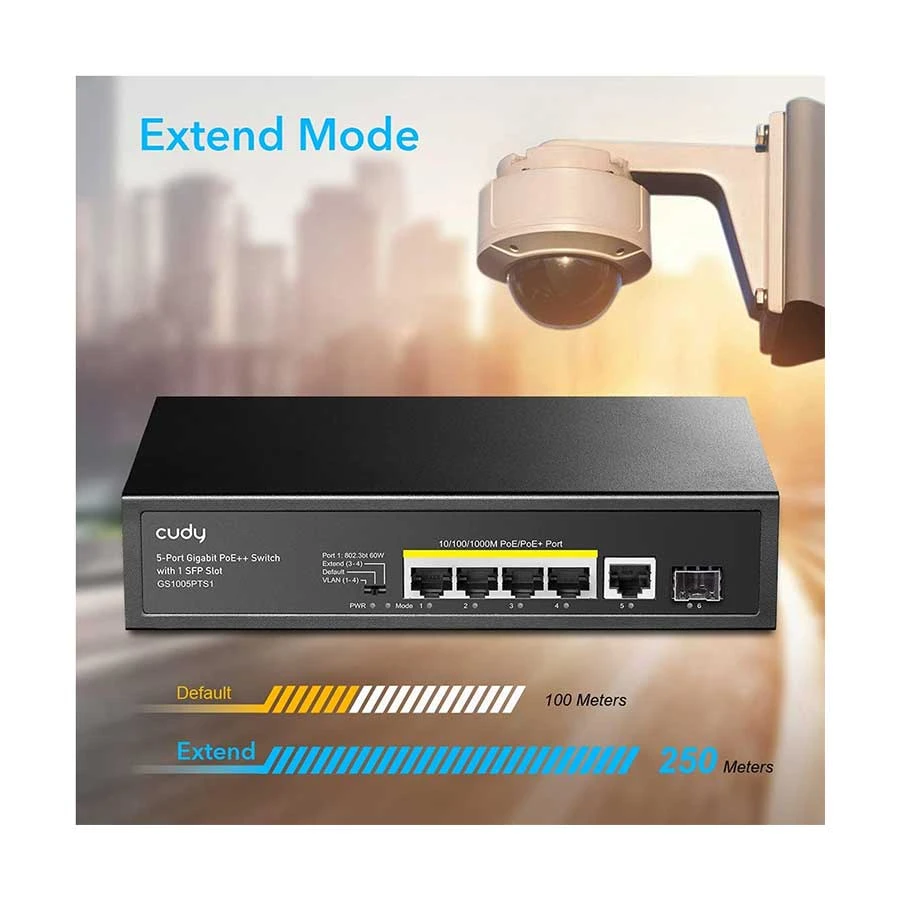

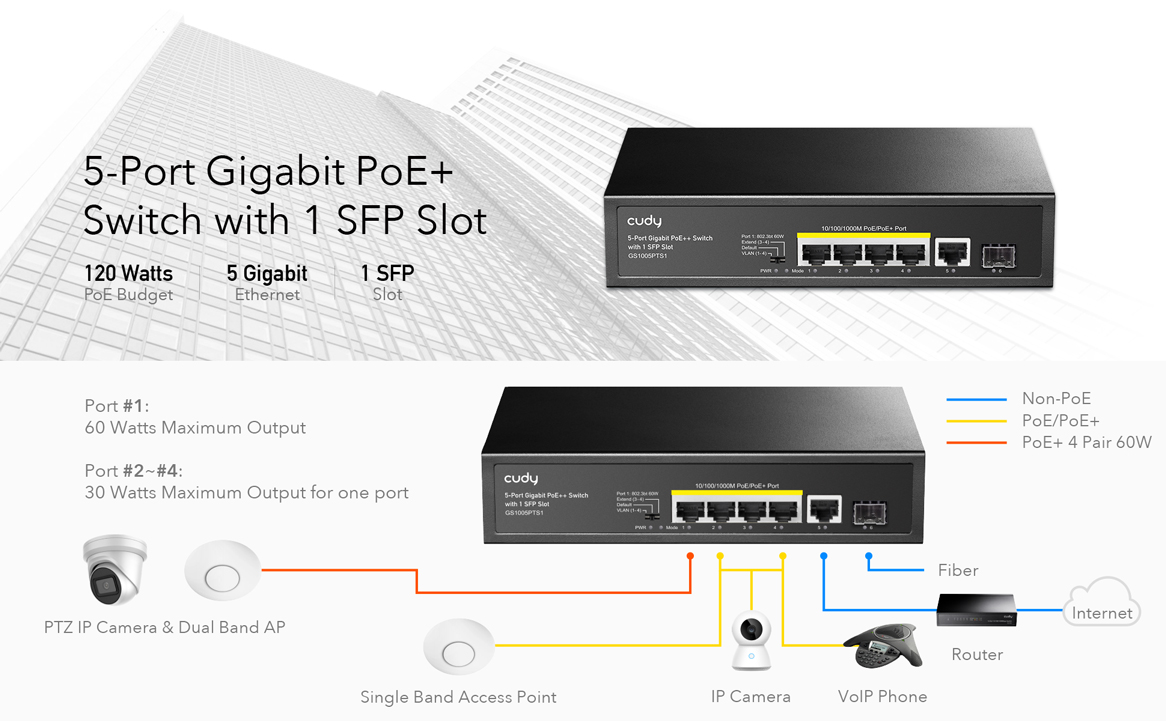

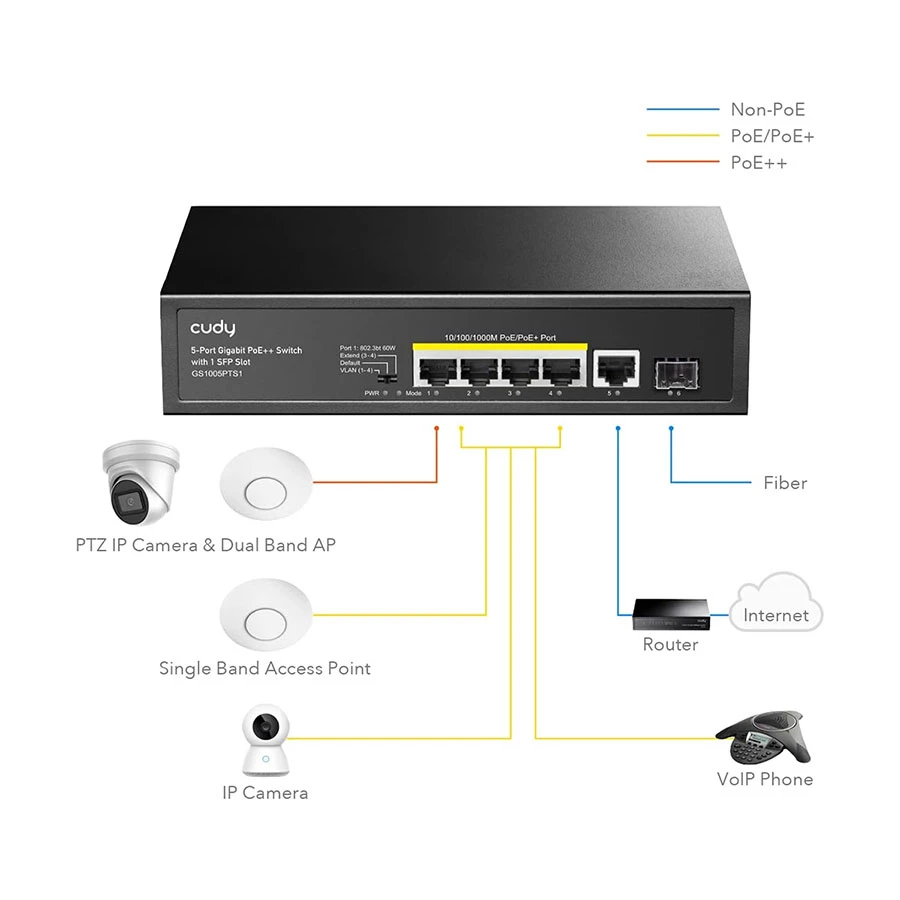

120 watts PoE power supply. 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP. Extend mode support remote PoE feeding up to 250m. VLAN mode isolate each PoE Ports for security. Watchdog reactivates the abnormalPD by resuming POE power. IEEE 802.3at / IEEE 802.3af standard compliant. Plug&play, simple setup with no configuration needed.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Cudy GS1005PTS1 Network Switch In Bangladesh

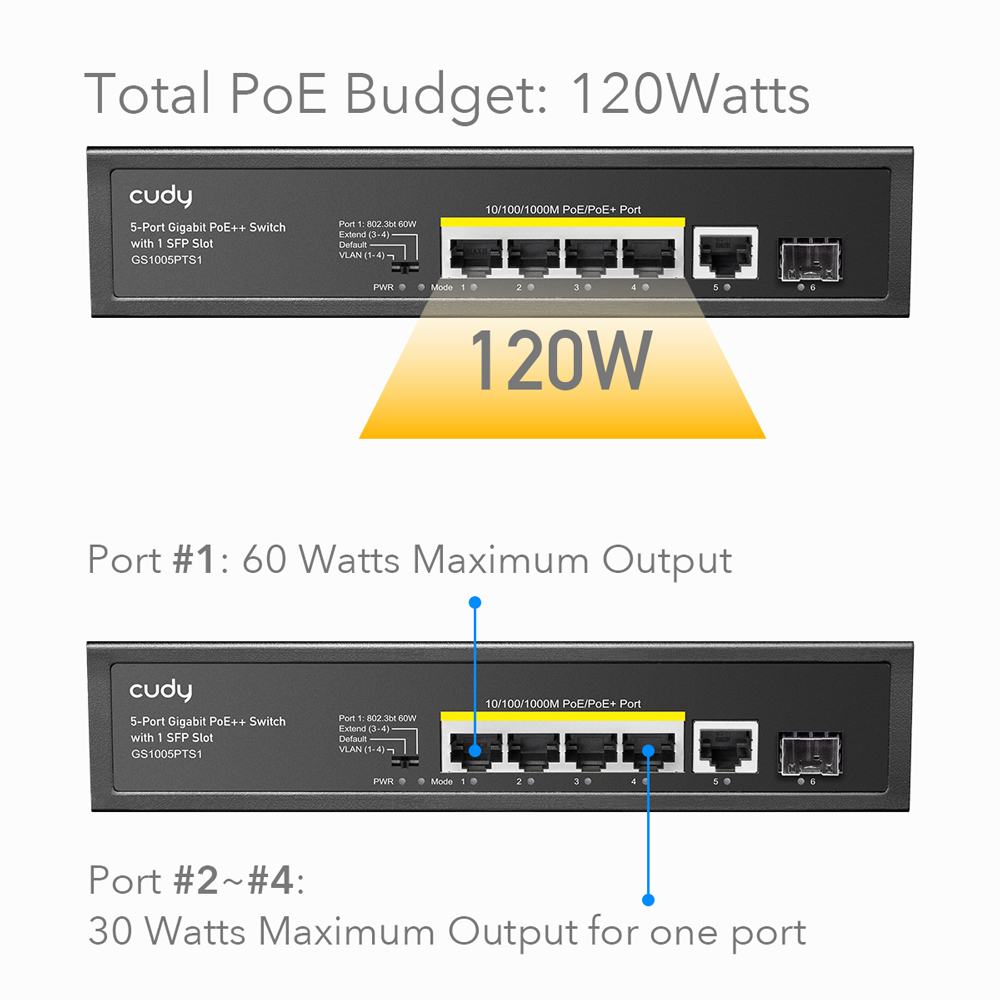

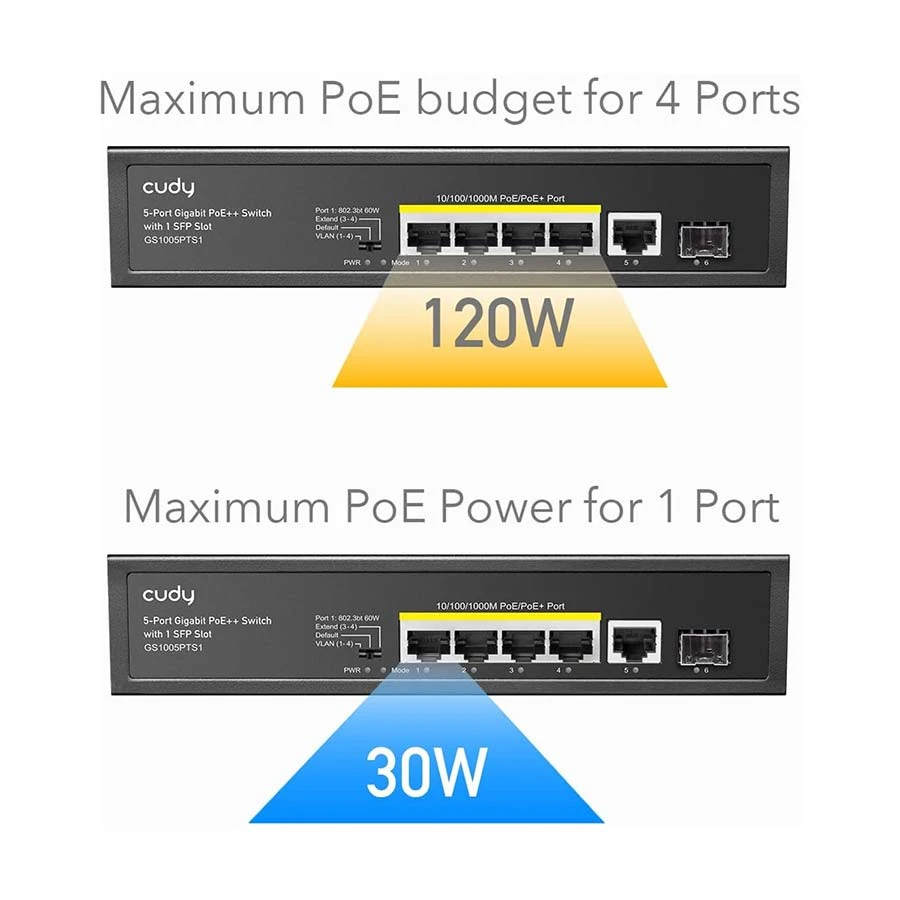

120 W Power budget & 60 W Maximum One Port

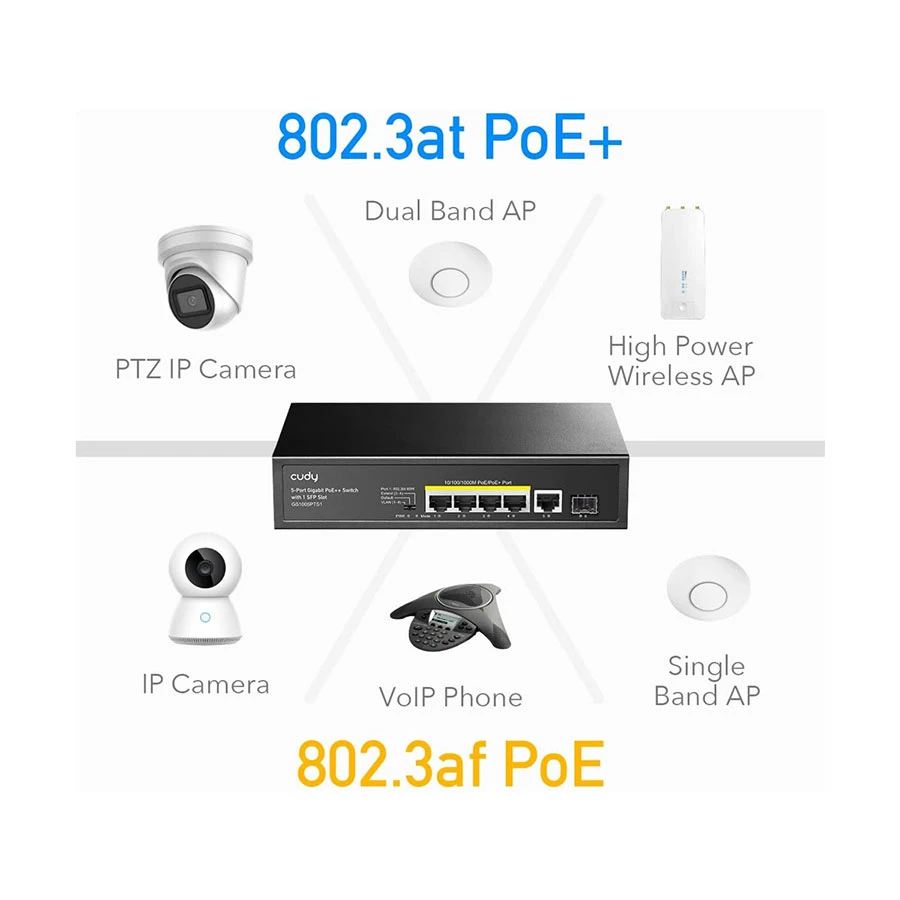

The total PoE power supported by the PoE port is 120 W, and the maximum for port #1 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

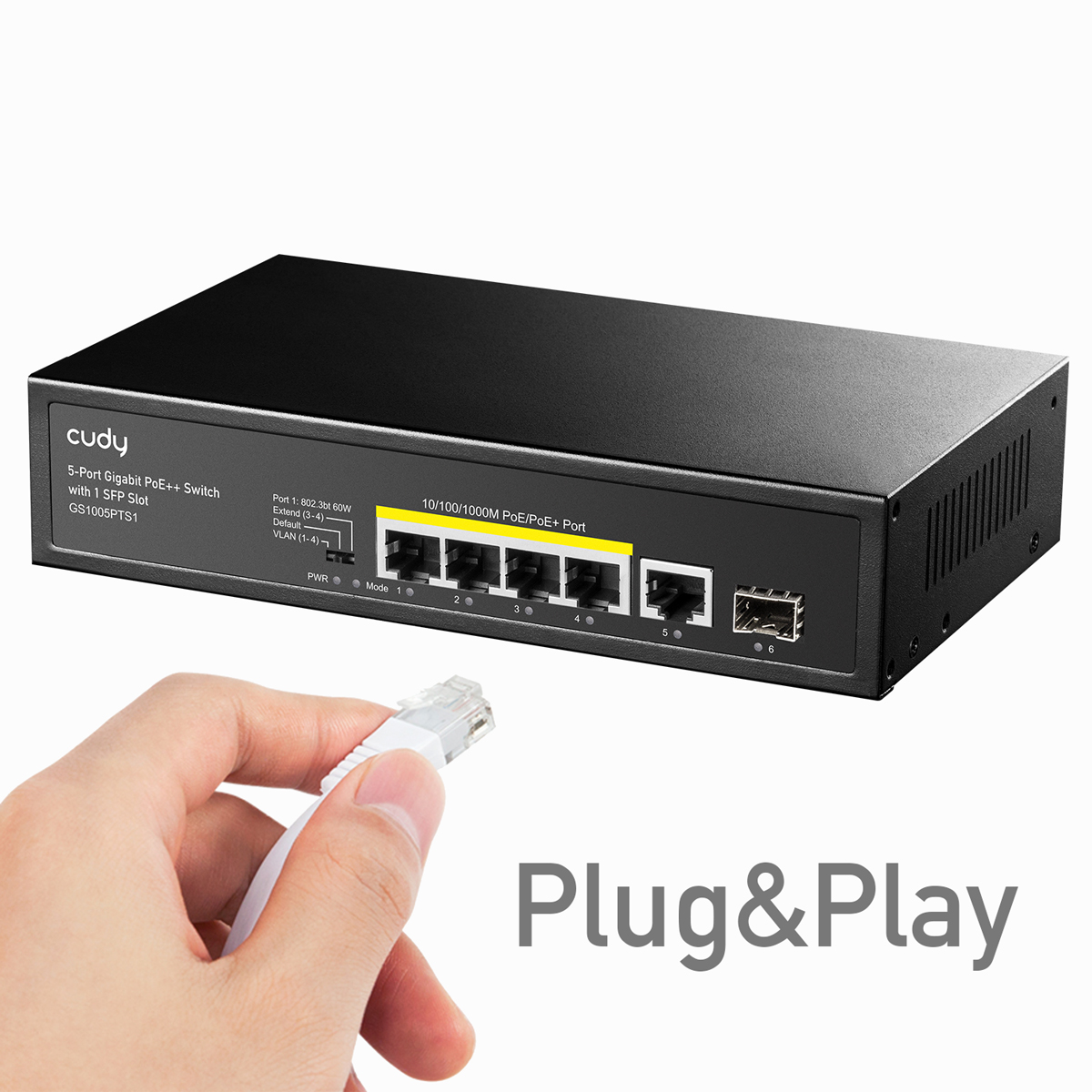

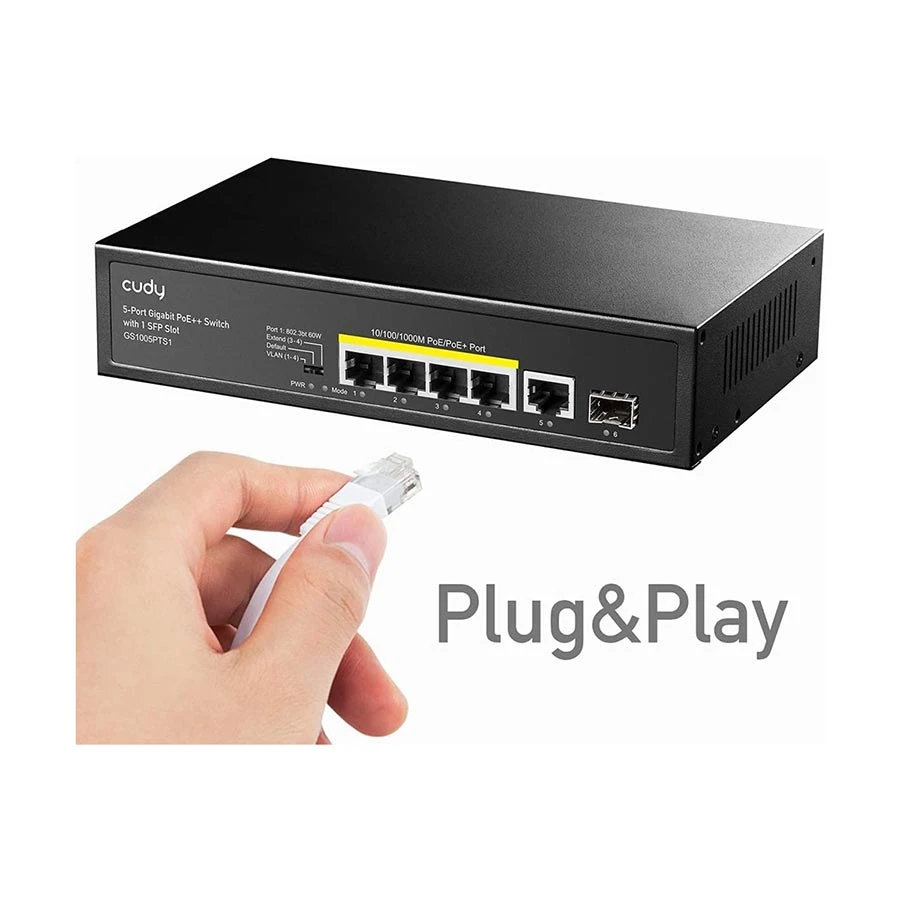

Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

What is the price of Cudy GS1005PTS1 Network Switch In Bangladesh?

The price of Cudy GS1005PTS1 Network Switch not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Cudy GS1005PTS1 Network Switch from our website or visit our showrooms nearby.
