TP-Link TL-SF1009P 9-Port Desktop Switch

Product Id: 29.05.091.132

Brand Tp-link

Special Price
Tk 4,180
Regular Price
Tk 4,500

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 9 Port
  • PoE - Yes
  • Manageability - Unmanaged
  • Network Standards - IEEE 802.3 af/at
  • Data Transfer Rate - 10/100 Mbps
  • Form Factor - Rackmount
Avail EMI Offer
EMI starts from Tk 500/months
General
Brand
TP-Link

Model
TP-Link TL-SF1009P

Type
Network Switch


Ports & Slots
Number of Total Port
9 Port

PoE+ Port
8


Technical Info
PoE
Yes

Manageability
Unmanaged

Interface(s)

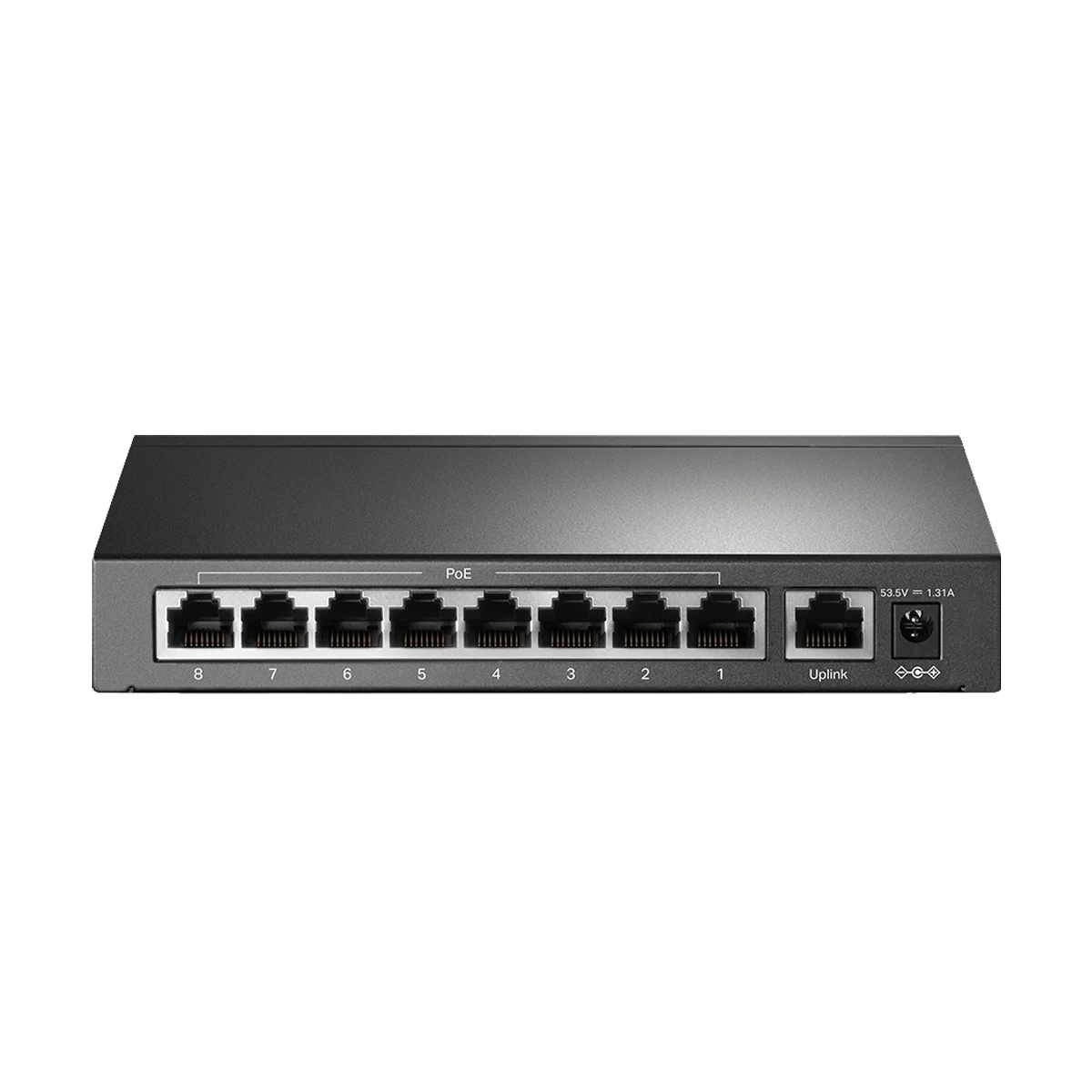

9 x 10/100 Mbps RJ45 Ports (8 x 10/100 Mbps 802.3af/at PoE+ ports), AUTO Negotiation, AUTO MDI/MDIX

Network Standards
IEEE 802.3 af/at

Data Transfer Rate
10/100 Mbps

Transmission Method
Store and Forward

Switching Capacity
1.8Gbps


Physical Description
Fan/Fanless
Fanless

Body Color
Black

Form Factor
Rackmount

Dimension
171 x 98 x 27mm

Packet Contents
TP-Link TL-SF1009P, Power Adapter, Installation Guide


Power
Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)

Approx. Power Consumption
3.6 W (Without PD Connected), 77.08 W (PD Connected)


Warranty
Warranty Details
2 Year (Without Adapter)


Additional Info
Others
Physical Security Lock: Yes, Packet Forwarding Rate: 1.3392Mpps, PoE Ports (RJ45): (Standard: 802.3 af/at compliant, Power Supply: 65 W), Mac Address Table: 2K, Jumbo Frame: 2 KB, Max Heat Dissipation: (12.28 BTU/h (no PD connected), 262.84 BTU/h (with 65 W PD connected)

Specialty

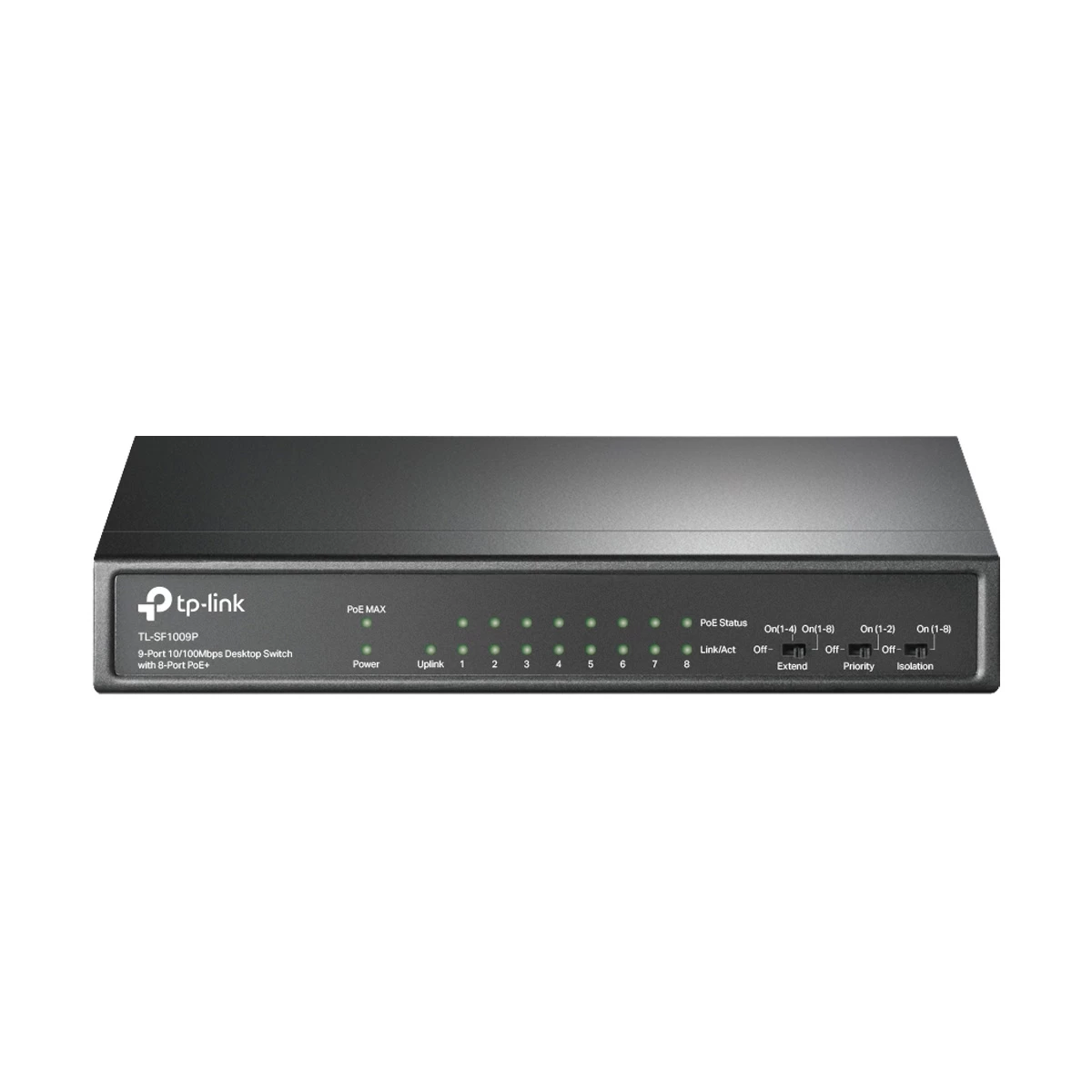

Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1-2), Isolation Mode Button (Ports 1-8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
