Brand

Dahua

Model

Dahua DH-IPC-HDW1230T2-S5

Usage

Outdoor

Type

IP Camera

Number of Camera

Mega Pixels (MP)

2.0

Max. Camera Resolution

1920 x 1080

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Night Vision

Yes

Night Vision Mode

Black and White

Mic & Speaker

Smart Alarm

Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception

Sim Supported

Wi-Fi

Card Slot

Viewing Angle.

Horizontal: 102 Degree; Vertical: 54 Degree ; Diagonal: 120 Degree

Working Distance

30 Meter

Power

DC 12V

Approx. Power Consumption

Basic: 1.3 W (12 VDC); 2.1 W (PoE), Max. (ICR + H.265+IR intensity):2.6 W (12 VDC); 3.5 W, (PoE)s

Body Material

Plastic

Color

White

Dimensions

103.2 x 109.9mm

Weight (gm)

260 gm

Warranty

2 Year (Without Adapter)

General

Brand

Dahua

Model

Dahua DH-IPC-HDW1230T2-S5

Usage

Outdoor

Type

IP Camera

Camera

Number of Camera

Camera Type

Fixed

Mega Pixels (MP)

2.0

Max. Camera Resolution

1920 x 1080

Sensor Type.

1/2.8 Inch CMOS

Resolution

H.265; H.264; H.264B; H.264H; MJPEG (Only supported by the sub stream)

Shutter Speed

Auto/Manual 1/3 s-1/100,000 s

Day & Night

Auto (ICR)/Color/B/W

Night Vision

Yes

Night Vision Mode

Black and White

S/N Ratio

> 56 dB

Lens

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Lens Mount

2.8mm

Focal Length

2.8mm

PTZ

Viewing Angle.

Horizontal: 102 Degree; Vertical: 54 Degree ; Diagonal: 120 Degree


Dual-Stream

Yes

Frame Rate

Main stream: 1920 x 1080@1-25/30 fps, Sub stream: 704 x 576@1-25 fps,704 x 480@1-30 fps

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D NR

Wide Dynamic Range (WDR)

DWDR

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 x RJ-45 (10/100 Base-T)

Wi-Fi

Security

Watermark

Yes

Motion Detection

Yes

Voltage Transient Protection

Yes

Dust Protection

Yes

Water Protection

Yes

Simultaneous Live View

Yes

Technical Info

Scanning System

Progressive

Video Type

H.265; H.264; H.264B; H.264H; MJPEG (Only supported by the sub stream)

Mic & Speaker

Audio Communication

Input Trigger

Motion Detection

Ingress Protection Grade

IP67

Working Distance

30 Meter

Protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Supported Operating System

iOS; Android

Physical Description

Form-Factor

Dome

Smart Alarm

Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception

Card Slot

Storage Type

FTP

Body Material

Plastic

Color

White

Dimensions

103.2 x 109.9mm

Weight (gm)

260 gm

Power

DC 12V

Battery Backup

Power Supply

12 VDC/PoE (802.3af)

Approx. Power Consumption

Basic: 1.3 W (12 VDC); 2.1 W (PoE), Max. (ICR + H.265+IR intensity):2.6 W (12 VDC); 3.5 W, (PoE)s

Operating Temperature

-40 Degree C to +55 Degree C

Storing/Storage Temperature

-40 Degree C to +55 Degree C

Operating Humidity

<-95%

Warranty

2 Year (Without Adapter)

Additional Info

Others

ROM: 16 MB, RAM: 64 MB, Min. Illumination: 0.01 [email protected] (Color, 30 IRE), 0.001 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on), Illuminator On/Off Control: Auto; manual, Illuminator Number 2 (IR LED), Pan/Tilt/Rotation Range: Pan: 0 Degree to 360 Degree, Tilt: 0 Degree to 78 Degree, Rotation: 0 Degree to 360 Degree, Smart Codec Smart H.265+; Smart H.264+, Stream Capability 2 streams, Bit Rate Control: CBR/VBR, Video Bit Rate H.264: 32 kbps - 6144 kbps, H.265: 12 kbps - 6144 kbps, BLC: Yes, HLC: Yes, Motion Detection OFF/ON: (4 areas, rectangular), Region of Interest (RoI): Yes (4 areas), Smart Illumination: Yes, Mirror: Yes, Privacy ,Masking: 4 areas, SDK and API: Yes, Cyber Security: Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; Trusted boot; Trusted, upgrade; Trusted execution, Interoperability ONVIF(Profile S); CGI; P2P, User/Host 6 (Total bandwidth: 36 M), Browser IE; Chrome; Firefox

Specialty

Smart Illumination, H.265 codec, high compression rate, ultra-low bit rate. Built-in efficient IR illuminator, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking applicable to various monitoring scenes. Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access. 12 VDC/PoE power supply.

Country Of Origin

China

Made in/ Assemble

China

Details

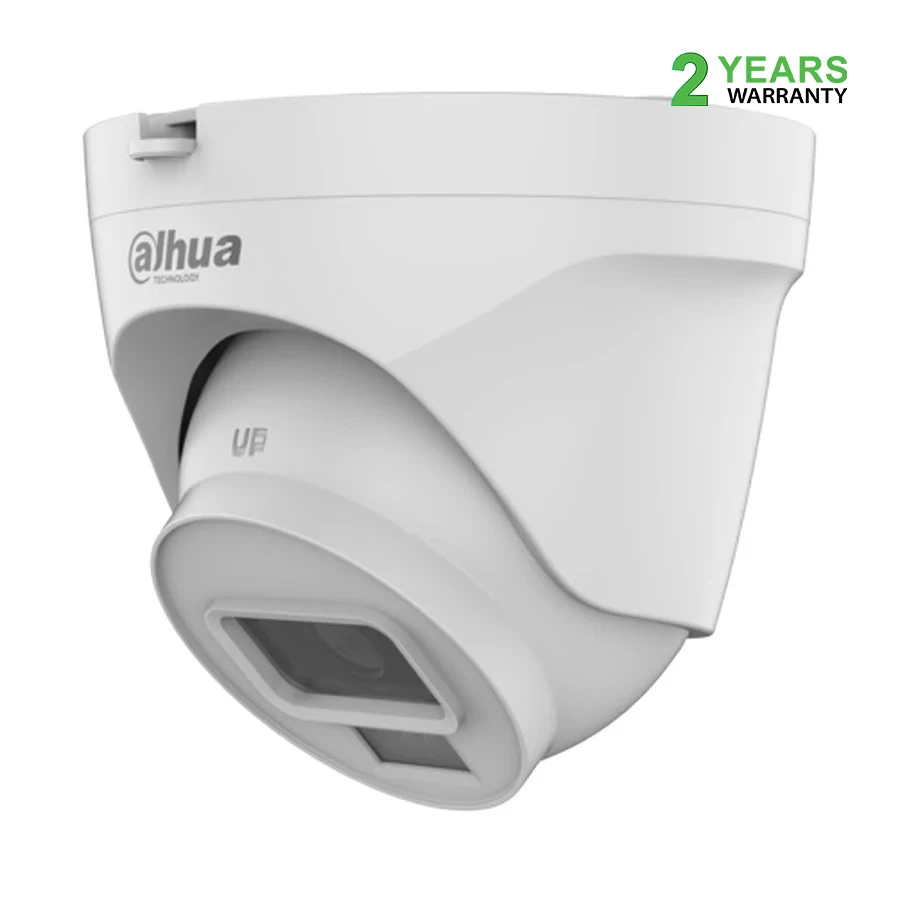

Features of Dahua DH-IPC-HDW1230T2-S5 IP Camera In Bangladesh

Dahua DH-IPC-HDW1230T2-S5 offers high-definition 2MP resolution for clear visuals. 2.8mm fixed lens provides a broad field of view for comprehensive coverage. Dome design allows for discreet and flexible installation. IR night vision ensures clear monitoring even in complete darkness. Weather-resistant housing makes it suitable for both indoor and outdoor use. Advanced motion detection helps in accurate event recording.

Buying Guide:

Resolution: Select a camera with adequate resolution for clear images.
Lens Size: Choose a lens size based on the area to be monitored.
Night Vision: Verify the camera’s IR range for low-light conditions.
Weather Resistance: Ensure the camera's housing is suitable for your environment.
Mounting Flexibility: Consider the camera’s design for your installation needs.

Why Choose Ryans Computer:

Ryans Computer provides a range of reliable surveillance solutions. Expert guidance ensures you find the perfect camera for your requirements. Competitive pricing and superior customer support enhance your buying experience. Swift delivery ensures you receive your products without delay.

Call to Action:

Enhance your security with the Dahua DH-IPC-HDW1230T2-S5 for reliable, high-definition monitoring. Shop at Ryans Computer today for the best deals and expert support. Upgrade your surveillance system with top-quality cameras from Ryans Computer!

What is the price of Dahua DH-IPC-HDW1230T2-S5 IP Camera In Bangladesh?

The price of Dahua DH-IPC-HDW1230T2-S5 IP Camera starts from 2,650 . The price may vary due to your customization and product availability. You can buy Dahua DH-IPC-HDW1230T2-S5 IP Camera from our website or visit our showrooms nearby.
