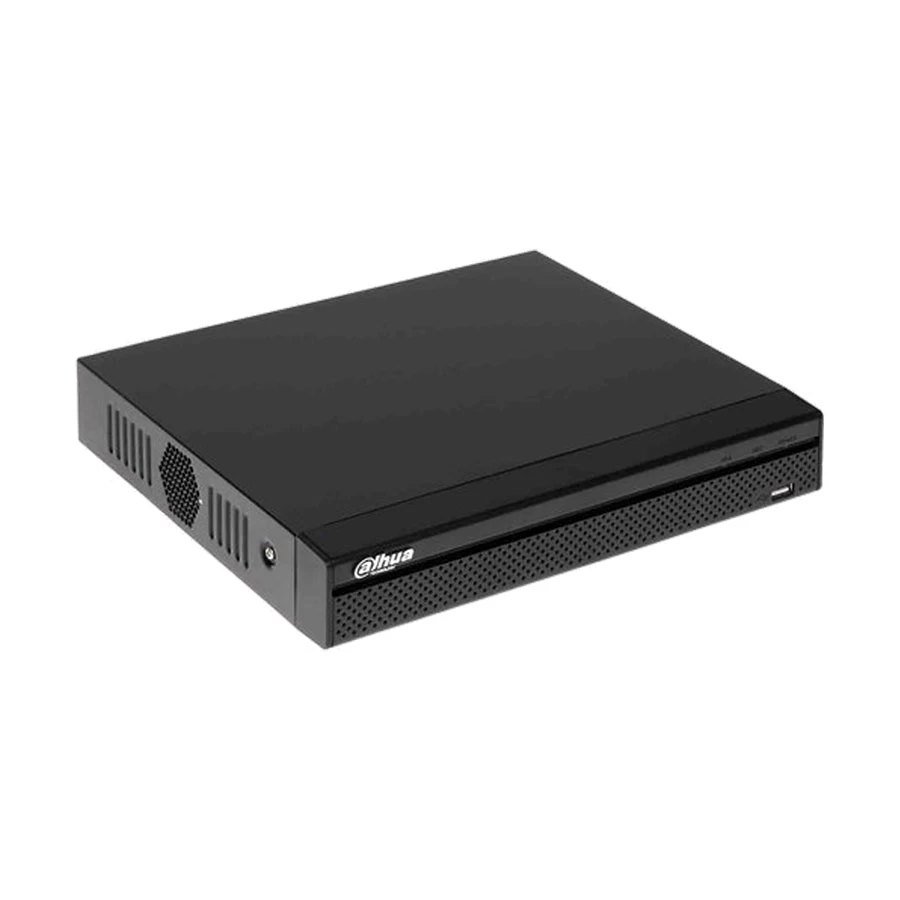

Dahua DHI-NVR1108HS-S3/H 8 Channel NVR

Product Id: 127.04.776.118

Brand Dahua

Regular Price Tk 5,430 Monthly EMI Tk 453
Special Price Tk 5,000

Quick Overview

  • Dual Stream Support - Unmentioned
  • Number HDD Interface (SATA) - 1 SATA
  • Max. Storage Support - 8TB
Brand
Dahua

Model
Dahua DHI-NVR1108HS-S3/H

Type
NVR

Video Compression/Format
Smart H.265+/ Smart H.264+/ H.265/ H.264

Video Output (VGA)
1 x VGA, 1920 x 1080

Video Output (HDMI)
1 x HDMI, 1920 x 1080

Max. Video Recording Res.
1920 x 1080

Audio Input Channel (RCA)
1 x RCA

Audio Compression
PCM/ G711A/ G711U/ G726/ AAC

Audio Output Channel
1 x RCA

Dual Stream Support
Unmentioned

Live View / Playback Resolution
8MP/ 5MP/ 4MP/ 3MP/ 1080P/ 720P/ D1/ CIF

Decoding Capability
1-ch@8MP(30FPS) / 1-ch@5MP(30FPS) /2-ch@4MP(30FPS) / 2-ch@3MP(30FPS) / 4- ch@1080P(30FPS) /8-ch@720P(30FPS)

Synchronous Playback
08 Channel

Network Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P

Number HDD Interface (SATA)
1 SATA

Max HDD Support (GB,TB)
Up to 8 TB

Max. Storage Support
8TB

Network Interface (RJ45)
1 x RJ-45 port (10/100 Mbps)

USB Port
1 x USB 2.0 (Front), 1 x USB 2.0 (Rear)

Main Processor
Embedded Processor

Display Split
1/4/8/9

Incoming Bandwidth
80 Mbps (Access)

Outgoing Bandwidth
80 Mbps (Storage), 60 Mbps (Forwarding)

Backup Storage
USB Device

Operating System.
Embedded Linux

Power Supply
DC12V, 1.5A

Approx. Power Consumption
<-10W (without HDD)

Max. Power
10W

Dimensions
260 x 225 x 47.6mm (W x L x H)

Weight (Kg)
0.81 Kg

Feature
New 4.0 user interface, P2P remote surveillance, video play on mobile device. 4-ch@1080P(30FPS), self-adaptive decoding capability. Support for mainstream cameras of ONVIF and RTSP protocol. Smart H.265+/Smart H.264+/H.265/H.264. VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P. Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches. DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System).

Others
Operation Interface: Web/operating in local GUI, Multi-screen Display: 1/ 4/ 8/ 9. Third Party Camera Access: Onvif, RTSP. Mobile Phone Access: iDMSS(iOS), gDMSS(Android). Access Standard: ONVIF(profile T/profile S/profile G),CGI,SDK. Browser: Chrome, IE9 or above, Firefox. Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording. Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off. Installation: Desktop Mounting. Certification: CE/ FCC

Warranty Details
1 year

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
