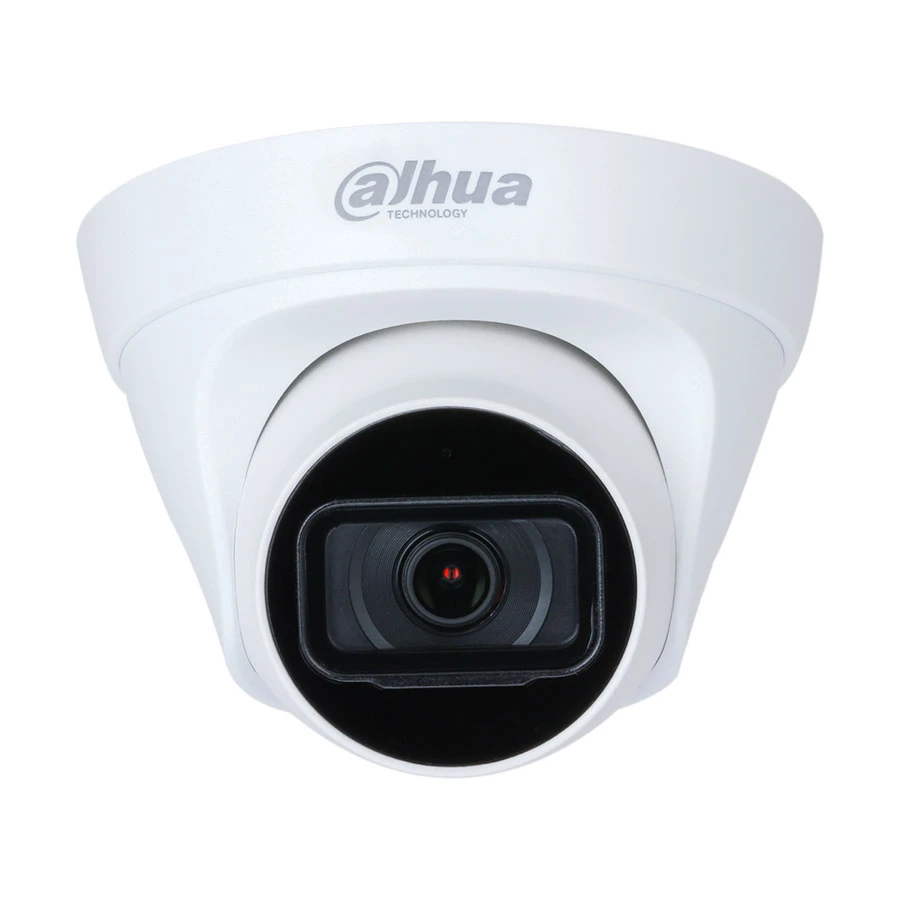

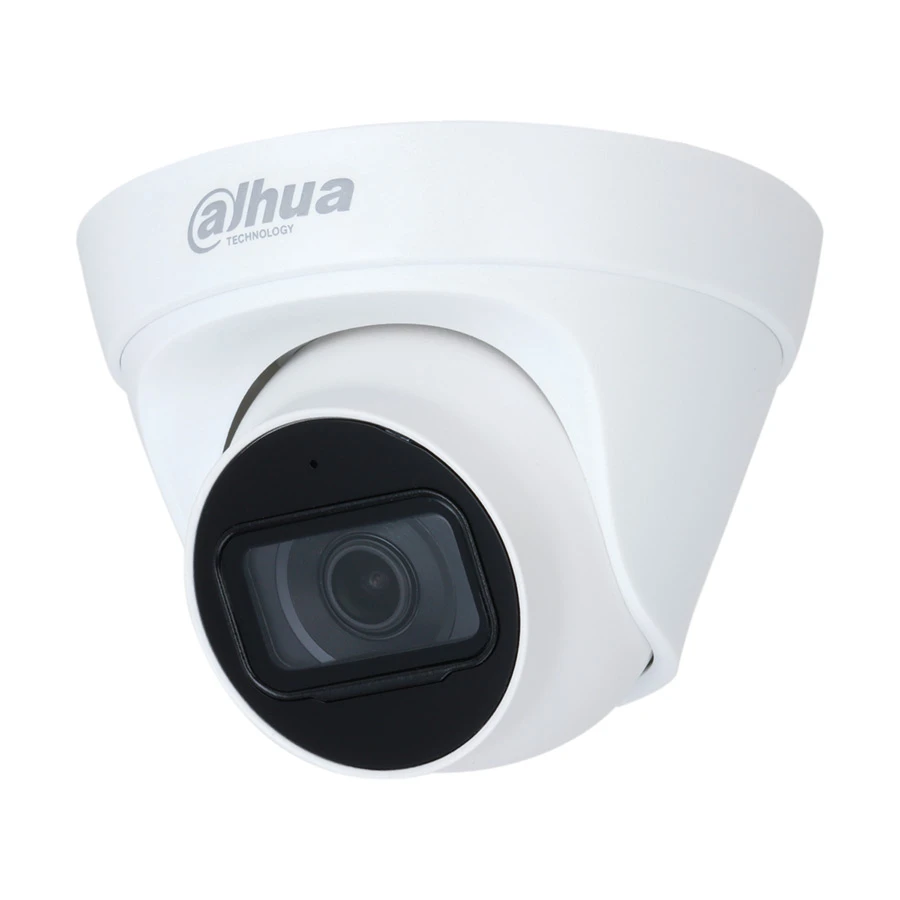

Dahua IPC-HDW1230T1-A-S5 (2.8mm) (2MP) IR Fixed-focal Eyeball Dome IP Camera

Item: Dahua IPC-HDW1230T1-A-S5 (2.8mm) (2MP) IR Fixed-focal Eyeball Dome IP Camera
Rating: 5
Author: Verified Buyer

Product Id: 127.03.776.283

Coming Soon

Quick Overview

Usage - Outdoor
Form-Factor - Dome
Mega Pixels (MP) - 2.0
Night Vision Mode - Black and White
Working Distance - 30 Meter
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Dahua

Model

Dahua IPC-HDW1230T1-A-S5

Usage

Outdoor

Type

IP Camera

Number of Camera

Mega Pixels (MP)

2.0

Max. Camera Resolution

1920 x 1080

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Night Vision

Yes

Night Vision Mode

Black and White

Mic & Speaker

Only Mic

Smart Alarm

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Sim Supported

Wi-Fi

Card Slot

Viewing Angle.

102 Degree (H), 54 Degree (V), 120 Degree (D)

Working Distance

30 Meter

Power

12 VDC/PoE (802.3af)

Approx. Power Consumption

Basic: 1.2 W (12 VDC); 2 W (PoE), Max. (ICR + H.265 + IR intensity): 3.1 W (12 VDC); 4.1 W (PoE)

Body Material

Metal + Plastic

Color

White

Dimensions

85.5 x 109 mm

Weight (gm)

240 gm

Warranty

2 Year (Without Adapter)

General

Brand

Dahua

Model

Dahua IPC-HDW1230T1-A-S5

Usage

Outdoor

Type

IP Camera

Camera

Number of Camera

Camera Type

Fixed

Mega Pixels (MP)

2.0

Max. Camera Resolution

1920 x 1080

Secondary Camera Type

Not Applicable

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Sensor Type.

1/2.8 Inch CMOS

Resolution

1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Shutter Speed

Auto/Manual 1/3 s - 1/100,000 s

Day & Night

Auto (ICR)/Color/B/W

Night Vision

Yes

Night Vision Mode

Black and White

S/N Ratio

> 56 dB

Lens

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Lens Mount

M12

Focal Length

2.8mm

PTZ

Viewing Angle.

102 Degree (H), 54 Degree (V), 120 Degree (D)


Dual-Stream

Yes

Frame Rate

Main stream: 1920 x 1080@1 - 25/30 fps, Sub stream: 704 x 576@1 - 25 fps, 704 x 480@1 - 30 fps

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D NR

Wide Dynamic Range (WDR)

DWDR

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 x RJ-45 (10/100 Base-T)

Wi-Fi

Security

Watermark

Yes

Motion Detection

Yes

Simultaneous Live View

Yes

Technical Info

Scanning System

Progressive

Video Type

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Mic & Speaker

Only Mic

Audio Communication

Ingress Protection Grade

IP67

Working Distance

30 Meter

Protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Supported Operating System

iOS; Android

Physical Description

Form-Factor

Dome

Smart Alarm

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Card Slot

Storage Type

FTP

Body Material

Metal + Plastic

Color

White

Dimensions

85.5 x 109 mm

Weight (gm)

240 gm

Power

12 VDC/PoE (802.3af)

Battery Capacity

Not Applicable

Battery Backup

Battery Backup Time

Not Applicable

Power Supply

12 VDC/PoE (802.3af)

Approx. Power Consumption

Basic: 1.2 W (12 VDC); 2 W (PoE), Max. (ICR + H.265 + IR intensity): 3.1 W (12 VDC); 4.1 W (PoE)

Operating Temperature

-40 Degree C to +60 Degree C

Storing/Storage Temperature

-40 Degree C to +60 Degree C

Operating Humidity

<- 95%

Warranty

2 Year (Without Adapter)

Additional Info

Others

ROM: 16 MB, RAM: 64 MB, Min. Illumination: 0.01 [email protected] (Color, 30 IRE), 0.001 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on), Pan/Tilt/Rotation Range: Pan: 0 - 355 Degree, Tilt: 0 - 78 Degree, Rotation: 0 - 355 Degree, Lens Type: Fixed-focal, Stream Capability: 2 streams, Bit Rate Control: CBR/VBR, Video Bit Rate: H.264: 32 kbps - 6144 kbps, H.265: 12 kbps - 6144 kbps, BLC: Yes, HLC: Yes, WDR: DWDR, White Balance: Auto; natural; street lamp; outdoor; manual; regional custom, Gain Control: Auto; manual, Noise Reduction: 3D NR, Motion Detection: OFF/ON (4 areas, rectangular), Region of Interest (RoI): Yes (4 areas), Smart Illumination: Yes , SDK and API: Yes, Cyber Security: Configuration encryption;Trusted execution; Digest; Security logs; Trusted upgrade; WSSE; Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption, Interoperability: ONVIF (Profile S); CGI; P2P; Genetec, User/Host: 6 (Total bandwidth: 36 M), Storage: FTP, Browser: IE, Chrome, Firefox, anagement Software, Smart PSS; DSS; DMSS, Certifications: CE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B

Specialty

H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, audio detection and illegal access.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Dahua IPC-HDW1230T1-A-S5 IP Camera In Bangladesh

IPC-HDW1230T1-A-S5
2 MP Entry IR Fixed-focal Eyeball Network Camera

> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, audio detection and illegal access.
> Built-in MIC.
> 12 VDC/PoE power supply.
> IP67 protection.

What is the price of Dahua IPC-HDW1230T1-A-S5 IP Camera In Bangladesh?

The price of Dahua IPC-HDW1230T1-A-S5 IP Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Dahua IPC-HDW1230T1-A-S5 IP Camera from our website or visit our showrooms nearby.
