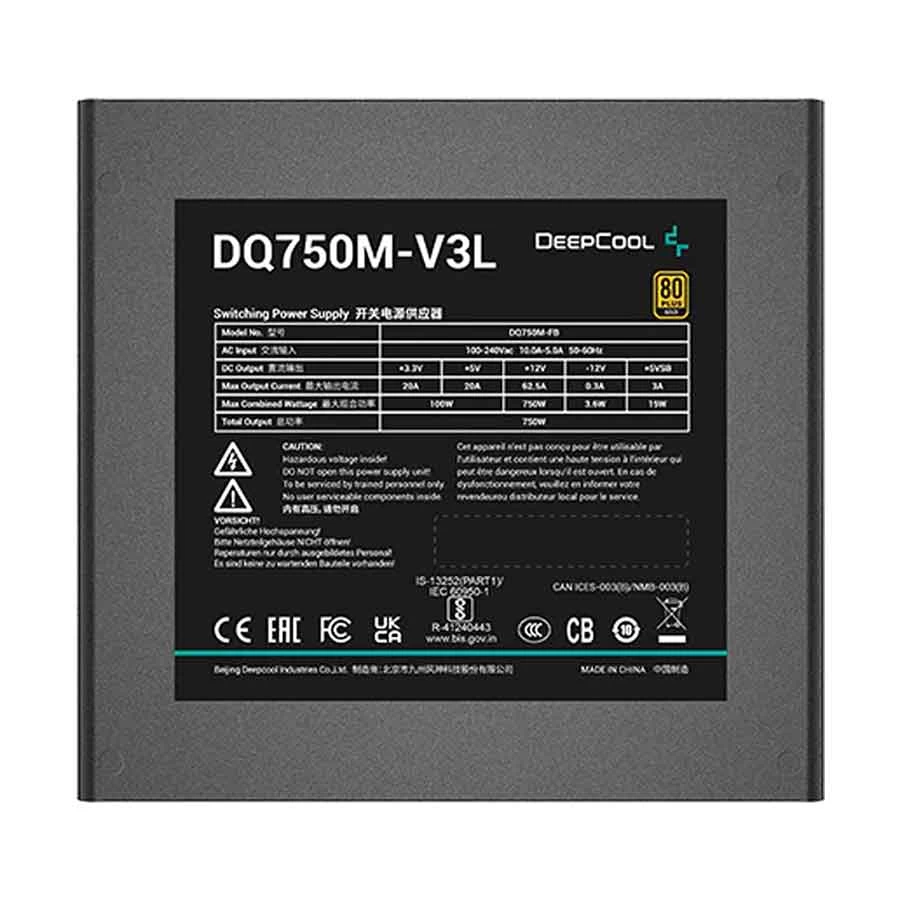

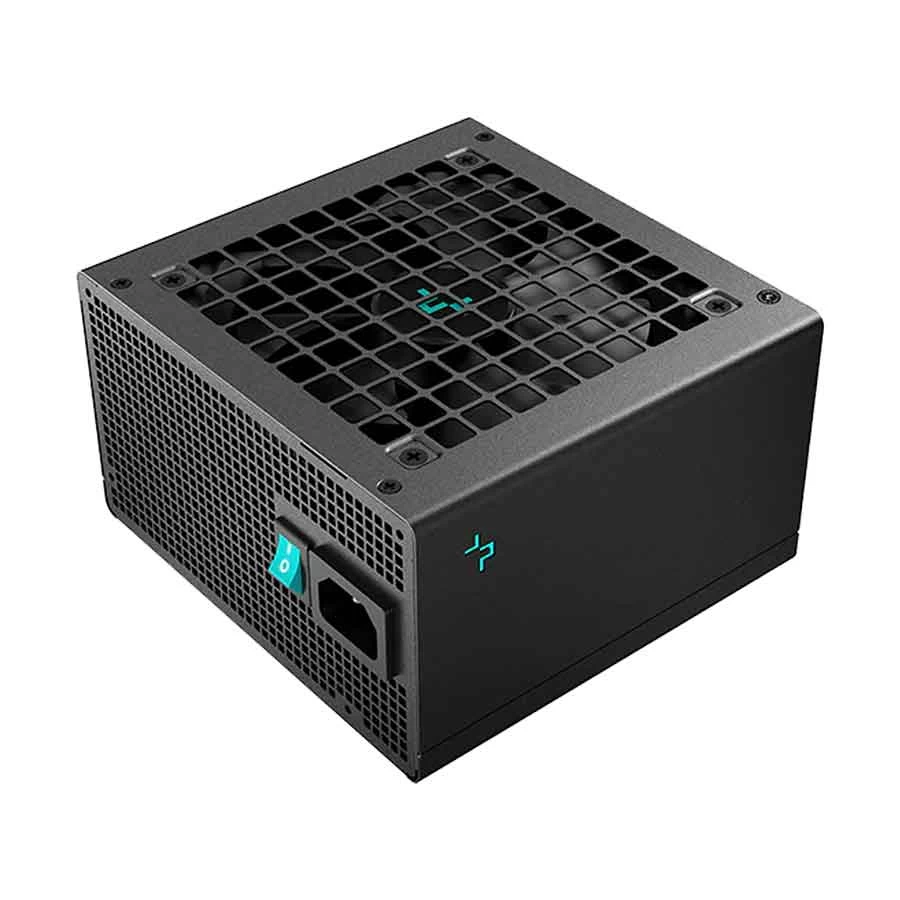

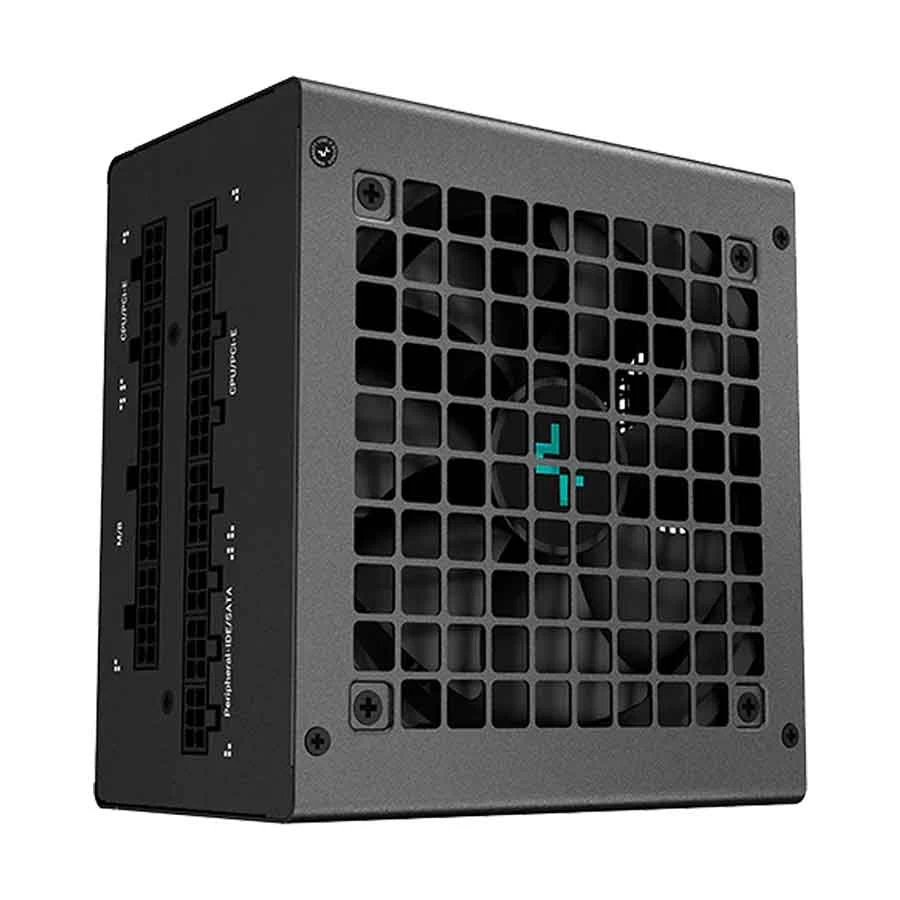

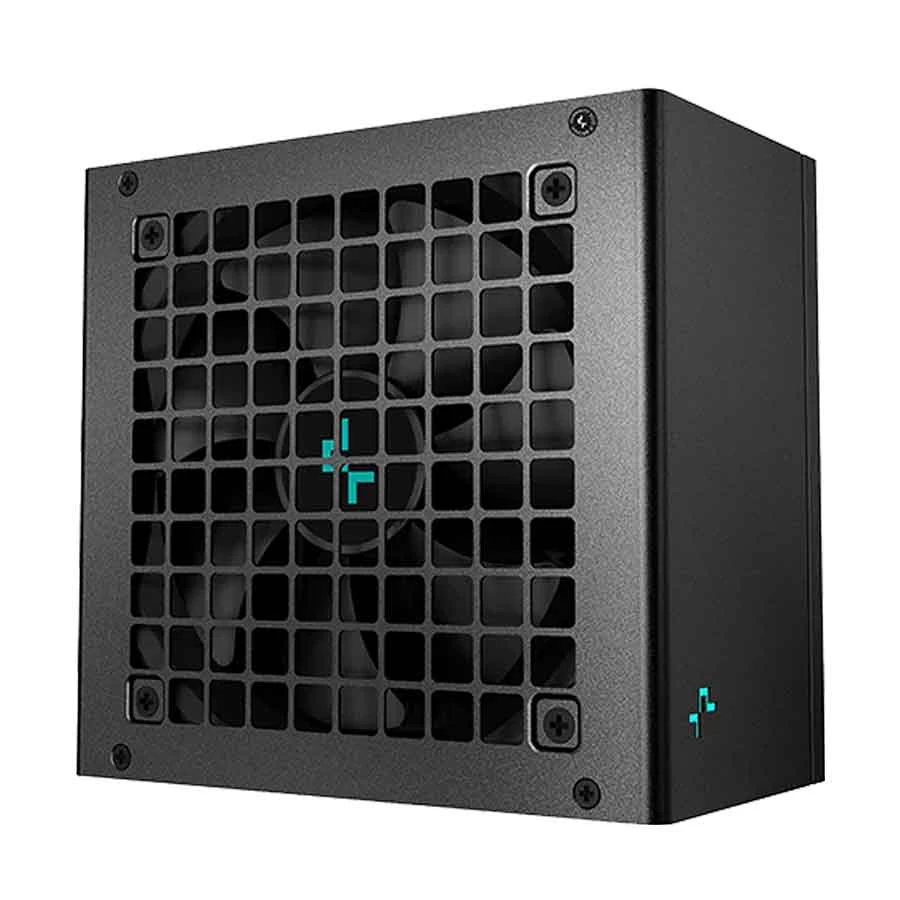

Deepcool DQ750M-V3L Full Modular 750W 80 Plus Gold Certified Power Supply #R-DQ750M-FB0B-UK
Product Id: 55.01.427.144
Brand
Deepcool
Quick Overview
- PSU Category - Full Modular
- Type - ATX 12V
- Maximum Power - 750 Watt
- Efficiency - 90% Efficiency
- Efficiency Rating - 80 Plus Gold
- Protection - SCP, OPP, OTP, OVP, OCP, UVP
General
Brand
Deepcool
Model
Deepcool DQ750M-V3L
PSU Category
Full Modular
Type
ATX 12V
Part No
R-DQ750M-FB0B-UK
Cooling & Lighting
Fan Size
120mm
Lighting Effect
No
Lighting Type
No
Fan Bearing
FDB (Fluid Dynamic Bearing)
Performance
Efficiency
90% Efficiency
Efficiency Rating
80 Plus Gold
PFC (Power Factor Correction)
Active PFC
Power Good Signal
100-500ms
Hold Up Time
>=16ms(80% Load)
Protection
Protection
SCP, OPP, OTP, OVP, OCP, UVP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Current Protection (OCP)
Yes
Over Temperature Protection (OTP)
Yes
Short Circuit Protection (SCP)
Yes
Under Voltage Protection (UVP)
Yes
Connectors
ATX Main Connectors
1
EPS Connectors
2
PCIe Connectors
3
SATA Power Connectors
2
4-Pin Peripheral Connectors
1
Power
Min. Power (Approx.)
675W
Maximum Power
750 Watt
Input AC
100 - 240Vac, 10.0A - 5.0A, 50 - 60Hz
Input Voltage
100 - 240Vac
Input Frequency Range
50 - 60Hz
Input Current
10.0A - 5.0A
Peak Output Capacity
750W
Operating Temperature
0 - 40 degree C
Physical Description
MTBF
100000 Hours
Form Factor
ATX
Dimensions
150 x 140 x 86mm
Color
Black
Warranty
Warranty Details
7 Year
Additional Info
Regulatory / Safety Approval
CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
Others
Type - ATX12V V2.4, Topology - Active PFC + Full Bridge SRC LLC + DC to DC, Capacitors - Full Japan Electrolytic Capacitors, Efficiency - >=90% Under Typical Load(50% Loading), Erp Regulation - ErP 2014.
Specialty
The DeepCool DQ750M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Deepcool DQ750M-V3L Power Supply In Bangladesh
DQ750M-V3L
80 Plus Gold Fully Modular Power Supply
GO FOR GOLD
The DQ750M-V3L power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. The DQ750M-V3L is energy-efficient, and provides efficiency greater than 91.9% at 50% load.
DESIGNED AND BUILT SOLID
The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105℃ bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.
IMPROVED COOLING PERFORMANCE
By implementing a new manufacturing process with the adoption of SiC diodes, it produces lower heat loss, while achieving higher efficiency. The seperative heatsink for the LLC mosfet and a large, full copper heatsink for the SR mosfet creates superior heat dissipation.
POWERFUL COOLING WHEN YOU NEED IT; WHISPER QUIET WHEN YOU DON'T!
Under low loads, the DQ750M-V3L will operate at a true zero noise level. At full load, the supported intellegent, temperature-control adjusted, enabled FDB fan provides remarkably low noise cooling, while minimizing noise interference.
SUPERIORITY IN FIVE MAJOR POINTS OF INTERNAL DESIGN
The DQ750M-V3L is designed with advanced, mature solution and high specification materials. This focus on detail provides continuous and stable power output for your system.
