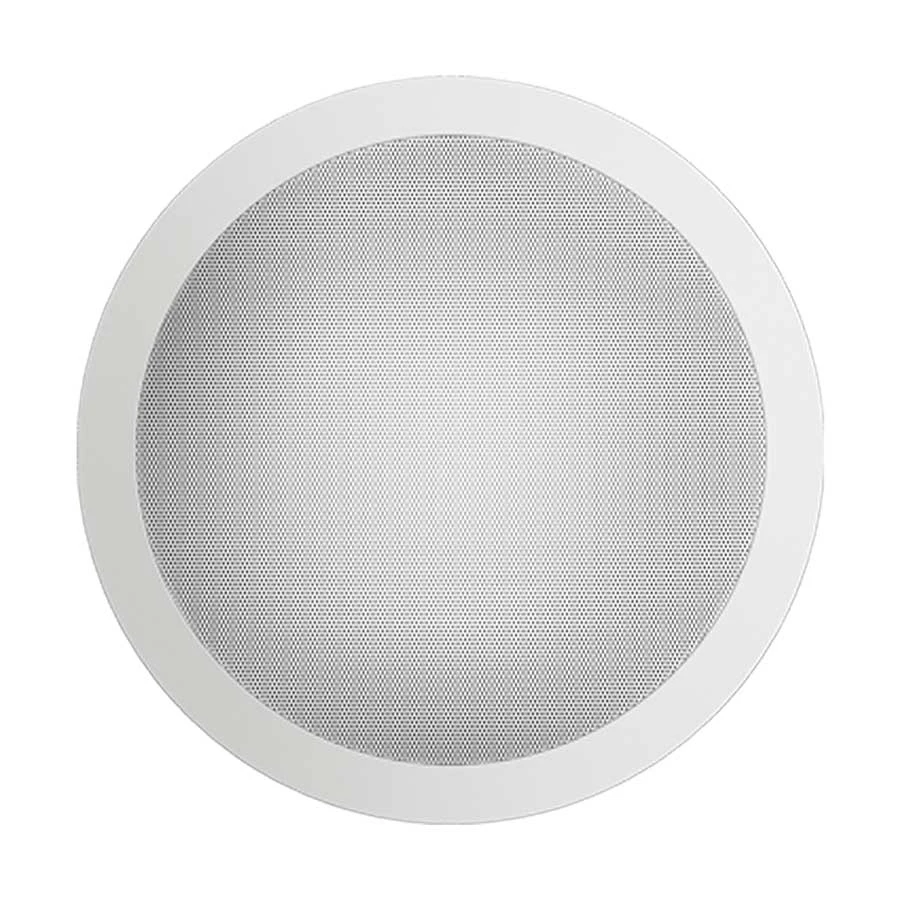

Fanvil FH-S01 2-SIP PoE Ceiling Speaker with Microphone

Product Id: 10.01.766.03

Brand Fanvil

Coming Soon

Quick Overview

  • Channel - 1:0
  • Connectivity Mode - Wired
  • Memory Card Slot - No
  • USB Port - No
  • Remote Control - No
  • FM Radio - No
  • Voice Enabled - No
  • Touch Controls - No
General
Brand
Fanvil

Model
Fanvil FH-S01

Type
Ceiling Speaker

Speaker Type
Wired


Audio Details
Channel
1:0

RMS/Channel (Watt)
Unmentioned

RMS/Subwoofer (Watt)
Unmentioned

Frequency (Hz - KHz)
100Hz - 20KHz

Sensitivity
89dB+/-3dB 1m/1W

Impedance (ohm)
8ohm


Connectivity
Connectivity Mode
Wired

USB Port
No


Slots
Memory Card Slot
No


Technical Info
Microphone
Yes

FM Radio
No


Performance
Maximum SPL
96 dB

Lighting Effect
No

Waterproof
No

Dustproof
No

Shockproof
No

Voice Enabled
No

Touch Controls
No


Power
Power Supply
DC 12-24V/2A

Approx. Power Consumption
(PoE): 1.31-11.82W, (Adapter): 0.76-14.71W


Physical Description
Remote Control
No

Dimensions
238.5 x 238.5 x 148.3mm

Color
White


Warranty
Warranty Details
1 year


Additional Info
Feature

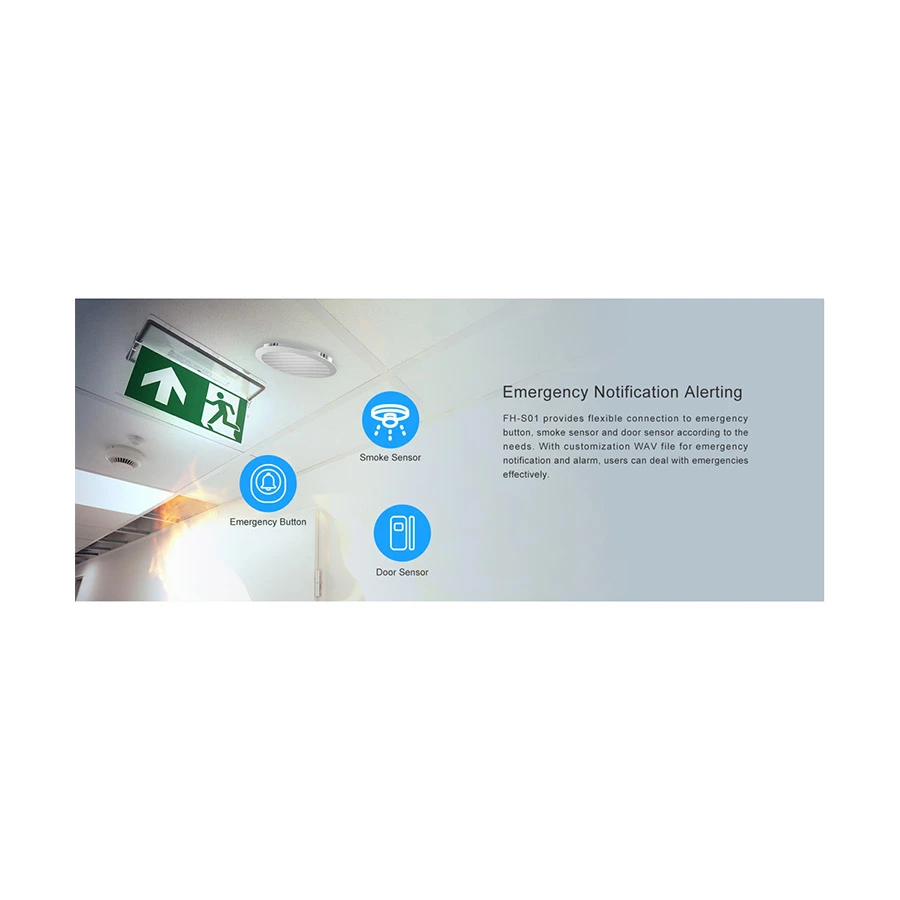

2 SIP lines, Ceiling installation, MP3 broadcasting, 10 multicast zones, Talkback application, Link with security alarm device, PoE enabled, Support DC power supply, Device Functions: Auto-answering, Network time synchronization, Web page volume adjustment, Dynamic multicast function, Support recording (through server), Action URL / Active URI

Others
DC port x1: DC power input, Port:2 Pin terminal socket, RJ45 port x1: connect the network, Power over Ethernet(IEEE 802.3af, class 0), Short circuit input and output port x1(built in relay),Relay:MAX DC30V/2A, Port:terminal socket, Mic: Omni-Directional, Sensitivity:-36+/-3dB, impedance 2.2k ohm, bias voltage 2V, Network: 10/100 Mbps,Network mode:IPv4/IPv6/IPv4&IPv6, IP Setting:Static IP / DHCP / PPPoE, VPN: L2TP / OpenVPN, VLAN, LLDP, QoS, Protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, Blue LED x1:Power status

Specialty

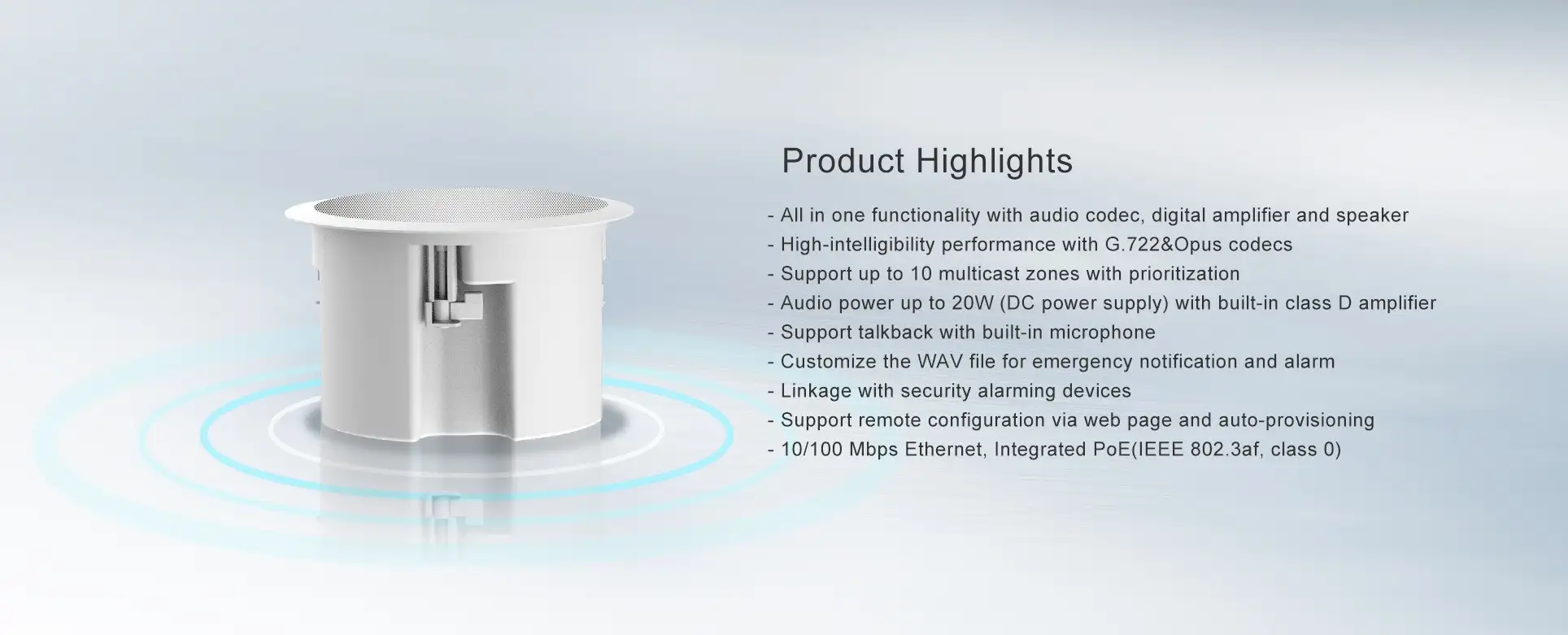

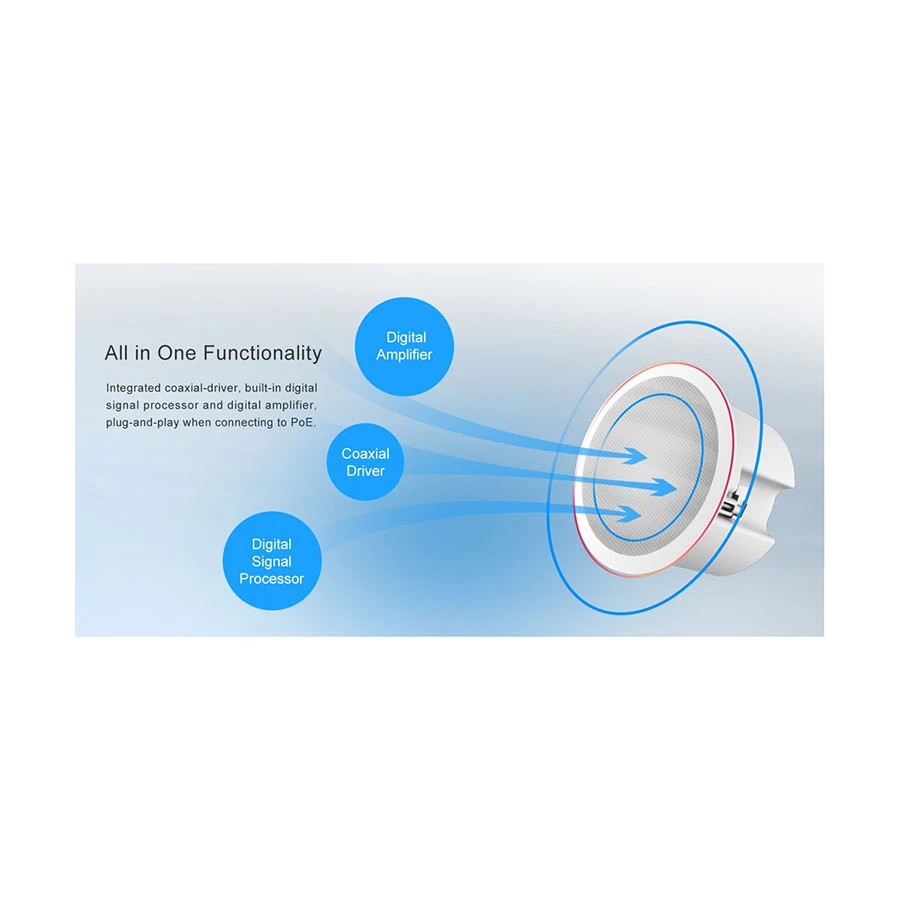

All in one functionalities with audio codec, digital amplifier and speaker, High-intelligibility performance with G.722&Opus codecs, Support up to 10 multicast zones with prioritization, Audio power up to 20W with built-in class D amplifier, Support talkback with built-in microphone, Customize the WAV file for emergency notification and alarming, Linkage with security alarming devices, Support remote configuration via web page and auto-provisioning, 10/100 Mbps Ethernet, Integrated PoE(IEEE 802.3af, class 0), Ideal for school, office, station, retail, factory, etc.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
