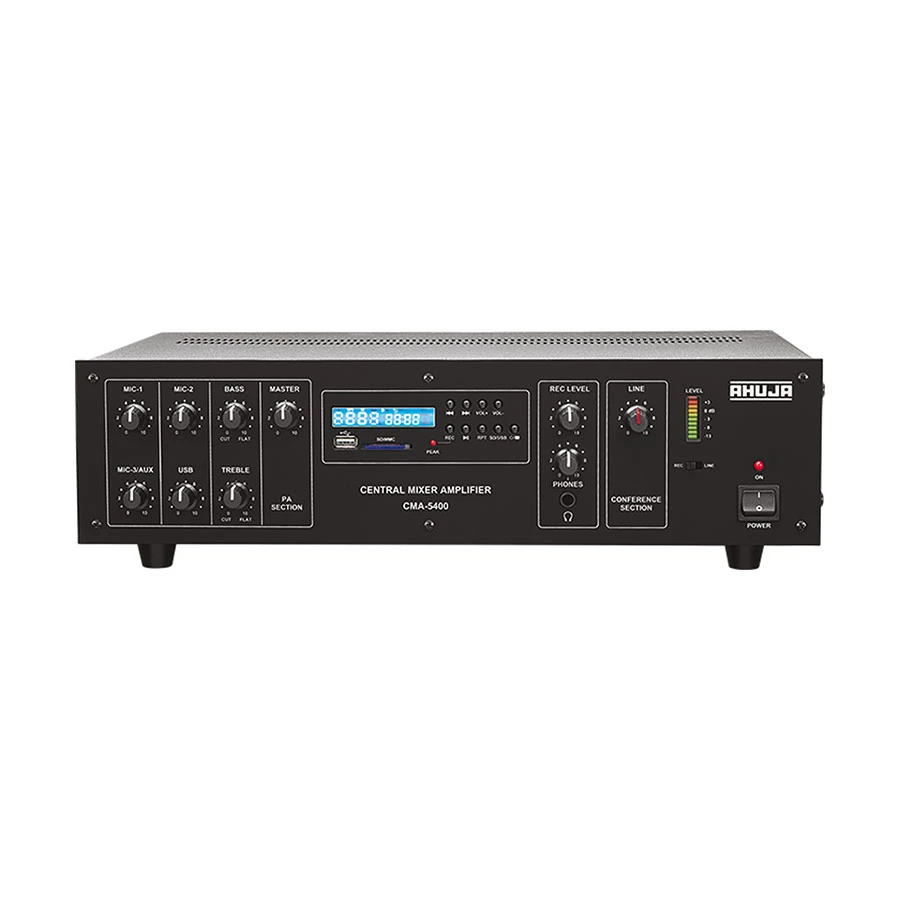

Ahuja CMA-5400 Central Mixer Amplifier Conference Systems

Product Id: 10.11.772.01

Brand Ahuja

Regular Price Tk 37,320 Monthly EMI Tk 3,110
Special Price Tk 34,500

Delivery in 2 days

Quick Overview

General
Brand
Ahuja

Model
Ahuja CMA-5400

Type
Central Mixer Amplifier Conference Systems


Audio Details
Signal to Noise Ratio (dB)
>60dB

Frequency (Hz - KHz)
60-14,000Hz (+-3dB)


Technical Info
Input Interface
3xMic 0.65mV/4.7kohm, 1xAux 100mV/470kohm

Output Interface
Line Output 1 (17.5V DC/3A Max., -34dBV (20mV)), Line Output 2 (17.5V DC/3A Max., -34dBV (20mV)), Power Output (50W RMS at 2% THD, 90W Max.)


Physical Description
Dimensions
483 x 110 x 325mm

Weight (Kg)
10.50Kg


Warranty
Warranty Details
No warranty


Additional Info
Feature
Highly sensitive 18.5 Inch (47cm) long gooseneck microphone for comfortable sharing by two delegates, Bright and uniform band LED indicator, Chairman/Delegate Units have attractive and well contoured plastic top for superior appearance, Rugged and compact die cast aluminium base for better stability of Chairman/Delegate Units, Adjustable headphone output available from each Chairman/Delegate Unit, Automatic Mic Off feature in Delegate units which is selectable through a switch in the Central Amplifier, Chairman Unit has Priority Switch, Central Amplifier has a digital recorder for recording the proceedings. Also it can playback the pre-recorded messages

Others
Tone Controls: -10dB at 100Hz (Bass), -10dB at 10kHz (Treble), Preamp Output: 200mV/600ohm, Line Output: 1V/1kohm, Send Output: 200mV/600ohm, Return Input: 200mV/10kohm, Speaker Output: 4ohm, 8ohm, 16ohm, 70V & 100V, Power Requirement: 220-240V, 50/60Hz (AC), 24V (2x12V Car Battery) (DC), Power Consumption: 250VA, Protections: AC Fuse 1x3 Amp, DC Fuse 2x10 Amp.

Specialty
Switchable send/return facility in Central Amplifier, Three Mic inputs and one Aux input for various user applications, 50W PA Amplifier for adequate sound reinforcement, Headphone output provided in Central Amplifier for monitoring purposes, AC Mains & 24V DC operation, Central Amplifier is 19 Inch rack mountable, Central Amplifier has the facility of feeding two independent groups of Delegate Units as required in large conference setups, Conference System can be installed in a bus bar arrangement by using Junction Boxes CB-45


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
