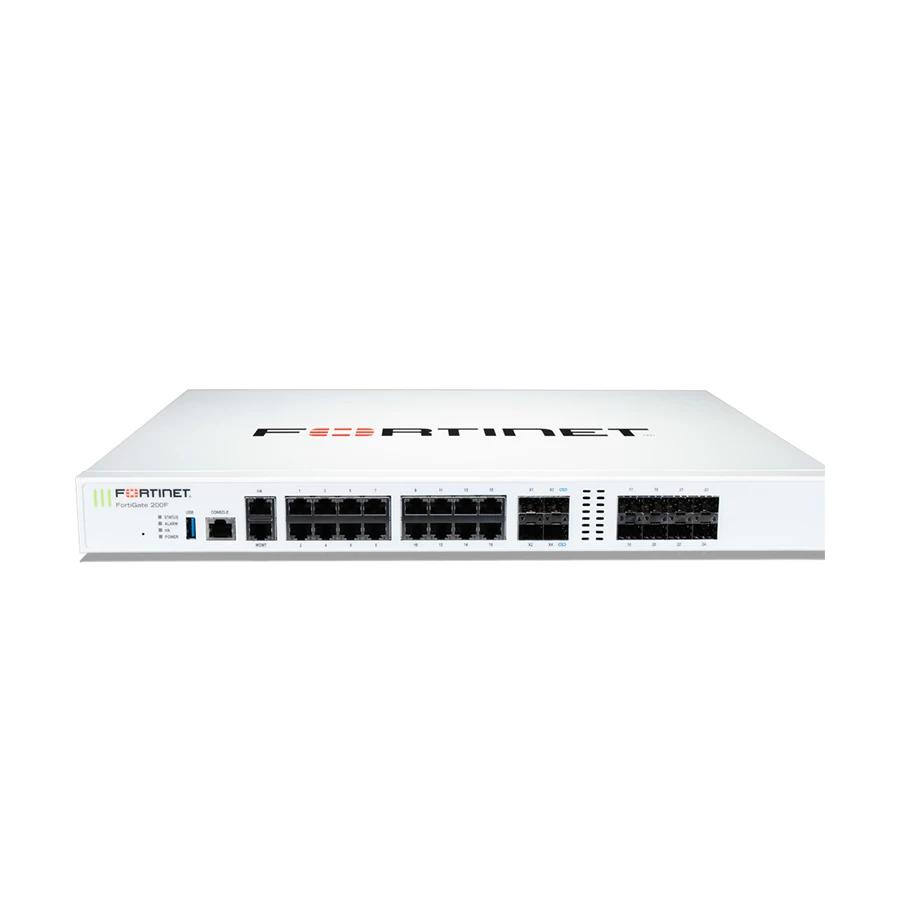

Fortinet FortiGate-200F 31 Port Managed Network Switch #FG-200F

8 reviews

Product Id: 29.05.910.02

Coming Soon

Quick Overview

Type - Network Switch
Number of Total Port - 31 Port
PoE - No
Manageability - Managed
Network Standards - 10/100/1000 Mbps
Data Transfer Rate - 10/100/1000 Mbps
Form Factor - Rackmount

General

Brand

Fortinet

Model

Fortinet FortiGate-200F

Type

Network Switch

Part No

FG-200F

Ports & Slots

Number of Total Port

31 Port

SFP Port

SFP+ Port

PoE Port

PoE+ Port

Technical Info

PoE

Manageability

Managed

Interface(s)

2 x GE RJ45 HA/ MGMT Ports, 16 x GE RJ45 Ports, 2 x 10 GE SFP+ Slots, 2 x 10 GE SFP+ FortiLink Slots, 8 x GE SFP Slots, 1 Port Console

Network Standards

10/100/1000 Mbps

Data Transfer Rate

10/100/1000 Mbps

Physical Description

Fan/Fanless

Indicators

Yes

Body Material

Metal

Body Color

White

Form Factor

Rackmount

Dimension

432 x 342 x 44mm

Weight

4.5 kg

Power

Power Supply

100 - 240V AC, 50/60 Hz

Approx. Power Consumption

101.92W (Avg.) 118.90W (Max)

Warranty

Warranty Details

Standard Warranty (Without Adapter)

Additional Info

Others

Onboard Storage: 1x 480 GB SSD, Trusted Platform Module (TPM): Yes, Bluetooth Low Energy (BLE): Yes, IPS Throughput: 5 Gbps, NGFW Throughput: 3.5 Gbps, Threat Protection Throughput: 3 Gbps, IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 27 / 27 / 11 Gbps, Firewall Latency (64 byte, UDP): 4.78 us, Firewall Throughput (Packet per Second): 16.5 Mpps, Concurrent Sessions (TCP): 3 Million, New Sessions/Second (TCP): 280 000, Firewall Policies: 10 000, IPsec VPN Throughput (512 byte): 13 Gbps, Gateway-to-Gateway IPsec VPN Tunnels: 2000, Client-to-Gateway IPsec VPN Tunnels: 16 000, SSL-VPN Throughput: 2 Gbps, Concurrent SSL-VPN Users: 500, SSL Inspection Throughput: 4 Gbps, SSL Inspection CPS (IPS, avg. HTTPS): 3500, SSL Inspection Concurrent Session: 300 000, Application Control Throughput: 13 Gbps, CAPWAP Throughput (HTTP 64K): 20 Gbps, Virtual Domains (Default / Maximum): 10 / 10, Maximum Number of FortiSwitches Supported: 64, Maximum Number of FortiAPs: 256 / 128, Maximum Number of FortiTokens: 5000, High Availability Configurations: Active-Active, Active-Passive,Clustering, Power Supply Efficiency Rating: 80Plus Compliant, Operating Temperature: (0-40 degree C), Storage Temperature: (-35 -70 degree C), Humidity: 20% - 90% non-condensing, Noise Level: 49.9 dBA, Forced Airflow: Side to Back, Operating Altitude: Up to 7400 ft (2250 m), Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/, Certification: USGv6/IPv6.

N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

Features of Fortinet FortiGate-200F Network Switch In Bangladesh

Brand - Fortinet, Model - Fortinet FortiGate-200F, Type - Network Switch, Number of Total Port - 31 Port, PoE - No, Manageability - Managed, Gigabit Port - 31, SFP Port - 8, SFP+ Port - 4, PoE Port - No, PoE+ Port - No, Interface - 2 x GE RJ45 HA/ MGMT Ports, 16 x GE RJ45 Ports, 2 x 10 GE SFP+ Slots, 2 x 10 GE SFP+ FortiLink Slots, 8 x GE SFP Slots, 1 Port Console, Network Standards - 10/100/1000 Mbps, Data Transfer Rate (Mbps) - 10/100/1000 Mbps, Fan/Fanless - 3, Indicator - Yes, Body Material - Metal, Body Color - White, Power Supply - 100-240V AC, 50/60 Hz, Power Consumption - 101.92W (Avg.) 118.90W (Max), Form Factor - Rackmount, Dimension - 432 x 342 x 44mm, Weight - 4.5 kg, Others - Onboard Storage: 1x 480 GB SSD, Trusted Platform Module (TPM): Yes, Bluetooth Low Energy (BLE): Yes, IPS Throughput: 5 Gbps, NGFW Throughput: 3.5 Gbps, Threat Protection Throughput: 3 Gbps, IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 27 / 27 / 11 Gbps, Firewall Latency (64 byte, UDP): 4.78 us, Firewall Throughput (Packet per Second): 16.5 Mpps, Concurrent Sessions (TCP): 3 Million, New Sessions/Second (TCP): 280 000, Firewall Policies: 10 000, IPsec VPN Throughput (512 byte): 13 Gbps, Gateway-to-Gateway IPsec VPN Tunnels: 2000, Client-to-Gateway IPsec VPN Tunnels: 16 000, SSL-VPN Throughput: 2 Gbps, Concurrent SSL-VPN Users: 500, SSL Inspection Throughput: 4 Gbps, SSL Inspection CPS (IPS, avg. HTTPS): 3500, SSL Inspection Concurrent Session: 300 000, Application Control Throughput: 13 Gbps, CAPWAP Throughput (HTTP 64K): 20 Gbps, Virtual Domains (Default / Maximum): 10 / 10, Maximum Number of FortiSwitches Supported: 64, Maximum Number of FortiAPs: 256 / 128, Maximum Number of FortiTokens: 5000, High Availability Configurations: Active-Active, Active-Passive,Clustering, Power Supply Efficiency Rating: 80Plus Compliant, Operating Temperature: (0-40 degree C), Storage Temperature: (-35 -70 degree C), Humidity: 20%-90% non-condensing, Noise Level: 49.9 dBA, Forced Airflow: Side to Back, Operating Altitude: Up to 7400 ft (2250 m), Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/, Certification: USGv6/IPv6., Part No - FG-200F, Warranty - Standard Warranty (Without Adapter)

What is the price of Fortinet FortiGate-200F Network Switch In Bangladesh?

The price of Fortinet FortiGate-200F Network Switch not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Fortinet FortiGate-200F Network Switch from our website or visit our showrooms nearby.
