N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

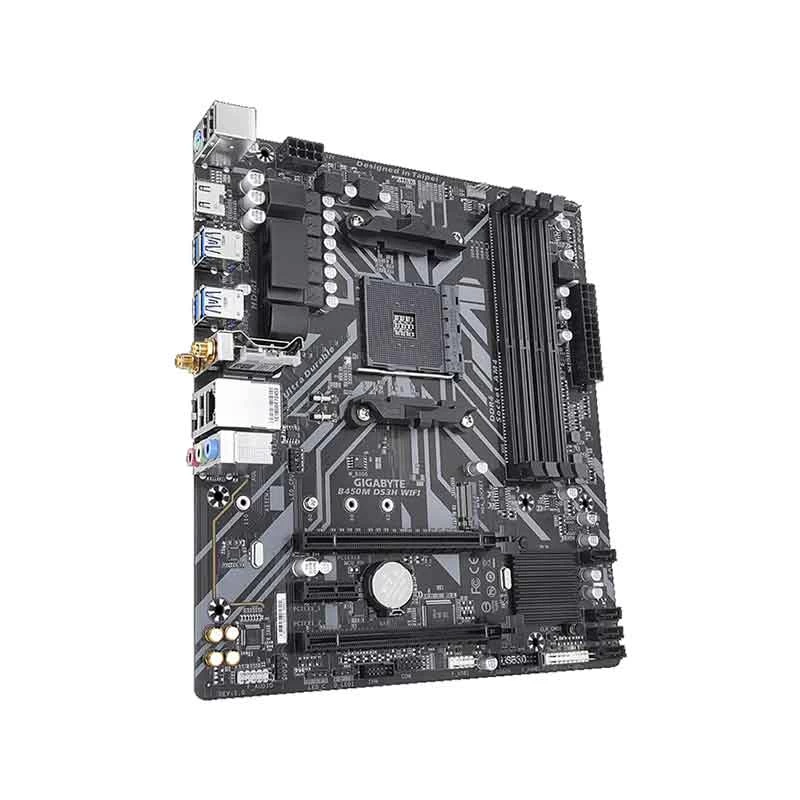

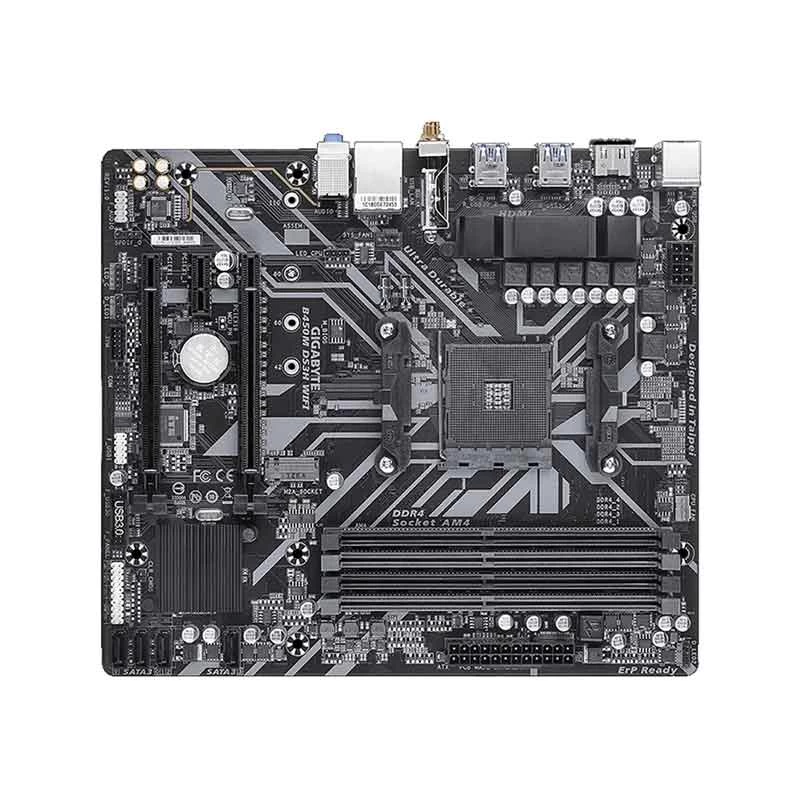

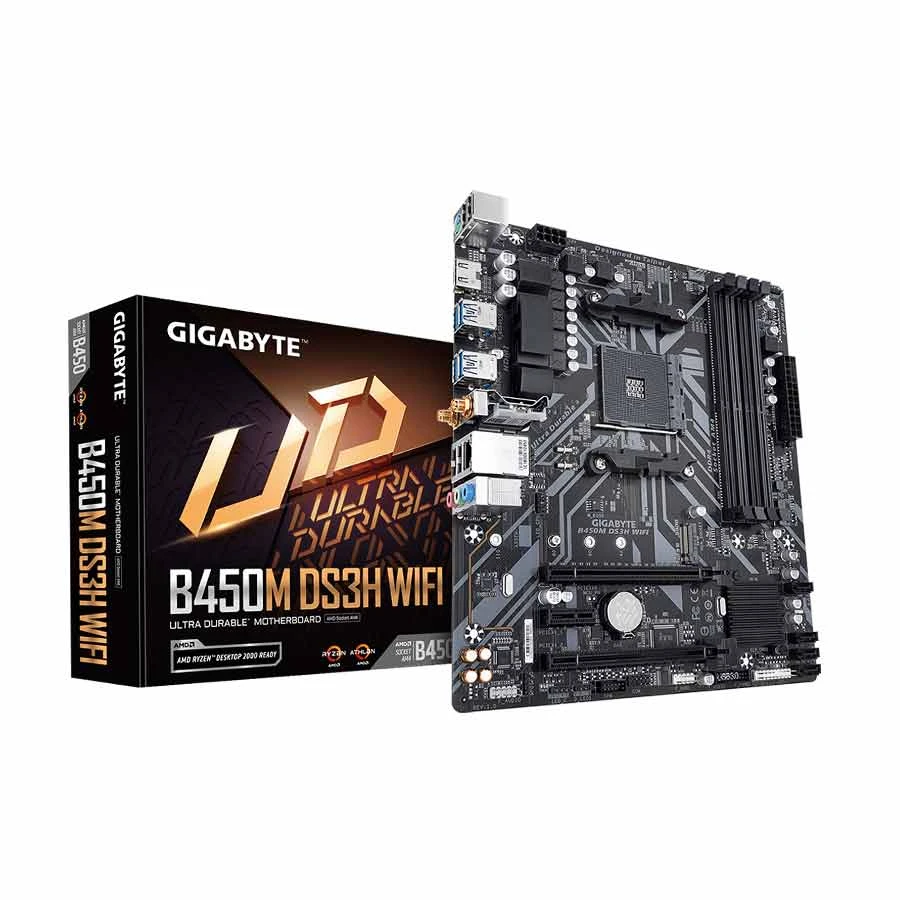

Gigabyte B450M DS3H (Wi-Fi) DDR4 AM4 Socket AMD Motherboard

Product Id: 02.02.018.403

Brand Gigabyte

Regular Price Tk 13,020 Monthly EMI Tk 1,085
Special Price Tk 12,000

Quick Overview

  • Chipset - AMD B450
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B450M DS3H (Wi-Fi)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B450

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
3600/ 3466/ 3200/ 3000/ 2933/ 2800/ 2667/ 2600/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM, ECC Un-buffered

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX1_2), 1 x PCI Express x1 slot


Audio & Video
Audio Chipset
Realtek Audio Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN chip

LAN Speed (Mbps)
10/100/1000 Mbit

WiFi
Yes

WiFi Technology
802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Bluetooth
Bluetooth 4.2


Ports
USB Port
4 x USB 2.0/1.1, 4 x USB 3.1 Gen 1

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Sync
RGB Fusion

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 7

Compatible Products
Supports AM4 Sockets AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Voltage detection,Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control, Support for APP Center, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Support for Q-Flash, Support for Xpress Install

Others

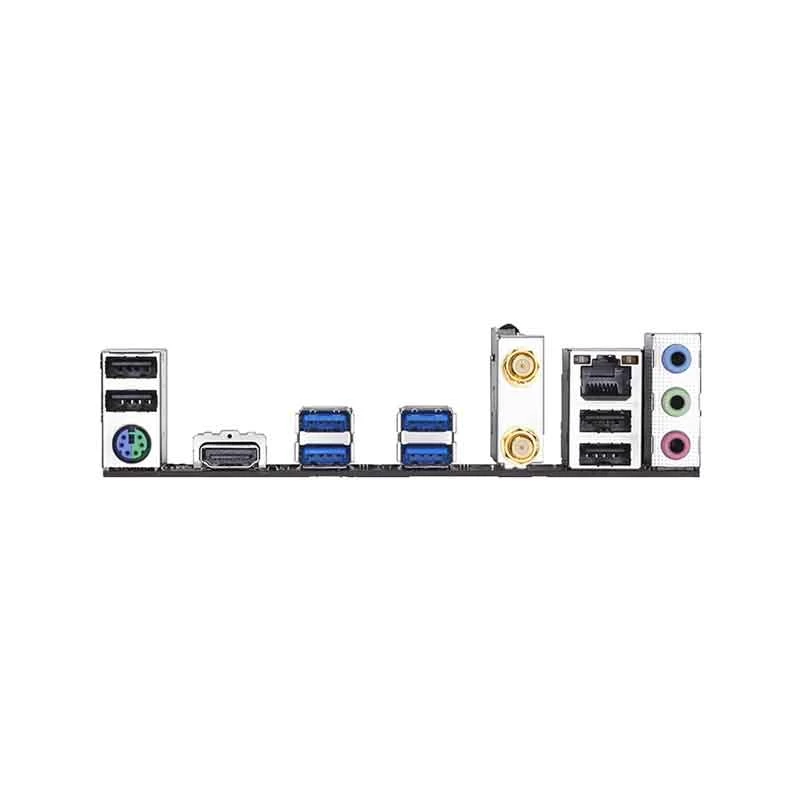

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x CPU cooler LED strip/RGB LED strip header, 2 x addressable LED strip headers, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers,1 x serial port header, 1 x Clear CMOS jumper. Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (1T1R), 1 x RJ-45 port, 3 x audio jacks. I/O Controller: iTE I/O Controller Chip, (2x6 pin, for the GC-TPM2.0_S module only)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
How to install Windows 7, 32bit
By Md. Monir
A:
Dear Sir, you can install it by your own self or If you come to our branch, we will set up it for a fixed service charge, Thanks for your query!
By Ryans Computers Ltd. , 19 Sep 2023 03:39:58 PM
Q:
Aita ki Ryzen 7 5700x ke support kore
By Prince
A:
প্রিয় গ্রাহক, জি! Ryzen 7 5700x সাপোর্ট করবে, ধন্যবাদ!
By Ryans Computers Ltd. , 21 Oct 2023 06:48:06 PM
Q:
Etar sate ddr4 ram kmn hbe?
By Sameer
A:
প্রিয় গ্রাহক, এই মাদারবোর্ড এর সাথে DDR4 RAM ই ব্যবহার করতে হবে, ধন্যবাদ!
By Ryans Computers Ltd. , 11 Oct 2023 03:23:34 PM
Q:
Ei Motherboard Ki Win 11 support Kore?
By Zahidur
A:
প্রিয় গ্রাহক, জি! উইন্ডোস ১১ সাপোর্ট করে, ধন্যবাদ!
By Ryans Computers Ltd. , 08 Oct 2023 03:36:20 PM
Q:
Does this support window 11?
By Imran
A:
Dear Sir, Yes! It will support windows 11, Thanks for your query!
By Ryans Computers Ltd. , 26 Nov 2023 10:35:02 AM
Q:
Bundle with pc mane ki?
By Siam
A:
প্রিয় গ্রাহক, বান্ডেল উইথ পিসি অর্থ পুরো কম্পিউটার সেট একই সাথে নিতে হয়, ধন্যবাদ!
By Ryans Computers Ltd. , 17 May 2023 02:48:35 PM
Q:
Can it support a m.2 2280 Nvme 500TB ssd??
By Talha
A:
Dear Sir, It doesn't support m.2 2280 NVMe 500 TB SSD. Thanks for your query!
By Ryans Computers Ltd. , 06 May 2023 04:35:25 PM
Q:
stock available?
By Sijan
A:
Dear Sir, This product is out of stock now, when it will be available we will update its specifications, stock and price, please keep an eye on our official website for furthermore details. Thanks for your query!
By Ryans Computers Ltd. , 04 Jun 2023 10:50:36 PM
Q:
Does this support maxsun gtx 1650 graphics card?
By Imran
A:
Dear Sir, Yes! It will support, Thanks for your query!
By Ryans Computers Ltd. , 02 Dec 2023 12:29:29 PM
Q:
Eta ki 2nd hand Motherboard?? Eta box chara dekhacche Keno??
By Emon
A:
প্রিয় গ্রাহক, প্রোডাক্ট অথেন্টিক, সেকেন্ড হ্যান্ড মাদারবোর্ড সেল করা হয় না, ধন্যবাদ!
By Ryans Computers Ltd. , 22 Aug 2023 05:13:49 PM
