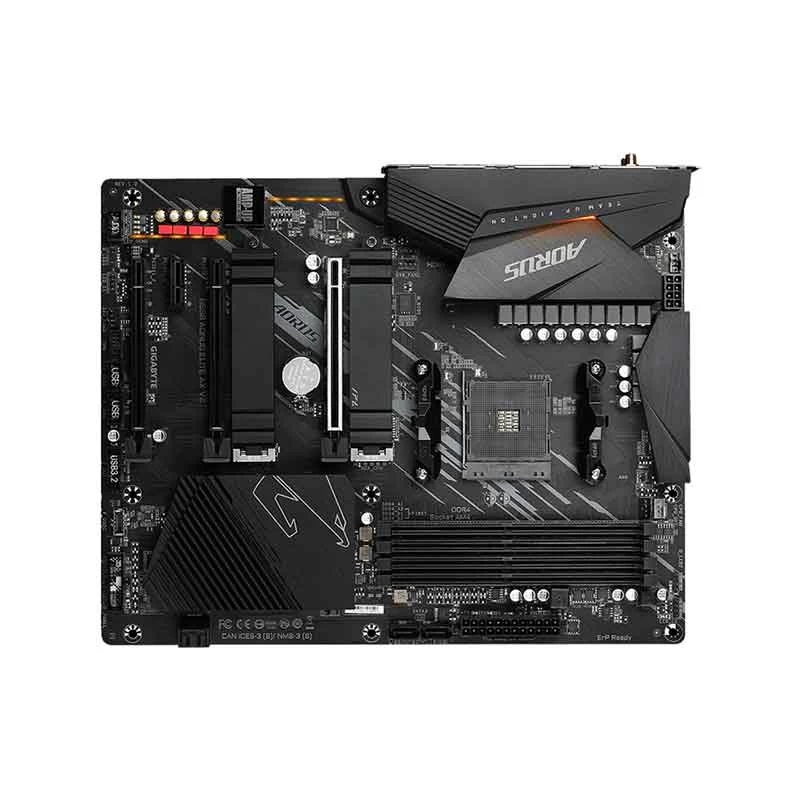

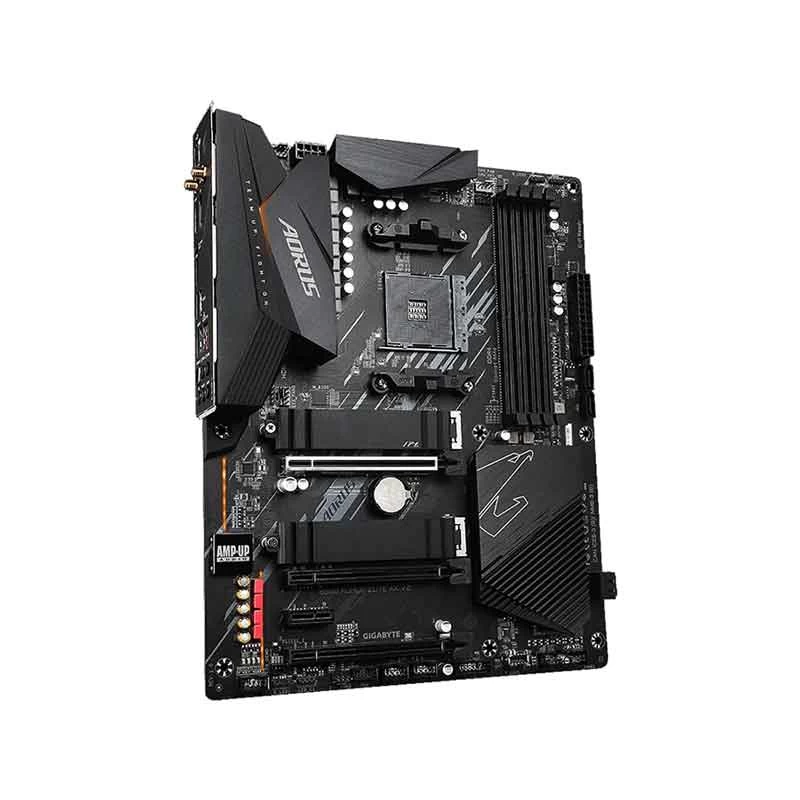

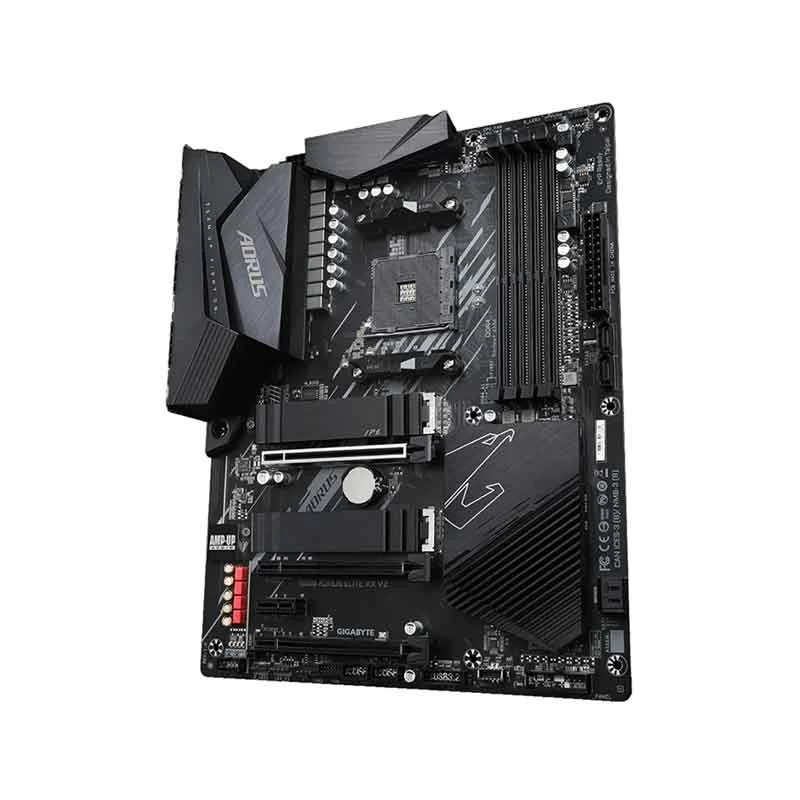

Gigabyte B550 AORUS ELITE AX V2 (Wi-Fi 6) DDR4 AM4 Socket AMD Gaming Motherboard

Product Id: 02.02.018.418

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset - AMD B550
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B550 AORUS ELITE AX V2 (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2, type 2242/2260/2280/22110 SSDs), (1 x M.2, 2242/2260/2280/22110 SSDs, SATA and PCIe 3.0 x4/x2 SSDs)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX2), Supporting PCIe 3.0 x2 mode, 1 x PCI Express x16 slot (PCIEX1_2), Supporting PCIe 3.0 x1, 1 x PCI Express x1 slot (PCIEX1_1) Supporting PCIe 3.0 x1


Audio & Video
Audio Chipset
Realtek ALC1200 codec

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6 AX200, WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

Bluetooth
Bluetooth 5.0


Ports
USB Port
2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10/11


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Clear CMOS jumper. Back Panel Connectors: 2 x SMA antenna connectors (2T2R), 1 x Q-Flash Plus button, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
