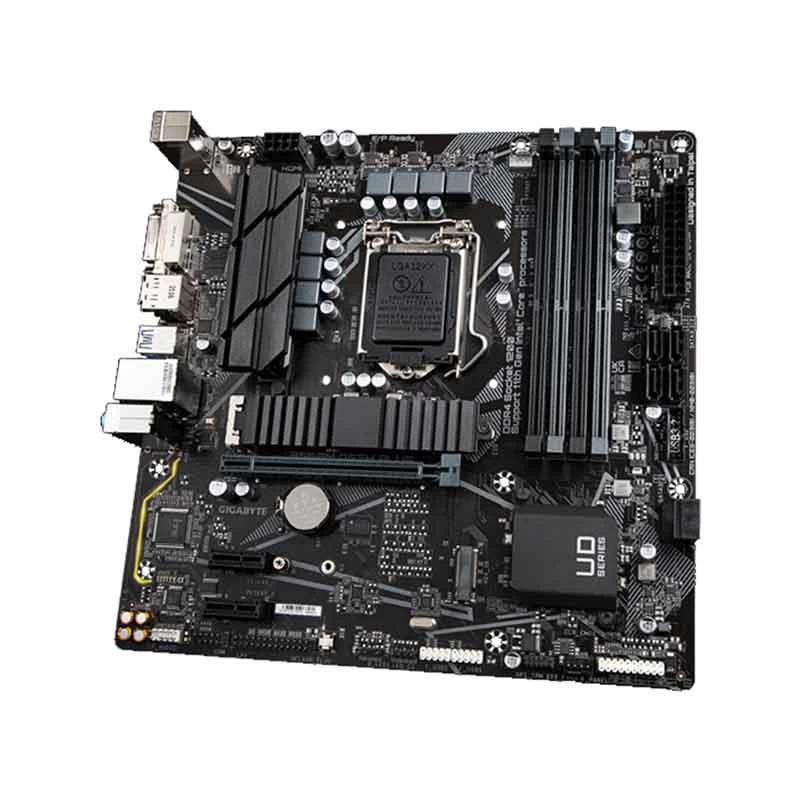

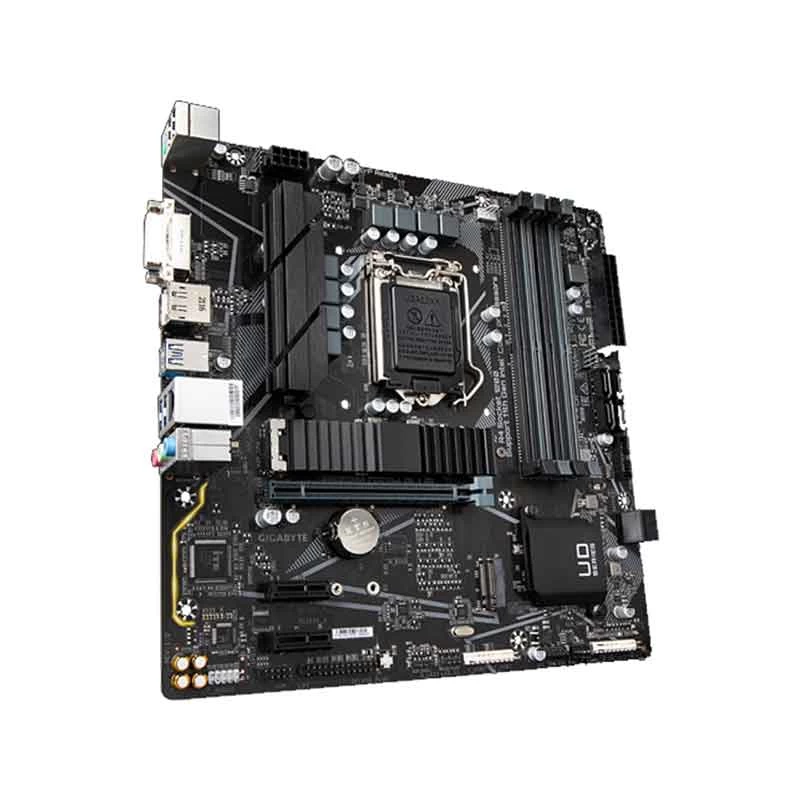

Gigabyte B560M DS3H PLUS DDR4 Motherboard

Item: Gigabyte B560M DS3H PLUS DDR4 Motherboard
Rating: 5
Author: Verified Buyer

13 reviews

Product Id: 02.01.018.453

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel B560
Sockets Supported - LGA1200
Supported CPU - Supports 11th Gen: Intel Core i9, i7, i5, 10th Gen: Intel Core i9, i7, i5, i3, Pentium and Celeron Processors
Generation - 10th/11th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte B560M DS3H PLUS

Chipset

Intel B560

Sockets Supported

LGA1200

Built-in Processor

Generation

10th/11th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Yes

Graphics

Intregrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10 64-bit

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte B560M DS3H PLUS

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B560

Sockets Supported

LGA1200

Built-in Processor

Supported CPU

Supports 11th Gen: Intel Core i9, i7, i5, 10th Gen: Intel Core i9, i7, i5, i3, Pentium and Celeron Processors

Generation

10th/11th

Memory Support

Memory Type

DDR4

Memory MHz

4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.

Memory Max.

128GB

Memory Max. (Additional Info)

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Optane Memory Support

Yes

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 Slot (1 x M.2, Type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support), (1 x M.2, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Intregrated

Graphics Chipset

Intel HD Graphics support

PCI Express Slot

1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots.

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN chip (1 Gbps/100 Mbps)

LAN Speed (Mbps)

10/100Mbps

WiFi

WiFi Technology

Bluetooth

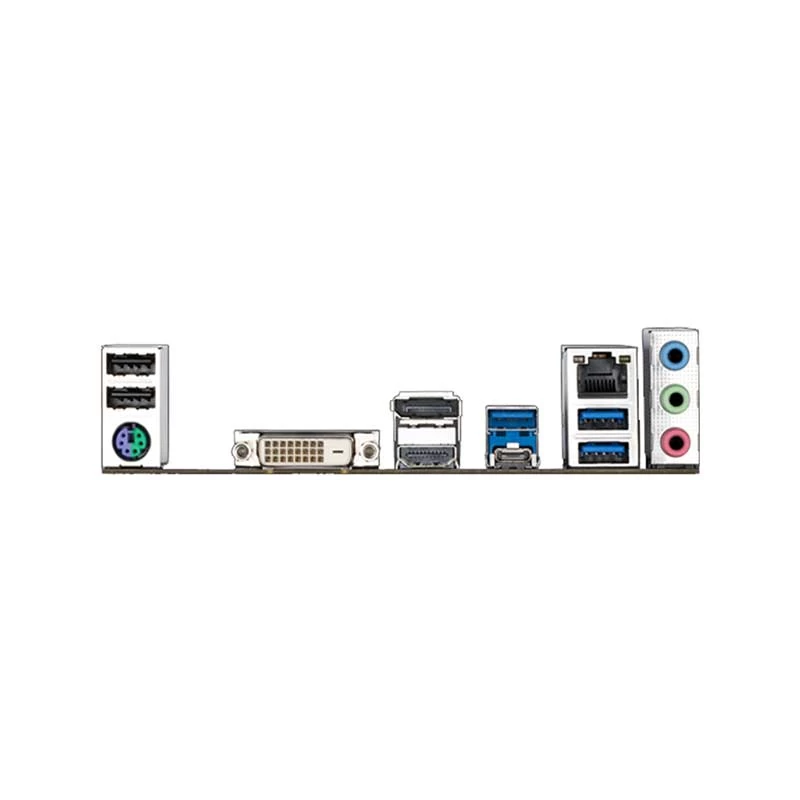

Ports

USB Port

2 x USB 2.0/1.1 ports, 1 x USB Type-C port, with USB 3.2 Gen 1 support

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

6 x SATA

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

RGB Support

RGB

RGB Sync

RGB Fusion 2.0

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10 64-bit

Compatible Products

Core i5-11400F, i5-11400, i7-11700, i3-10105, i3-10100, i3-10100, i3-10105, i5-10400F, i5-10400, i5-10400, i7-10700, Pentium and Celeron Processors

Warranty

3 year

Additional Info

Feature

Supports 11th and 10th Gen Intel Core Series Processors, Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs, Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2 with one Thermal Guard, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, USB 3.2 Gen1 Type-C for Fast and Versatile Connections, High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.

Others

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 6 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header , 1 x parallel port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B560M DS3H PLUS Motherboard In Bangladesh

DisplayPort & HDMI

Rear USB 3.2 Gen1 Type-C®

Gaming GbE LAN

2* M.2 Connectors

1*PCIe 4.0 x4 M.2
1*PCIe 3.0 x4 M.2

Q-FLASH Onboard Button

Solid Pin Power Connector

Direct 6+2 Phases Digital Power Design

Low RDS(on) MOSFETs
Premium Choke and Capacitor
4 Layer PCB
PCIe 4.0 Ready Mid-Loss PCB

Supports 11th Gen. Intel® Core™ Processors

Full PCIe 4.0 Design

1*PCIe 4.0 x16 slot
1*PCIe 4.0 x4 M.2

RGB FUSION 2.0

Addressable LED Header*1
RGB LED Header*1

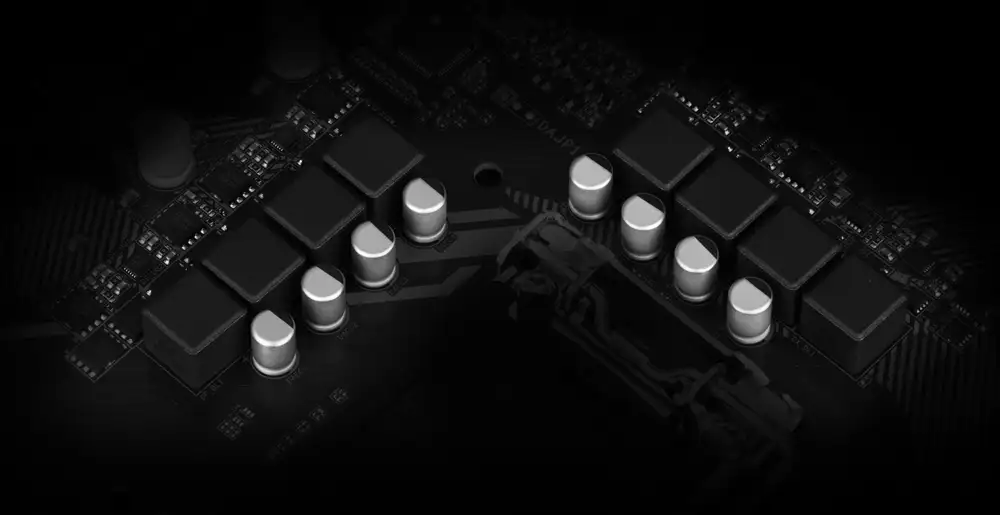

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Digital PWM Controller to deliver appropriate voltage to the CPU.
Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
All-solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.

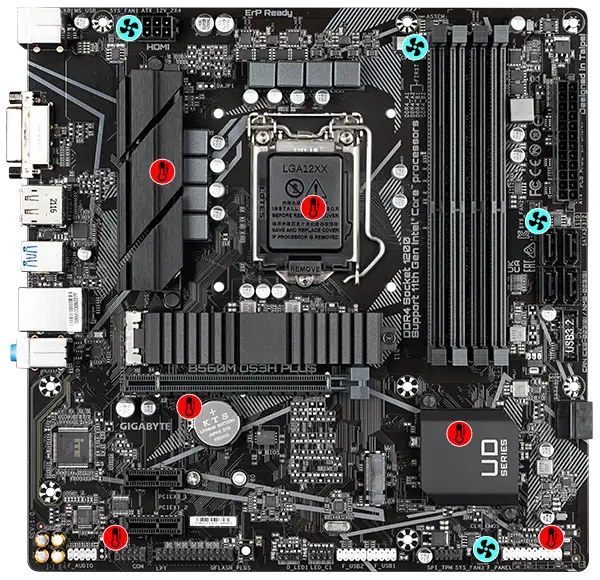

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Dual PCIe 4.0/3.0 x4 M.2 Connectors

GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
