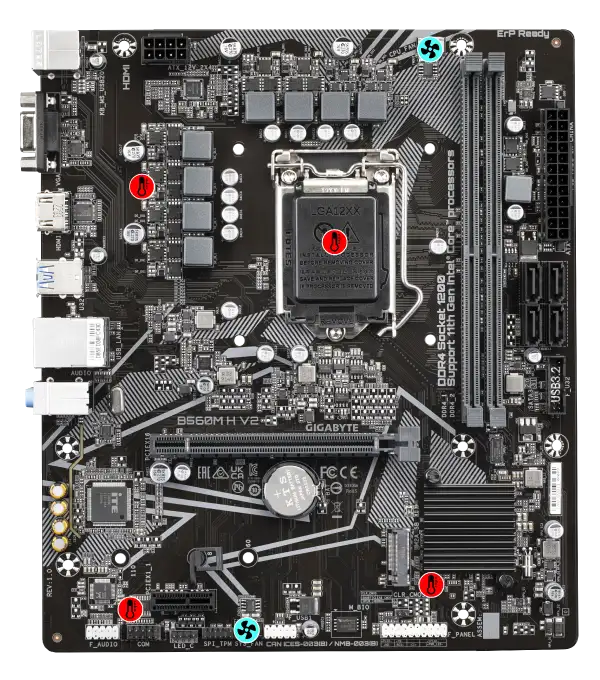

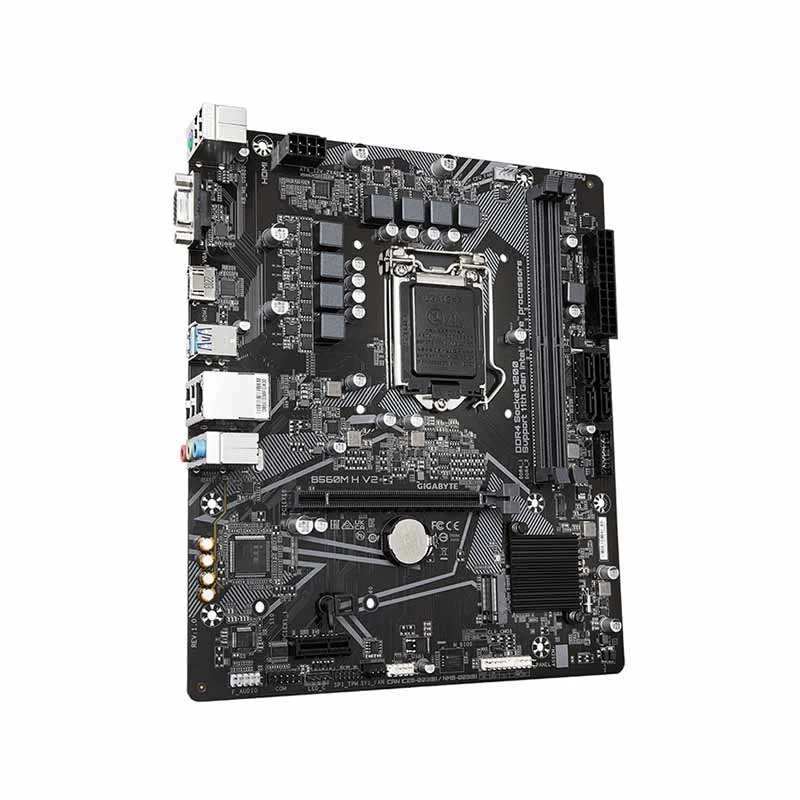

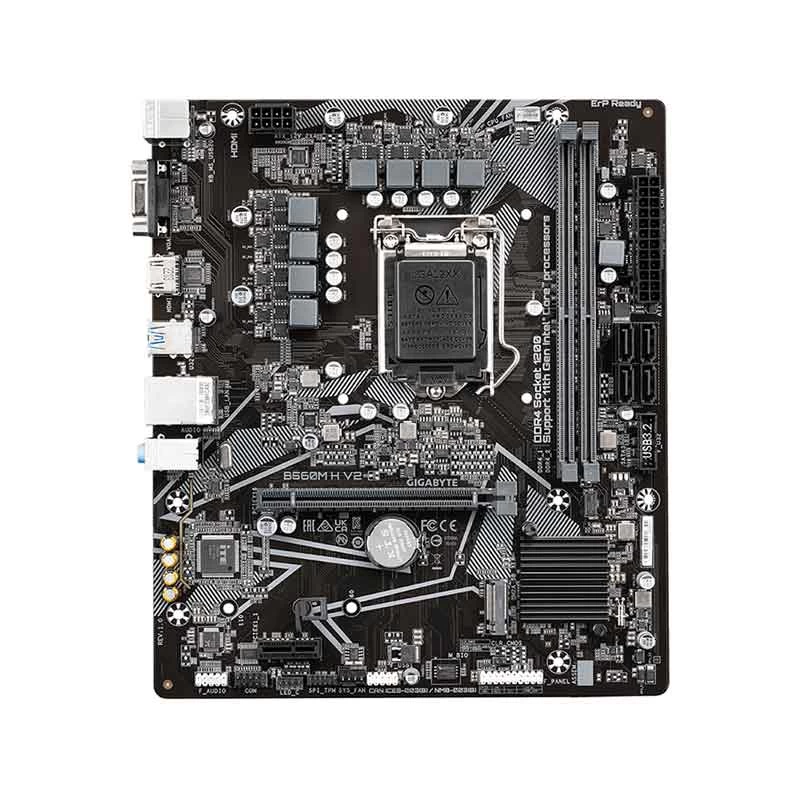

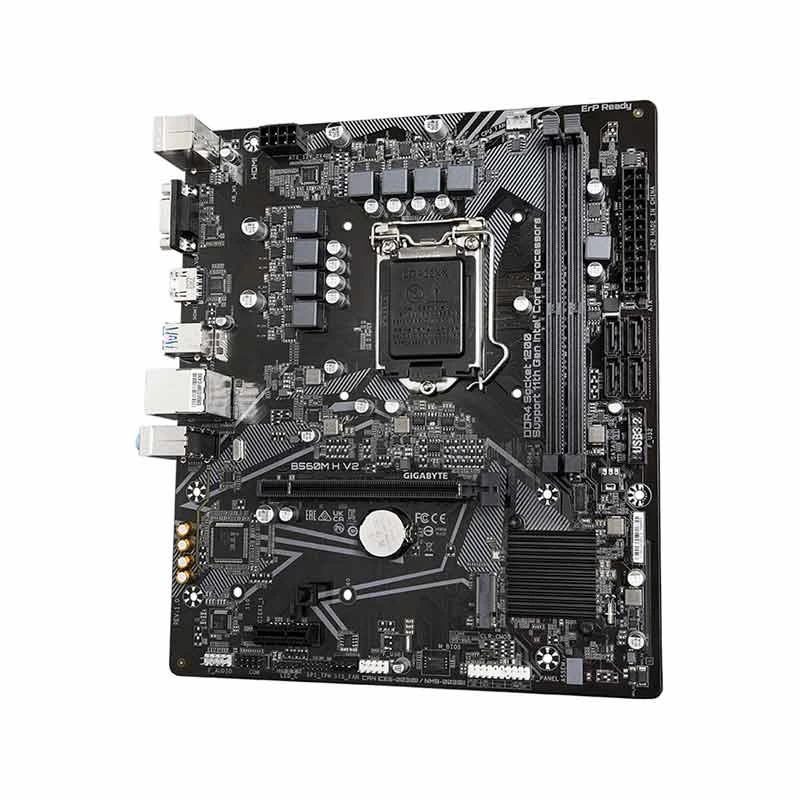

Gigabyte B560M H V2 DDR4 Intel Motherboard

Product Id: 02.01.018.492

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B560
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1200
  • Supported CPU - 11th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors, 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors
  • Generation - 10th/11th
General
Brand
Gigabyte

Model
Gigabyte B560M H V2

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B560

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
11th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors, 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors

Generation
10th/11th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
2

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (Socket 3, M key, type 22110/2280/2260 SATA and PCIe 3.0 x4/x2 SSD support


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x 16 (supporting PCIe 4.0 and running at x16 for CPU), 1 x PCI Express x 1 (supporting PCIe 3.0 and running at x 1 for Chipset)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN chip

LAN Speed (Mbps)
10/ 100/ 1000 Mbps

WiFi
No


Ports
USB Port
4 x USB 2.0/1.1, 2 x USB 3.2 Gen 1

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
CrossFire Support
No

Sli Support
No

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 11, Windows 10

Compatible Products
Core i5, Core i7, Core i9 (11th Gen), Core i3, Core i5, Core i7, Core i9, Pentium Gold (10th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Unique Features: Support for APP Center, Support for Q-Flash, Support for Xpress Install.

Others
Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x serial port header, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port, 3 x audio jacks, I/O Controller: iTE I/O Controller Chip.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
