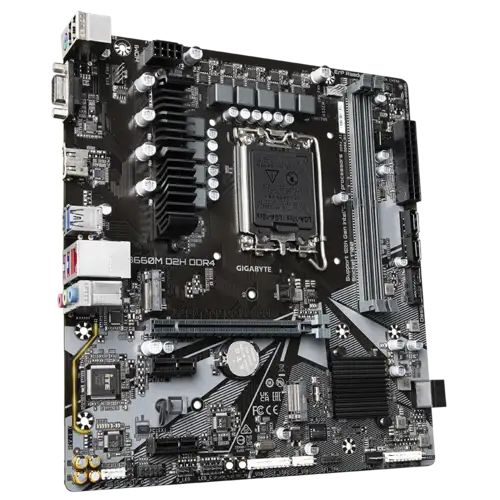

Gigabyte B660M D2H DDR4 Intel Motherboard (Bundle with PC)

Item: Gigabyte B660M D2H DDR4 Intel Motherboard (Bundle with PC)
Rating: 5
Author: Sharmin Akter Mukta

9 reviews

Product Id: 02.01.018.469

Regular Price

Tk 0

Out Of Stock

See similar model

Quick Overview

Chipset - Intel B660
Sockets Supported - LGA1700
Supported CPU - 13th/14th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
Generation - 12th/13th/14th
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte B660M D2H DDR4

Chipset

Intel B660

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Yes

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 11/ 10 64-bit

Body Color

Black

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte B660M D2H DDR4

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B660

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

13th/14th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors.

Generation

12th/13th/14th

Memory Support

Memory Type

DDR4

Memory MHz

5333(O.C.)/ 5133(O.C.)/5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/ 2933/2666/2400/2133MHz ECC non-ECC Un-buffered

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

2 x DDR4 DIMM

Memory Max.

64GB

Optane Memory Support

Yes

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.), 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.)

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN chip

LAN Speed (Mbps)

2.5 Gbps/1 Gbps/100 Mbps

WiFi

WiFi Technology

Bluetooth

Ports

USB Port

4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA 6Gb/s connectors

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0 / 1/ 5/ 10

RGB Support

RGB

RGB Sync

RGB Fusion

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11/ 10 64-bit

Compatible Products

Core i3 12100F, Core i3 12100, Core i3 12100 , Core i5 12400, Core i5 12600K, Core i7 12700 , Core i7 12700K, Core i9 12900, Core i9 12900K, Core i9 12900KS, Core i5 13400F, Core i5 13400, Core i5 13600K, Core i7 13700, Core i7 13700K, Core i9 13900F, Core i9 13900KF, Core i9 13900K.

Warranty

Warranty Details

3 year

Additional Info

Feature

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, Fast 2.5 GbE GAMING LAN with Bandwidth Management, Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2, High Quality Audio Capacitors and Audio Noise Guard, RGB FUSION 2.0 supports Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.

Others

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.2 Gen 1 header, 3 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper. 1 x RJ-45 port, 3 x audio jacks, 1 x PS/2 keyboard/mouse port, I/O Controller - iTE I/O Controller Chip, Form Factor - Micro ATX Form Factor; 22.5cm x 24.4cm.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B660M D2H DDR4 Motherboard In Bangladesh

B660M D2H DDR4 (rev. 1.0) - Motherboard

Supports 14th/13th/12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
Fast 2.5 GbE GAMING LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

What is the price of Gigabyte B660M D2H DDR4 Motherboard In Bangladesh?

The price of Gigabyte B660M D2H DDR4 Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte B660M D2H DDR4 Motherboard from our website or visit our showrooms nearby.
