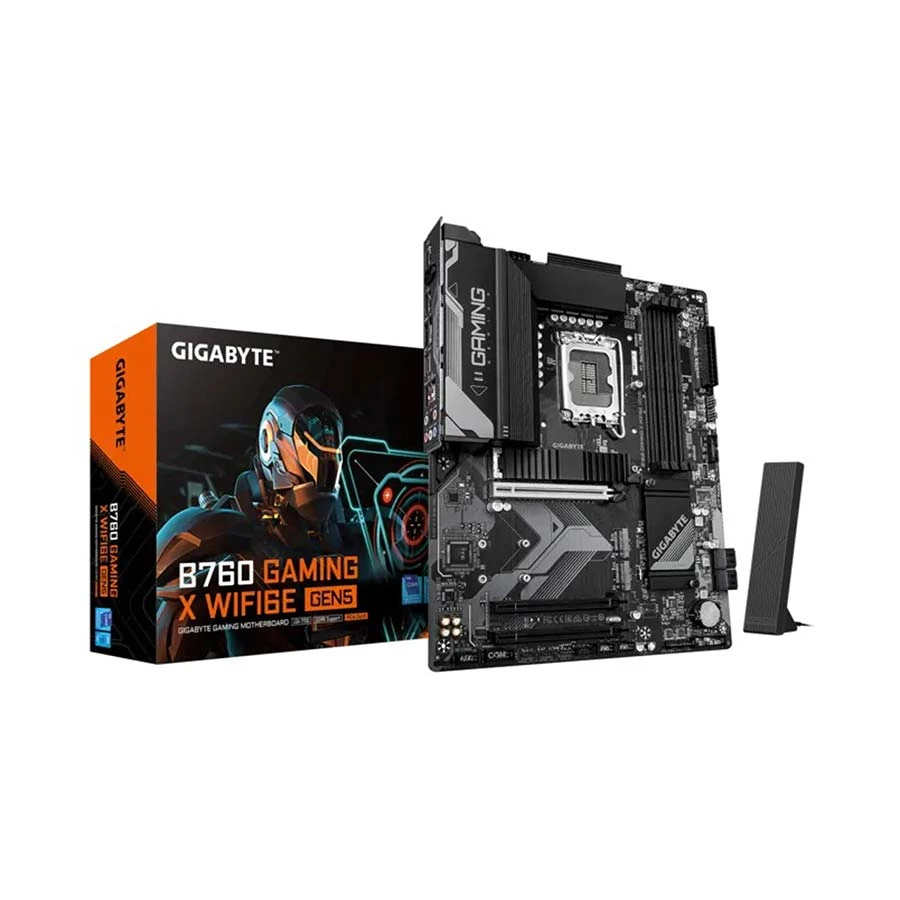

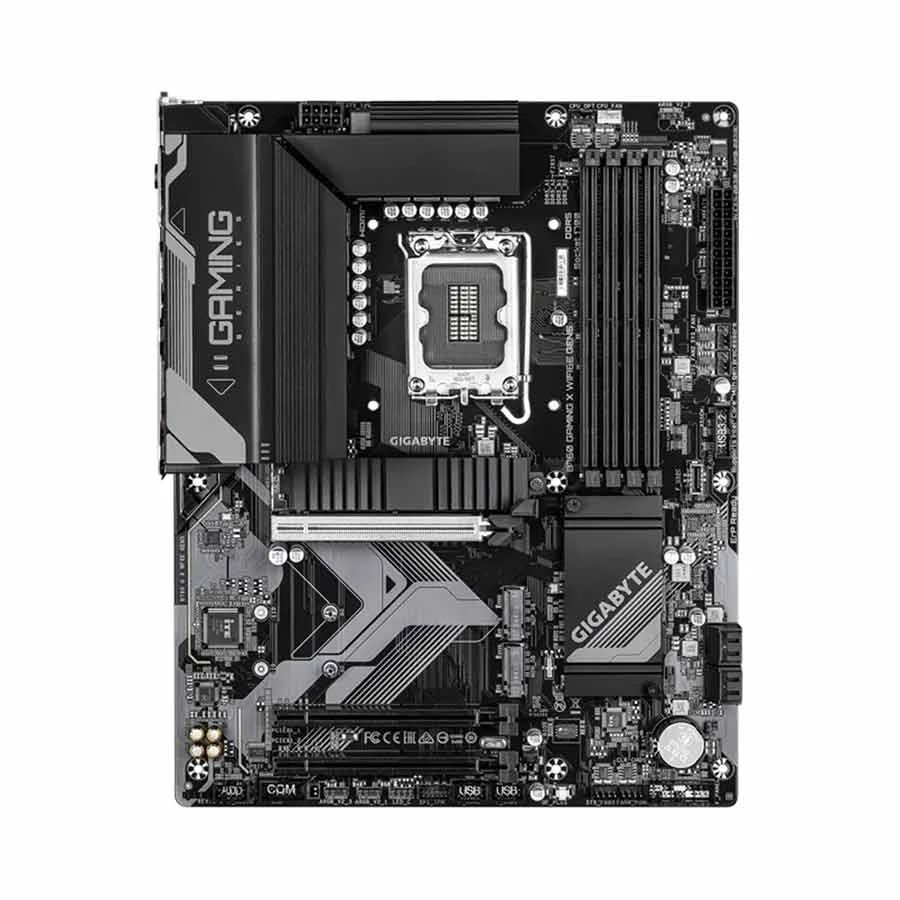

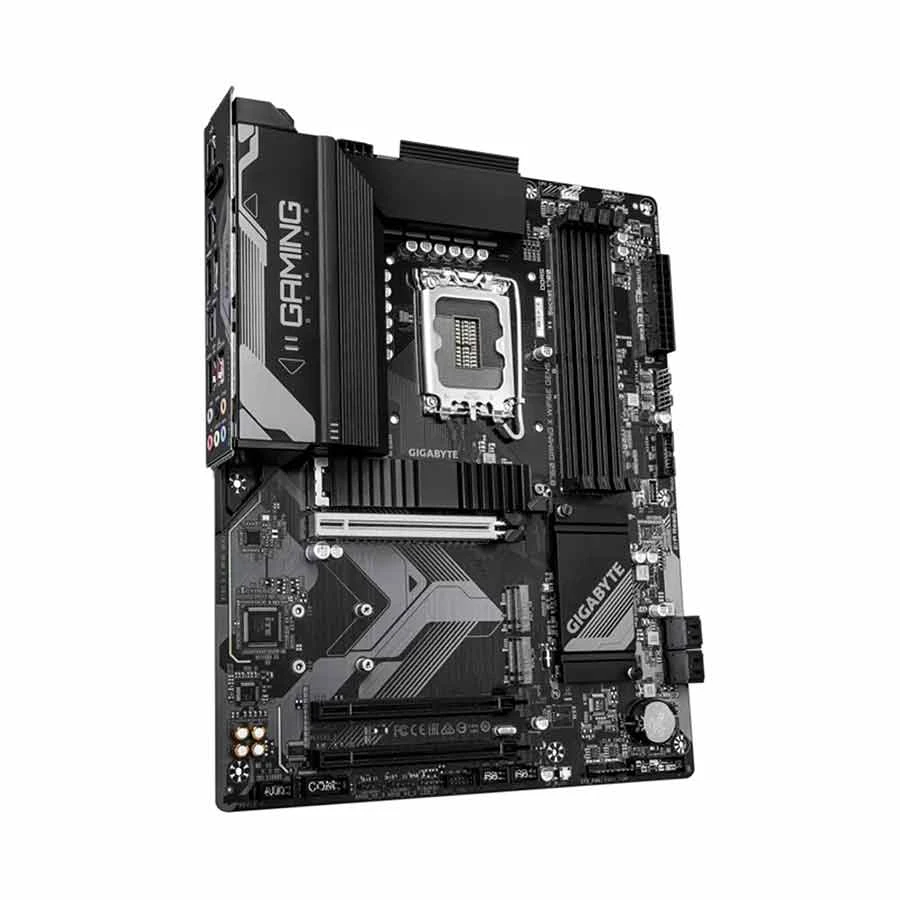

Gigabyte B760 GAMING X GEN5 (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
3 x M.2 (1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB))
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
100Mbps/ 1 Gbps/ 2.5 Gbps
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E AX210
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support, 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header), 1 x USB 2.0/1.1 port on the back panel
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 5, 10
RGB Support
ARGB
RGB Sync
RGB Fusion
RGB Connector
3 x addressable RGB Gen2 LED strip headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11, 10 64-bit
Compatible Products
14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Warranty
Warranty
3 year
Additional Info
Feature
Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup PCIe Gen5 Performance : Perfect Sync to Win, Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard, WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation, WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal, EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design, PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support, Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution, Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Others
Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, Back Panel Connectors: 2 x antenna connectors (2T2R), 1 x RJ-45 port, 6 x audio jacks
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
