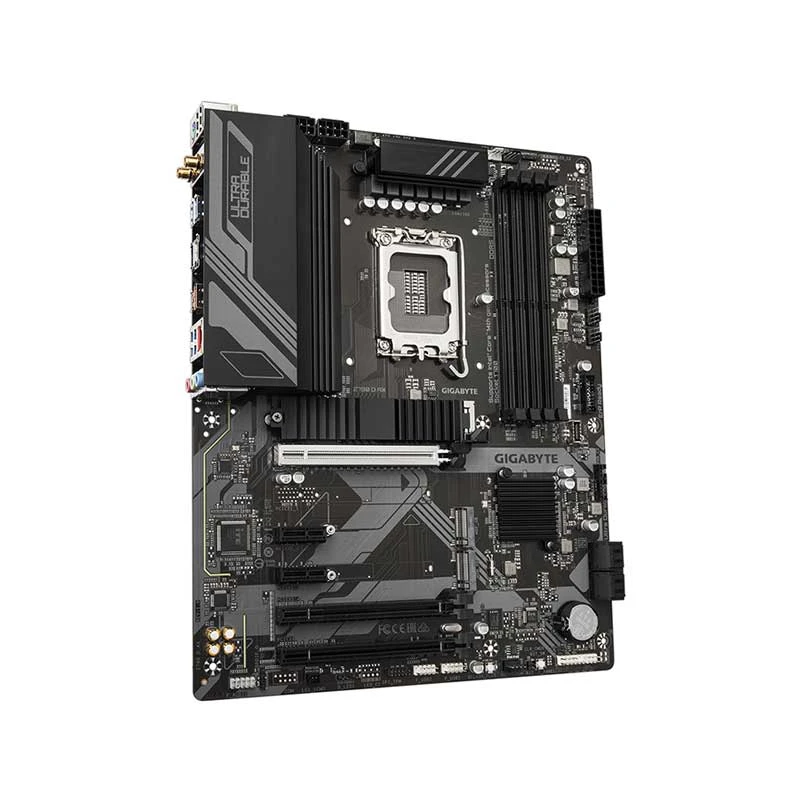

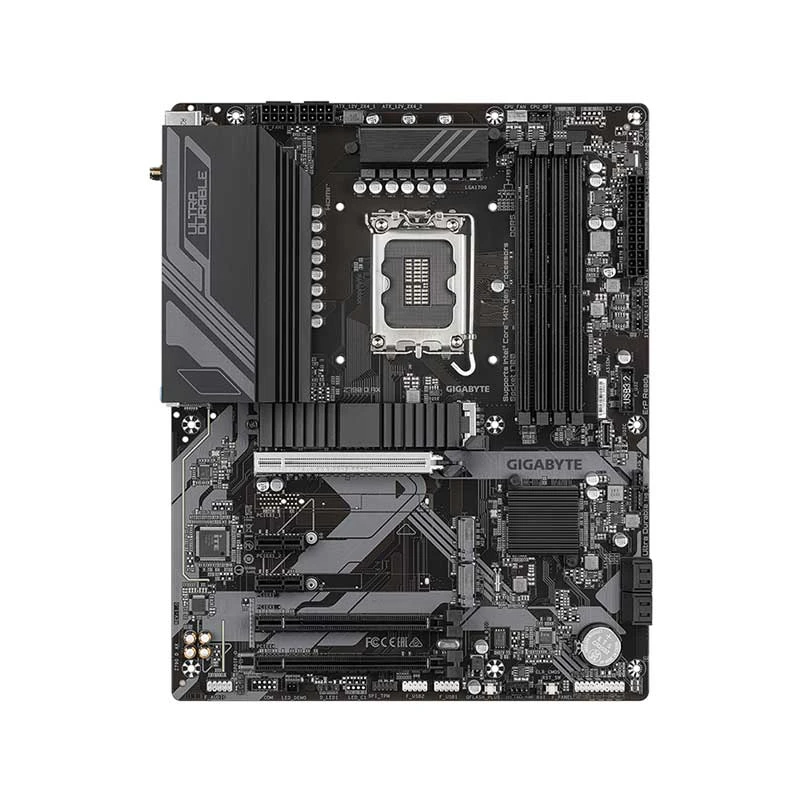

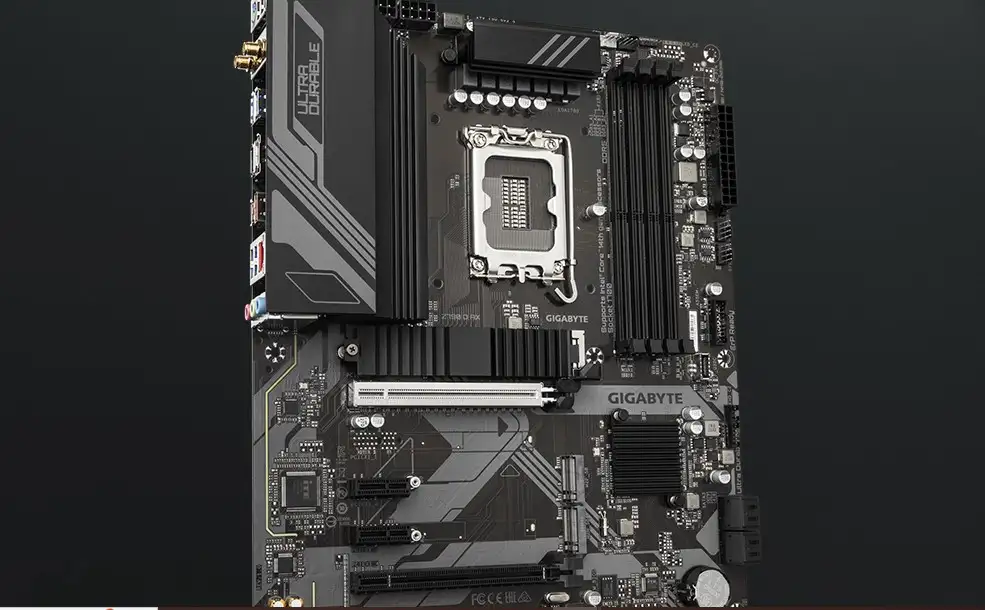

Gigabyte Z790 D AX (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
3 x M.2 (1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4), 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
Bluetooth
Bluetooth 5.3
Ports
USB Port
2 x USB 2.0/1.1 Type-A, 4 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB 3.2 Gen 2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x Addressable LED strip headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model

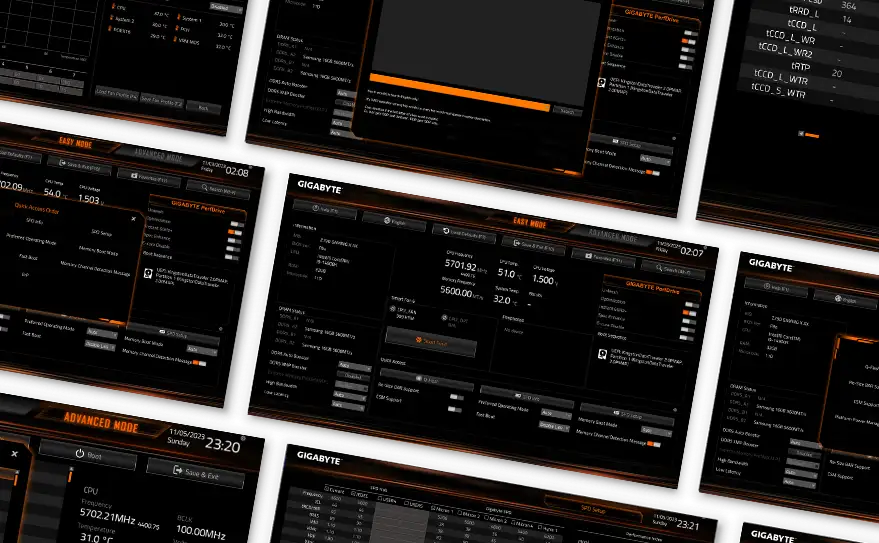

AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
12th/13th/14th Gen Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors in the LGA1700
Warranty
Warranty Details
3 year
Additional Info
Feature
H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Durable Performance.
Others

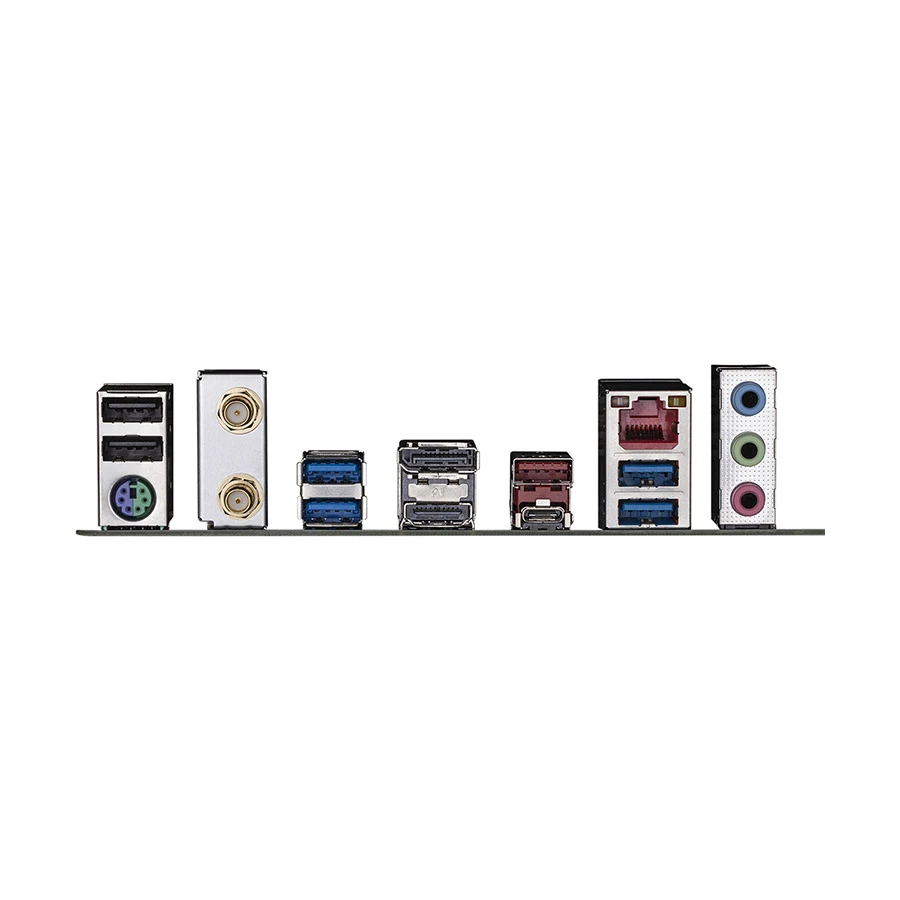

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x RJ-45 port, 3 x audio jacks, High Definition Audio, iTE I/O Controller Chip.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
