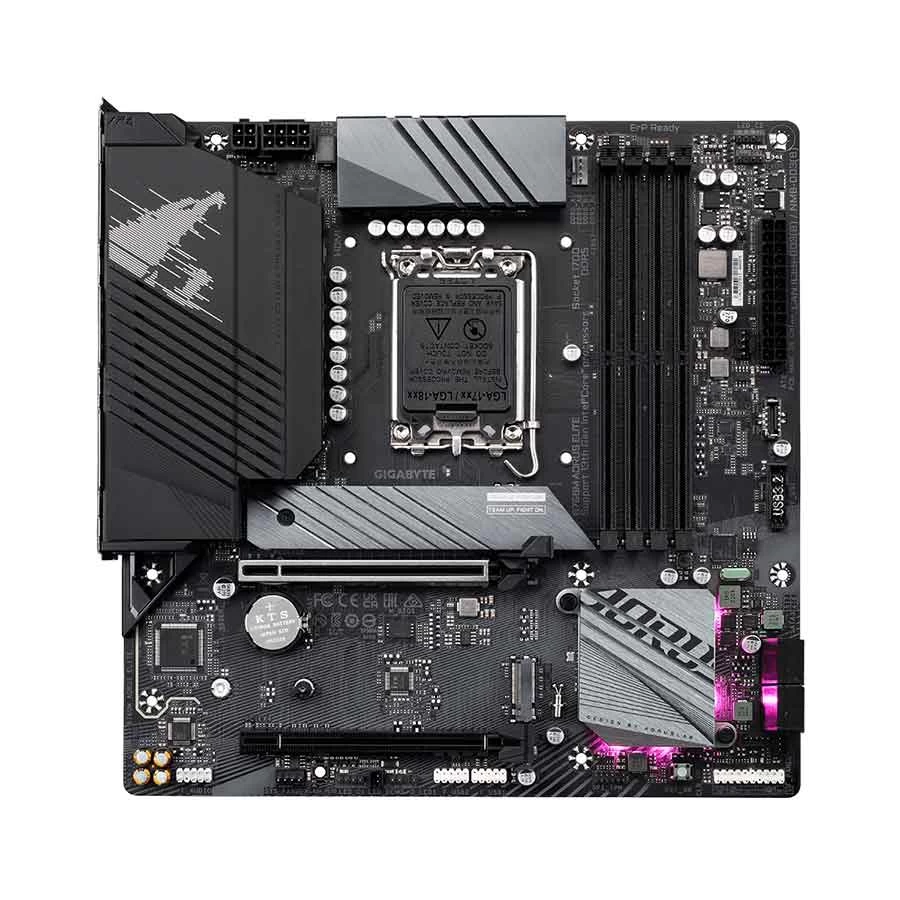

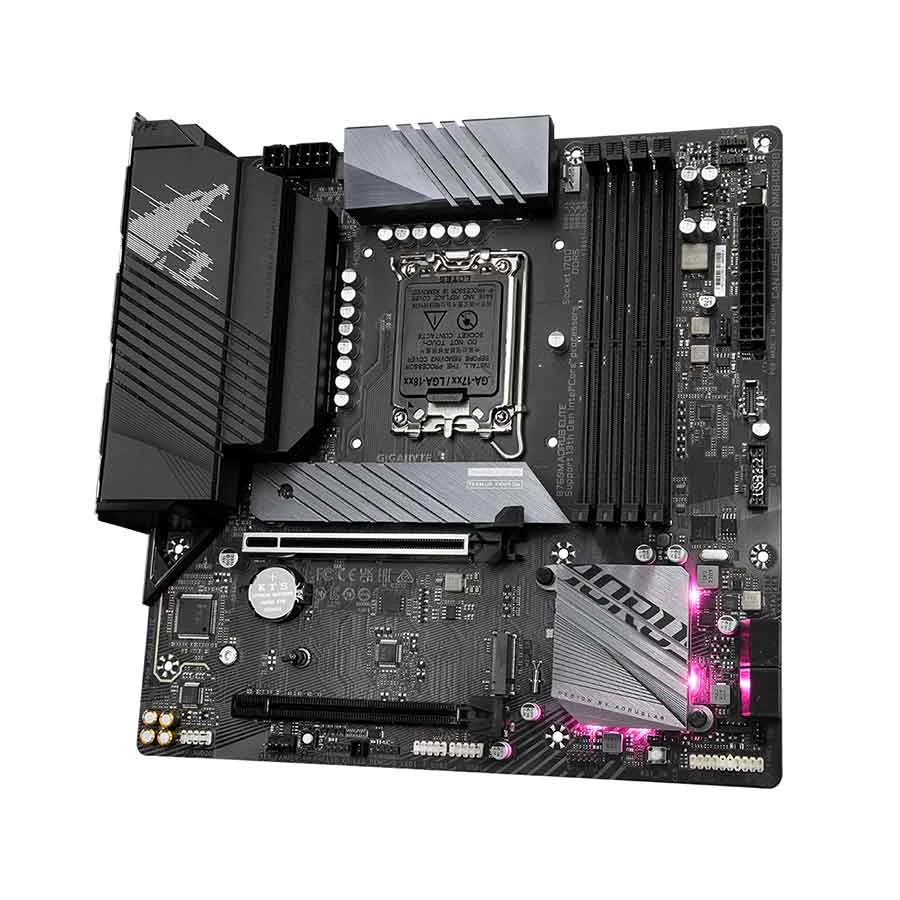

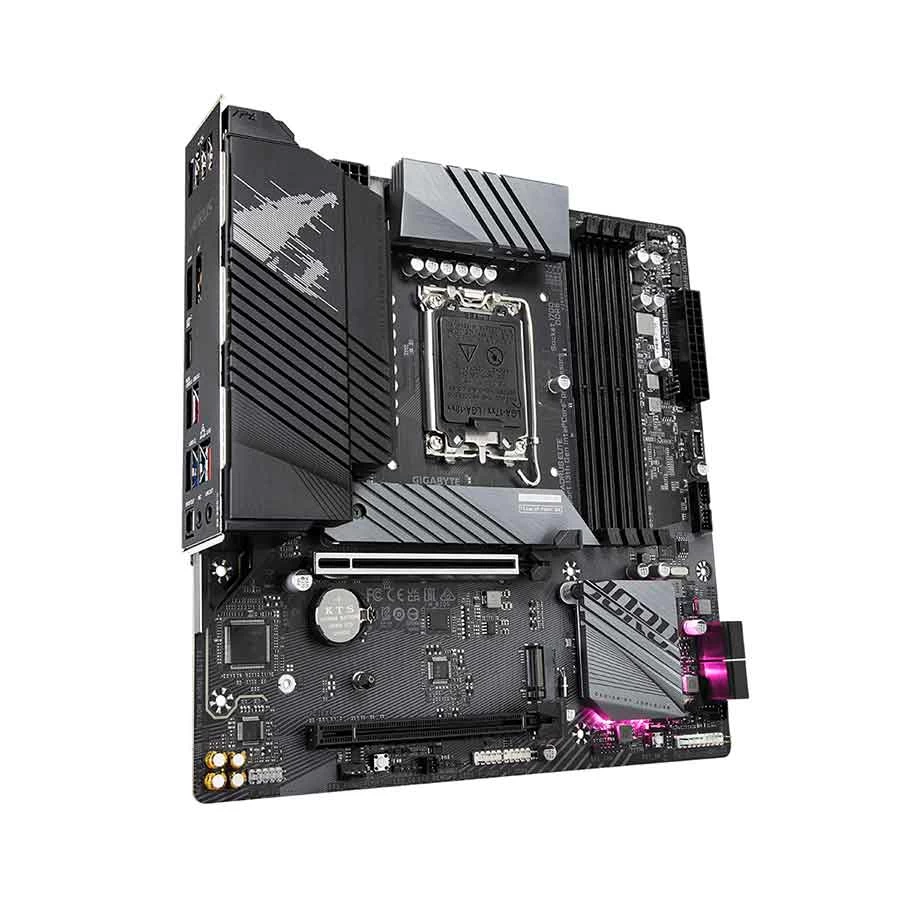

Gigabyte B760M AORUS ELITE DDR5 Gen Intel Gaming Motherboard
Product Id: 02.01.018.498
Brand
Gigabyte
Regular Price Tk 24,630
Monthly EMI Tk 2,053
Special Price Tk 22,800
Quick Overview
- Chipset - Intel B760
- Memory Max. - 192GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
General
Brand
Gigabyte
Model
Gigabyte B760M AORUS ELITE
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz ECC & non-ECC Un-buffered
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DDR5
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red). 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
Technical Info
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Connector
2 x RGB LED strip headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10 / 11 64-bit
Compatible Products
Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus.
Others

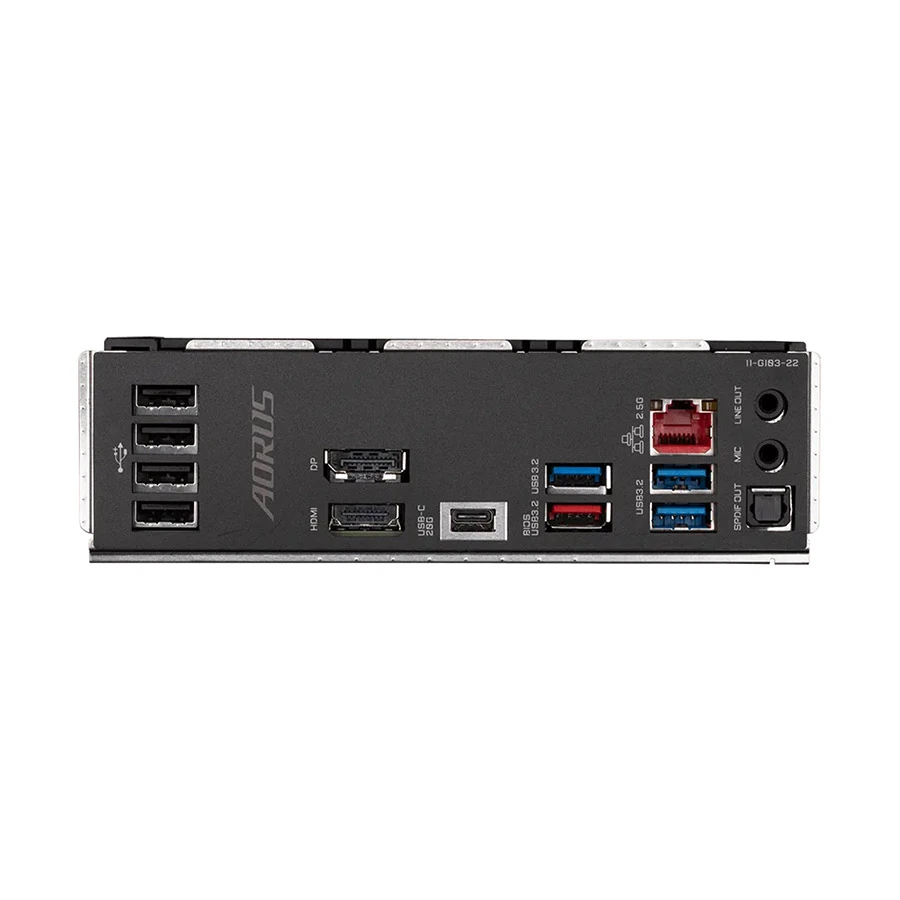

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Internal I/O Connectors : 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper. Back Panel Connectors - 1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte B760M AORUS ELITE Motherboard In Bangladesh
Gigabyte B760M AORUS ELITE DDR5 12th/13th Gen Intel Gaming Motherboard
- Intel Socket LGA 1700：Support 14th, 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
What is the price of Gigabyte B760M AORUS ELITE Motherboard In Bangladesh?
The price of Gigabyte B760M AORUS ELITE Motherboard starts from 22,800 . The price may vary due to your customization and product availability. You can buy Gigabyte B760M AORUS ELITE Motherboard from our website or visit our showrooms nearby.
