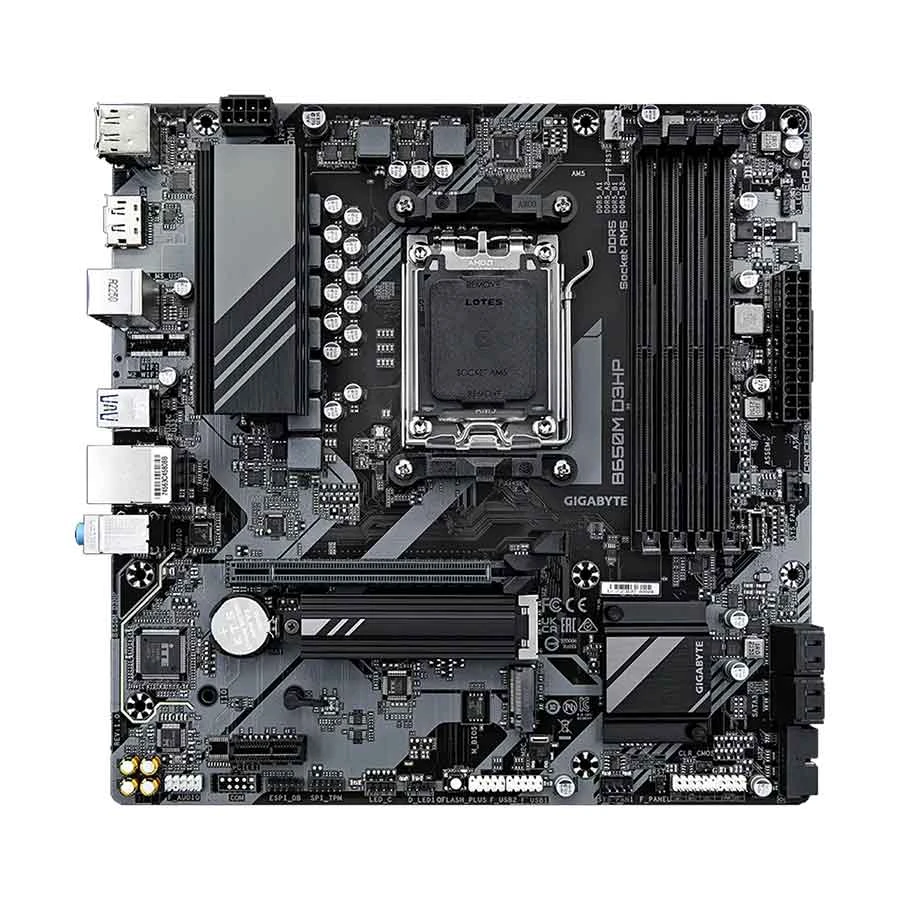

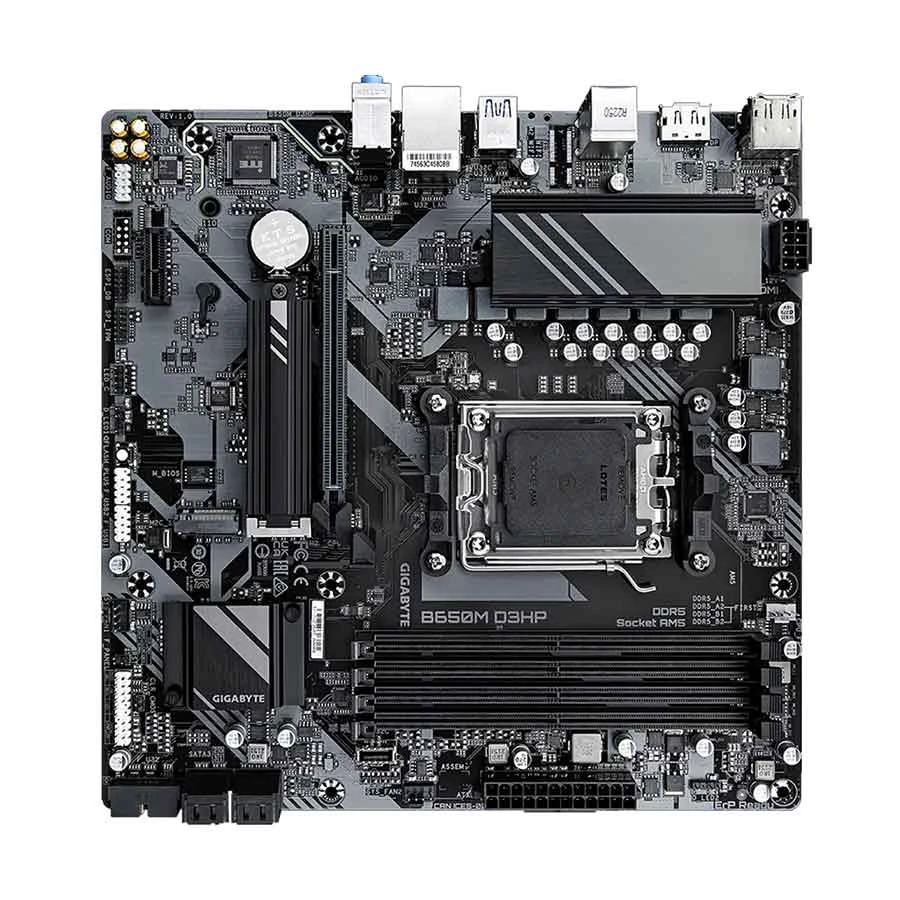

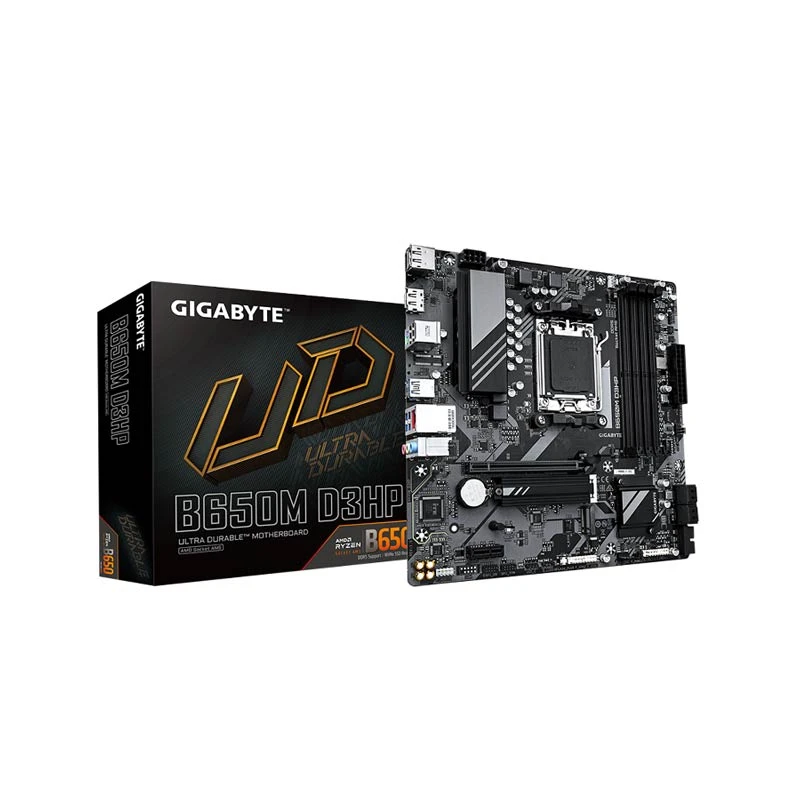

Gigabyte B650M D3HP DDR5 AMD Motherboard

Product Id: 02.02.018.510

Brand Gigabyte

Regular Price Tk 23,650 Monthly EMI Tk 1,971
Special Price Tk 22,000

Quick Overview

  • Chipset - AMD B650
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - AM5
  • Supported CPU - Ryzen 7000 / Ryzen 8000 Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B650M D3HP

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B650

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
Ryzen 7000 / Ryzen 8000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules, non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 ((1 x M.2 (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs), (1 x M.2 (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs))


Graphics
Graphics
Integrated

Graphics Chipset
AMD Radeon Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
1 x USB Type-C port, with USB 3.2 Gen 1 support, 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
2

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0 , 1 , 10

RGB Support
RGB

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, Windows 11

Compatible Products
Ryzen 5 8600G, Ryzen 5 7500F, Ryzen 5 7600, Ryzen 7 7700, Ryzen 5 7600X, Ryzen 7000/ Ryzen 8000 Series


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors, Unparalleled Performance: 5+2+2 Phases Digital VRM Solution, Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support, SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector, EZ-Latch: PCIe x16 Slot with Quick Release Design, Fast Networks: 2.5GbE LAN, Extended Connectivity: 2 x DP, HDMI, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
